2V0-32.22 VMware Cloud Operations 8.x Professional Questions and Answers

The administrator should deploy the vRealize Operations analytics cluster using vRealize Suite Lifecycle Manager (vRSLCM) . vRSLCM simplifies the deployment and management of vRealize Suite products, including vRealize Operations. It allows the administrator to deploy a 3-node High Availability cluster with custom CA-signed certificates in a streamlined manner.

Here's why the other options are not suitable:

A. Deploy 3 nodes independently, replace certificates and then form the 3-node cluster: This approach is more complex and prone to errors. It involves manual configuration and certificate replacement on each node.

B. Deploy a single node cluster at the beginning to further expand it to 3 nodes in the next step: While possible, this method is not as efficient as deploying a 3-node cluster directly using vRSLCM.

C. Deploy vRealize Operations analytics cluster using Command Line Interface: Deploying using the CLI requires more expertise and manual intervention compared to using vRSLCM.

vRSLCM provides a centralized platform for managing the entire lifecycle of vRealize Suite products, including deployment, configuration, and upgrades. It simplifies the process of deploying a 3-node High Availability cluster of vRealize Operations with custom CA-signed certificates, ensuring a secure and efficient deployment.

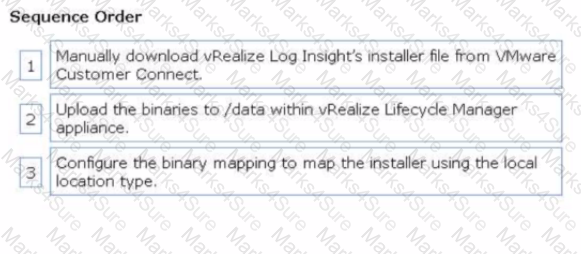

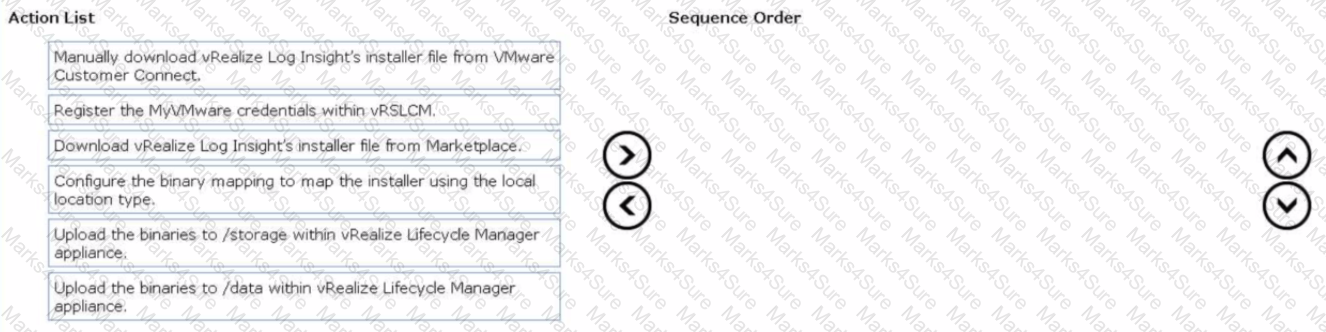

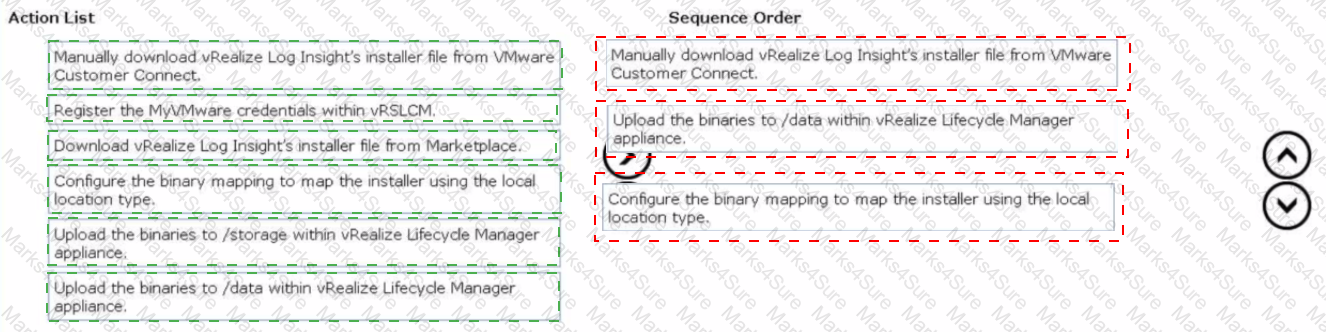

 Manually download vRealize Log Insight’s installer file from VMware Customer Connect:

In an environment without internet connectivity, the installer file must be manually downloaded from VMware Customer Connect to your local system.

 Upload the binaries to /data within vRealize Lifecycle Manager appliance:

After obtaining the installer file, upload the binaries to the /data directory in the vRSLCM appliance. This ensures the installer is locally available.

 Configure the binary mapping to map the installer using the local location type:

Map the uploaded installer binaries in vRSLCM using the local location type so that vRSLCM can reference the binaries during the installation process.

To add a new FQDN of vRealize Suite Lifecycle Manager in the VMware Identity Manager catalog, the administrator needs to sync the FQDN and re-register with VMware Identity Manager . This involves updating the FQDN in vRealize Suite Lifecycle Manager and then initiating a synchronization process with VMware Identity Manager to reflect the changes in the catalog.

Deploying vRealize Operations (vROps) with resilience and minimal resource consumption requires careful consideration of the deployment architecture. To meet the requirements of consuming minimal cluster compute resources while ensuring resilience against a single node failure, deploying vROps as a cluster with High Availability (HA) enabled is the optimal choice.

Understanding vROps High Availability (HA):

Architecture: In an HA configuration, vROps operates with a primary node and a replica node, along with data nodes as needed. The replica node mirrors the primary node's data, ensuring continuity in case of a failure.

Resource Efficiency: Enabling HA adds redundancy with minimal additional resource overhead compared to other high-availability configurations.

Failure Resilience: With HA enabled, if the primary node fails, the replica node seamlessly takes over, maintaining operational continuity without data loss.

Deployment Steps:

Initial Deployment:

Deploy the primary vROps node.

Add a replica node to enable HA.

Include additional data nodes if necessary, based on environment size and requirements.

Enable High Availability:

Access the vROps administration interface.

Navigate to the Cluster Management settings.

Enable the High Availability option.

Validation:

Ensure that the cluster status indicates HA is active.

Verify that the replica node is synchronized with the primary node.

Benefits of This Approach:

Minimal Resource Consumption: Deploying a primary and a replica node, with HA enabled, uses fewer resources compared to configurations like Continuous Availability (CA), which require more nodes and higher resource allocation.

Resilience: The HA setup ensures that the system can withstand a single node failure without service disruption, meeting the specified resilience requirement.

References:

For detailed information on vROps deployment and HA configuration, consult VMware's official documentation:

vRealize Operations Manager High Availability Configuration

Deploying vRealize Operations Manager

VMware Skyline proactively identifies potential problems and helps improve resolution time by collecting, aggregating, and analyzing product usage data. 1 This allows it to provide recommendations and insights to avoid issues and optimize your environment. 2

When managing content between two vRealize Operations instances using vRealize Suite Lifecycle Manager (vRSLCM), encountering issues during content release to the second instance can arise due to several factors. Two possible causes include:

Insufficient Endpoint Configuration:

Policy Configuration: If only the policy "Allow content to be captured from this endpoint" is configured for both vRealize Operations endpoints, it permits content capture but does not authorize content release. To enable content release, the policy "Allow content to be released to this endpoint" must also be configured. Without this policy, vRSLCM cannot deploy content to the target endpoint, leading to release failures.

Version Compatibility Issues:

Version Mismatch: Content release between different versions of vRealize Operations Manager may encounter compatibility issues. Features or content types available in one version might not be supported in another, causing release processes to fail. Ensuring both vRealize Operations instances are running compatible versions is crucial for seamless content management.

When deploying vRealize Operations using vRealize Suite Lifecycle Manager (vRSLCM), it's essential to ensure the following:

Product Binary Availability:

Ensure that the vRealize Operations product binary is present in vRSLCM. This can be done by checking the Product Binaries section within vRSLCM. If the binary is not available, it must be downloaded and added to vRSLCM before proceeding with the deployment.

Adequate Licensing:

Verify that you have obtained the appropriate vRealize Suite or vRealize Operations licenses that meet the requirements of your deployment design. This includes ensuring that the license edition (Standard, Advanced, or Enterprise) aligns with the features you intend to use and that the license quantity covers the scope of your environment.

By confirming these prerequisites, you can facilitate a smooth deployment of vRealize Operations through vRSLCM.

When capturing content from a vRealize Operations endpoint in vRealize Lifecycle Manager, the following statements are correct regarding content sync:

A. An auto refresh of content list runs in the background every 15 minutes : vRealize Lifecycle Manager automatically refreshes the content list in the background every 15 minutes to ensure that the displayed content is up-to-date.

D. The UI retrieves the content from the endpoint when listing the content for the first time : When you initially access the content list for a vRealize Operations endpoint, vRealize Lifecycle Manager retrieves the content from the endpoint.

E. Select the "Get latest" content option to retrieve the content in between automatic sync timers : If you need to refresh the content list before the next automatic sync, you can manually retrieve the latest content by selecting the "Get latest" option.

The following statements are incorrect:

B. The UI retrieves the content every time from the endpoint when opening the endpoint: The UI only retrieves the content from the endpoint for the initial listing and subsequent automatic refreshes.

C. An auto refresh of content list runs in the background every 30 minutes: The automatic refresh occurs every 15 minutes, not 30 minutes.

F. Select the "Get latest" content option to retrieve the content, before the initial sync: The "Get latest" option is used to refresh the content after the initial sync has already occurred.

To replace the SSL certificate for a vRealize Log Insight (vRLI) deployment using vRealize Suite Lifecycle Manager (vRSLCM), the administrator must have the appropriate roles assigned within vRSLCM. The two roles that enable certificate management tasks are:

LCM Cloud Admin:

Description: This role grants administrative privileges within vRSLCM, including the ability to manage and replace SSL certificates for integrated products like vRLI.

Responsibilities:

Overseeing lifecycle operations for cloud management products.

Managing configurations and performing administrative tasks within vRSLCM.

Certificate Administrator:

Description: This role specifically focuses on certificate management within vRSLCM, allowing the user to import, export, and replace SSL certificates for managed products.

Responsibilities:

Handling certificate-related operations, including replacements and renewals.

Ensuring that all managed products have up-to-date and valid SSL certificates.

Without these roles, the administrator may lack the necessary permissions to access the certificate management features in vRSLCM, thereby hindering the SSL certificate replacement process for vRLI.

References:

For detailed information on role assignments and permissions in vRSLCM, refer to VMware's official documentation:

Change Certificate for vRealize Suite Lifecycle Manager

vRealize Suite Lifecycle Manager (vRSLCM) requires static IP addresses for deploying products, including vRealize Log Insight. This ensures consistent network configuration and reliable communication between deployed components. Using DHCP can lead to IP address changes, causing potential connectivity issues.

Key Points:

Static IP Requirement: All product deployments via vRSLCM necessitate static IP addresses to maintain network stability and manageability.

Deployment Configuration: During the deployment process, you'll be prompted to enter network details, including IP addresses, which should be static to comply with best practices.

Adhering to this requirement ensures that your vRealize Log Insight deployment operates smoothly within your network infrastructure.

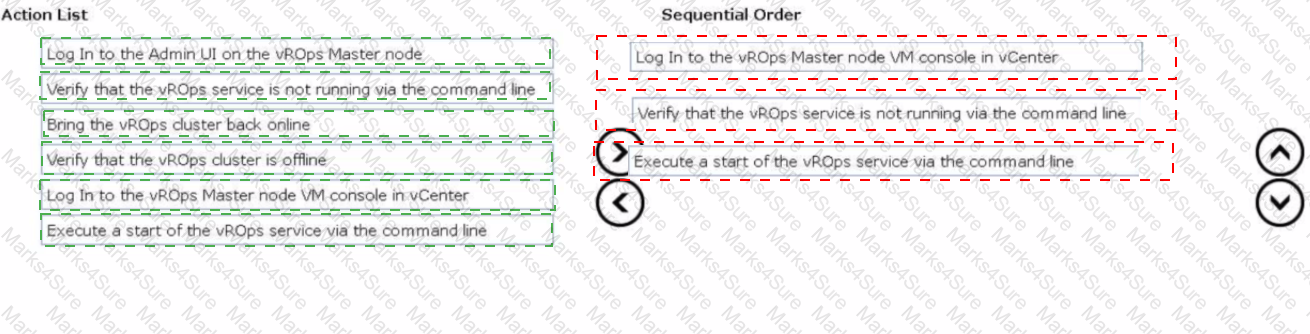

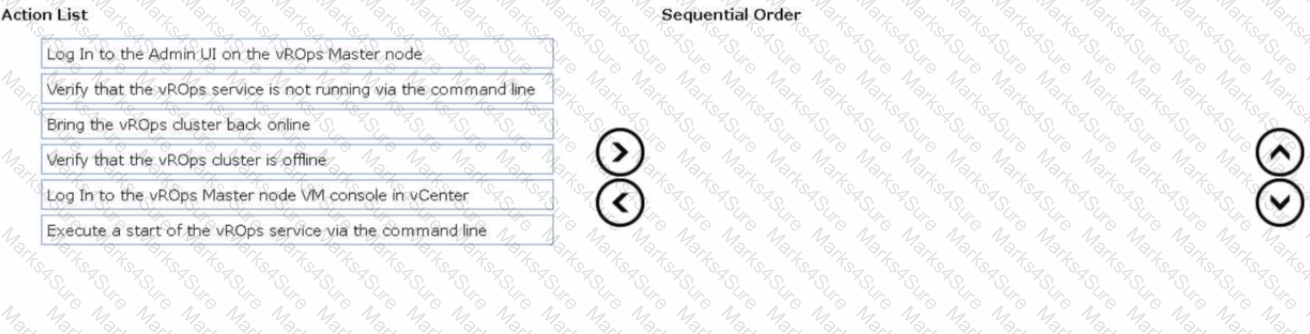

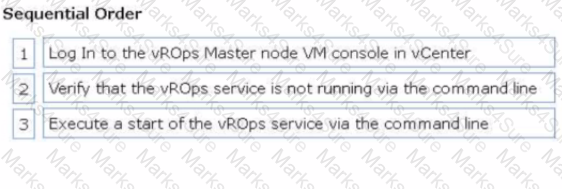

Log in to the vROps Master node VM console in vCenter:

Since the vROps cluster is offline, direct access to the Master node's console in vCenter is required for troubleshooting.

Verify that the vROps service is not running via the command line:

From the Master node console, check the status of the vROps service to confirm that it is not running. Use the appropriate command (e.g., service vmware-vcops status or similar).

Execute a start of the vROps service via the command line:

Start the vROps service using the command line (service vmware-vcops start) to bring the cluster back online.

When updating a Content Pack in vRealize Log Insight that includes user modifications, it's essential to preserve these custom changes to prevent data loss. The recommended approach is to export your modifications as a Content Pack before performing the update. After the update is completed, you can import these changes back into your user profile. This ensures that your custom configurations are retained post-update.

Procedure:

Export User Modifications:

Navigate to the vRealize Log Insight web user interface.

Go to the Content Packs section.

Select the custom content or modifications you've made.

Click on Export Content to save your modifications as a Content Pack.

Update the Content Pack:

In the Content Packs section, check for available updates.

If updates are available, proceed to update the desired Content Pack.

Import User Modifications:

After the update is complete, return to the Content Packs section.

Click on Import Content.

Select the previously exported Content Pack containing your modifications.

Import it back into your user profile to restore your custom settings.

This process ensures that any user-specific customizations are preserved during Content Pack updates. For more detailed information, refer to VMware's official documentation on updating installed Content Packs

To ensure vRealize Suite Lifecycle Manager (vRSLCM) is upgraded to the correct version for a phased upgrade of the vRealize Suite, follow these steps:

C. Use the Online repository for the source of the upgrade files : Utilize the online repository within vRSLCM to access the available upgrade files. This ensures you have the latest versions and necessary components for the upgrade.

D. Download the vRealize Suite Lifecycle Manager Upgrade ISO : Download the specific vRSLCM Upgrade ISO that corresponds to the desired target version. This ISO contains the necessary files for the upgrade process.

F. Update to the latest Product Support Pack in vRSLCM : Before upgrading to a new version, ensure vRSLCM is updated to the latest Product Support Pack. This ensures compatibility and addresses any known issues.

The following options are not necessary or recommended:

A. Connect the ISO to the vRSLCM Appliance as a Virtual CD-ROM: While this was a common method in older versions, it's not the preferred approach for upgrading vRSLCM.

B. Use the CD-ROM repository for the source of the upgrade files: Using a CD-ROM repository is not as efficient or convenient as using the online repository.

E. Download the vRealize Suite Lifecycle Manager Easy installer ISO: The Easy Installer ISO is used for initial installation, not for upgrading vRSLCM.

The OS and Application Monitoring management pack in vRealize Operations collects the following guest information properties for all created objects:

OS Build Number: This identifies the specific build of the operating system running on the guest VM.

OS Version: This indicates the version of the operating system, such as Windows Server 2019 or Red Hat Enterprise Linux 8.

Hostname: This provides the hostname assigned to the guest VM, allowing for easy identification and management.

vRealize Log Insight offers flexible deployment architectures to suit various needs.

Single node deployment with no load balancer : This is suitable for smaller environments with limited log volume. A single vRealize Log Insight node handles all log management tasks.

Three node deployment with an external load balancer : This architecture provides high availability and scalability. An external load balancer distributes incoming traffic across the nodes. This offers flexibility in load balancer selection and configuration.

Clustered deployment with integrated load balancer : This architecture also provides high availability and scalability. In this configuration, a minimum of three vRealize Log Insight nodes are deployed. The integrated load balancer distributes incoming log traffic across the nodes, preventing a single point of failure.

The following architectures are not valid for vRealize Log Insight:

Ten node deployment with the integrated load balancer: The maximum number of nodes in a cluster is limited, and ten nodes with an integrated load balancer is not a supported configuration.

Single node deployment with an external load balancer: A single node deployment does not require a load balancer.

Single node deployment with the integrated load balancer: The integrated load balancer is designed for clustered deployments with a minimum of three nodes.

Two node deployment with the integrated load balancer: The integrated load balancer requires a minimum of three nodes for cluster functionality.
