2V0-41.23 VMware NSX 4.x Professional Questions and Answers

 The NSX Application Platform Deployment features are divided into three form factors: Evaluation, Standard, and Advanced. Each form factor determines which NSX features can be activated or installed on the platform1. The Evaluation form factor supports only NSX Intelligence, which provides network visibility and analytics for NSX-T environments2. The Standard form factor supports both NSX Intelligence and NSX Network Detection and Response, which provides network threat detection and response capabilities for NSX-T environments3. The Advanced form factor supports all four features: NSX Intelligence, NSX Network Detection and Response, NSX Malware Prevention, and NSX Metrics1.

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/nsx-application-platform/GUID-85CD2728-8081-45CE-9A4A-D72F49779D6A.html

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/nsx-application-platform/GUID-42EDE0AD-CD65-41AC-9694-AD0CCEC35969.html

according to the VMware NSX Documentation, these are the three parameters that must match in order to establish an OSPF neighbor relationship with an upstream router on a tier-0 gateway:

• MTU of the Uplink: The maximum transmission unit (MTU) of the uplink interface must match the MTU of the upstream router interface. Otherwise, OSPF packets may be fragmented or dropped, causing neighbor adjacency issues.
• Subnet mask: The subnet mask of the uplink interface must match the subnet mask of the upstream router interface. Otherwise, OSPF packets may not reach the correct destination or be rejected by the upstream router.
• Area ID: The area ID of the uplink interface must match the area ID of the upstream router interface. Otherwise, OSPF packets may be ignored or discarded by the upstream router.

https://www.computernetworkingnotes.com/ccna-study-guide/ospf-neighborship-condition-and-requirement.html

https://docs.vmware.com/en/VMware-Validated-Design/5.0.1/com.vmware.vvd.sddc-nsxt-domain-deploy.doc/GUID-B7019BCE-4FA1-40BB-8DC2-EE47967A47F1.html

You can replace the certificate for a manager node or the manager cluster virtual IP (VIP) by making an API call: • To replace the certificate of a manager node, use the POST API call: https:// /api/v1/node/services/http?action=apply_certificate&certificate_id= • To replace the certificate of the manager cluster VIP, use the POST API call: https:// /api/v1/cluster/api-certificate?action=set_cluster_certificate&certificate_id=

The two interfaces that will be used for ingress traffic on the Edge node supporting a Single Tier topology are:

• B. Tier-0 Uplink interface
• C. Downlink Interface for the Tier-0 DR

The Tier-0 Uplink interface is the interface that connects the Tier-0 gateway to the external network. It is used to receive traffic from the physical router or switch that is the next hop for the Tier-0 gateway. The Tier-0 Uplink interface can be configured with a static IP address or use BGP to exchange routes with the external network.

The Downlink Interface for the Tier-0 DR is the interface that connects the Tier-0 gateway to the workload segments. It is used to receive traffic from the VMs or containers that are attached to the segments. The Downlink Interface for the Tier-0 DR is a logical interface (LIF) that is distributed across all transport nodes that host the segments. The Downlink Interface for the Tier-0 DR has an IP address that acts as the default gateway for the VMs or containers on the segments.

The service interface is a special-purpose port to enable services for mainly VLAN-based networks. North-south service insertion is another use case that requires a service interface to connect a partner appliance and redirect north-south traffic for partner services. Service interfaces are supported on both active-standby Tier-0 logical routers and Tier-1 routers. Firewall, NAT, and VPNs are supported on this interface. The service interface is also a downlink

The following L2 VPN clients are recommended:

1. NSX Managed NSX Edge in a separate NSX Managed environment.

• Overlay and VLAN segments can be extended.

2. Autonomous Edge:

• Enables L2 VPN access from a non-a NSX environment to NSX environments.

• Deployed by using an OVF file on a host that is not managed by NSX.

• Only VLAN segments can be extended.

NSX supports two types of authentication, authorization, and accounting (AAA) systems when integrating with VMware Identity Manager: RSA SecurID and LDAP and OpenLDAP based on Active Directory (AD). RSA SecurID is a two-factor authentication system that uses a token-based approach to verify the identity of users. LDAP and OpenLDAP based on AD are directory services that store and manage user information and credentials. Both systems can be used to provide centralized authentication for users who want to access applications in an NSX environment .

https://blogs.vmware.com/networkvirtualization/2017/11/remote-user-authentication-and-rbac-with-nsx-t.html

The integration of VMware Identity Manager with NSX provides the following benefits related to user authentication:

• Support for extensive authentication, authorization, and accounting (AAA) systems, including:

— RADIUS

— Smart cards and common access cards

— RSA SecureID

— LDAP and OpenLDAP based on Active Directory (AD)

• Enterprise SSO:

— Common authentication platform across multiple VMware solutions

— Seamless SSO experience

NSX has its own native LDAP and Active Directory integration, but VMware Identity Manager also offers this capability

Through the NSX UI. According to the VMware NSX Documentation2, you can deploy NSX Edge nodes as virtual appliances through the NSX UI by clicking Add Edge Node and providing the required information. The other options are either outdated or not applicable for virtual NSX Edge nodes.

https://docs.vmware.com/en/VMware-NSX/4.1/installation/GUID-E9A01C68-93E7-4140-B306-19CD6806199F.html

L2 VPN is a feature of NSX that allows extending Layer 2 networks across different sites or clouds over an IPsec tunnel. L2 VPN has an advantage of enabling VM mobility with re-IP, which means that VMs can be moved from one site to another without changing their IP addresses or network configurations. This is possible because L2 VPN allows both sites to use the same broadcast domain, which means that they share the same subnet and VLAN .

 Unicast is the traffic type that an NSX administrator should use for validating connectivity between App and DB virtual machines that reside on different segments. According to the VMware documentation1, unicast traffic is the traffic type that is used to send a packet from one source to one destination. Unicast traffic is the most common type of traffic in a network, and it is used for applications such as web browsing, email, file transfer, and so on2. To perform a traceflow with unicast traffic, the NSX administrator needs to specify the source and destination IP addresses, and optionally the protocol and related parameters1. The traceflow will show the path of the packet across the network and any observations or errors along the way3. The other options are incorrect because they are not suitable for validating connectivity between two specific virtual machines. Multicast traffic is the traffic type that is used to send a packet from one source to multiple destinations simultaneously2. Multicast traffic is used for applications such as video streaming, online gaming, and group communication4. To perform a traceflow with multicast traffic, the NSX administrator needs to specify the source IP address and the destination multicast IP address1. Broadcast traffic is the traffic type that is used to send a packet from one source to all devices on the same subnet2. Broadcast traffic is used for applications such as ARP, DHCP, and network discovery. To perform a traceflow with broadcast traffic, the NSX administrator needs to specify the source IP address and the destination MAC address as FF:FF:FF:FF:FF:FF1. Anycast traffic is not a valid option, as it is not supported by NSX Traceflow. Anycast traffic is a traffic type that is used to send a packet from one source to the nearest or best destination among a group of devices that share the same IP address. Anycast traffic is used for applications such as DNS, CDN, and load balancing.

https://docs.vmware.com/en/VMware-NSX/4.0/administration/GUID-D57429A1-A0A9-42BE-A299-0C3C3546ABF3.html

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-69604E49-BC8B-4777-BFD8-B98F8D1FF064.html

The sequence of commands that could be used to check the BGP connection status between the Tier-O Gateway and the upstream physical router on NSX Edge node is get gateways, vrf , get bgp neighbor. These commands can be executed on the NSX Edge node CLI after logging in as admin6. The first command, get gateways, displays the list of logical routers (gateways) configured on the Edge node, along with their IDs and VRF numbers7. The second command, vrf , switches to the VRF context of the desired Tier-O Gateway, where is the VRF number obtained from the previous command7. The third command, get bgp neighbor, displays the BGP neighbor summary for the selected VRF, including the neighbor IP address, AS number, state, uptime, and prefixes received8. The other options are incorrect because they either use invalid or incomplete commands or do not switch to the correct VRF context. References: NSX-T Command-Line Interface Reference, NSX Edge Node CLI Commands, Troubleshooting BGP on NSX-T Edge Nodes

According to the VMware NSX Documentation, these are the two places where you need to configure the VLANs used in VRF Lite:

• Uplink trunk segment: This is a segment that connects a tier-0 gateway to a physical network using multiple VLAN tags. You need to configure the VLAN IDs for each VRF on this segment.
• Uplink interface of the VRF gateway: This is an interface that connects a VRF gateway to an uplink trunk segment using a specific VLAN tag. You need to configure the VLAN ID for each VRF on this interface.

https://vdc-download.vmware.com/vmwb-repository/dcr-public/c3fd9cef-6b2b-4772-93be-3fe60ce064a1/1f67b9e1-b111-4de7-9ea1-39931d28f560/NSX-T%20Command-Line%20Interface%20Reference.html#get%20logical-switch%20%3Clogical-switch-id%3E

According to the VMware NSX 4.x Professional documents and tutorials, BFD is a failover detection protocol that provides fast and reliable detection of link failures between two routing devices. BFD can be used with ECMP routing to monitor the health of the ECMP paths and trigger a route change in case of a failure12. BFD is supported by both BGP and OSPF routing protocols in NSX-T3. BFD can also be configured with different timers to achieve different detection times3.

The insertion point for East-West network introspection is the Guest VM vNIC. Network introspection is a service insertion feature that allows third-party network services to be integrated with NSX. Network introspection enables traffic redirection from the Guest VM vNIC to a service virtual machine (SVM) that runs the partner service. The SVM can then inspect, monitor, or modify the traffic before sending it back to the original destination1. The other options are incorrect because they are not the insertion points for East-West network introspection. The Tier-0 router is used for North-South routing and network services. The partner SVM is the service virtual machine that runs the partner service, not the insertion point. The host physical NIC is not involved in network introspection. References: Network Introspection Settings

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-EAAD1FBE-F750-4A5A-A3BF-92B1E7D016FE.html

Route-based VPN is a VPN type that uses Virtual Tunnel interfaces (VTI) to establish IPSec tunnels between an NSX Edge node and remote sites2. A VTI is a logical interface that is assigned an IP address and is associated with a physical or virtual interface. The VTI acts as an end point of the IPSec tunnel and routes traffic between the NSX Edge node and the remote site2. Route & SSL based VPNs, Policy & Route based VPNs, and SSL-based VPN are not VPN types that use VTI. References: Virtual Private Network (VPN)

According to the VMware NSX Documentation, this VPN type must be configured before enabling a L2VPN. L2VPN stands for Layer 2 VPN and is a feature that allows you to extend your layer 2 network across different sites using an IPSec tunnel. Route-based IPSec VPN is a VPN type that uses logical router ports to establish IPSec tunnels between sites.

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-86C8D6BB-F185-46DC-828C-1E1876B854E8.html

https://docs.vmware.com/en/VMware-NSX/4.1/administration/GUID-26C44DE8-1854-4B06-B6DA-A2FD426CDF44.html

According to the VMware NSX CLI Reference Guide, this CLI command shows the syslog messages on the NSX Manager node. You can use this command to view the system logs for troubleshooting or monitoring purposes.

The other options are either incorrect or not available for this task. get log-file auth.log is a CLI command that shows the authentication logs on the NSX Manager node, not the syslog messages. /var/log/syslog/syslog.log is not a CLI command, but a file path that may contain syslog messages on some Linux systems, but not on the NSX Manager node. show log manager follow is not a valid CLI command, as there is no show log command or manager option in the NSX CLI.

## NSX Cli command

get log-file

get log-file follow

# Below are commonly used log files, there are many more log files

get log-file [follow]

# use [follow] to continuing monitor

Example: get log-file syslog follow

get log-file syslog

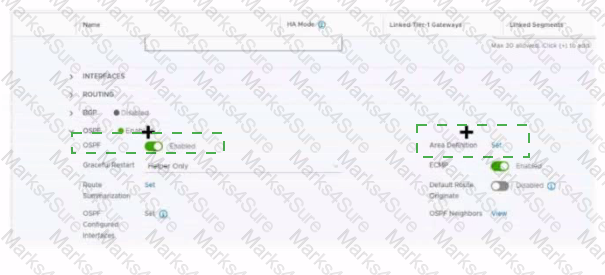

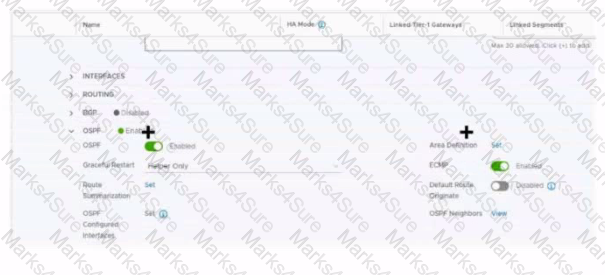

The correct answer is to enable the OSPF toggle and to add an Area Definition for the Tier-0 gateway in the image. These two items are required to configure OSPF on the Tier-0 gateway, as explained in the web search results123.

To mark your answers by clicking twice on the image, you can double-click on the toggle switch next to OSPF to turn it on. The switch should change from gray to blue, indicating that the option is enabled. Then, you can double-click on the Set button next to Area Definition to add an area definition. A pop-up window should appear where you can specify the area ID and type.

1. Click the OSPF toggle to enable OSPF 2. In the Area Definition field, click Set to add an area definition https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-5BEC626C-5312-467D-B873-8E117349E9FC.html

To enable stateful active-active SNAT on a Tier-0 or Tier-1 gateway, you must configure an Interface Group for the NSX Edge uplinks. An Interface Group is a logical grouping of NSX Edge interfaces that belong to the same failure domain. A failure domain is a set of NSX Edge nodes that share the same physical network infrastructure and are subject to the same network failures. By configuring an Interface Group, you can ensure that the stateful services are distributed across different failure domains and can recover from network failures1

According to the VMware NSX 4.x Professional documents and tutorials, a RouterLink port is a logical port that connects a Tier-1 gateway to a Tier-0 gateway. This port is automatically created when a Tier-1 gateway is associated with a Tier-0 gateway from the NSX UI or API. The RouterLink port enables routing between the two gateways and carries all the routing protocols and traffic. There is no need to manually create a logical switch or segment for this purpose1.

According to the VMware NSX Documentation4, the set auth-policy command is used to change the authentication policy settings for local users, such as password length, lockout period, and maximum authentication failures. The other commands are either used to view the authentication policy settings (B), change the CLI session timeout (A), or change the hardening policy settings ©.
