AD0-E716 Adobe Commerce Developer Expert Questions and Answers

Upgrading to Enhanced Integration Environments in Adobe Commerce Cloud requires specific steps to ensure that the environment is prepared for the upgrade, which includes managing integration branch limits and coordinating with Adobe support.

Limiting Integration Branches:

Adobe Commerce Cloud’s Enhanced Integration Environments only support up to two active integration branches. This requirement must be met prior to the upgrade.

Submitting a Support Ticket:

Since this involves infrastructure changes, submitting a support ticket is necessary to request the upgrade and get assistance from Adobe’s support team.

Why Option A is Correct:

This option outlines the appropriate steps, including the two-branch limit and the support ticket process. Options B and C suggest altering .magento.env.yaml or configuring through the GUI, which are not applicable in this scenario as the upgrade requires direct support from Adobe.

References:

Adobe Commerce Cloud documentation on Enhanced Integration Environments

The correct answers are A and C.

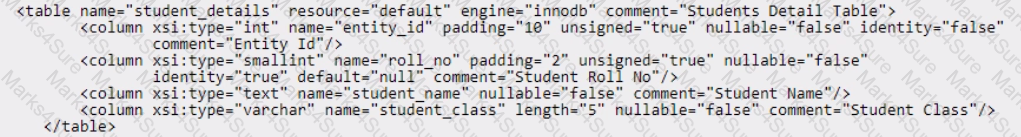

The errors in the snippet are:

Column roll_no does not have an index. It is needed since attribute_identity is set to true.

Column student_name does not have an attribute length.

The attribute_identity attribute specifies whether the primary key of the table should be auto-incremented. If attribute_identity is set to true, then the roll_no column must have an index. The student_name column does not have an attribute length, which is required for string columns.

The following code shows how to fix the errors:

XML

<title name="vendor_module_table">

int

true

true

false

int

false

true

false

true

true

string

255

false

</title>

Once the errors have been fixed, the table can be created successfully.

The Content Security Policy (CSP) in Adobe Commerce (Magento) restricts the types of content that can be loaded on a page to protect against malicious attacks, such as cross-site scripting (XSS). When an iframe is added, and a JavaScript library is loaded from an external source, these resources must be whitelisted explicitly using the csp_whitelist.xml file.

In this specific case:

The frame-src directive controls the sources from which iframes can be embedded. Since the developer is embedding an iframe from an external domain, they need to whitelist this domain for frame-src.

The script-src directive controls the sources from which JavaScript files can be loaded. The external JavaScript library must be whitelisted under script-src to allow it to execute.

Therefore, the correct policy IDs to whitelist are:

frame-src: to allow the embedding of content from an external domain in an iframe.

script-src: to allow the loading and execution of JavaScript files from the external domain.

Here’s how to update the csp_whitelist.xml file with the correct directives:

Replace your-external-domain.com with the actual domain of the external iframe and JavaScript source.

Additional Resources:

Adobe Commerce Developer Guide: Content Security Policy (CSP)

CSP Policies and Directives: Explanation of all supported CSP directives and how to configure them.

Adobe Commerce Cloud offers several out-of-the-box features, including built-in Fastly integration for CDN and web application firewall services, as well as continuous deployment capabilities through its cloud infrastructure.

Continuous Deployment:

Adobe Commerce Cloud supports continuous deployment workflows, allowing code to be automatically built, tested, and deployed through its integration with Git and cloud CI/CD pipelines.

Fastly Integration:

Fastly is included as a CDN and caching layer with Adobe Commerce Cloud, offering improved site speed and security through caching and a web application firewall.

Why Options B and D are Correct:

Both of these features are inherent to Adobe Commerce Cloud. Option A (Support ACL) is a part of the Magento Admin Panel but is not a cloud-specific feature, and Option C (Blog platform connector) is not provided out-of-the-box.

References:

Adobe Commerce Cloud documentation on Fastly CDN

Adobe Commerce Cloud documentation on Deployment and CI/CD

In Adobe Commerce Cloud, connection data for deployed services (such as databases, caches, and other services) can be retrieved using different methods depending on the developer’s access and the tools available.

Using magento-cloud relationships Command:

This CLI command retrieves the connection credentials for the services associated with the environment, such as database and Redis, directly from the command line.

Project Web Interface:

The Project Web Interface provides a dedicated section where developers can access service connection details, making it convenient for those who prefer a graphical interface.

Why Options A and B are Correct:

Both methods are valid and frequently used for accessing connection information. Option C, ece-tools env:config:show services, does not exist. Option D, reading $_ENV['services'], would require SSH access and does not provide direct connection details in a user-friendly format.

References:

Adobe Commerce documentation on Accessing Services

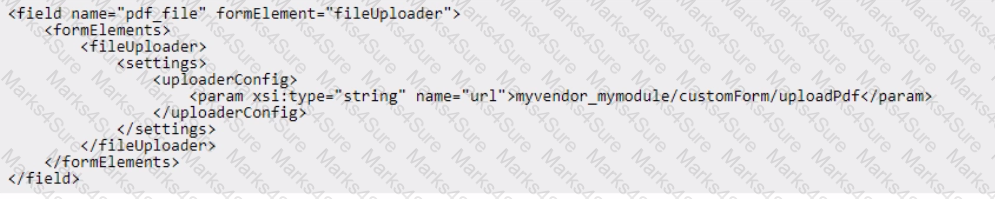

To add file upload validation for a custom form field in the Adobe Commerce admin panel, which should restrict the file type to .pdf and limit the file size to 2 MB, the recommended approach is to include the validation parameters directly within the node in the form’s XML configuration. This ensures that the validation occurs on the client-side as well as server-side, providing immediate feedback to users before submission.

Option C is correct for the following reasons:

Adding Validation Inside <settings>:By placing the <allowedExtensions> and tags within the node of the XML configuration, the system will enforce these restrictions directly within the form component. This method leverages Magento’s built-in support for validation settings, which ensures that only files matching the specified criteria (.pdf files of 2 MB or smaller) are accepted by the form.

Explanation: Magento UI components allow for client-side validation through the node, where attributes such as allowedExtensions and maxFileSize are used to control file upload constraints. This approach not only validates the file size and type but also integrates seamlessly with Magento’s front-end validation mechanisms.

References: Magento’s documentation on UI components highlights how to enforce file type and size restrictions through XML configurations within , making it the standard and most efficient solution for this task.

Alternatives and Limitations:

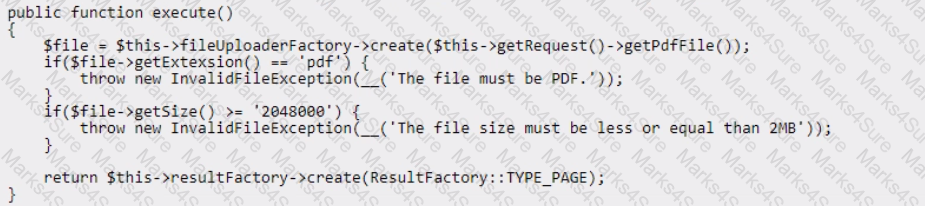

Option A: Adding validation within the controller (UploadPdf) can provide additional server-side validation, but this does not prevent the user from selecting invalid files in the first place. Server-side validation alone lacks the user experience enhancement provided by client-side feedback.

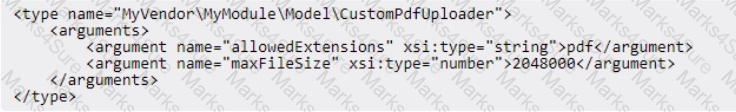

Option B: Configuring a virtual type in di.xml for validation (e.g., setting allowedExtensions and maxFileSize within a custom uploader model) is effective for backend processing but is not as straightforward for direct form validation within the admin UI. It complicates the implementation by requiring custom backend logic where native XML validation can suffice.

Option C provides a straightforward, maintainable, and user-friendly way to implement file validation directly in the form configuration. It reduces the need for custom controller or model logic and leverages Magento’s built-in form handling capabilities.

The CLI command that the developer would use to update the admin url is magento-cloud variable:set ADMIN_URL. This command sets an environment variable called ADMIN_URL with a custom value for the admin url on a specific environment. Environment variables are configuration settings that affect the behavior of the Adobe Commerce Cloud application and services. By setting an environment variable for ADMIN_URL, the developer can change the default admin url to a unique url for every branch/environment of their Adobe Commerce Cloud project. Verified References: [Magento 2.4 DevDocs]

To create a snapshot before deploying changes in Adobe Commerce Cloud (Pro Plan), the recommended approach is to use the Cloud CLI, which provides a dedicated command for creating snapshots. This allows for quick rollback if any issues arise post-deployment.

Creating a Snapshot with Cloud CLI:

The Adobe Commerce Cloud CLI tool includes commands for managing snapshots, which capture the current state of code and data, ensuring you have a restore point before making critical changes.

Why Option B is Correct:

The Cloud CLI is the most direct way to create a snapshot, giving developers control over when and how snapshots are generated. Option A is incorrect as there is no button for snapshot creation in the Web Interface, and Option C is unnecessary as support is not required to create a snapshot.

References:

Adobe Commerce Cloud documentation on Creating and Managing Snapshots

https://experienceleague.adobe.com/docs/commerce-cloud-service/user-guide/architecture/pro-architecture.html?lang=en#backup-and-disaster-recovery

The developer can deal with this issue by modifying the admin path timeout value in seconds in the Fastly Configuration section > Advanced Configuration in the Admin Panel. Fastly is a cloud-based caching service that improves site performance and security for Adobe Commerce Cloud projects. Fastly has a default timeout value of 180 seconds for admin requests, which means that any request that takes longer than 180 seconds will be terminated and result in a timeout error. The developer can increase this value to allow longer processing time for admin requests without causing errors. The developer also needs to save the configuration and upload VCL to Fastly to apply the changes. Verified References: [Magento 2.4 DevDocs]

In Adobe Commerce, when a consumer process needs to restart, the PoisonPillPutInterface can be used. The put() method of this interface triggers a "poison pill," which signals running consumers to restart. This is particularly useful when updated data needs to be reloaded into memory, as in this scenario with the \Magento\Variable\Model\Variable.

Poison Pill Mechanism:

The poison pill method tells the message queue consumer to stop its current process and restart, allowing it to pick up any configuration or data changes that occurred since the last start.

Why Option A is Correct:

By calling PoisonPillPutInterface::put(), the consumer will receive a restart signal, which is ideal for cases where data loaded at the beginning of the consumer’s lifecycle must be updated.

Option B is incorrect because TriggerRestartInterface::trigger() does not exist in the Magento framework. Option C is also incorrect as setting a cache key alone does not trigger a consumer restart.

Implementation:

Use an after plugin on the save() method to trigger PoisonPillPutInterface::put() after the variable is saved.

References:

Magento DevDocs on Message Queues and Poison Pill

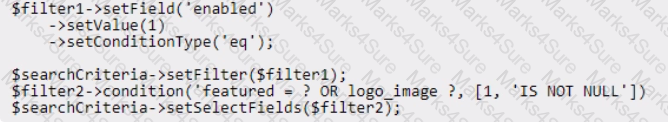

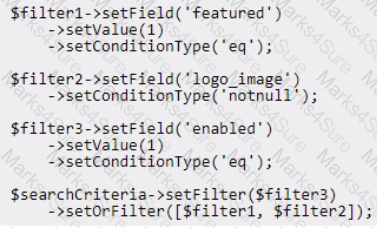

The correct answer is Option A. This approach uses two filter groups to correctly implement the logic from the SQL query using Magento's SearchCriteria API.

Understanding the Logic: The given SQL query contains two main conditions:

featured = 1 AND logo_image IS NOT NULL (grouped together with an AND condition)

enabled = 1

In the Magento SearchCriteria terms, these translate to:

Filter Group 1: featured = 1 AND logo_image IS NOT NULL

Filter Group 2: enabled = 1

The two filter groups are then combined using an implicit AND condition.

Magento's SearchCriteria Structure: The SearchCriteria object is the recommended way in Magento 2 to filter and retrieve collections with complex conditions.

Filter Groups: Used to group filters together. All filters within a filter group are combined with an AND condition.

Filters: Define a condition for a single field.

Explanation of the Code for Option A:

Filter 1 is created for the featured field, set to 1 with an eq condition type.

Filter 2 is created for the logo_image field, with a notnull condition type.

Both Filter 1 and Filter 2 are combined into Filter Group 1, which applies an AND condition between these filters.

Filter 3 is created for the enabled field, set to 1 with an eq condition type.

Filter Group 2 contains only Filter 3.

Finally, both filter groups are set on the SearchCriteria object. By default, the SearchCriteria combines filter groups using an AND condition between them.

Why Option A is Correct: Option A uses two filter groups that exactly match the desired SQL query logic:

It correctly combines featured and logo_image in an AND condition.

It then checks if enabled is 1, which is handled by the second filter group.

References:

Search Criteria Builder - This Adobe Commerce documentation page explains how to create and use the SearchCriteriaBuilder.

Filter Groups and Conditions - Provides an overview of how to structure filter groups and conditions in SearchCriteria.

Magento 2 APIs - The general documentation for working with Magento 2 APIs, including SearchCriteria.

This approach is the standard method in Adobe Commerce to replicate complex SQL queries using SearchCriteria with multiple filter groups and conditions.

The correct implementation to check if an order is eligible for invoicing is to use the $order->canInvoice() method. This method checks whether the order meets all necessary conditions for an invoice to be created, such as the order not being fully invoiced or canceled.

Option A is correct for the following reasons:

Using canInvoice() for Invoicing Eligibility:The $order->canInvoice() method is specifically designed to verify if an order can have an invoice generated. It returns true only if the order is in a state where it can be invoiced. This makes it the appropriate method for determining whether the order should be sent to the ERP system for invoicing.

Explanation: The canInvoice() method is part of the Magento\Sales\Model\Order class and checks a variety of conditions to determine if invoicing is possible. This includes ensuring that the order is not fully invoiced or canceled, which are critical conditions in Adobe Commerce’s order processing workflow.

References: Magento’s developer documentation on the Order model highlights canInvoice() as the recommended approach for determining invoice eligibility, particularly when automating processes like ERP integration.

Alternatives and Limitations:

Option B: The $order->hasInvoice() method only checks if there is already an invoice associated with the order, which does not indicate whether the order is eligible for new invoicing. It returns true if any invoice exists for the order, which is not suitable for this scenario.

Option C: The $order->isPaymentReview() method checks if the order is in a payment review state, which is not directly related to invoice creation eligibility. It would not provide accurate information on whether the order can be invoiced.

By using canInvoice(), the developer ensures that the cron job will only send orders that are ready for invoicing to the ERP system, adhering to Adobe Commerce’s order processing logic.

Some of the features provided by ECE-Tools are building application, applying custom patches, and dumping configuration for static content deployment. ECE-Tools is a set of scripts and tools designed to manage and deploy Adobe Commerce Cloud projects. It provides commands for building application code, applying patches for Magento core issues or custom modules, and dumping configuration settings for static content deployment optimization. Verified References: [Magento 2.4 DevDocs] 2

The ECE-Tools package for Adobe Commerce Cloud provides a range of tools and scripts to manage and streamline deployment and maintenance tasks. Among its key features:

Application Builds:

ECE-Tools handles the build process, which includes compiling the code, preparing static content, and configuring deployment.

Applying Custom Patches:

It includes capabilities for managing and applying custom patches to the Adobe Commerce application during deployment, which is essential for customization and bug fixes.

Dump Configuration for Static Content Deployment:

ECE-Tools can dump configuration for static content deployment, optimizing the static content deployment process by handling configurations and assets efficiently.

Why Option A is Correct:

Option A lists these core functionalities provided by ECE-Tools. Option B incorrectly includes Fastly configuration, which is managed separately. Option C mentions S3 backups, which are not directly handled by ECE-Tools.

References:

Adobe Commerce Cloud documentation on ECE-Tools

According to the Magento Stack Exchange answer, system.xml is a file that defines the configuration fields for the admin area. Each field can have a validate attribute that specifies a validation rule for the field value. Magento provides some built-in validation rules, such as phoneUS, which validates a US telephone number. Therefore, to ensure that the option contains a valid US telephone number, the developer needs to add phoneUS to the field in system.xml. Verified References: https://magento.stackexchange.com/questions/104570/magento-2-system-xml-validation-rules

When adding a new configuration field to the admin panel and needing to ensure it contains a valid US telephone number, you can leverage Magento’s built-in validation options within the system.xml configuration file. The correct approach is to use the tag with the desired validation type.

Built-in Validation with system.xml:

Adobe Commerce provides various validators that can be directly applied in the system.xml file for configuration fields. These validators are handled through JavaScript on the client side, ensuring real-time validation.

Using <validate>phoneUS</validate>:

The tag specifies the type of validation that should be enforced. For US phone numbers, you can simply set phoneUS.

Magento interprets this and applies a validation check to ensure the entered data conforms to the US phone number format.

Why Option A is Correct:

Option A leverages existing Magento client-side validators, which are simpler and more efficient than creating a custom backend model for a straightforward validation task.

Options B and C do not apply the correct method for a simple validation task as per Magento standards.

Example system.xml Configuration:

Out of Hours Phone

phoneUS

Enter a valid US phone number

References:

Magento DevDocs on Configuration Validation

Adobe Commerce Guide on Admin Configuration Fields

To prevent the media_gallery attribute from being exported as part of the custom entity's data, the developer should add this attribute to the $_disabledAttrs class property array. This effectively excludes the attribute from the export process, ensuring that it does not appear in the exported file and thus will not be modified or re-imported inadvertently.

Option C is correct for the following reasons:

Preventing Export with $_disabledAttrs:Adding media_gallery to the $_disabledAttrs array tells the system to skip this attribute during export. This prevents the attribute from being included in the export file, thus removing the risk of it being altered by external software that handles the file. Since the attribute will not be present in the exported data, it will remain unchanged in the database when re-importing.

Explanation: The $_disabledAttrs property is specifically designed to exclude certain attributes from the export process. By using this property, you ensure that attributes not intended for editing or visibility in exports are safely omitted, maintaining data integrity.

References: The Adobe Commerce documentation on import/export processes outlines how $_disabledAttrs can be used to filter out sensitive or unnecessary attributes from export files.

Alternative Options and Their Limitations:

Option A: Using $_transformAttrs with a serializer is useful for encoding or decoding attribute data during export/import, but it does not prevent the attribute from being included in the export. This would only help if the media_gallery data needed transformation, not exclusion.

Option B: $_strippedAttrs is applicable for filtering attributes from the imported file, not the exported file. It would not stop the attribute from being included in the export and hence does not align with the need to prevent modifications during export.

By configuring $_disabledAttrs, the developer effectively ensures the media_gallery attribute remains unmodified by preventing it from being included in export files altogether.
