CFPE Certified Fire Plan Examiner (CFPE)Exam Questions and Answers

In sprinkler design, the "remote area" refers to the section of a building that is most challenging to protect with sprinklers due to its location and characteristics. The design criteria usually specify the minimum density of water (gallons per minute per square foot or liters per minute per square meter) over a specified area that the system must deliver. Based on the standard requirements for typical commercial occupancies, a delivery rate of15 gpm (57 L/min) over 1,500 ft² (139 m²)is common for light to ordinary hazard classifications.

Top of Form

Bottom of Form

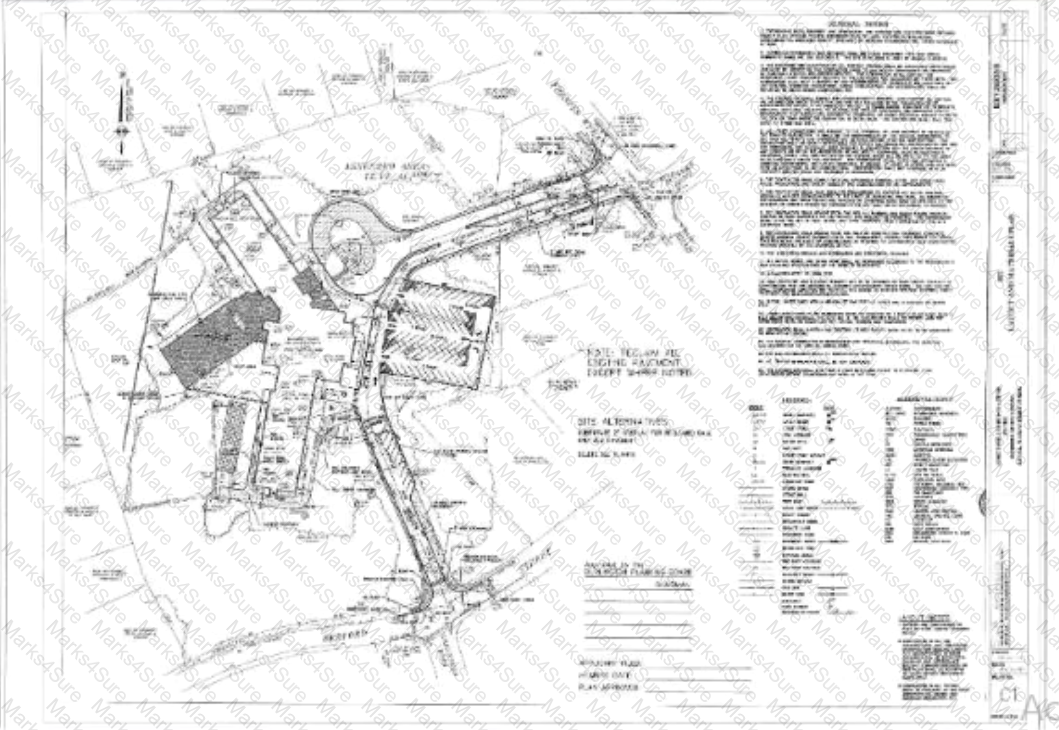

NFPA 1031, Standard for Professional Qualifications for Fire Inspector and Plan Examiner, does not provide specific details regarding the number of fire hydrants on a specific project site or plan. NFPA 1031 outlines the qualifications and job performance requirements for professionals, such as Fire Plan Examiners, responsible for reviewing fire protection systems and ensuring code compliance.

For determining the number of fire hydrants on a project site as indicated on plan L2, you will need to reference the specific project documents or site plans, which are not included in the provided files. A Fire Plan Examiner, according to NFPA 1031, would need to review the site plans, including plan L2, to identify the number and locations of fire hydrants. The examiner uses skills and knowledge, as defined in NFPA 1031, to evaluate and ensure the plans meet the required fire protection standards and codes, including ensuring adequate fire hydrant placement for fire safety and emergency access.

If further details or clarification about specific project documents are needed, consulting the actual site plan or reaching out to the relevant authorities, such as the local fire marshal or project manager, would be essential.

According to NFPA 101, Life Safety Code, and the International Building Code (IBC), the minimum fire resistance rating for the enclosure of a floor opening in a new building with more than three stories is typically 2 hours. This rating is required to limit the spread of fire and smoke between floors, providing occupants with enough time to evacuate safely and ensuring structural integrity for a longer period during a fire event.

Top of Form

Bottom of Form

According to NFPA 101, Life Safety Code, the minimum clear width of a door opening in a means of egress is 32 inches (810 mm). This dimension ensures that the opening is wide enough to allow for the safe and efficient egress of occupants, including individuals using wheelchairs or other mobility aids, during an emergency evacuation. The width is measured from the face of the door to the opposite doorstop when the door is fully open.

A new model code takes effect within a jurisdiction when it is adopted into law by that jurisdiction. Adoption is the formal process through which a jurisdiction decides to enforce a specific code edition, thereby making it legally binding. This process ensures that the codes are applicable and relevant to the specific needs and conditions of the jurisdiction.

The construction type specified for the new addition in plan set T1 isType II (000). This construction type, as defined in the International Building Code (IBC), refers to buildings with non-combustible materials for all structural elements, but with no fire-resistance rating requirements for any of the structural components. This is typical for newer additions where fire safety is achieved through non-combustible materials and other fire protection systems, such as sprinklers.

Top of Form

Bottom of Form

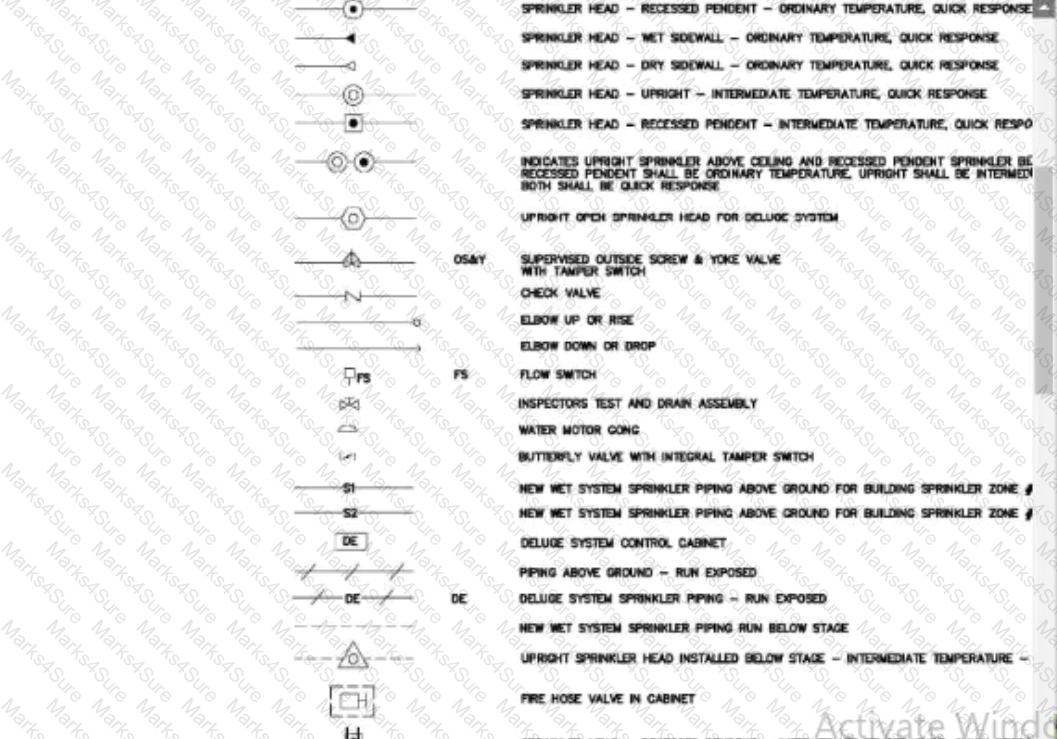

In the context of NFPA standards, particularly NFPA 1031, "Standard for Professional Qualifications for Fire Inspector and Plan Examiner," the symbol that represents a "Fire hydrant" is universally recognized in fire protection systems. NFPA 1031 outlines various competencies and knowledge areas required for fire inspectors and plan examiners, including understanding symbols and terminology related to fire protection systems.

Reference from NFPA 1031: NFPA 1031 emphasizes that fire inspectors and plan examiners must be familiar with different components of fire protection systems, which includes being able to identify symbols used in construction and fire safety plans. Symbols such as those representing fire hydrants, risers, floor drains, and utility meters are part of the essential knowledge for professionals in this field to ensure compliance with fire codes and standards during plan reviews (NFPA 1031, Section 4.2.1 - Understanding of fire protection systems and their components).

Understanding and correctly identifying these symbols is crucial for maintaining effective fire safety and ensuring the correct placement and functioning of fire protection equipment. The fire hydrant symbol, in particular, is a key element in fire protection drawings and plans, indicating the location of hydrants that provide water supply to firefighters in the event of a fire.

An area with a permanent multi-level play structure is typically classified as "Special amusement" under NFPA 101, Life Safety Code. Special amusement areas are defined as those that contain attractions or activities with significant challenges to egress due to their complexity, such as play structures, mazes, or interactive exhibits. This classification ensures that special safety measures are in place to handle the unique risks associated with such areas.

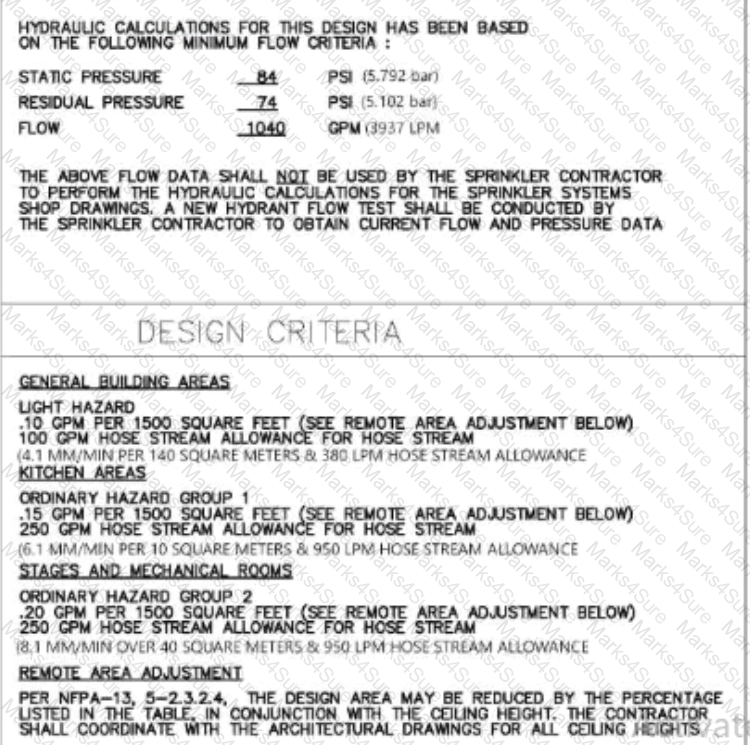

On plan F0.1, the hydraulic calculations for the design were based on a minimum flow of 1,040 gpm (3,937 lpm). This flow rate is specified under the "Hydraulic Calculations" section as the baseline criteria used for designing the fire protection system to ensure adequate water supply and pressure during a fire incident.

A standard describes in specific detail how something must be done. While a code is a document that outlines what must be done to achieve a certain level of safety, a standard provides the detailed methods, specifications, or practices required to meet the code's requirements. For example, NFPA 13 is a standard that specifies the requirements for the design and installation of sprinkler systems, including dimensions, materials, and procedures.

General traffic safety is not a typical reason for requiring construction permits and reviewing plans by local government. The primary reasons for requiring permits and plan reviews include ensuring community safety (A), emergency responder safety (C), and property conservation (D). These factors help to ensure that new construction complies with applicable codes and standards, reducing risks to life and property. General traffic safety is usually handled through separate traffic and transportation planning processes.

According to NFPA 101, Life Safety Code, conference rooms that are used for meetings with less than 50 people are typically classified under the "Business" occupancy classification (NFPA 101, Chapter 6). This is because such small meetings are considered part of the normal operations of a business environment, and thus, the rooms are not considered "Assembly" occupancy, which requires a larger number of people (usually 50 or more).

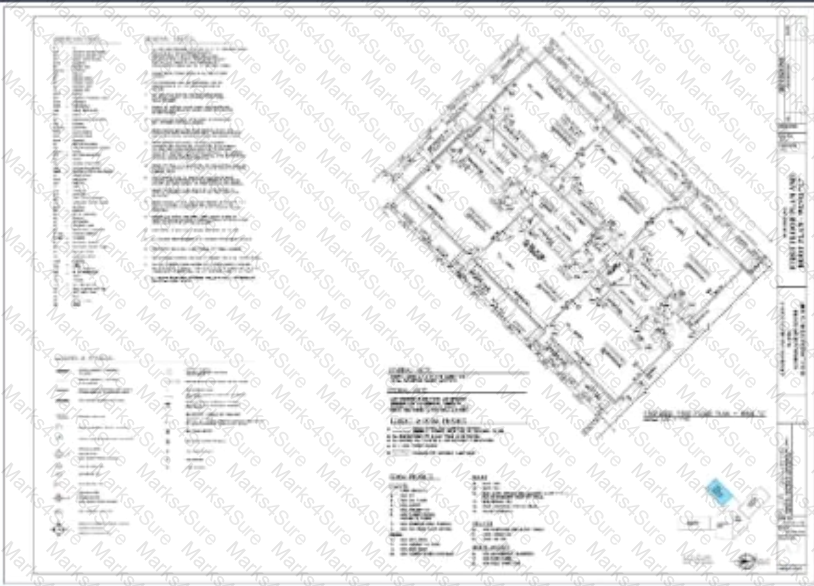

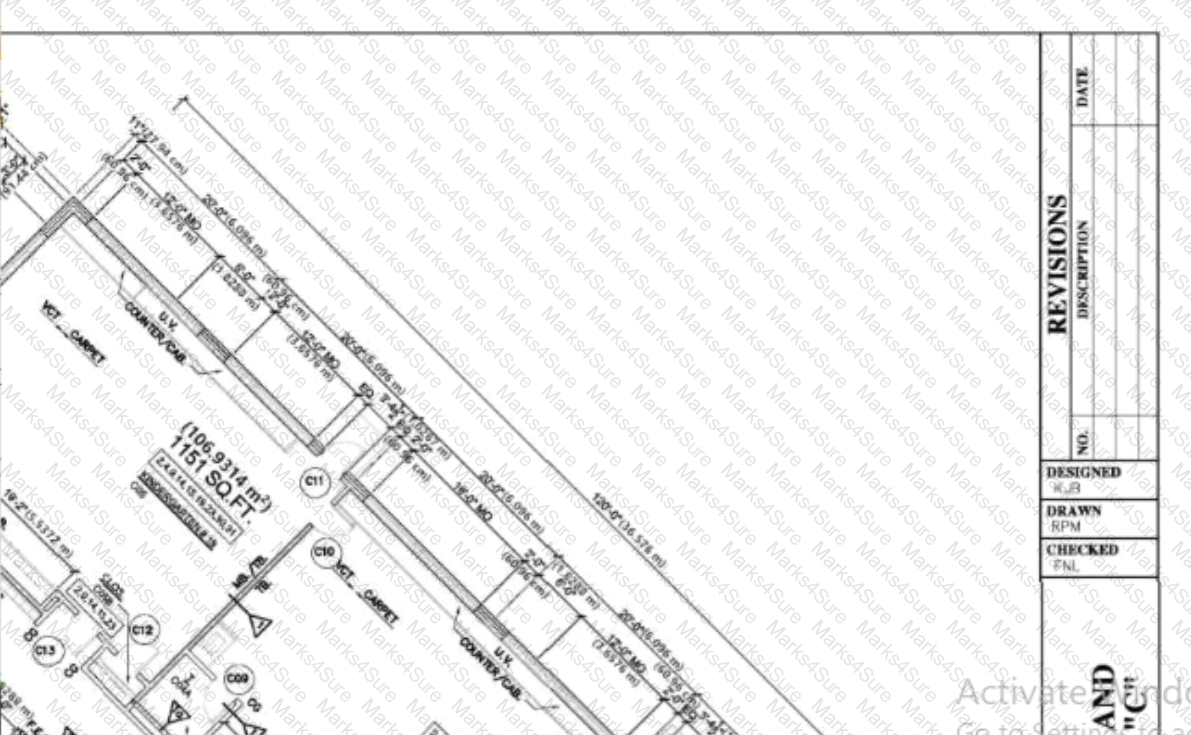

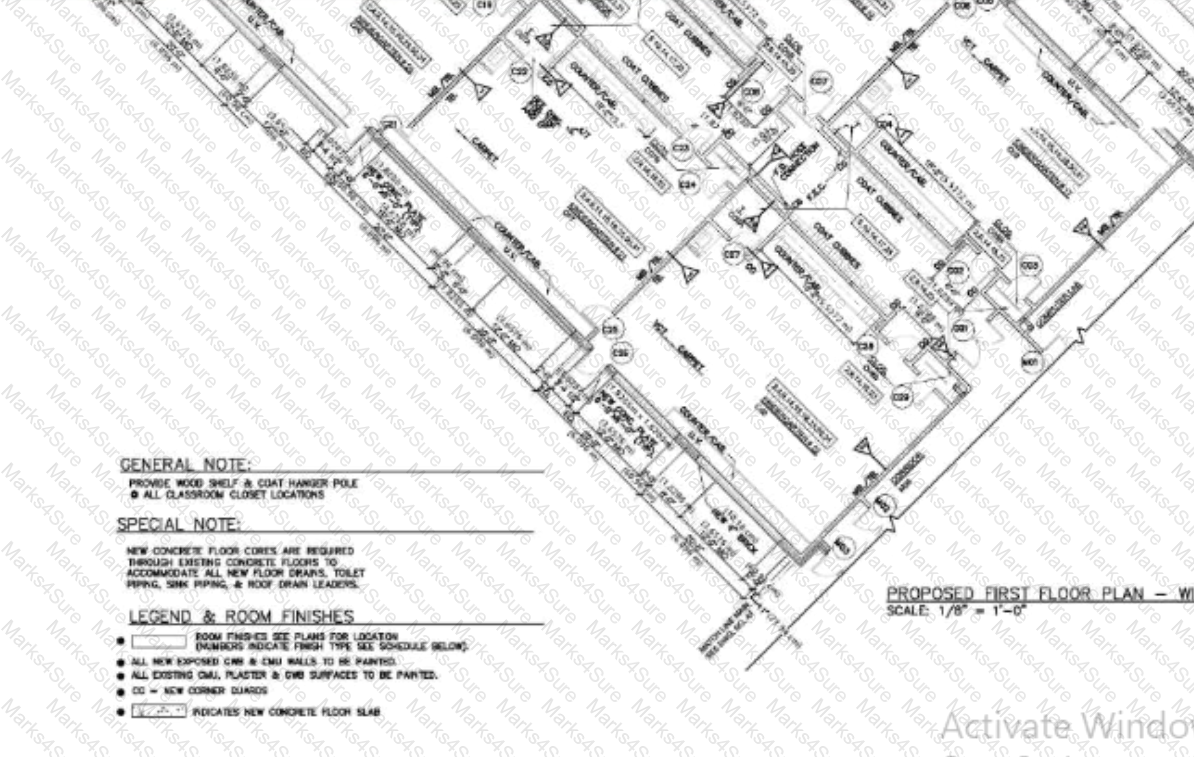

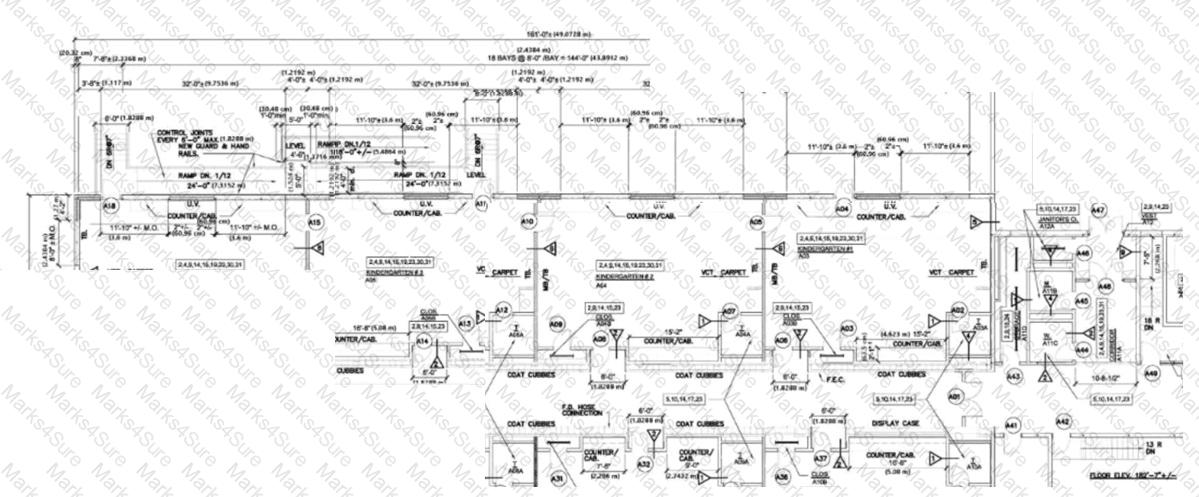

Determine the Size of Each Classroom: Measure or find the floor area of one classroom on the plan. Since all classrooms in Wing C are the same size, this floor area can be multiplied by six.

Apply the Occupant Load Factor: NFPA 101 provides specific occupant load factors for different types of rooms or buildings. For example, a classroom typically has an occupant load factor of 20 square feet per person.

Calculate the Total Occupant Load:

Total Occupant Load = (Total Area of All Classrooms) / (Occupant Load Factor)

However, I cannot directly view or calculate the dimensions from the provided image file. Please provide either the total area of a single classroom or its dimensions, and I can proceed with the calculation based on the standard occupant load factors.

A board of appeals is typically classified as an "administrative" legal proceeding. These boards review decisions made by local or regional authorities, such as building or fire code enforcement officials, to ensure they are in compliance with the relevant laws, codes, and regulations. The purpose of these proceedings is to provide a mechanism for reviewing and potentially overturning decisions made by authorities based on established administrative procedures.

Top of Form

Bottom of Form

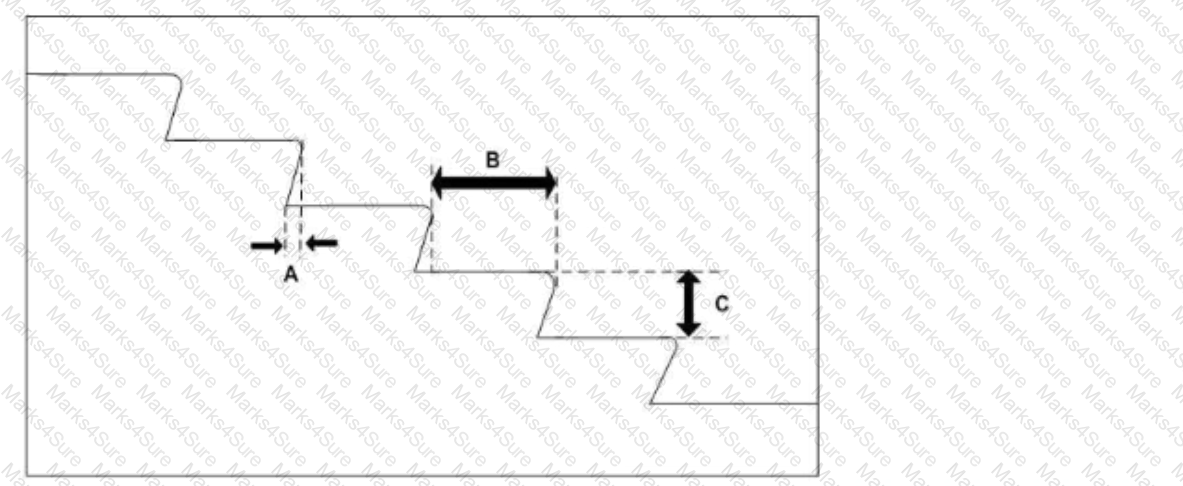

The tread depth is the horizontal distance from the front edge of a stair tread to the back edge of the same tread, which corresponds to dimension "B" in the figure. According to NFPA 101, Life Safety Code, the tread depth is crucial in ensuring safe stairway design for proper footing and egress.

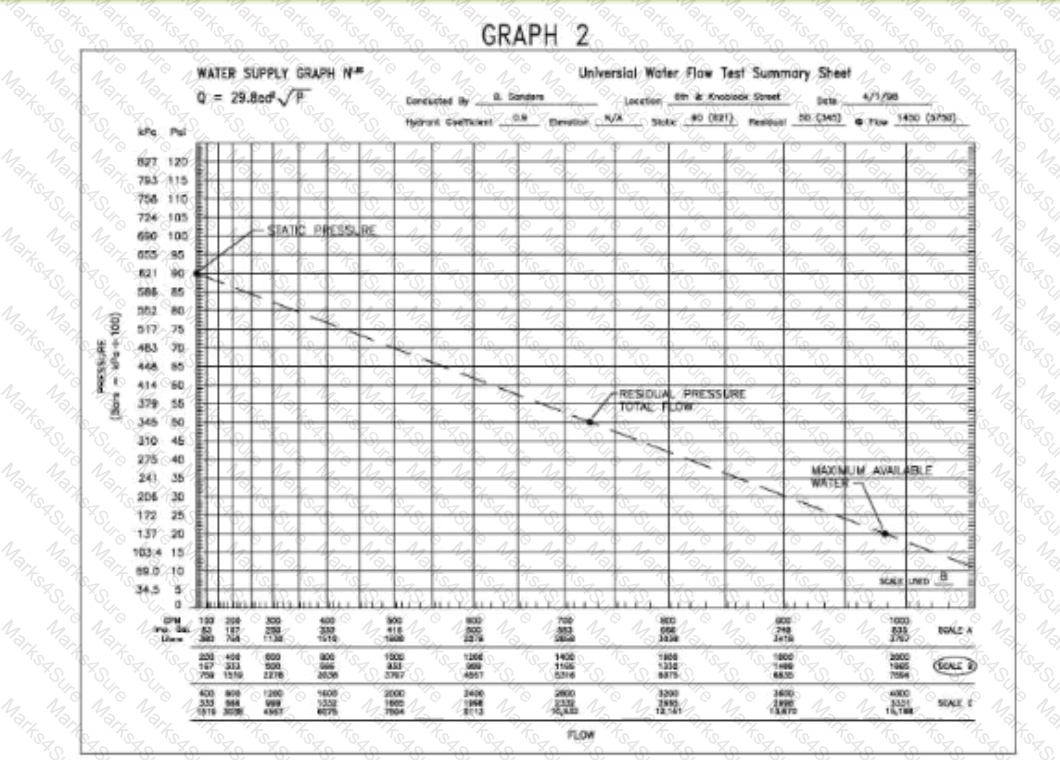

The graph labeled as"Water Supply Graph N°2"presents a standard water supply flow test summary, which indicates the relationship between pressure (psi or kPa) and flow (gpm or Lpm) for a specific system or hydrant.

How to interpret the graph:

Static Pressure:

This is the pressure measured when there is no water flowing, shown at the highest point on the left side of the graph (indicated as approximately 100 psi or 689 kPa in this case).

Residual Pressure:

This is the pressure available when water is flowing at a specific rate. The residual pressure line decreases as flow increases, indicating that the pressure reduces when water is drawn from the system.

Maximum Available Water:

Themaximum available wateris the point where the system can deliver the highest possible flow (gpm) before the residual pressure reaches a critical minimum level, indicating the system’s limit.

Flow at Maximum Available Water:

In this specific graph, the point marked asMaximum Available Wateris where the flow reaches1,980 gpm(7,495 Lpm). This is derived by following the flow axis (horizontal axis) until it intersects with theMaximum Available Watercurve on the graph.

Why the Correct Answer is C (1,980 gpm):

By following the plotted line for residual pressure, the graph shows that the maximum flow attainable from the system is1,980 gpm(7,495 Lpm) before pressure drops too low. This value represents the system's maximum water supply capacity under normal operating conditions.

This analysis is consistent with the flow rates displayed on the graph and matches the key markers labeled, which indicate the operational limits of the system.

NFPA Relevance:

In fire protection and water supply systems, understanding the maximum available water flow is essential for ensuring that sufficient water can be delivered in the event of a fire. This calculation is particularly relevant in the context of NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection) and NFPA 25 (Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems), as these standards require that water supply systems are capable of delivering adequate flow to suppression systems under expected fire conditions.

According to NFPA 1, Fire Code, the minimum fire flow duration for a building of 21,000 square feet (1,950 m²) with Type II (000) construction is 3 hours. This duration is based on the fire flow requirements necessary to maintain sufficient water supply for firefighting operations, ensuring the safety of occupants and property.

Upon examining Plan A7, it is identified that the corridor floor finish for the first-floor plan wing C is labeled as "Ceramic tile." The NFPA 1031 outlines that the Plan Examiner must confirmthat the materials used in construction meet fire resistance, durability, and safety requirements. Ceramic tile is a preferred choice for its fire-resistant properties and compliance with safety regulations.

A "Site Plan" is an architectural drawing that depicts the overall layout of a project, including building footprints, driveways, fences, fire hydrants, landscape features, and other external elements. It provides a comprehensive view of the project's spatial arrangement and its surroundings, which is essential for planning, construction, and emergency response purposes.

When field conditions necessitate a substantial change in the approved plans, the Authority Having Jurisdiction (AHJ) may require revised drawings. This ensures that any modifications still comply with the relevant fire codes and safety standards. The AHJ has the responsibility to ensure that all changes maintain the intended level of safety and that they are accurately documented and reviewed.

New manual fire alarm boxes must be installed within 60 inches (1,524 mm) from the door, according to NFPA 72, National Fire Alarm and Signaling Code. This placement ensures that the alarm is easily accessible and visible for occupants as they exit, facilitating prompt alarm activation in case of fire or emergency.

Top of Form

Bottom of Form

According to NFPA 101, Life Safety Code, and NFPA 5000, Building Construction and Safety Code, a restaurant with an occupant load greater than 50 people is classified as an "Assembly" occupancy. An Assembly occupancy is defined as an occupancy used for a gathering of 50 or more persons for deliberation, worship, entertainment, eating, drinking, amusement, awaiting transportation, or similar uses. Since the restaurant has an occupant load greater than 50 people, it falls under this category.

For exact details, refer to NFPA 101 (Life Safety Code), Chapter 3, and NFPA 5000 (Building Construction and Safety Code).

According to NFPA 1, Fire Code, fire department access roads must extend to within 50 feet (15 meters) of a single exterior door that provides access to the interior of the building. This requirement ensures that emergency responders have adequate access to buildings in the event of a fire or other emergency. The specification of a 50 ft (15 m) distance is designed to allow for rapid deployment of firefighting equipment and personnel, minimizing response time and maximizing the efficiency of fire suppression efforts.

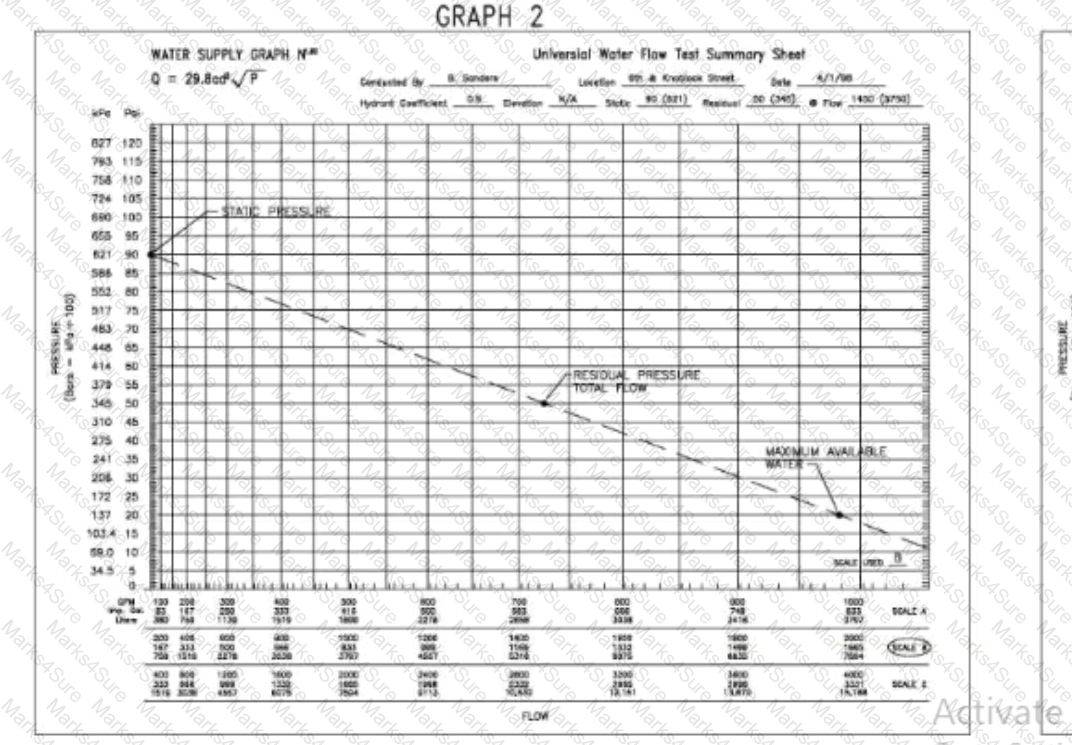

To determine the residual pressure available at a flow of 1,000 gpm (3,785 Lpm), locate the 1,000 gpm point on the horizontal axis of the water supply graph and trace vertically to intersect the residual pressure curve. Then, read the corresponding pressure value on the vertical axis. Based on the exhibit provided, the residual pressure available at 1,000 gpm flow is approximately 42 psi (2.9 bar).

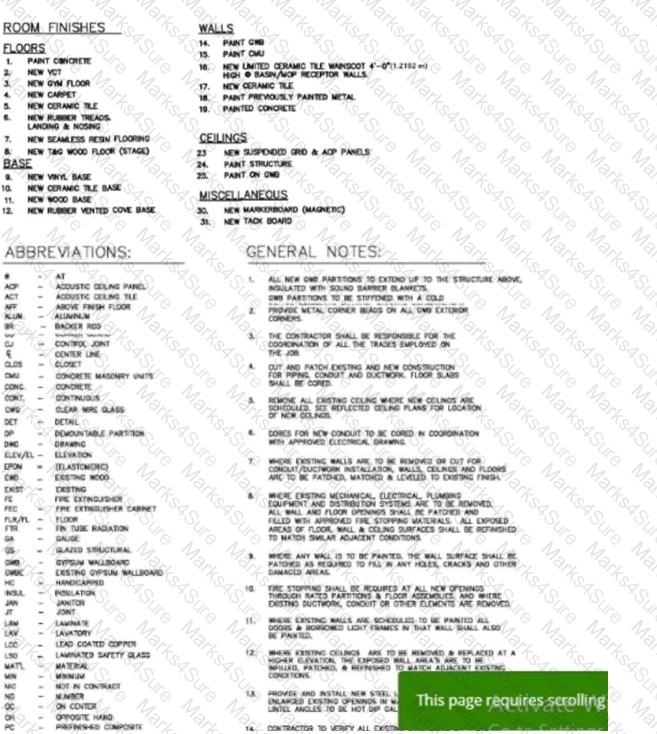

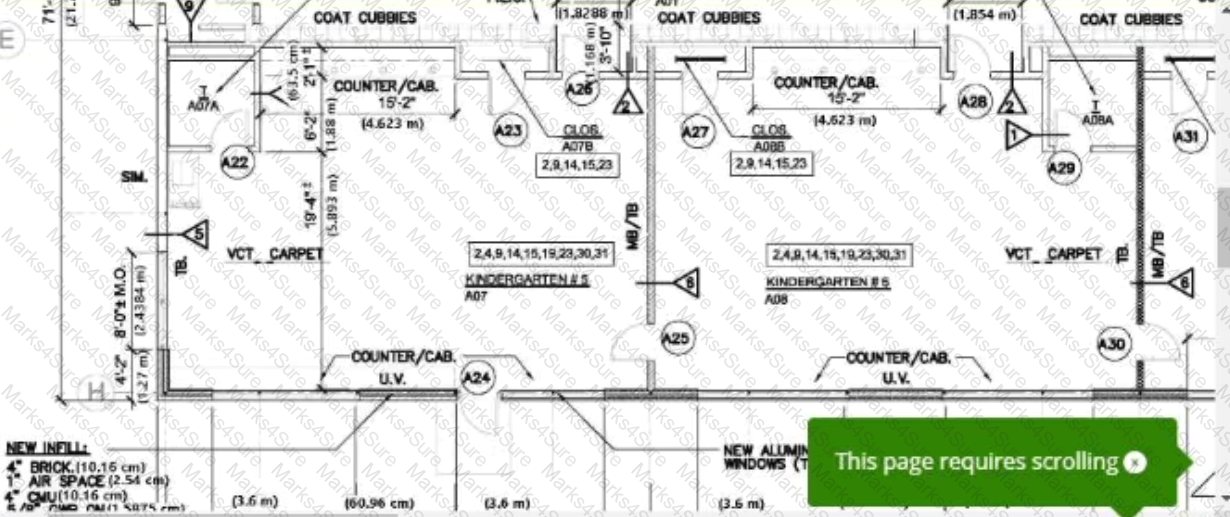

The number "19" in the box within Kindergarten #3 on plan set A5 likely pertains to a specific element in the room's finish schedule, which is usually denoted by a number corresponding to a finish material or treatment. In architectural plans, such numbers typically refer to walls, ceilings, floors, or base finishes. Based on standard conventions, "19" appears to be associated with "walls," referencing a particular type of wall finish or material specified in the plan's legend.

Top of Form

Bottom of Form

According to NFPA 101, Life Safety Code, the maximum common path of travel in a sprinklered educational occupancy is 100 feet (30 meters). The common path of travel refers to the distance occupants must travel before having two separate means of egress. The code provides this limit to ensure that occupants have a reasonably short distance to safety, enhancing the likelihood of safe evacuation in an emergency.
