D-PST-MN-A-24 Dell PowerStore Maintenance Achievement Questions and Answers

In the Dell PowerStore code-naming schema, the number that represents a beta distribution is4. This is based on the PowerStoreOS release matrix, where the versioning and distribution types are indicated by specific digits in the version number.The third digit in the version number typically represents the target code, which is a highly trusted and recommended release1.

For beta distributions, which are pre-release versions provided for testing purposes, Dell uses specific numbering conventions to distinguish them from general availability releases. These beta versions are important for testing new features and fixes in a controlled environment before they are released to all customers.

For detailed information on the code-naming schema and understanding the different types of software distributions for Dell PowerStore, including beta distributions, administrators should refer to the official Dell PowerStoreOS Matrix documentation.This document provides a comprehensive overview of the versioning system and the criteria used to determine the target code and other distribution types1.

To match the base enclosure SAS ports in column A to their correspondingexpansion enclosure LCC ports in column B for a Dell PowerStore base enclosure connected to a single expansion enclosure, the correct configuration is:

Node B SAS A to Exp 1 LCC A Port B

Node A SAS A to Exp 1 LCC B Port A

Node B SAS B to Exp 1 LCC A Port A

Node A SAS B to Exp 1 LCC B Port B

Step by Step Comprehensive Detailed Explanation with References

Identify the SAS ports on the base enclosure and the LCC ports on the expansion enclosure.

Match the ports according to the configuration provided above.

Connect the cables between the corresponding SAS and LCC ports.

Secure the connections to ensure there is no loose cabling.

Verify the configuration using the PowerStore Manager to ensure all connections are recognized and functioning properly.

For detailed instructions, diagrams, and best practices, refer to the Dell PowerStore Installation and Service Guide1, as well as the Dell EMC PowerStore Quick Start Guide2. These documents provide essential information on the proper setup and maintenance of the storage system, ensuring optimal performance and reliability.

The LED combination that shows a connected and working node ispower LED: steady green fault LED: off.

The power LED on a Dell EMC PowerStore node indicates the power status of the node.

A steady green power LED typically signifies that the node is powered on and operating normally1.

The absence of the fault LED being lit (fault LED: off) indicates that there are no current faults detected with the node1.

This combination of a steady green power LED and no fault LED is the normal operating state for a node and suggests that it is connected and functioning properly1.

For more detailed information on the LED states and what they represent, you can refer to the Dell PowerStore Hardware Information Guide or the Dell Support Knowledge Base1.

In the context of Dell EMC PowerStore, when a Storage Administrator needs to address specific fixes within their system, the appropriate Non-Disruptive Upgrade (NDU) software upgrade option to use isHotfixes.Hotfixes are targeted software updates that address specific issues or bugs within the system without requiring a full software release upgrade1.

The process for applying hotfixes typically involves:

Identifying the specific issue and the corresponding hotfix that addresses it.

Downloading the hotfix from the Dell Support website or through the PowerStore Manager interface.

Applying the hotfix to the PowerStore system using the NDU process, which ensures that the system remains operational and accessible during the upgrade.

Verifying that the hotfix has been applied successfully and that the issue has been resolved.

It is important to follow the detailed instructions provided in the Dell PowerStore Software Upgrade Guide when applying hotfixes.This guide outlines the steps for preparing for an NDU, including any preliminary checks and concluding checks to ensure the integrity of the upgrade process2.

Administrators should also consult the PowerStore Release Notes to determine which software upgrade packages, including hotfixes, are required for their specific PowerStore model and configuration2. Adhering to these guidelines helps ensure that the system is updated correctly and that the specific fixes are applied effectively.

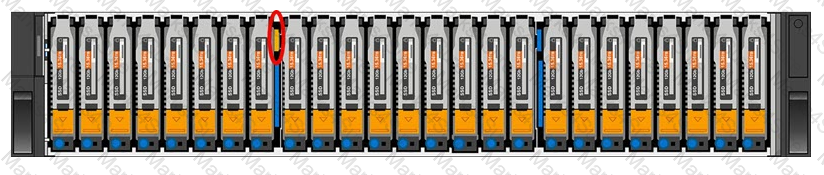

When the circled LED on the base enclosure of a Dell PowerStore system is illuminated amber, it typically indicates a fault within the base enclosure. This could be related to various issues such as power supply problems, cooling system malfunctions, or other operational faults that may affect the enclosure’s performance.

In Dell PowerStore systems, LED indicators are used to communicate the status of the system’s hardware components. An amber LED specifically suggests that there is a problem that needs to be addressed. The steps to investigate and resolve the issue usually include:

Checking the PowerStore Manager for alerts or messages that provide more details about the fault.

Inspecting the physical hardware to identify any visible signs of damage or failure.

Consulting the Dell PowerStore Hardware Guide for information on LED indicators and their meanings.

Following the recommended actions provided in the guide, which may include checking power connections, ensuring proper airflow, or other hardware checks.

If necessary, contacting Dell Support for further assistance, providing them with the details of the fault LED and any other relevant information observed.

It’s important to address any faults indicated by an amber LED promptly to maintain the integrity and reliability of the storage system. The Dell PowerStore documentation provides comprehensive information on LED indicators and troubleshooting steps to help resolve such issues effectively.

The type of device supported in expansion enclosures for Dell PowerStore systems isNVMe SSD.

Starting with PowerStoreOS 3.0, the PowerStore models 500, 1200, 3200, 5200, and 9200 support 24-drive 2U NVMe expansion enclosures using 2.5-inch NVMe SSD drives for additional capacity1.

The NVMe expansion enclosures do not support NVMe SCM drives1.

The base enclosure can support all NVMe SSDs or a mix of NVMe SSDs and NVMe SCM drives (for the metadata tier) with an NVMe expansion enclosure attached1.

Before attaching an NVMe expansion enclosure, all drive slots 0 to 21 in the base enclosure must be populated1.

Each appliance in a PowerStore cluster supports up to three NVMe expansion enclosures1.

For more detailed information on the supported devices in expansion enclosures for Dell PowerStore systems, you can refer to the Dell PowerStore: Technical Primer1.

An alternative way to collect logs instead of using the Dell EMC PowerStore manager GUI isData Collect using Service Container.

The Dell EMC PowerStore provides multiple methods for collecting logs for troubleshooting and analysis.

While the PowerStore Manager GUI is a common method, using the Service Container via SSH/CLI is an alternative way to gather logs1.

This method involves connecting to the PowerStore system’s Service Container through SSH and running specific service commands to collect the required logs.

The commandssvc_dc download -horsvc_dc upload -hcan be used to download or upload logs directly from and to the system1.

This process is particularly useful when the GUI is not accessible or when directed by Dell Support to collect more detailed logs for complex issues.

For detailed instructions on log collection using the Service Container, refer to the Dell PowerStore Service Scripts Guide or contact Dell Support for assistance.

When the node A and B embedded module fault LEDs on a Dell EMC PowerStore system are alternating between blue and amber, with the blue LED illuminated for 3 seconds, it indicates that the system is not initialized1. This LED behavior is part of the system’s design to communicate its current state to the user or technician on-site.

The initialization process is a critical step during the installation of a PowerStore system. It involves setting up the system’s configuration, including network settings, storage pools, and other essential parameters. Until this process is completed, the system cannot perform storage operations or host any virtual machines.

To resolve this and initialize the system, the following steps should be taken:

Connect to the system through the PowerStore Manager using a supported web browser.

Complete the Initial Configuration Wizard (ICW), which guides you through the necessary steps to initialize the system.

Once the ICW is completed, the system will finalize its configuration and the LEDs should reflect a normal operational state.

For more detailed guidance on the initialization process and understanding the LED indicators, refer to the Dell PowerStore Installation and Service Guide2. This document provides comprehensive instructions on installing and configuring the PowerStore system, ensuring it is ready for use.

The SSH session for a Storage Administrator to run svc commands on a Dell EMC PowerStore system is configured using theAppliance IP address using port 22.

To connect to the service console over SSH, the Storage Administrator should use the appliance IP address.

The default SSH port for accessing the service console isport 221.

SSH access to the nodes may be required for troubleshooting and is not enabled by default. To enable SSH access:

Navigate toSettings.

SelectSSH Managementfrom the Security section.

Choose the appliance or appliances on which to enable SSH.

ClickENABLE SSH1.

The service user account is used for SSH login, and the password is set during the Initial Configuration Wizard (ICW) or can be reset from the PowerStore Manager user interface1.

It’s important to note that the SSH port used to log in to the service container is port 22 after the cluster creation is completed.Before the ICW is run, port 26 may be used1.

For detailed instructions on how to connect to the service console over SSH, please refer to the official Dell documentation or contact Dell Support for assistance.

When a critical alert related to data integrity is present in Dell EMC PowerStore Manager, the most helpful action for troubleshooting the problem is to select the “Gather Support Materials” option from the Service and Support section.This action facilitates the collection of logs, system information, and other relevant data that can be used by Dell EMC support to diagnose and resolve the issue1.

The process typically involves:

Accessing the alert details slide-out panel within the PowerStore Manager.

Reviewing the critical alert to understand the nature of the data integrity issue.

Selecting the “Gather Support Materials” option, which may include system logs, configuration files, and other diagnostic information.

Following the prompts to collect and package the support materials.

Sending the gathered materials to Dell EMC support for further analysis and assistance.

This proactive step is crucial in expediting the support process and ensuring that the Dell EMC support team has all the necessary information to address the data integrity alert effectively.It is recommended to perform this action as soon as the critical alert is noticed to prevent any potential data loss or system downtime2.

For more detailed instructions on how to gather support materials and manage alerts, administrators should refer to the Dell PowerStore Manager Overview documentation and the PowerStore Alerts knowledge base articles provided by Dell12. These resources offer comprehensive guidance on maintaining and troubleshooting the PowerStore system.

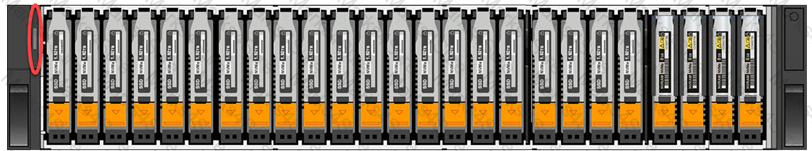

The illuminated amber LED on an expansion enclosure typically indicates a fault. In the context of Dell PowerStore expansion enclosures, an amber light can signify various issues such as power supply problems, cooling system malfunctions, or other operational faults that may affect the enclosure’s performance.

When troubleshooting, the following steps are generally taken:

Identify the specific LED that is illuminated amber using the hardware documentation.

Consult the Dell PowerStore Hardware Guide to determine the exact nature of the fault indicated by the amber LED.

Follow the recommended actions provided in the guide, which may include checking power connections, ensuring proper airflow, or other hardware checks.

If the issue persists, contact Dell Support for further assistance, providing them with the details of the fault LED and any other relevant information observed.

It’s important to address any faults indicated by an amber LED promptly to maintain the integrity and reliability of the storage system. The Dell PowerStore documentation provides comprehensive information on LED indicators and troubleshooting steps to help resolve such issues effectively.

The output of the command “svc_diag list – basic” on a Dell PowerStore system typically showsservice taginformation.

The “svc_diag” command is part of the service scripts provided by Dell for diagnostic purposes on PowerStore systems.

The “list” option with the “–basic” flag is used to display a list of basic system information, which usually includes the service tag, among other details.

The service tag is a unique identifier for Dell products that is used for various purposes, including support and maintenance.

While the exact output of the command can vary based on the software version and specific system configuration, the service tag is a common piece of information displayed by such diagnostic commands1.

For the most accurate and up-to-date information about the “svc_diag list – basic” command and its output, it is recommended to consult the Dell PowerStore Service Scripts Guide or contact Dell Support directly.

The configuration details can be exported during theCluster Configurationstep of the Initial Configuration Wizard (ICW) for Dell PowerStore. This step allows the user to review the chosen configuration information, validate the configuration, and initiate the cluster creation.It is at this point that the option to export the configuration details is provided1.

For a detailed guide on how to navigate the ICW and export configuration details, users should refer to the official Dell PowerStore Manager Overview documentation or the PowerStore Info Hub, which includes product documentation and videos that assist with PowerStore deployment and maintenance12. It is important to follow the official documentation to ensure that the process is carried out correctly and to maintain system integrity and compliance with warranty and support agreements.

Heat dissipation in Dell EMC PowerStore systems is typically related to the power and cooling requirements of the system, which are influenced by the system’s configuration and components.Generally, lower model numbered systems, which have less processing power and storage capacity, will have lower heat dissipation specifications compared to higher model numbered systems that are more powerful and have greater storage capacity1.

The heat dissipation specification is an important factor in data center planning as it affects the environmental control requirements such as cooling and airflow. When planning for the installation of PowerStore systems, it is crucial to consider the heat output of the systems to ensure that the data center environment can maintain the optimal temperature for reliable operation.

For detailed specifications on heat dissipation for specific PowerStore models, one should refer to the official Dell EMC PowerStore Spec Sheets, which provide comprehensive information on the electrical and thermal characteristics of each model1. These documents are essential for understanding the power consumption and cooling requirements of PowerStore systems. Following the guidelines provided in these documents helps ensure that the systems are deployed in an environment that can support their thermal management needs.

External hosts connect to the Dell EMC PowerStore cluster for data access through theStoragenetwork.

The Storage network is designed to handle the data traffic between the PowerStore system and the external hosts.

For optimal performance and availability, it is recommended to configure dual redundant fabrics in Fibre Channel configurations, ensuring that each PowerStore node and each external host have connectivity on each of the fabrics12.

This setup minimizes the number of hops between the host and PowerStore, which is crucial for maintaining high-speed data access and reducing latency12.

The Management network, on the other hand, is used for managing and configuring the PowerStore system, not for data access3.

The Service network is typically used for service tasks and is not intended for regular data access by external hosts3.

The Internal network is used for communication within the PowerStore cluster itself and is not accessible by external hosts.

For more detailed information on network considerations and best practices for Dell EMC PowerStore, you can refer to the Dell PowerStore: Best Practices Guide4.
