D-VPX-DY-A-24 Dell VPLEX Deploy Achievement Questions and Answers

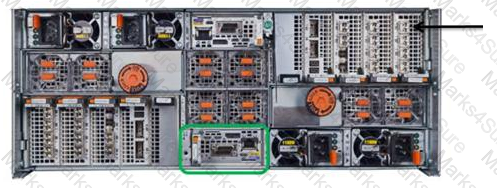

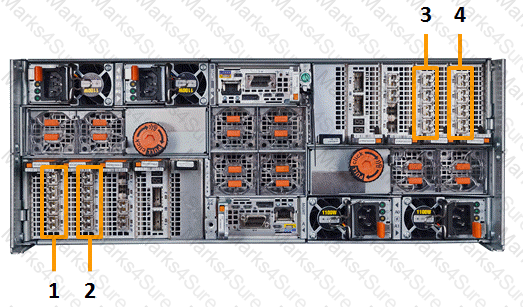

To identify the port indicated by the black arrow, we can refer to the standard VPLEX director port WWN breakdown provided by Dell:

Director Identification: Determine whether the director is A or B. Director B’s WWN is always +1 of Director A’s number1.

Port Numbering: VPLEX director port WWNs are broken down as follows: 0x5001442 [num][seed][IOmodule][port number], where the [port number] is one of {0,1,2,3}1.

Front-End Ports: For VS2 hardware, the front-end ports are typically numbered 0, and the back-end ports are numbered 11.

Exhibit Analysis: If the exhibit shows the standard layout of a VPLEX system and the black arrow points to the first port on Director B, it would be the front-end port 01.

Verification: To confirm the identification, one would typically refer to the official Dell EMC VPLEX documentation for hardware installation and setup, which would provide clear labeling of each port1.

In summary, based on the standard VPLEX port numbering and layout, the port indicated by the black arrow in the exhibit is likely Director B - front-end port 0, assuming that the exhibit follows the standard orientation and labeling conventions.

During a VPLEX installation, the front-end ports are enabled after the metadata volumes and backup have been created. This sequence ensures that the system’s metadata, which is crucial for the operation of VPLEX, is secured before the storage is exposed to the hosts.

Metadata Volumes Creation: The first step in the VPLEX installation process involves creating metadata volumes. These volumes store configuration and operational data necessary for VPLEX to manage the virtualized storage environment1.

Metadata Backup: After the metadata volumes are created, it is essential to back up this data. The backup serves as a safeguard against data loss and is a critical step before enabling the front-end ports1.

Enabling Front-End Ports: Once the metadata is secured, the front-end ports can be enabled. These ports are used for host connectivity, allowing hosts to access the virtual volumes presented by VPLEX1.

Exposing Storage to Hosts: With the front-end ports enabled, the storage can then be exposed to the hosts. This step involves presenting the virtual volumes to the hosts through the front-end ports1.

Final Configuration: The final configuration steps may include zoning, LUN masking, and setting up host access to the VPLEX virtual volumes. These steps are completed after the front-end ports are enabled and the storage is exposed1.

In summary, the front-end ports are enabled during a VPLEX installation after the metadata volumes and backup have been created, which is reflected in option D. This ensures that the system metadata is protected and available before the storage is made accessible to the hosts.

After deploying the VPLEX Cluster Witness, the next step is to configure a 2-way VPN between the Witness and both VPLEX sites. This is essential for the Cluster Witness to communicate with each cluster and provide the health check heartbeats required for monitoring.

VPN Configuration: Configure the VPN to ensure secure communication between the VPLEX Cluster Witness and the management servers of both VPLEX clusters1.

Enable Cluster Witness: Once the VPN is configured, enable the VPLEX Cluster Witness on the VPLEX sites. This involves setting up the Cluster Witness to monitor the health and status of the VPLEX clusters1.

Test Connectivity: After enabling the Cluster Witness, test the connectivity between the Cluster Witness and the VPLEX clusters to ensure that the health check heartbeats are being transmitted and received correctly1.

Finalize Setup: Complete any additional setup tasks as required by the VPLEX Metro configuration, such as configuring consistency groups or completing the VPLEX Metro setup1.

Documentation Reference: For detailed instructions and best practices, refer to the Dell VPLEX Deploy Achievement documents, which provide comprehensive guidance on deploying and configuring the VPLEX Cluster Witness1.

In summary, configuring a 2-way VPN is a critical step after deploying the VPLEX Cluster Witness to ensure it can perform its monitoring role effectively within the VPLEX Metro environment.

One of the key benefits of VPLEX continuous availability is the elimination of complex failover procedures. VPLEX provides a unique implementation of distributed cache coherency, which allows the same data to be read/write accessible across two storage systems at the same time. This ensures uptime for business-critical applications and enables seamless data mobility across host arrays without host disruption1.

Continuous Application Availability: VPLEX maximizes the returns on investments in infrastructure by providing continuous availability to workloads, ensuring that applications remain up and running even in the face of disasters1.

Operational Agility: VPLEX offers operational agility to match the infrastructure to changing business needs, allowing for rapid response to business and technology changes while maximizing asset utilization across active-active data centers1.

Seamless Workload Mobility: The seamless workload mobility feature of VPLEX creates a flexible storage architecture that makes data and workload mobility effortless, contributing to the overall operational efficiency2.

Non-Disruptive Technology Refresh: VPLEX supports non-disruptive technology refresh, enabling data center modernization efforts through online technology refresh without impacting business operations2.

Active-Active Data Centers: VPLEX Metro allows applications to simultaneously read/write on both sites, increasing resource utilization and providing a true Recovery Time Objective (RTO) and Recovery Point Objective (RPO) of zero2.

In summary, the elimination of complex failover is a key benefit of VPLEX continuous availability, providing businesses with the assurance that their critical applications will continue to operate smoothly even during disruptions.

In the context of Dell VPLEX, a rebuild occurring on a volume is a condition that would prevent the expansion of that volume. This is because the system needs to ensure data integrity and consistency during the rebuild process before any changes to the volume size can be made.

Rebuild Process: A rebuild is a process where VPLEX re-synchronizes the data across the storage volumes, typically after a disk replacement or a failure1.

Volume Expansion: Expanding a volume involves increasing its size to accommodate more data. This process requires that the volume is in a stable state without any ongoing rebuild operations1.

Data Integrity: During a rebuild, the system is focused on restoring the correct data across the storage volumes. Attempting to expand a volume during this process could lead to data corruption or loss1.

System Restrictions: VPLEX systems have built-in mechanisms to prevent administrators from performing actions that could jeopardize the system’s stability or data integrity, such as expanding a volume during a rebuild1.

Post-Rebuild Expansion: Once the rebuild process is complete and the volume is fully synchronized, the administrator can then proceed with the volume expansion1.

In summary, a rebuild currently occurring on a volume is a condition that would prevent the expansion of that volume in a Dell VPLEX system. The system must first ensure that the rebuild process is completed successfully before allowing any changes to the volume’s size.

EMC recommends specific best practices for connecting VPLEX to back-end storage arrays to ensure high availability and optimal performance. One of these best practices is that each VPLEX director should have four active paths to every back-end array storage volume.

Multiple Paths: Having multiple active paths from each VPLEX director to the storage volumes ensures that there is no single point of failure. If one path fails, the other paths can continue to provide connectivity1.

Load Balancing: Multiple paths also allow for load balancing of I/O operations across the different paths, which can improve performance and reduce the risk of bottlenecks1.

Path Redundancy: Path redundancy is crucial for maintaining continuous availability, especially in environments where the VPLEX is used for mission-critical applications1.

Configuration: The configuration of the paths should be done in accordance with EMC’s best practices, which include proper zoning and masking in the SAN environment1.

Documentation: Detailed guidelines and best practices for VPLEX SAN connectivity, including back-end array connections, are available in EMC’s documentation, which provides comprehensive instructions for setting up and managing these connections1.

In summary, EMC’s best practice for connecting VPLEX to back-end arrays is to ensure that each VPLEX director has four active paths to every back-end array storage volume. This setup provides the necessary redundancy and performance for a robust and reliable storage environment.

=========================

To increase data protection by converting a local RAID-0 virtual volume to a distributed virtual volume, the recommended method is to create a corresponding device on the remote cluster and then attach it as a mirror to the existing local device. This process effectively creates a distributed virtual volume that spans across both clusters.

Create a Device on the Remote Cluster: Start by creating a new device on the remote VPLEX cluster. This device should be of the same size as the local RAID-0 virtual volume and should not have a virtual volume associated with it1.

Attach as a Mirror: Once the remote device is created, attach it as a mirror to the local RAID-0 virtual volume. This operation is performed using the VPLEX CLI and will begin the process of mirroring the data from the local device to the remote device1.

Synchronization: After attaching the remote device as a mirror, the VPLEX system will synchronize the data between the local and remote devices. This ensures that both devices have identical data and are in a consistent state1.

Distributed Virtual Volume: Once the synchronization is complete, the local and remote devices together form a distributed virtual volume. This volume now has increased data protection because it is distributed across two different clusters1.

Verification: Verify that the distributed virtual volume is functioning correctly by checking its status and ensuring that it is accessible from both clusters1.

Best Practices: It is important to follow the best practices for creating and managing distributed virtual volumes as outlined in the Dell VPLEX Deploy Achievement documents. This includes proper planning, execution, and verification of the mirroring process1.

In summary, the recommended method to change a local RAID-0 virtual volume to a distributed virtual volume is to create a corresponding device on the remote cluster and attach it as a mirror, thereby forming a distributed virtual volume with increased data protection.

The command used to display available statistics for monitoring VPLEX is monitor stat-list. This command provides a list of all the statistics that can be monitored on the VPLEX system.

Command Usage: The monitor stat-list command is executed in the VPLEX CLI (Command Line Interface). When run, it will display a list of all the statistics that are available for monitoring1.

Monitoring Statistics: The statistics available for monitoring can include various performance metrics such as IOPS (Input/Output Operations Per Second), throughput, and latency. These metrics are crucial for assessing the health and performance of the VPLEX system1.

Custom Monitors: In addition to the default system monitors, custom monitors can be created to track specific data. The monitor stat-list command helps in identifying which statistics can be included in these custom monitors1.

Performance Analysis: By using the monitor stat-list command, administrators can determine which statistics are relevant for their performance analysis and can then create monitors to track those specific metrics1.

Documentation Reference: For more information on the usage of the monitor stat-list command and other monitoring commands, administrators should refer to the VPLEX CLI and Administration Guides for the code level the VPLEX is running1.

In summary, the monitor stat-list command is used to display the available statistics for monitoring VPLEX, providing administrators with the information needed to set up and manage performance monitoring on the system.

When using VPLEX Metro, the supported round trip time (RTT) between clusters is a crucial factor for optimal performance. The RTT is the time it takes for a signal to travel from one cluster to another and back again.

RTT Importance: The RTT affects how quickly data can be synchronized between the two clusters. A lower RTT means faster synchronization, which is essential for maintaining the high availability and data consistency that VPLEX Metro is designed to provide1.

Supported RTT: The supported network round trip latency for VPLEX Metro is up to 5 ms. This is the maximum latency that allows the system to perform optimally without significant performance degradation1.

Performance Considerations: If the inter-cluster FC/IP WAN network experiences congestion, it can result in an increased RTT, which may cause performance issues. Therefore, it’s important to ensure that the network infrastructure supports the required RTT1.

Best Practices: Dell EMC recommends keeping the RTT as low as possible, ideally around 1 ms for a campus-wide network, to provide the best performance. However, VPLEX Metro can support RTTs up to 5 ms under optimal conditions1.

Monitoring and Management: It’s important to monitor the RTT regularly and manage the network to avoid congestion. Tools and techniques should be in place to measure and maintain the RTT within the supported range1.

In summary, the supported round trip time between clusters when using VPLEX Metro is 5 ms. This parameter is critical for ensuring that the VPLEX Metro operates within the designed performance specifications.

"The MetroPoint topology can maintain up to five copies of data, including one remote copy and one local copy at each VPLEX site. It provides protection for each of the VPLEX Metro sites with continuous local replication via RecoverPoint"..

For zoning FC WAN COM ports on a VPLEX Metro, the requirement is that each WAN COM port in the local cluster must be zoned to all WAN COM ports in the remote cluster. This setup ensures that there is a redundant network capability where each director on one cluster communicates with all the directors on the other site, even in the event of a fabric or network failure1.

Zoning Configuration: The zoning needs to be fixed such that all A2-FC00 only see (are zoned with) remote A2-FC00 ports, and similarly for A2-FC01 with A2-FC01, and so on for all WAN COM ports1.

Redundant Network: This zoning configuration provides a redundant network capability, which is essential for maintaining communication between the two VPLEX clusters in a Metro configuration1.

Fabric Separation: The FC WAN COM ports will be connected to dual separate backbone fabrics or networks that span two sites, allowing for data flow between the two VPLEX clusters without requiring a merged fabric between the two sites1.

Best Practices: For configuring FC WAN COM ports, it is recommended to refer to the “Implementation and Planning Best Practices for EMC VPLEX Technical Notes” provided by Dell1.

In summary, the requirement for zoning FC WAN COM ports on a VPLEX Metro is to ensure that each WAN COM port in the local cluster is zoned to all WAN COM ports in the remote cluster, providing a robust and fault-tolerant communication network.

Advanced provisioning in Dell VPLEX systems allows for more granular control over storage volumes by enabling the division of storage volumes into multiple extents. This capability is particularly useful for optimizing storage utilization and performance.

Division into Extents: Advanced provisioning allows administrators to divide a larger storage volume into smaller, more manageable extents. This can help in aligning storage allocation with application requirements and improving performance by distributing I/O loads1.

Flexibility: By dividing storage volumes into extents, administrators have the flexibility to manage storage more efficiently, such as allocating different extents to different virtual volumes or applications as needed1.

Efficient Storage Utilization: This approach can lead to more efficient utilization of storage resources, as extents can be allocated and de-allocated dynamically based on changing needs1.

Provisioning Steps: While advanced provisioning offers this flexibility, it does not require each provisioning step to be executed simultaneously. Instead, it allows for a more tailored approach to storage management1.

Third-Party Arrays: Advanced provisioning is not limited to storage volumes from third-party arrays; it can be used with storage volumes from a variety of sources, including those directly managed by VPLEX1.

In summary, the consideration when using Advanced provisioning in Dell VPLEX systems is that it allows the user to divide storage volumes into extents, providing greater flexibility and efficiency in storage management.

When provisioning LUNs from active/passive arrays to VPLEX, it is essential that each VPLEX director has at least two paths to both the active and passive controllers of each array. This requirement ensures high availability and redundancy for the storage volumes being managed by VPLEX1.

Active/Passive Arrays: Active/passive arrays have one controller actively serving I/O (active) and another on standby (passive). The VPLEX system must have paths to both controllers to maintain access to the LUNs in case the active controller fails1.

Path Redundancy: Having at least two paths to both controllers from each VPLEX director provides redundancy. If one path fails, the other can continue to serve I/O, preventing disruption to the host applications1.

VPLEX Configuration: In the VPLEX configuration, paths are zoned and masked to ensure that the VPLEX directors can access the LUNs on the storage arrays. Proper zoning and masking are critical for the paths to function correctly1.

Failover Capability: The dual-path configuration allows VPLEX to perform an automatic failover to the passive controller if the active controller becomes unavailable, ensuring continuous data availability1.

Best Practices: Following the path requirement as per Dell EMC’s best practices ensures that the VPLEX system can provide the expected level of service and data protection for the provisioned LUNs1.

In summary, the path requirement for each VPLEX director when connecting to active/passive arrays is to have at least two paths to both the active and passive controllers of each array, providing the necessary redundancy and failover capabilities.

Questions no: High I/O volume type during WAN COM failure

Verified Answer:B. Logging volume

Step by Step Comprehensive Detailed Explanation with References:During a WAN COM failure in a VPLEX Metro environment, logging volumes are subjected to high levels of I/O. This is because the logging volumes are used to store write logs that ensure data integrity and consistency across distributed volumes. These logs play a critical role during recovery processes, especially when there is a communication failure between clusters.

Role of Logging Volumes: Logging volumes in VPLEX are designed to capture write operations that cannot be immediately mirrored across the clusters due to network issues or WAN COM failures1.

WAN COM Failure: When a WAN COM failure occurs, the VPLEX system continues to write to the local logging volumes to ensure no data loss. Once the WAN COM link is restored, the logs are used to synchronize the data across the clusters1.

High I/O Levels: The high levels of I/O on the logging volumes during a WAN COM failure are due to the accumulation of write operations that need to be logged until the link is restored and the data can be synchronized1.

Recovery Process: After the WAN COM link is restored, the VPLEX system uses the data in the logging volumes to rebuild and synchronize the distributed volumes, ensuring data consistency and integrity1.

Best Practices: EMC best practices recommend monitoring the health and performance of logging volumes, especially during WAN COM failures, to ensure they can handle the increased I/O load and maintain system performance1.

In summary, logging volumes experience high levels of I/O only during a WAN COM failure as they are responsible for capturing and storing write operations until the communication between clusters can be re-established and data synchronization can occur.

The correct order of steps to create and operate a custom monitor is:

Determine the type and frequency of statistics to collect.

Create a monitor.

Add one or more sinks to the monitor.

Collect statistics.

Gather monitoring files, or monitor output from the console.

To create and operate a custom monitor within the Dell VPLEX environment, follow these steps:

Determine the Type and Frequency of Statistics to Collect: Identify what statistics are relevant for your monitoring purposes and how frequently they should be collected. This will depend on the specific needs of your environment and the performance metrics you wish to track.

Create a Monitor: Using the VPLEX CLI or Unisphere for VPLEX, create a new monitor instance. Configure the monitor with the types of statistics you determined in the previous step.

Add One or More Sinks to the Monitor: Sinks are the destinations where the collected statistics will be sent. These could be files, databases, or external systems. Set up one or more sinks in the monitor configuration to ensure that the data is stored or transmitted as needed.

Collect Statistics: Start the monitor to begin collecting statistics. The monitor will gather data from the VPLEX system according to the type and frequency settings you have specified.

Gather Monitoring Files, or Monitor Output from the Console: After the statistics have been collected, retrieve the monitoring files from the specified sinks, or view the output directly from the console if real-time monitoring is configured.

These steps are based on the standard procedures for setting up and managing custom monitors in a Dell VPLEX environment, as detailed in the Dell EMC VPLEX documentation. By following these steps, you can effectively monitor the performance and health of your VPLEX system.
