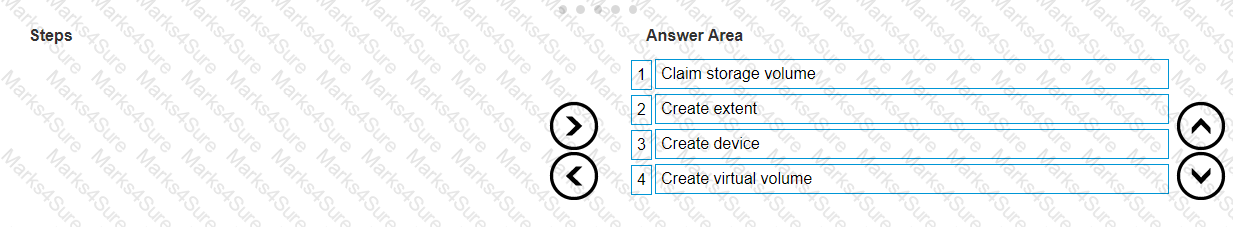

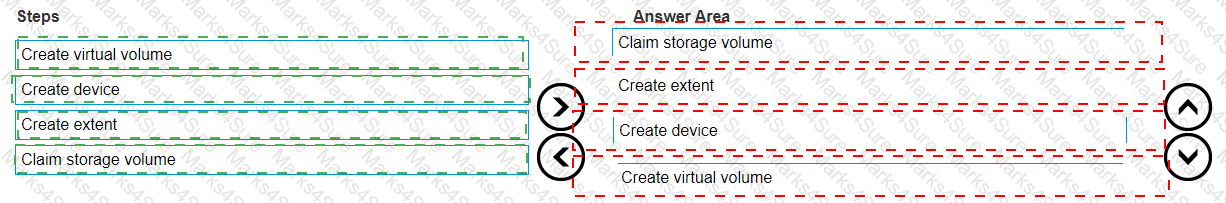

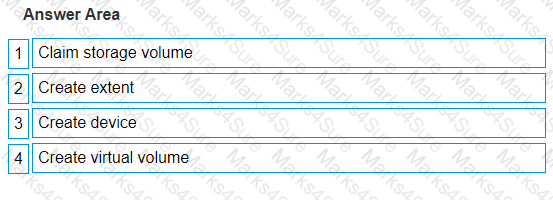

D-VPX-OE-A-24 Dell VPLEX Operate Achievement Questions and Answers

When using VPLEX with RecoverPoint enabled consistency groups, it’s important to consider how journals are managed:

Production Journals: These are used by the production volumes for logging write I/Os before they are replicated to the remote site or local copy.

Local Copy Journals: These are used by the local copy volumes for the same purpose as production journals but are specific to the local copies.

Separation of Journals: To ensure proper replication and recovery processes, production and local copy journals must be kept in separate consistency groups.This separation is crucial for maintaining the integrity of the replication and avoiding conflicts between production and local copy operations1.

RecoverPoint Configuration: In a VPLEX environment, RecoverPoint provides continuous data protection and replication.It is configured to work with VPLEX consistency groups to ensure that all writes are captured and can be recovered in case of a failure1.

Best Practices: Dell’s best practices for VPLEX RecoverPoint configurations recommend this separation of journals to ensure that the system can handle failover scenarios correctly and that data is not lost or corrupted1.

By following this consideration, storage administrators can ensure that their VPLEX RecoverPoint environment is configured for optimal data protection and disaster recovery readiness.

The report create-monitors command in Dell VPLEX is used to create custom monitors that can track a variety of performance metrics for different components of the VPLEX cluster. The command allows administrators to set up monitors for disks, ports, and volumes, which are essential elements of the VPLEX storage architecture.

Here’s a detailed explanation:

Disks:Monitors for disks can track performance metrics such as I/O rates, latency, and throughput, which are critical for assessing the health and efficiency of the physical storage.

Ports:Monitoring ports is crucial for understanding the performance of data transfer interfaces, including Fibre Channel and Ethernet ports, which facilitate communication and data movement within the VPLEX cluster and to external networks.

Volumes:Volumes, particularly virtual volumes, are logical storage units that administrators often need to monitor closely for performance metrics like read/write operations and response times to ensure optimal data access and processing.

Custom Monitor Creation:To create a custom monitor, an administrator would access the management server, use the VPLEX CLI, and implement commands to specify the name, period, statistics, and targets for the monitor1.

Monitor Management:After creating a monitor, administrators can add a file sink to direct the output to a CSV file for analysis.This file contains the collected data and is stored on the management server under the /var/log/VPlex/cli folder1.

Documentation Reference:For more detailed instructions and information on creating and managing monitors, administrators are encouraged to consult the VPLEX CLI and Admin Guides, which provide comprehensive guidance on these processes1.

By setting up these monitors, a storage administrator can gain valuable insights into the performance of their VPLEX cluster and make informed decisions to maintain or improve its efficiency and reliability.

Data mobility in VPLEX is used for various operations, including storage volume defragmentation. Here’s the explanation:

Data Mobility: This operation is designed to move data within the VPLEX system, which can include moving data from fragmented storage volumes to contiguous storage, effectively defragmenting the storage1.

Device Mobility: Device mobility is typically used for moving devices within the VPLEX cluster or across clusters but is not specifically for defragmentation purposes.

Virtual Volume Mobility: While virtual volume mobility can move virtual volumes within the VPLEX environment, it does not directly address storage volume defragmentation.

Extent Mobility: Extent mobility involves moving extents, which are segments of storage within a volume, but this is not the operation used specifically for defragmentation.

Defragmentation Process: During defragmentation, data mobility would be used to relocate data from fragmented extents to a set of contiguous extents, thereby optimizing the layout of the data on the physical storage and improving performance1.

VPLEX Administration Guides: For detailed procedures on how to perform data mobility operations, including defragmentation, administrators should refer to the VPLEX Administration Guides2.

By using data mobility operations, administrators can manage and optimize the storage within the VPLEX system, ensuring efficient use of resources and maintaining performance.

To streamline the encapsulation process of LUNs across multiple servers to a VPLEX Metro cluster, the storage administrator can use the VIAS (VPLEX Integrated Array Services) Provisioning Wizard. This tool simplifies the process by automating many of the steps involved in encapsulating LUNs.

Here’s how the VIAS Provisioning Wizard can help:

Preparation: The administrator can prepare many of the encapsulation tasks ahead of time, such as host zoning to VPLEX FE ports, host registration of initiators in VPLEX, and LUN masking/zoning to the VPLEX BE Ports1.

Encapsulation Process: During the outage window, the administrator can use the VIAS Provisioning Wizard to encapsulate the LUNs under VPLEX control.Since the preparation steps like LUN masking and zoning to VPLEX BE have already been prepped, the cutover process becomes quicker1.

Storage View Container Creation: The VIAS Provisioning Wizard allows for the creation of a Storage View container in VPLEX, where only the VPLEX FE ports are included initially1.

EZ Provisioning Wizard: After claiming and encapsulating the LUNs, the administrator can create a 1:1 mapping of Storage volume to virtual volume with the EZ Provisioning Wizard, which is a quick process and helps preserve the data in its current state1.

Finalizing the Cutover: The newly encapsulated 1:1 virtual volumes are added to the previously created Storage View container, and the previously registered host initiators are added to the Storage View as well1.

By using the VIAS Provisioning Wizard, the administrator can efficiently manage the encapsulation of a large number of LUNs, reducing the complexity and duration of the outage window required for such a task.

In VPLEX, a valid target for device data migration is a device with no existing virtual volume. This is because the migration process involves moving data from a source device to a target device, and having an existing virtual volume on the target device could lead to data conflicts or loss.

Migration Process: The migration process in VPLEX is designed to move data from one storage device to another.This is typically done to upgrade storage, balance loads, or for other maintenance reasons1.

Target Device Requirements: The target device for migration should be a clean slate with no existing virtual volumes.This ensures that the data from the source device can be migrated without any issues1.

Device with Existing Virtual Volume: If a device already has a virtual volume, it is not a suitable target for migration because the existing data could be overwritten or corrupted during the migration process1.

Extent and Distributed Device: While extents and distributed devices are components within the VPLEX architecture, they are not the end targets for device data migration.The migration target needs to be a device that can be mapped to a virtual volume after the migration is complete1.

Migration Commands: VPLEX provides specific CLI commands to perform device data migration, ensuring that the process is controlled and that data integrity is maintained throughout the migration1.

By selecting a device with no existing virtual volume as the target for data migration, VPLEX administrators can ensure a smooth and error-free migration process, maintaining the integrity and availability of the data.

When a VPLEX distributed device experiences elongated write response times, it is typically due to the characteristic of VPLEX that requires writes to be committed to backend storage on both clusters before an acknowledgement is sent to the host. This ensures data integrity and consistency across the distributed device but can lead to increased response times, especially if there is network congestion or latency issues between the clusters.

Here’s a detailed explanation:

Write I/O Commitment:For a VPLEX distributed device, any write I/O must be committed to backend (BE) storage on both the local and remote clusters1.

Network Impact:If the inter-cluster communication network (FC/IP WAN) is experiencing congestion or high latency, it will increase the round-trip time of I/O packets, leading to performance issues and elongated write response times1.

Performance Best Practices:VPLEX best practices suggest that the round-trip time (RTT) between clusters should not exceed 5 ms to maintain optimal performance, with an RTT of 1 ms recommended for campus-wide networks1.

Troubleshooting Steps:To address such issues, administrators should check for network congestion indicators in the firmware logs and ensure that all WAN communication ports are operational and that SFPs have sufficient power1.

Resolution:If the VPLEX is configured for FC metro and supported by Dell EMC, collecting switch logs and engaging Dell EMC support is advised.For IP metro configurations, validating the health of the IP network is crucial to identify the cause of congestion1.

By understanding this characteristic of VPLEX distributed devices, storage administrators can take appropriate measures to mitigate elongated write response times and maintain system performance.

In the exhibit provided, the number that highlights the Director-B front-end ports is 4. Here’s the explanation:

Director-B Identification: In a VPLEX system, each director is a separate hardware component that manages data flow. Director-B is one of these components.

Front-End Ports: The front-end (FE) ports on a director are the interfaces through which the director communicates with hosts or other external devices.

Number 4 in the Exhibit: The exhibit shows a hardware component with various sections labeled with numbers. Number 4 is located at the upper right quadrant, which is typically where front-end ports are found on a director module.

VPLEX Documentation: The Dell EMC VPLEX documentation would provide diagrams and detailed descriptions of the hardware components, including the location of the Director-B front-end ports.

By understanding the layout of VPLEX hardware and referencing the official documentation, one can identify the correct number associated with the Director-B front-end ports in the exhibit.

In the context of Dell VPLEX Operate, the type of statistics used to track latencies and determine statistical measures such as median, mode, percentiles, minimums, and maximums is referred to as “buckets.” Buckets are a statistical method used to group data points into ranges or “buckets” to analyze the distribution and performance characteristics over time1.

Buckets: Buckets are used in performance monitoring to categorize data points into defined ranges.This allows for a detailed analysis of how often data points fall within certain latency ranges, which is essential for understanding system performance1.

Latency Tracking: By using buckets, VPLEX can track the latency of operations over time.This helps in identifying trends, such as increased latencies that may indicate potential performance issues1.

Statistical Measures: Buckets enable the calculation of statistical measures like median, mode, percentiles, minimums, and maximums.These measures provide insights into the typical and extreme values of latencies experienced by the system1.

Performance Analysis: The use of buckets is crucial for performance analysis, as it helps administrators understand the behavior of the system under different load conditions and during various operational scenarios1.

Monitoring Tools: VPLEX provides monitoring tools that utilize buckets to present latency and other performance-related statistics in a way that is meaningful and actionable for system administrators1.

By leveraging buckets to track and analyze latencies and other performance metrics, VPLEX administrators can gain a comprehensive understanding of system behavior and make informed decisions to optimize performance and address any issues that arise.

The SNMP management station connects to the VPLEX Management Server to gather statistics. The Management Server acts as the central point for managing and monitoring the VPLEX environment, including the collection of SNMP statistics.

Management Server Role: The VPLEX Management Server provides a centralized interface for system administration and monitoring.It is responsible for managing the VPLEX clusters and all associated components1.

SNMP Statistics Collection: SNMP (Simple Network Management Protocol) is used for collecting performance and health data from networked devices.The VPLEX Management Server supports SNMP and can be configured to send SNMP traps to a management station1.

Configuration: To enable SNMP monitoring, the VPLEX administrator must configure the Management Server with the appropriate SNMP settings, including the community string and the remote host (management station) details1.

Monitoring with SNMP: Once configured, the SNMP management station can connect to the VPLEX Management Server to collect statistics, which can include a wide range of metrics such as CPU utilization, memory usage, and I/O rates1.

Troubleshooting: If there are issues with SNMP data collection, such as the inability to ping the remote host from the VPLEX Management Server, the administrator may need to check network configurations, such as firewall settings, to ensure proper connectivity1.

By connecting to the VPLEX Management Server, the SNMP management station can effectively gather statistics for monitoring the health and performance of the VPLEX system.

Volume expansion in Dell VPLEX is a process that allows for increasing the size of a virtual volume. However, certain conditions can prevent this operation from taking place:

Migration Occurring on the Volume: If there is an ongoing migration process involving the volume, it cannot be expanded until the migration is complete.This is because the volume’s data layout is being altered during migration, and any attempt to change its size could lead to data corruption or other issues1.

Consistency Group Membership: Whether or not a volume belongs to a consistency group does not directly prevent volume expansion. Consistency groups in VPLEX areused to ensure write-order fidelity across multiple volumes but do not restrict the expansion of individual volumes within the group.

Metadata Volume Backup: Backing up a metadata volume is a separate operation that does not interfere with the ability to expand a storage volume. Metadata backups are typically performed to preserve the configuration and state information of the VPLEX system.

Logging Volume Re-synchronization: While a logging volume in a re-synchronization state indicates that there is an ongoing process to align data across clusters or devices, it does not inherently prevent the expansion of a storage volume.

Therefore, the condition that would prevent volume expansion is when there is a migration occurring on the volume (OA).

To add a RecoverPoint cluster to VPLEX, the RecoverPoint cluster Management IP address is required. This IP address is used to establish communication between the VPLEX system and the RecoverPoint cluster for management and replication purposes.

RecoverPoint Cluster Management IP Address: The management IP address is a unique identifier that allows the VPLEX system to connect to the RecoverPoint cluster.It is used for configuration, management, and monitoring of the RecoverPoint system from VPLEX1.

Adding a RecoverPoint Cluster: To add a RecoverPoint cluster to VPLEX, the administrator must use the VPLEX CLI and provide the management IP address of the RecoverPoint cluster.This is done using the rp rpa-cluster add command followed by the -o option to specify the IP address1.

Authentication: After providing the IP address, the administrator will be prompted to enter the administrative password for the RecoverPoint cluster to authenticate the connection1.

Verification: Once the RecoverPoint cluster is added, the administrator can verify the addition by using the ls recoverpoint/rpa-clusters/ command to list the RecoverPoint clusters connected to VPLEX1.

Management and Replication: With the RecoverPoint cluster added to VPLEX, the system can manage replication tasks and ensure data protection across the connected storage systems1.

By providing the RecoverPoint cluster Management IP address, administrators can integrate RecoverPoint with VPLEX, enhancing the system’s capabilities for data replication and disaster recovery.

Global commands in the VPLEX CLI (Command Line Interface) are characterized by their accessibility from all contexts within the CLI. This means that these commands can be executed regardless of the current navigation level or context in the CLI structure.

Global Commands: Global commands are designed to provide convenience and efficiency by allowing administrators to execute certain operations without the need to navigate to a specific context within the CLI1.

CLI Context Tree: The VPLEX CLI is organized into a hierarchical context tree, where commands are typically executed within a specific context that corresponds to the area of the system being managed1.

Accessibility: Unlike other commands that must be executed from the appropriate location in the context tree, global commands can be accessed and run from any point within the CLI.This makes them readily available for common tasks that need to be performed frequently or quickly1.

Examples: Examples of global commands might include those used for system-wide status checks, performance monitoring, or initiating tasks that affect multiple components of the VPLEX system.

Efficiency: The ability to execute global commands from any context streamlines the management process, as it reduces the number of steps required to perform certain tasks and allows for quicker response to system events or requirements1.

By being accessible from all contexts, global commands in the VPLEX CLI provide a flexible and efficient way for administrators to manage and monitor the VPLEX system.

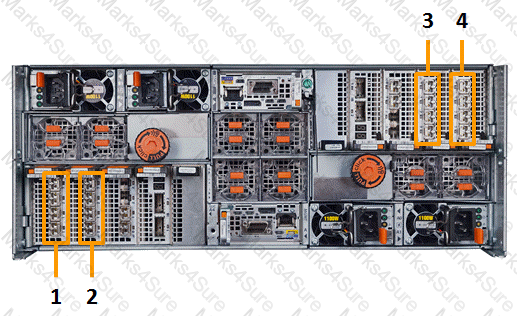

The image provided appears to be a diagram or photograph of the back panel of a Dell VPLEX system. The back panel is divided into two sections, each presumably representing a director module. Each section has a set of ports highlighted and labeled with numbers 1, 2, 3, and 4. According to the question provided, which asks to identify the Director-A back-end ports from the options given (OA 1, OB 2, OC 4, OD 3), the verified answer is number 3. This can be inferred because typically in such systems, ‘A’ might refer to the first director or left side when looking at the back panel.
