D-XTR-MN-A-24 Dell XtremIO Maintenance Achievement Questions and Answers

XtremIO upgrade packages can be found on the support.emc.com website. This is the official support site for Dell EMC products, where customers can download software updates, including XtremIO upgrade packages.The site provides access to various resources, including documentation, knowledge articles, and software downloads for Dell EMC products12.

To find and download XtremIO upgrade packages, follow these steps:

Go to support.emc.com.

Log in with your Dell EMC support account credentials.

Navigate to the ‘Downloads’ section.

Search for XtremIO in the product list.

Select your specific XtremIO model and version.

Locate the upgrade package you need and download it.

It’s important to ensure that you have a valid support contract and the necessary permissions to access and download software updates from support.emc.com1.

=========================

To expand a Starter X-Brick cluster (which typically begins with one X-Brick) to an eight X-Brick cluster, a total of three expansions are required. Each expansion step in XtremIO can typically double the number of X-Bricks, thus:

First expansion: From 1 X-Brick to 2 X-Bricks.

Second expansion: From 2 X-Bricks to 4 X-Bricks.

Third expansion: From 4 X-Bricks to 8 X-Bricks.

This sequence ensures that the storage array scales properly, maintaining performance and redundancy.

When the NVRAM status LED on an XtremIO X2 is flashing red at one-second intervals, it indicates an uncorrectable error. This is a critical status that typically signifies a hardware malfunction or failure within the NVRAM module, which requires immediate attention.NVRAM, or Non-Volatile Random Access Memory, is crucial for retaining data integrity during power losses or system crashes1.

The steps to address this issue usually involve:

Investigating the system logs to identify the specific nature of the error.

Contacting Dell EMC support for guidance on diagnosing and resolving the issue.

Following the recommended procedures for troubleshooting or replacing the affected NVRAM module, as per the support team’s instructions.

It is important to resolve such errors promptly to prevent potential data loss and to maintain the overall health and performance of the storage system1.

=========================

For uploading the XtremApp to the XtremIO Management Server (XMS), the recommended tool isWinSCP.WinSCP is a popular SFTP client and FTP client for Microsoft Windows that allows for secure file transfer between a local and a remote computer1. It is particularly useful for uploading files like XtremApp due to its graphical user interface, which simplifies the process of transferring files.

The steps for uploading the XtremApp to the XMS using WinSCP are as follows:

Download and install WinSCP on your local machine.

Open WinSCP and enter the XMS’s hostname or IP address, as well as the username and password.

Navigate to the XtremApp file on your local machine within the WinSCP interface.

Drag and drop the XtremApp file to the desired directory on the XMS.

Verify that the upload was successful by checking the file size and timestamp on the XMS.

This method is recommended in the Official Dell XtremIO Maintenance Achievement document as it provides a secure and reliable way to manage files on the XMS1.

=========================

The XtremIO X2 storage system can be expanded for capacity (Scale-Up) or both capacity and performance (Scale-Out). The system begins with a single building block, called an X-Brick, with a minimum of 18 SSDs.When additional capacity is required, the system scales up, with up to 72 SSDs for a single X-Brick1. Therefore, to upgrade a single X-Brick XtremIO X2 cluster that already contains 36 SSDs, the minimum number of SSDs required would be 18, which is the base configuration for an X-Brick.

=========================

For a multi X-Brick XtremIO X1 cluster, each X-Brick requires one Battery Backup Unit (BBU) that provides protective power to both Storage Controllers within the X-Brick. Additionally, there are two BBU COM (communication) ports required, with one connected to each Storage Controller.This configuration ensures that in the event of a power failure, the BBU can maintain power to the Storage Controllers, allowing them to safely shut down and protect data integrity1.

The installation process would typically involve:

Installing the BBU in the designated slot within the X-Brick.

Connecting the BBU power cable to the power supply of both Storage Controllers.

Connecting a BBU COM port to each Storage Controller for communication and monitoring purposes.

This setup is crucial for maintaining the high availability and data protection standards that XtremIO systems are known for1.

=========================

The Eaton 1550 Evolution BBU (Battery Backup Unit) uses 1 DB9 and 1 RJ50 connector. These connectors are used for communication and management purposes, ensuring that the BBU can interface correctly with other components of the system.

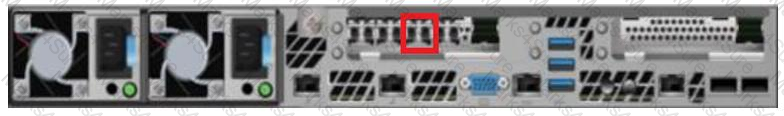

The highlighted port in the exhibit is a Fibre Channel (FC) port. This port type is used for high-speed data transfer between the storage controller and connected devices or networks. Fibre Channel is a technology known for its reliability and speed, making it suitable for storage area networks (SANs).The identification of the FC port is based on recognizing the physical characteristics of FC ports, such as their shape and typical placement on storage devices, as well as knowledge about Dell’s XtremIO systems’ configuration options1.

=========================

The show-storage-controllers command is used in XMCLI to verify the IP addresses of the Storage Controllers after they have been changed. This command provides detailed information about the status and configuration of the storage controllers, including their IP addresses.

To replace a power supply unit (PSU) in a storage controller of an XtremIO cluster, a specific command needs to be executed.

The correct command to initiate this process is replace-storage-controller-psu sc-psu-id=1 cluster-id="ABC123".

This command specifies the action to replace the PSU (replace-storage-controller-psu), the PSU ID (sc-psu-id=1), and the specific cluster ID (cluster-id="ABC123").

Using this command ensures that the correct PSU in the specified cluster is prepared for replacement.

This performance metric is derived from the system’s ability to deliver linear scalability, meaning that two X-Bricks can deliver twice the IOPS of a single X-Brick configuration2.

The calculation for this is based on the performance of a single X-Brick, which can achieve up to 300,000 IOPS under the same workload conditions.Therefore, with two X-Bricks, the system can achieve double that amount, resulting in 600,000 IOPS1.

This information is crucial for planning and sizing purposes, ensuring that the storage array meets the performance requirements of the applications it supports2.

=========================

The minimum XtremIO software version required for expanding a Starter X-Brick cluster is 4.0.4. This version includes the necessary features and improvements to support the expansion process, ensuring compatibility and optimal performance.

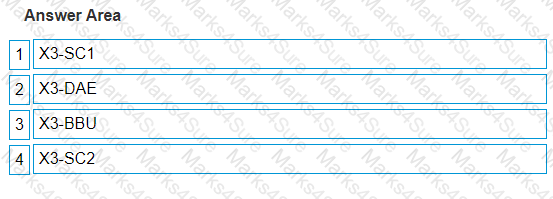

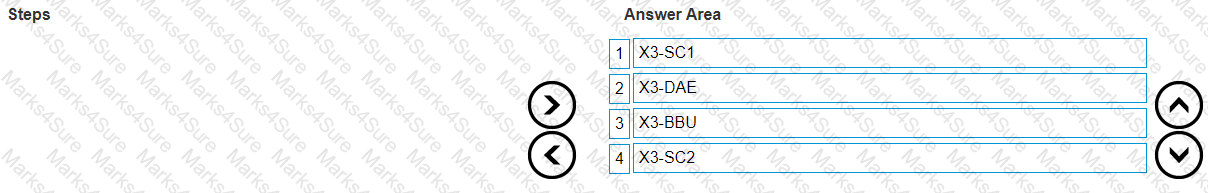

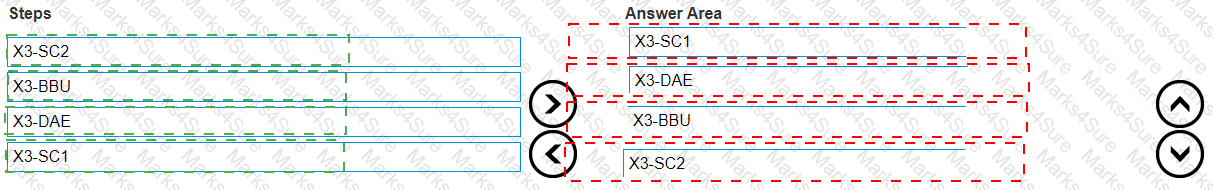

The correct sequence of steps to power up an XtremIO X1 cluster after an emergency shutdown is as follows:

Determine the cause of the shutdown

Power up the Battery Backup Units

Power up the XMS

Power up the Storage Controllers

Start the cluster

Detailed Explanation with References:

Determine the cause of the shutdown: Before powering up the system, it is essential to understand why the emergency shutdown occurred to prevent reoccurrence.

Power up the Battery Backup Units: The BBUs provide the necessary power to the storage controllers during power-up.

Power up the XMS: The XtremIO Management Server must be powered up to manage and monitor the storage system.

Power up the Storage Controllers: Once the BBUs and XMS are operational, power up the storage controllers.

Start the cluster: Finally, start the cluster to bring the XtremIO system back online and resume normal operations.
