DP-420 Designing and Implementing Cloud-Native Applications Using Microsoft Azure Cosmos DB Questions and Answers

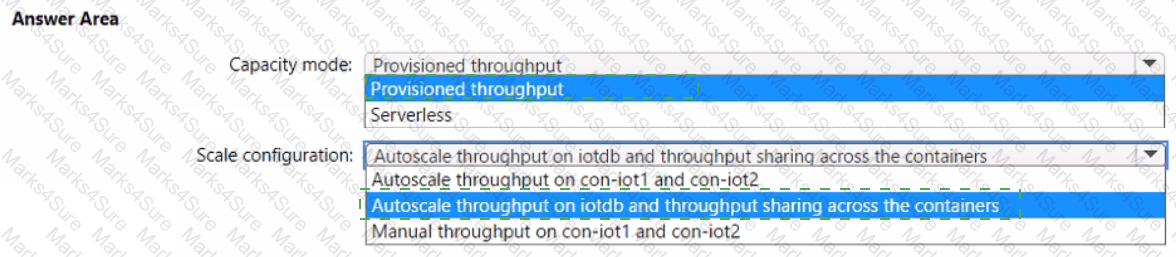

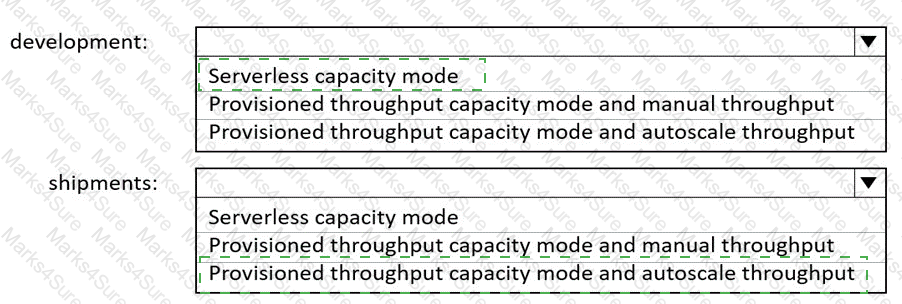

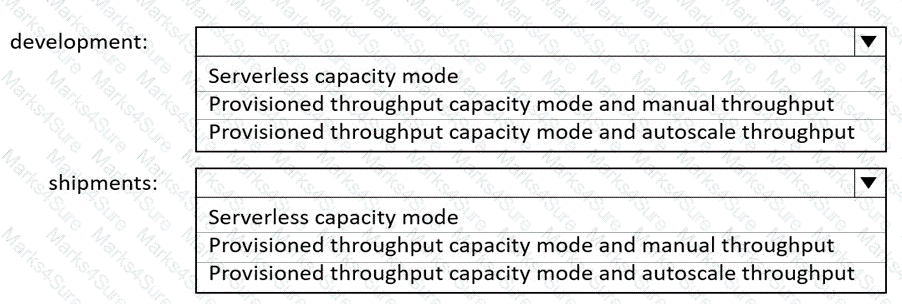

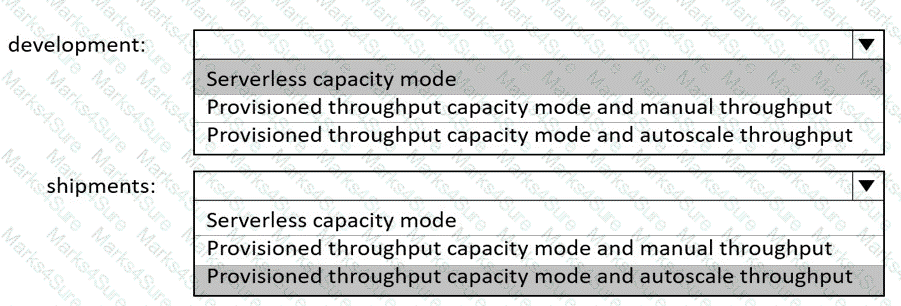

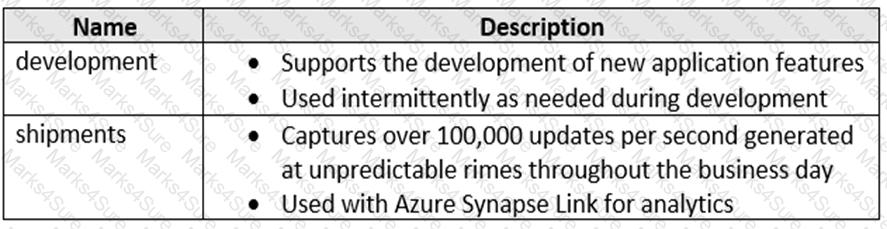

Box 1: Serverless capacity mode

Azure Cosmos DB serverless best fits scenarios where you expect intermittent and unpredictable traffic with long idle times. Because provisioning capacity in such situations isn't required and may be cost-prohibitive, Azure Cosmos DB serverless should be considered in the following use-cases:

Getting started with Azure Cosmos DB

Running applications with bursty, intermittent traffic that is hard to forecast, or low ( < 10%) average-to-peak traffic ratio

Developing, testing, prototyping and running in production new applications where the traffic pattern is unknown

Integrating with serverless compute services like Azure Functions

Box 2: Provisioned throughput capacity mode and autoscale throughput

The use cases of autoscale include:

Variable or unpredictable workloads: When your workloads have variable or unpredictable spikes in usage, autoscale helps by automatically scaling up and down based on usage. Examples include retail websites that have different traffic patterns depending on seasonality; IOT workloads that have spikes at various times during the day; line of business applications that see peak usage a few times a month or year, and more. With autoscale, you no longer need to manually provision for peak or average capacity.

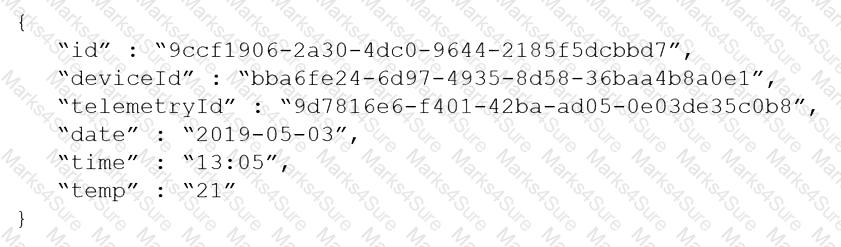

The partition key is what will determine how data is routed in the various partitions by Cosmos DB and needs to make sense in the context of your specific scenario. The IoT Device ID is generally the "natural" partition key for IoT applications.

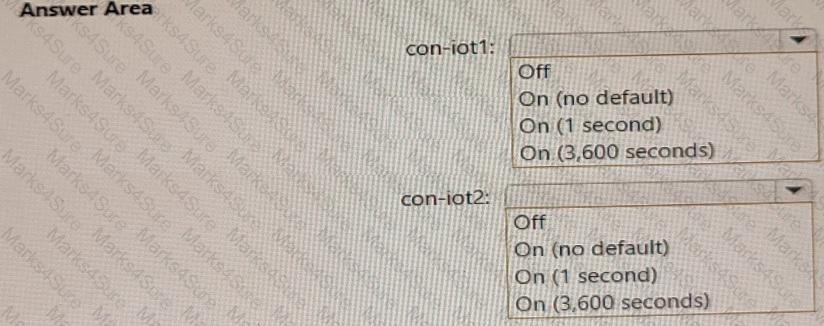

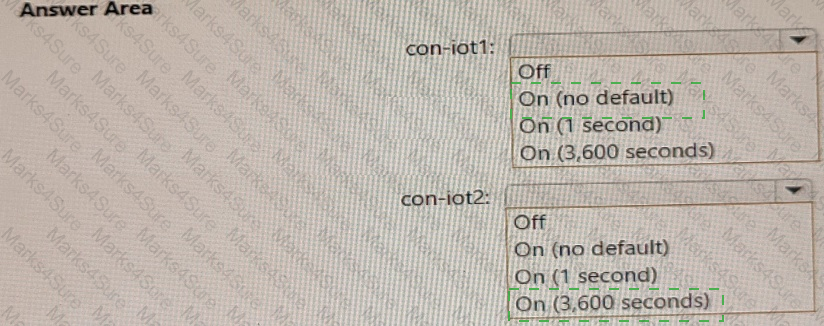

Scenario: The iotdb database will contain two containers named con-iot1 and con-iot2.

Ensure that Azure Cosmos DB costs for IoT-related processing are predictable.

Instead configure an Azure Monitor alert to trigger the function.

You can set up alerts from the Azure Cosmos DB pane or the Azure Monitor service in the Azure portal.

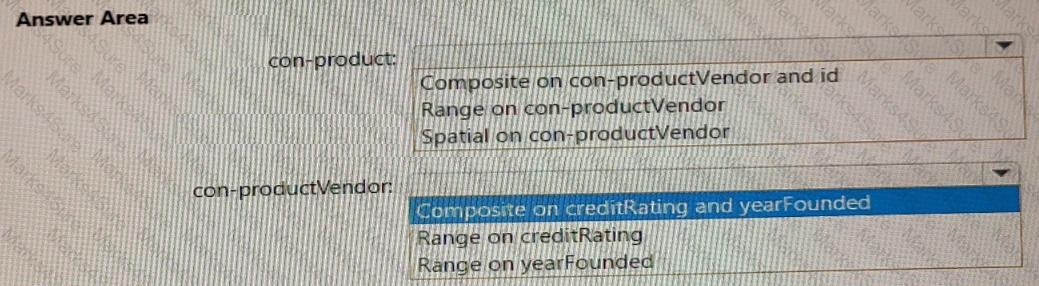

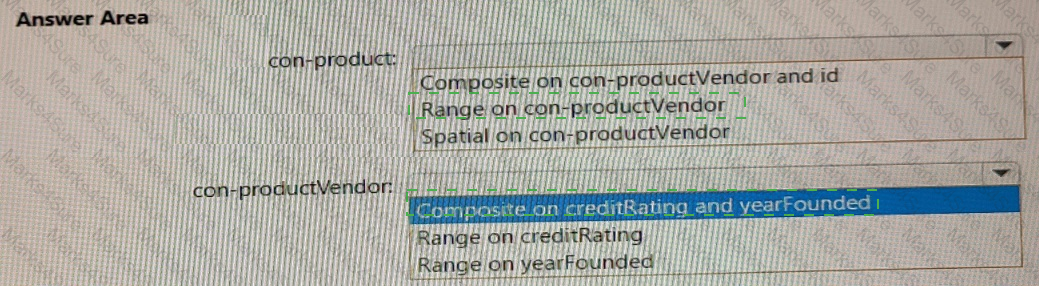

App1 queries the con-product and con-productVendor containers.

Note: Request unit is a performance currency abstracting the system resources such as CPU, IOPS, and memory that are required to perform the database operations supported by Azure Cosmos DB.

Scenario:

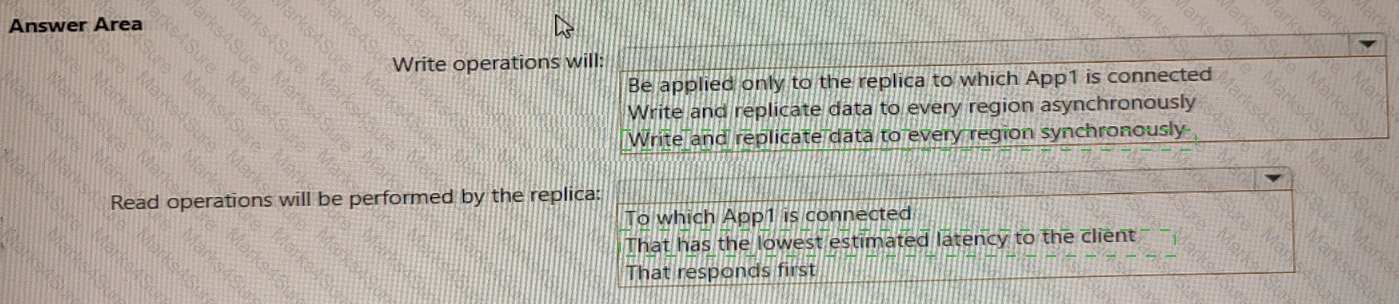

Develop an app named App1 that will run from all locations and query the data in account1.

Once multi-region writes are configured, maximize the performance of App1 queries against the data in account1.

Whenever there are multiple solutions for a requirement, select the solution that provides the best performance, as long as there are no additional costs associated.

Scenario: Develop an app named App2 that will run from the retail stores and query the data in account2. App2 must be limited to a single DNS endpoint when accessing account2.

By using Azure Private Link, you can connect to an Azure Cosmos account via a private endpoint. The private endpoint is a set of private IP addresses in a subnet within your virtual network.

When you're using Private Link with an Azure Cosmos account through a direct mode connection, you can use only the TCP protocol. The HTTP protocol is not currently supported.

Bounded staleness is frequently chosen by globally distributed applications that expect low write latencies but require total global order guarantee. Bounded staleness is great for applications featuring group collaboration and sharing, stock ticker, publish-subscribe/queueing etc.

Scenario: Application updates in con-product frequently cause HTTP status code 429 "Too many requests". You discover that the 429 status code relates to excessive request unit (RU) consumption during the updates.

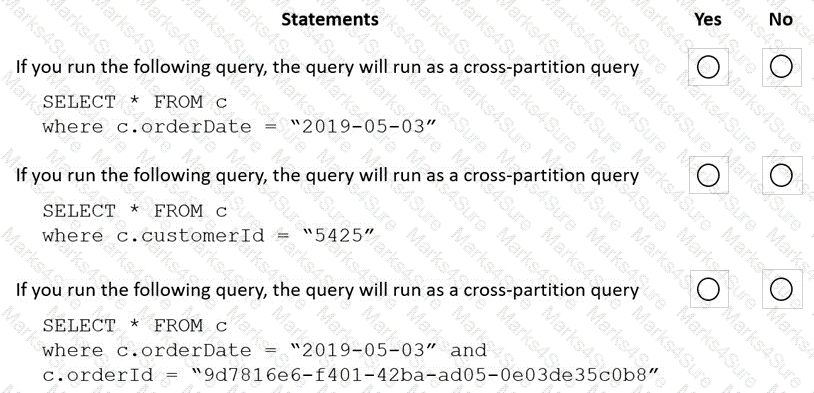

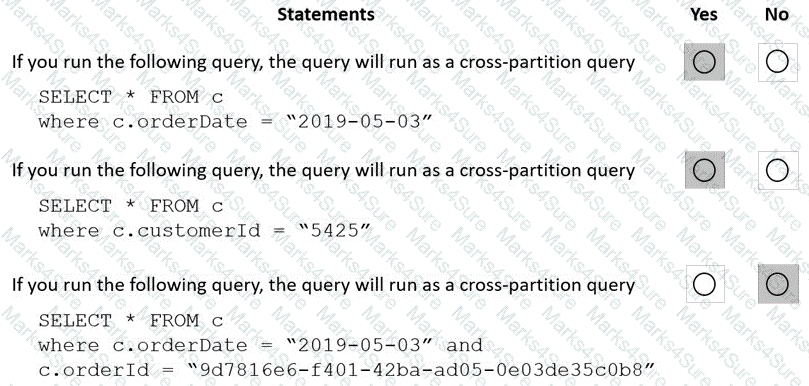

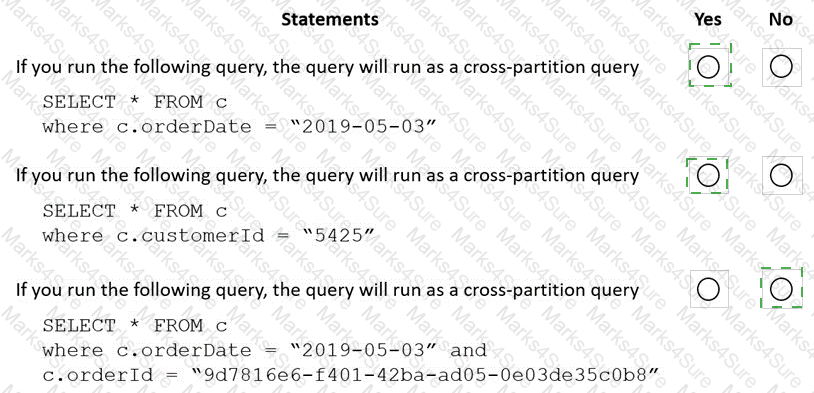

Box 1: Yes

Records with different OrderIDs will match.

Box 2: Yes

Records with different OrderIDs will match.

Box 3: No

Only records with one specific OrderId will match

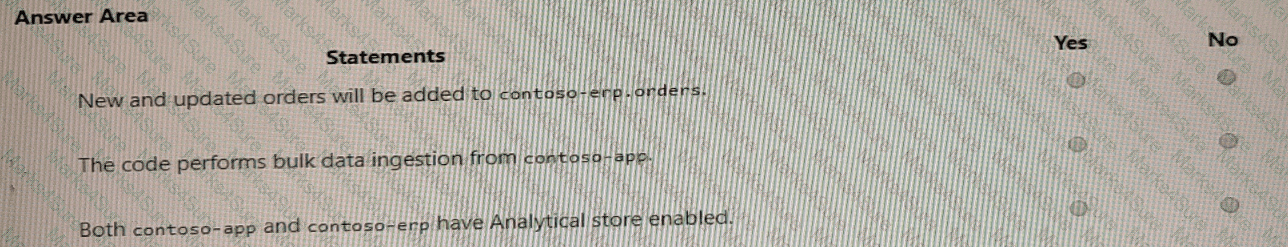

New and updated orders will be added to contoso-erp.orders:  Yes

The code performs bulk data ingestion from contoso-app:  No

Both contoso-app and contoso-erp have Analytics store enabled:  Yes

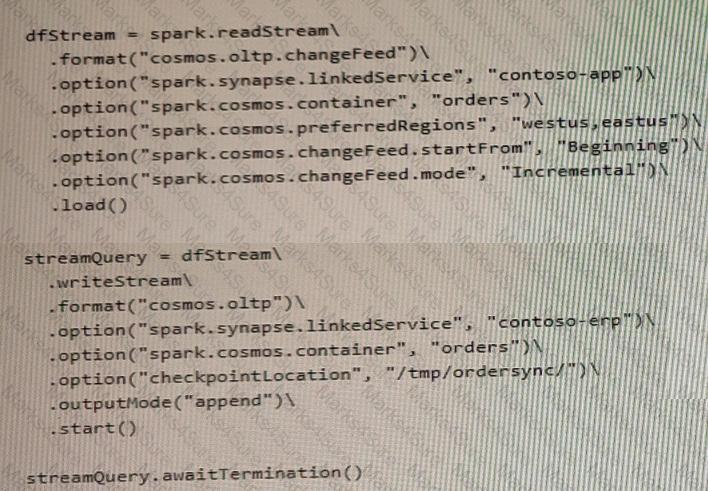

The code uses the spark.readStream method to read data from a container named orders in a database named contoso-app. The data is then filtered by a condition and written to another container named orders in a database named contoso-erp using the spark.writeStream method.  The write mode is set to “append”, which means that new and updated orders will be added to the destination container 1 .

The code does not perform bulk data ingestion from contoso-app, but rather stream processing. Bulk data ingestion is a process of loading large amounts of data into a data store in batches.  St ream processing is a process of continuously processing data as it arrives in real-time 2 .

Both contoso-app and contoso-erp have Analytics store enabled, because they are both accessed by Spark pools using the spark.cosmos.oltp method.  This method requires that the containers h ave Analytics store enabled, which is a feature that allows Spa rk pools to query data stored in Azure Cosmos DB containers using SQL APIs 3 .

Instead create an Azure function that uses Azure Cosmos DB Core (SQL) API change feed as a trigger and Azure event hub as the output.

The Azure Cosmos DB change feed is a mechanism to get a continuous and incremental feed of records from an Azure Cosmos container as those records are being created or modified. Change feed support works by listening to container for any changes. It then outputs the sorted list of documents that were changed in the order in which they were modified.

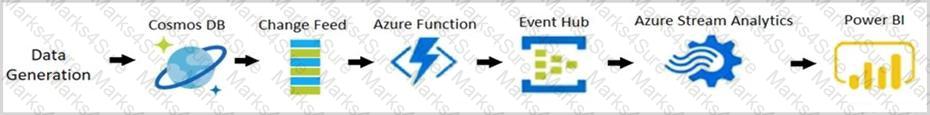

The following diagram represents the data flow and components involved in the solution:

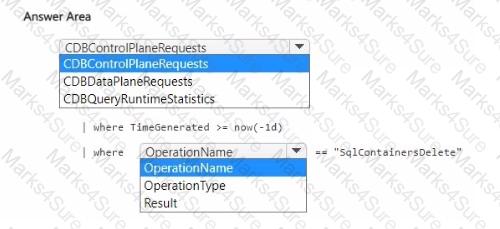

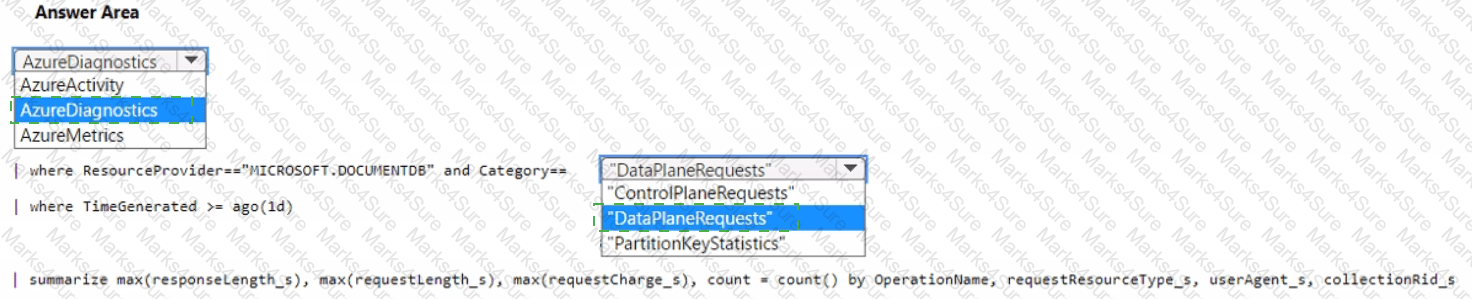

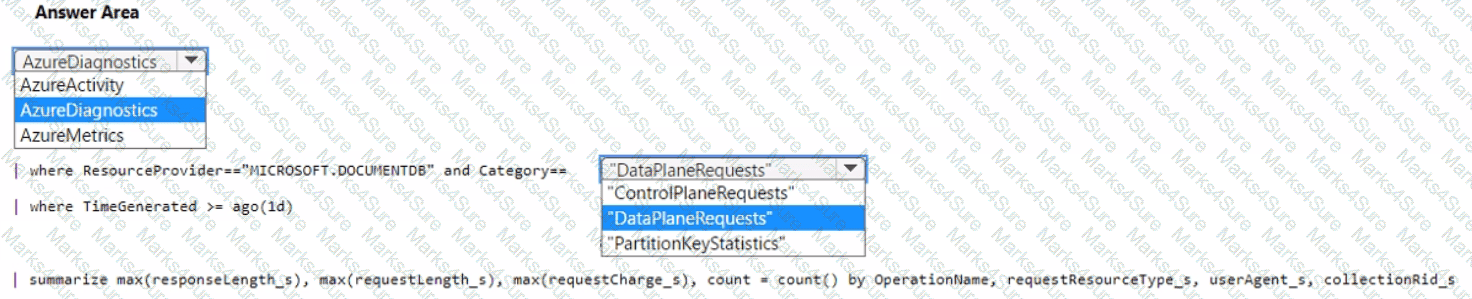

The following are the operation names in diagnostic logs for different operations:

RegionAddStart, RegionAddComplete

RegionRemoveStart, RegionRemoveComplete

AccountDeleteStart, AccountDeleteComplete

RegionFailoverStart, RegionFailoverComplete

AccountCreateStart, AccountCreateComplete

*AccountUpdateStart*, AccountUpdateComplete

VirtualNetworkDeleteStart, VirtualNetworkDeleteComplete

DiagnosticLogUpdateStart, DiagnosticLogUpdateComplete

The partition key is what will determine how data is routed in the various partitions by Cosmos DB and needs to make sense in the context of your specific scenario. The IoT Device ID is generally the "natural" partition key for IoT applications.

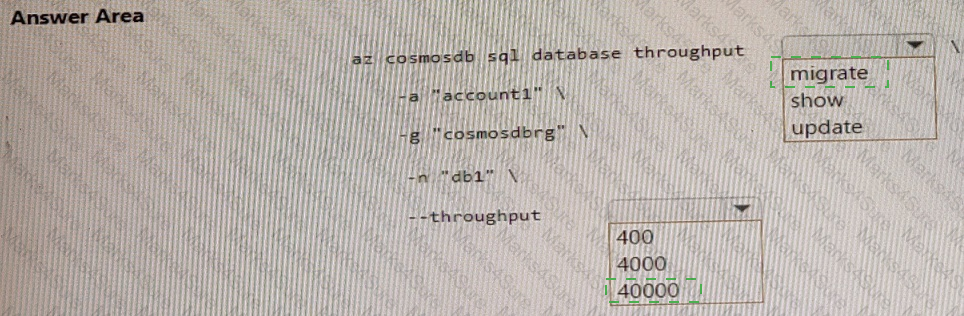

Migrate

40000

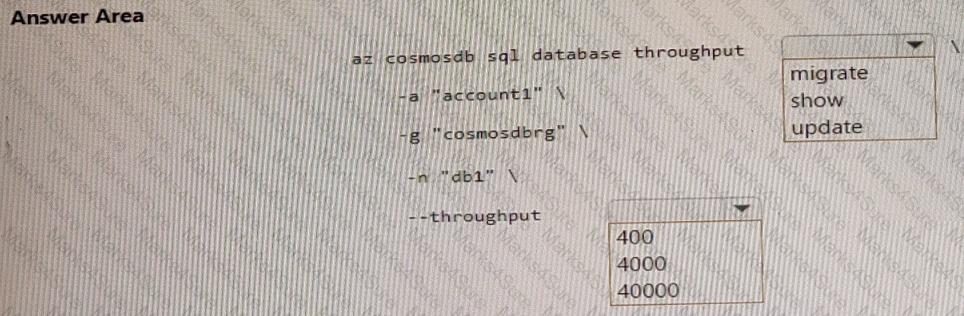

According to the Azure CLI reference 1 , you need to use the  az cosmosdb sql database throughput migrate  command to migrate the throughput of the SQL database between autoscale and manually provisioned. You also need to use the  --throughput-type  parameter to specify the type of throughput to migrate to, and the  --max-throughput  parameter to specify the maximum throughput resource can scale to (RU/s).

To complete the CLI statements, you should replace the missing values with:

--throughput-type autoscale

--max-throughput 40000

The final command should look like this:

az cosmosdb sql database throughput migrate \

--account-name account1 \

--name db1 \

--resource-group rg1 \

--throughput-type autoscale \

--max-throughput 40000

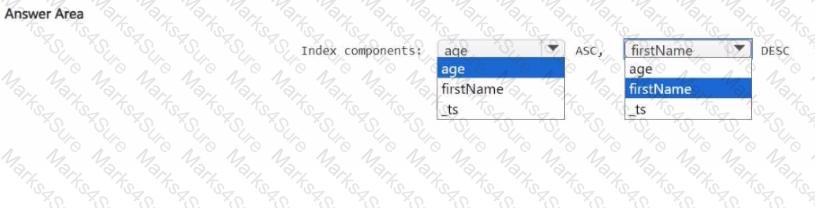

If a query has a filter with two or more properties, adding a composite index will improve performance.

Consider the following query:

SELECT * FROM c WHERE c.name = “Tim” and c.age > 18

In the absence of a composite index on (name ASC, and age ASC), we will utilize a range index for this query. We can improve the efficiency of this query by creating a composite index for name and age.

Queries with multiple equality filters and a maximum of one range filter (such as > , < , < =, > =, !=) will utilize the composite index.

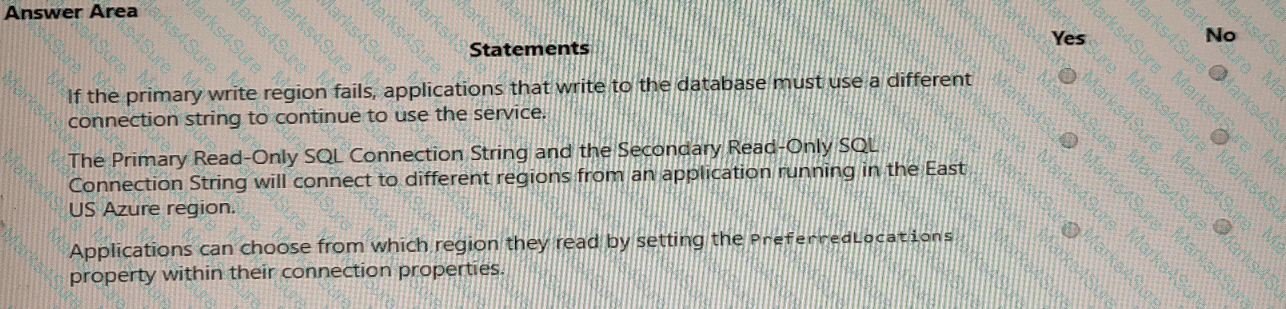

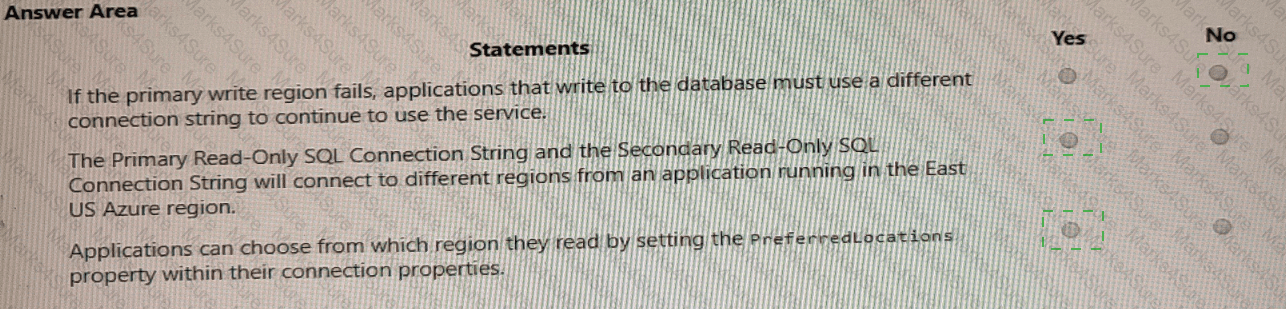

If the primary write region fails, applications that write to the database must use a different connection string to continue to use the service. = NO

You do not need to use a different connection string to continue to use the service if the primary write region fails.  This is because Azure Cosmos DB supports automatic failover, which means that it will automatically switch the primary write region to another region in case of a regional o utage 2 .  The application doe s not need to change the connection string or specify the failover priority 3 .  The connection string contains a list of all the regions associated with your account, and Azure Cos mos DB will route the requests to the appropriate region based on the availability and latency 1 .

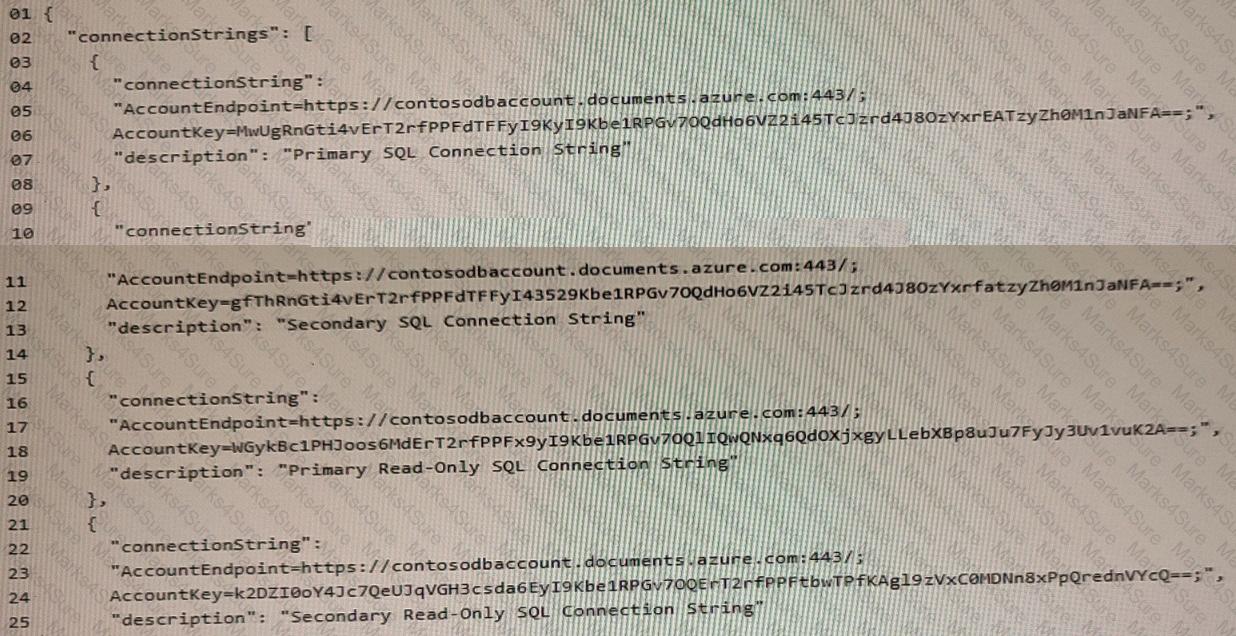

The primary Read-Only SQL Connection String and the Secondary Read-Only SQL Connection String will connect to different regions from an application running in the East US Azure region = Yes

The primary read-only SQL connection string and the secondary read-only SQL connection string will connect to different regions from an application running in the East US Azure region. This is because the primary read-only SQL connection string contains the endpoint for the East US region, which is the same as the primary write region. The secondary read-only SQL connection string contains the endpoint for the West US region, which is the additional read region. Therefore, if an application running in the East US Azure region uses these connection strings, it will connect to different regions depending on which one it chooses.

Applications can choose from which region by setting the PreferredLocations property within their connection properties = Yes

Applications can choose from which region by setting the PreferredLocations property within their connection properties.  This property allows you to specify a list of regions that you prefer to read from based on their proximity to your application 2 .  Azure Cosmos DB will route the requests to the appropriate region based on the availability and latency 1 .  You can also set the ApplicationRegion property to the region where your application is deployed, and Azure Cosmos DB will automatically populate the PreferredLocations property based on the geo-proximity from that location 1 .

Azure Co smos DB is a multi-model database that supports various data models, such as documents, key-value, graph, and column-family 3 .  The core content-model of Cosmos DB’s database engine is based on atom-record-sequence (ARS), which allows it to store and query differ ent types of data in a flexible and efficient way 3 .

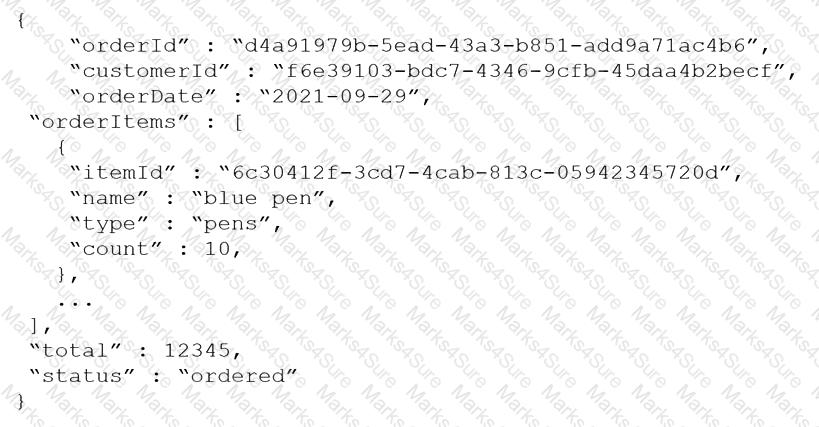

To develop a model that supports order read operations and minimizes the number of requests, you should consider the following factors:

The size and shape of your data

The frequency and complexity of your queries

The latency and throughput requirements of your application

The trade-offs between storage efficiency and query performance

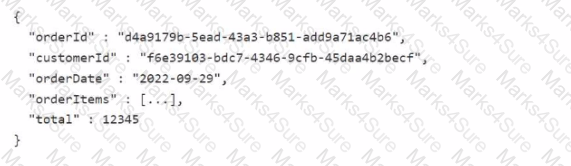

Based on these factors, one possible model that you could implement is  B. Create a single database that contains one container. Create a separate document for each order and embed the order items into the order documents .

This model has the following advantages:

It stores orders and order items as self-contained documents that can be easily retrieved by order ID 1 .

It avoids storing redundant data or creating additional containers for order items 1 .

It allows you to view the order history of a customer with simple queries 1 .

It leverages the benefits of embedding data, such as reducing the number of requests, im proving query performance, and simplifying data consistency 2 .

This model also has some limitations, such as:

It may not be suitable for some order items that have data that is greater than 2 KB, as it could exceed the maximum document size limit of 2 MB 2 .

It may not be optimal for scenarios where order items need to be queried independently from orders or ag gregated by other criteria 2 .

It may not support transactions across multiple orders or customers, as transactions are scoped to a single logical partition 2 .

Depending on your specific use case and requirements, you may need to adjust this model or choose a different one.  For example, you could use a hybrid data model that combines embedding and referencing data 2 , or you could use a graph data model that expresses entities and relationships as vertices and edges.

leaseCollectionPrefix: when set, the value is added as a prefix to the leases created in the Lease collection for this Function. Using a prefix allows two separate Azure Functions to share the same Lease collection by using different prefixes.

Scenario: Use Azure Functions to send notifications about product updates to different recipients.

Trigger the execution of two Azure functions following every update to any document in the con-product container.
