FCP_FWB_AD-7.4 FCP - FortiWeb 7.4 Administrator Questions and Answers

FortiWeb is a Web Application Firewall (WAF) designed to protect web applications from various threats. Among its features, FortiWeb supports Layer 7 routing methods, which operate based on the content of the HTTP/HTTPS traffic.​

HTTP Content Routingrefers to the capability of directing incoming web traffic to specific backend servers based on characteristics found within the HTTP requests, such as URL paths, headers, or other content. This allows for more granular and efficient distribution of traffic, ensuring that requests are handled by the appropriate servers based on their content.​

Analysis of Options:

A. URL policy routing: While this term suggests routing decisions based on URL policies, it is not a standard term used in FortiWeb's documentation. FortiWeb's content routing encompasses URL-based decisions, making this option less precise.​

B. OSPF (Open Shortest Path First): This is a Layer 3 routing protocol used for IP routing within an Autonomous System. It operates at the network layer and is not related to Layer 7 routing methods.​

C. BGP (Border Gateway Protocol): Another Layer 3 routing protocol, BGP is used for routing between Autonomous Systems on the internet. It does not pertain to Layer 7 or application-layer routing.​

D. HTTP content routing: This aligns with FortiWeb's capabilities to make routing decisions based on the content of HTTP requests, such as URL paths, headers, or other application-layer data. This is a Layer 7 routing method supported by FortiWeb.

Therefore, the correct answer isD. HTTP content routing.​

References:

FortiWeb 7.2.6 Administration Guide: "FortiWeb provides advanced Layer 7 load balancing and authentication offload services." ​cloud.orange-business.com

FortiWeb Data Sheet: "FortiWeb provides advanced Layer 7 load balancing and authentication offload services." ​Exclusive Networks

FortiWeb on OCB-FE - Installation and Deployment Guide: "FortiWeb provides advanced Layer 7 load balancing and authentication offload services." ​cloud.orange-business.com

These references confirm that FortiWeb supports HTTP content routing as a Layer 7 routing method.

Machine learning (ML)-based API protection: ML-based API protection helps detect and mitigate abnormal behavior in API traffic, such as bot attacks or abuse, by learning and adapting to normal traffic patterns.

API schema validation: API schema validation ensures that the API requests conform to the defined schema (e.g., checking the structure, fields, and types in the API calls). This helps prevent attacks like XML or JSON injection by ensuring only valid requests are processed.

API user key enforcement: Enforcing API user key authentication requires clients to provide valid API keys, ensuring only authorized users can access the API. This is crucial for controlling access to the API.

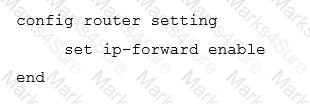

FortiWeb is primarily designed to handle HTTP and HTTPS traffic, protecting web applications from various threats. By default, when operating in reverse proxy mode, FortiWeb does not forward non-HTTP/HTTPS protocols to protected servers. However, administrators can configure FortiWeb to handle non-HTTP/HTTPS traffic differently using the config router setting command. This command allows enabling IP-based forwarding (routing) for non-HTTP/HTTPS traffic. When enabled, FortiWeb can route non-HTTP traffic through itself to the appropriate backend servers. ​

Despite this capability, any non-HTTP/HTTPS traffic that is destined directly for a FortiWeb virtual server IP address is dropped. This means that while FortiWeb can be configured to forward non-HTTP/HTTPStraffic to backend servers, it will not process non-HTTP/HTTPS traffic targeted at its own virtual server IPs. ​

Regarding IPv6 routing, FortiWeb does support IPv6 in various operation modes, including reverse proxy, offline inspection, and transparent inspection. However, enabling IPv6 routing requires specific configurations and is not automatically enabled by default. ​

You should run the vulnerability scan during a maintenance window: Running a vulnerability scan during a maintenance window minimizes the risk of affecting normal operations. Scans can be resource-intensive and may cause disruptions if run during peak hours or when the system is in use.

You should run the vulnerability scan in a test environment: It is important to run the vulnerability scan in a test environment first to avoid unintended disruptions on the live system. This helps to identify potential issues or false positives without impacting production systems.

To enable debugging for the user tracking feature in FortiWeb, you would use the command diagnose debug application user-tracking 7. This command enables debugging for the user-tracking application and sets the debug level to 7, providing detailed logs for troubleshooting.

XML Schema: In FortiWeb, XML protection rules allow you to define an XML Schema to validate the structure and content of incoming XML documents. This helps protect against attacks like XML injection by ensuring that only well-formed XML requests are processed.

Request URL: You can define a request URL as part of an XML protection rule to specify the URL pattern for which the rule should apply. This allows you to apply different XML protection rules to different endpoints or resources based on the URL.

To forward requests for web application B to a single web server, you would configure FortiWeb to use HTTP content routing and create a server pool specifically for web application B. In FortiWeb, server pools are used to group servers together based on application requirements, and you can configure the pool to contain only a single web server for application B.
