JN0-637 Security, Professional (JNCIP-SEC) Questions and Answers

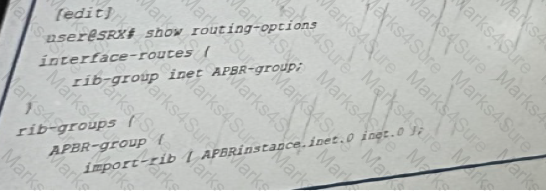

To enable Advanced Policy-Based Routing (APBR) on SRX Series devices, three key components are necessary: filter-based forwarding, routing instances, and APBR profiles. Filter-based forwarding is utilized to direct specific traffic flows to a routing instance based on criteria set by a policy. Routing instances allow the traffic to be managed independently of the main routing table, and APBR profiles define how and when traffic should be forwarded. These elements ensure that APBR is flexible and tailored to the network’s requirements. Refer to Juniper's APBR Documentation for more details.

Advanced policy-based routing (APBR) in Juniper's SRX devices allows the selection of different paths for traffic based on policies, rather than relying purely on routing tables. To enable APBR, the following core components are required:

Filter-based Forwarding (Answer A): Filter-based forwarding (FBF) is a technique used to forward traffic based on policies rather than the default routing table. It is essential for enabling APBR, as it helps match traffic based on filters and directs it to specific routes.

Configuration Example:

bash

set firewall family inet filter FBF match-term source-address 192.168.1.0/24

set firewall family inet filter FBF then routing-instance custom-routing-instance

Routing Instance (Answer C): A routing instance is required to define the separate routing table used by APBR. You can create multiple routing instances and assign traffic to these instances based on policies. The traffic will then use the routes defined within the specific routing instance.

Configuration Example:

bash

set routing-instances custom-routing-instance instance-type forwarding

set routing-instances custom-routing-instance routing-options static route 0.0.0.0/0 next-hop 10.10.10.1

APBR Profile (Answer D): The APBR profile defines the rules and policies for advanced policy-based routing. It allows you to set up conditions such as traffic type, source/destination address, and port, and then assign actions such as redirecting traffic to specific routing instances.

Configuration Example:

bash

set security forwarding-options advanced-policy-based-routing profile apbr-profile match application http

set security forwarding-options advanced-policy-based-routing profile apbr-profile then routing-instance custom-routing-instance

Other Components:

Routing Options (Answer B) are not a core component of APBR, as routing options define the general behavior of the routing table and protocols. However, APBR works by overriding these default routing behaviors using policies.

Policies (Answer E) are crucial in many network configurations but are not a core component of enabling APBR. APBR specifically relies on profiles rather than standard security policies.

Juniper Security Reference:

Advanced Policy-Based Routing (APBR): Juniper’s APBR is a powerful tool that allows routing based on specific traffic characteristics rather than relying on static routing tables. APBR ensures that specific types of traffic can take alternate paths based on business or network needs. Reference: Juniper Networks APBR Documentation.

==========

==========

Policy Enforcer interacts with other network elements like EX switches to enforce blocking of infected hosts based on threat intelligence from ATP Cloud and other sources. For more information, refer to Juniper Policy Enforcer Documentation.

In a Juniper automated threat mitigation setup involving Security Director, Policy Enforcer, Juniper ATP Cloud, SRX Series, and EX Series switches, the Policy Enforcer is the component responsible for blocking infected hosts. The role of each component is as follows:

Policy Enforcer (Correct: Option A):Policy Enforcer receives threat intelligence from Juniper ATP Cloud and instructs SRX devices and EX Series switches to block or quarantine infected hosts. Policy Enforcer pushes policies to these devices to enforce the mitigation actions.

Security Director (Incorrect):Security Director provides centralized management and visibility but does not directly enforce policies.

Juniper ATP Cloud (Incorrect):Juniper ATP Cloud is responsible for analyzing threats and providing intelligence but does not take direct mitigation actions.

EX Series Switch (Incorrect):EX Series switches can enforce the policy pushed by Policy Enforcer but are not responsible for deciding which hosts to block.

Juniper References:

Juniper ATP Cloud and Policy Enforcer Documentation: Details the roles of each component in the automated threat mitigation architecture.

==========

==========

==========

For ADVPN with OSPF, using a point-to-multipoint (p2mp) interface type and enabling dynamic-neighbors are crucial. This configuration allows dynamic discovery of neighbors and the establishment of tunnels. For more information, refer to Juniper ADVPN Configuration Guide.

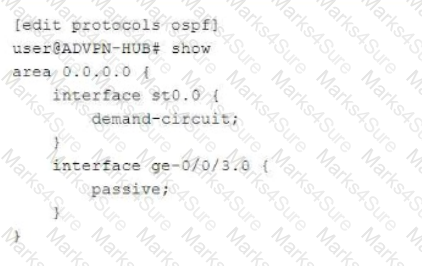

In the ADVPN configuration, OSPF isn't functioning as expected due to the interface configuration on st0.0. Here are the adjustments needed:

Interface Type p2mp (Answer A): OSPF requires that the tunnel interface be set to p2mp (point-to-multipoint) to allow OSPF to communicate with multiple dynamic neighbors over the ADVPN tunnels.

Command Example:

bash

set interfaces st0.0 family inet ospf interface-type p2mp

Dynamic Neighbors (Answer B): The dynamic neighbors statement allows OSPF to discover and communicate with dynamically established spokes in an ADVPN environment. This is essential for ADVPN to function properly since the tunnel endpoints are not static.

Command Example:

bash

set protocols ospf area 0.0.0.0 interface st0.0 dynamic-neighbors

These settings ensure OSPF properly functions over dynamically created ADVPN tunnels.

Secure wire mode on SRX devices allows traffic to flow transparently through the firewall without being routed or switched, while still applying security policies. This is ideal for scenarios where traffic inspection is required without altering the traffic path or performing additional routing decisions. For further details on Secure Wire, refer to Juniper Secure Wire Documentation.

In this scenario, you want traffic to pass through the SRX unchanged (without routing or switching lookups) but still be subject to security policy checks. The best solution for this requirement is Secure Wire.

Explanation of Answer C (Secure Wire):

Secure Wire allows traffic to flow through the SRX without any Layer 3 routing or Layer 2 switching decisions. It effectively bridges two interfaces at Layer 2 while still applying security policies. This ensures that traffic remains unchanged, while security policies (such as firewall rules) can still be enforced.

This is an ideal solution when you need the SRX to act as a "bump in the wire" for security enforcement without changing the traffic or performing complex network lookups.

Juniper Security Reference:

Secure Wire Functionality: Provides transparent Layer 2 forwarding with security policy enforcement, making it perfect for scenarios where traffic needs to pass through unchanged. Reference: Juniper Secure Wire Documentation.

==========

==========

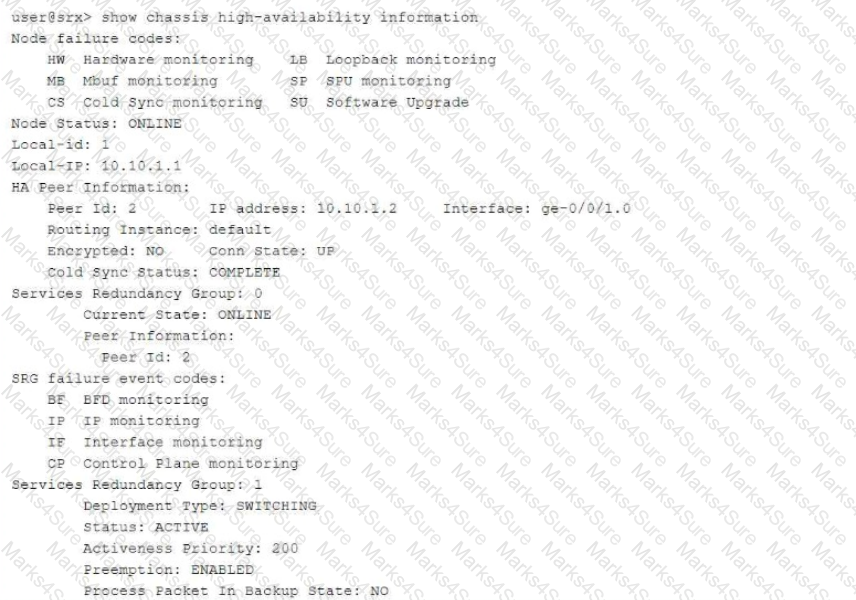

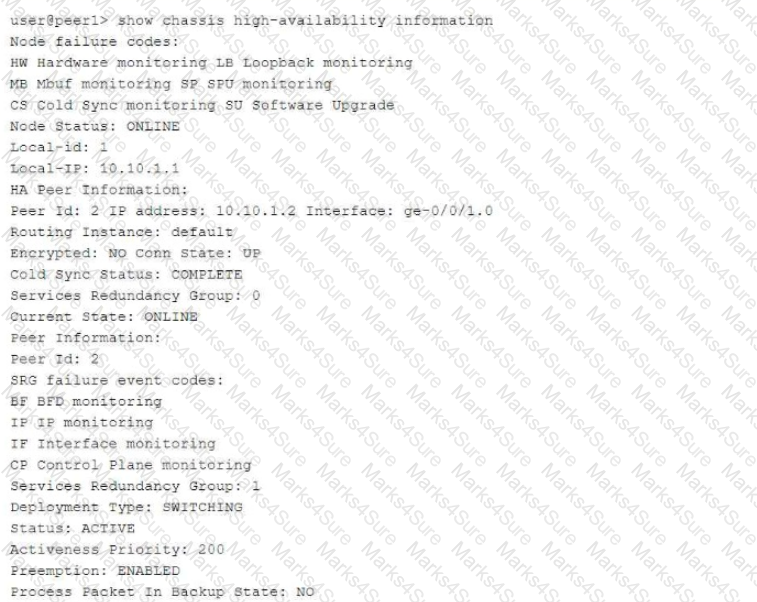

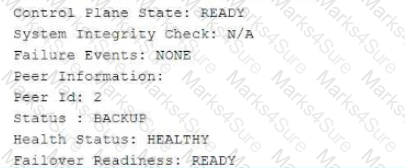

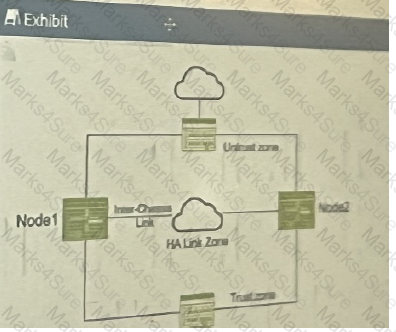

Referring to the exhibit for a multinode HA environment, we can conclude the following about the HA setup:

Two Services Redundancy Groups (Correct: Option A):The output shows the status of SRG 0 and SRG 1, confirming that there are two services redundancy groups in the HA configuration.

Node 1 Hosting SRG 1 (Correct: Option C):The exhibit indicates that Node 1 is currently active for SRG 1. According to the configuration, Node 1 will continue to host SRG 1 unless it becomes unavailable.

Session State Synchronization (Correct: Option D):In this HA setup, session state synchronization is enabled between the two nodes. This ensures that sessions remain active and seamless failover can occur if one node fails.

Juniper References:

Juniper HA Documentation: Provides details on multinode HA setups, SRG configurations, and session synchronization.

==========

==========

Understanding the Scenario:

Objective: Deploy IPsec VPNs connecting multiple enterprise sites using OSPF for dynamic routing.

Challenge: Some sites use third-party devices not running Junos OS.

Considerations:

Compatibility between Juniper and third-party devices.

Support for dynamic routing protocols (OSPF) over IPsec VPNs.

Handling overlapping IP address spaces.

Option Analysis:

Option A: OSPF over IPsec can be used for intersite dynamic routing.

Explanation:

OSPF Characteristics:

OSPF uses multicast addresses (224.0.0.5 and 224.0.0.6) for neighbor discovery and routing updates.

IPsec Limitations:

Standard IPsec tunnel mode does not support multicast traffic natively.

Multicast traffic cannot traverse IPsec tunnels unless encapsulated.

Juniper Solution:

Juniper devices can use routed VPNs (route-based VPNs) with st0 interfaces, allowing OSPF over IPsec.

However, this requires support from both ends of the VPN tunnel.

Third-Party Devices:

May not support OSPF over IPsec without additional configurations.

Conclusion:

Option A is not universally true in this scenario due to third-party device limitations.

The command show security nat source persistent-nat-table all provides a comprehensive view of all entries in the persistent NAT table, enabling administrators to monitor and manage resource exhaustion. Refer to Juniper NAT Monitoring Guide for more.

In Junos OS, when persistent NAT is configured, a binding table is created to keep track of NAT sessions and ensure that specific hosts are allowed to initiate sessions back to internal hosts. To check if the persistent NAT binding table is full or exhausted, the correct command must display the entire table.

Correct Command (D):

The command show security nat source persistent-nat-table all will display the entire persistent NAT binding table. This allows you to check whether the table is exhausted or if there is space available for new persistent NAT sessions.

Incorrect Options:

Option A: The command show security nat source persistent-nat-table summary provides a summary view but does not give detailed insights into whether the table is exhausted.

Option B and Option C: These commands deal with general NAT source summaries or pools, which are not related specifically to persistent NAT bindings.

Juniper References:

Juniper Persistent NAT Documentation: Describes the persistent NAT binding table and the commands used to monitor its status.

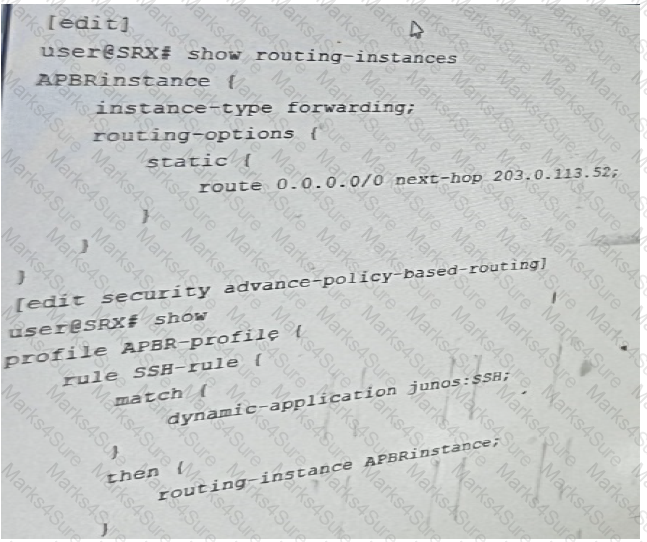

Explanation of Answer A (Session Reclassification):

APBR (Advanced Policy-Based Routing) requires the session to be classified based on the specified rule, which can change midstream as additional packets are processed. If the session was already established before the APBR rule took effect, the traffic may not be correctly reclassified to match the new APBR rule, leading to IDP (Intrusion Detection and Prevention) processing instead of being bypassed. This can occur especially when the session was already established before the rule change.

Explanation of Answer C (Application Services Bypass):

For APBR to work and bypass the IDP service, the application services bypass must be explicitly configured. Without this configuration, the APBR rule may redirect the traffic, but the IDP service will still inspect and potentially drop the traffic. This is especially important for traffic destined for specific sites like social media platforms where bypassing IDP is desired.

Example configuration for bypassing IDP services:

bash

set security forwarding-options advanced-policy-based-routing profile application-services-bypass

Step-by-Step Resolution:

Reclassify the Session Midstream:

If the traffic was already being processed before the APBR rule was applied, ensure that the session is reclassified by terminating the current session or ensuring the APBR rule is applied from the start.

Command to clear the session:

bash

clear security flow session destination-prefix

Configure Application Services Bypass:

Ensure that the APBR rule includes the application services bypass configuration to properly bypass IDP or any other security services for traffic that should not be inspected.

Example configuration:

bash

set security forwarding-options advanced-policy-based-routing profile application-services-bypass

Juniper Security Reference:

Session Reclassification in APBR: APBR requires reclassification of sessions in real-time to ensure midstream packets are processed by the correct rule. This is crucial when policies change dynamically or new rules are added.

Application Services Bypass in APBR: This feature ensures that security services such as IDP are bypassed for traffic that matches specific APBR rules. This is essential for applications where performance is a priority and security inspection is not necessary.

==========

==========

The request security policies check command allows you to simulate a session through the SRX device, checking the security policy action that would apply without needing to send real traffic. This helps in validating configurations before actual deployment. For more details, see Juniper Security Policies Testing.

The command request security policies check is used to test how a Junos security device handles a theoretical session without generating actual traffic. This command is useful for validating how security policies would be applied to a session based on various parameters like source and destination addresses, application type, and more.

Explanation of Answer A (request security policies check):

This command allows you to simulate a session and verify which security policies would be applied to the session. It's a proactive method to test security policy configurations without the need to generate real traffic.

Example usage:

bash

request security policies check from-zone trust to-zone untrust source 10.1.1.1 destination 192.168.1.1 protocol tcp application junos-https

Juniper Security Reference:

Security Policies Check: This command provides a way to simulate and verify security policy behavior without actual traffic. Reference: Juniper Security Policy Documentation.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

When two networks with overlapping IP address spaces need to communicate, Network Address Translation (NAT) is required to translate the IP addresses so that they become unique across the combined network. In this scenario, both the local network and the new branch office use the same subnet: 192.168.100.0/24. To enable communication without IP conflicts, we need to translate the overlapping addresses to unique ones.

Understanding the Problem:

Local Network (Office A): 192.168.100.0/24

Branch Office (Office B): 192.168.100.0/24

Objective: Allow communication between Office A and Office B despite overlapping IP ranges.

Solution Overview:

To resolve the overlapping IP addresses, we can use Static NAT to create a one-to-one mapping between the overlapping IP addresses and a unique IP range. This way, when packets traverse the network boundary, their IP addresses are translated to a non-overlapping range, avoiding conflicts.

Option B and Option C implement Static NAT to resolve the issue:

Option B (At Office A):

Translates destination addresses from 192.168.200.0/24 to 192.168.100.0/24.

This allows Office B to reach Office A's overlapping network by targeting a unique IP range (192.168.200.0/24).

Option C (At Office B):

Translates destination addresses from 192.168.210.0/24 to 192.168.100.0/24.

This allows Office A to reach Office B's overlapping network by targeting a unique IP range (192.168.210.0/24).

Detailed Explanation:

1. Static NAT Configuration at Office A (Option B):

Configuration:

[edit security nat static]

user@OfficeA# show rule-set From-Office-B {

from interface ge-0/0/0.0;

rule 1 {

match {

destination-address 192.168.200.0/24;

}

then {

static-nat {

prefix { 192.168.100.0/24; }

}

}

}

}

Explanation:

from interface ge-0/0/0.0;: Specifies the interface through which the traffic is received.

Matching Traffic:

destination-address 192.168.200.0/24;: Matches packets destined for 192.168.200.0/24.

Action:

static-nat { prefix { 192.168.100.0/24; } }: Translates the destination address to 192.168.100.0/24.

Result:

Office B sends packets to 192.168.200.0/24, which are translated to 192.168.100.0/24 upon arrival at Office A.

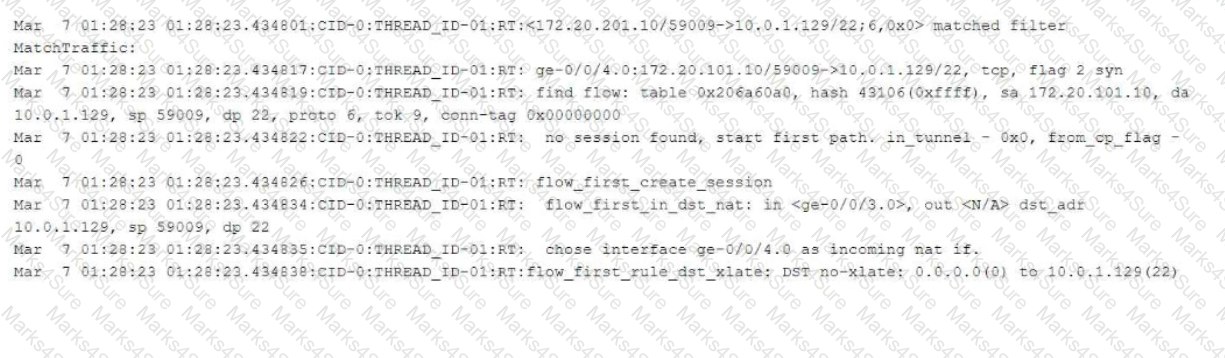

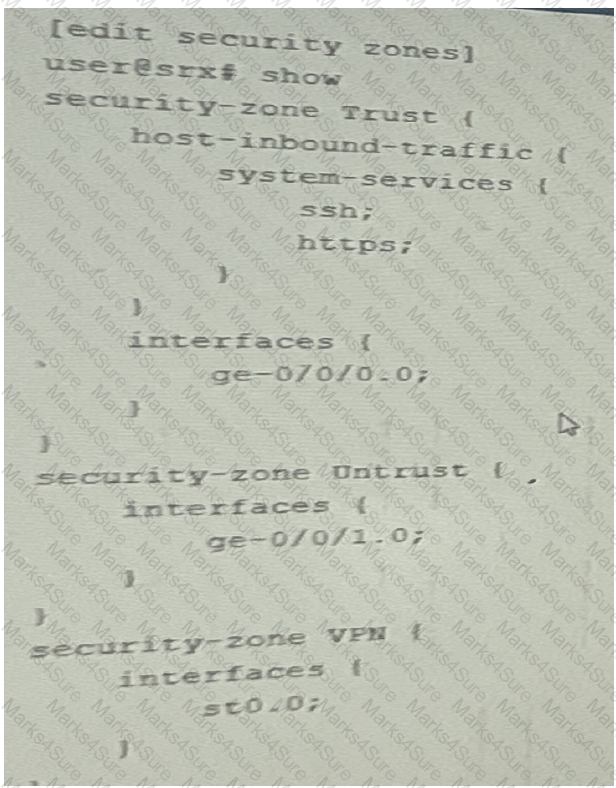

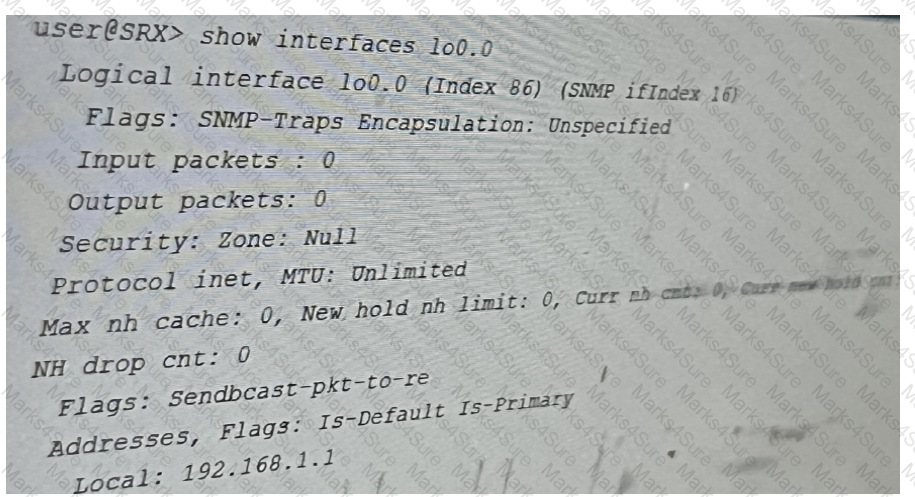

When handling traffic that is destined for itself, the SRX examines the host-inbound-traffic configuration for the ingress interface and the associated security zone. It evaluates whether the traffic should be allowed based on this configuration. Traffic not addressed to the ingress interface is handled based on security policies within the junos-host zone, which applies to traffic directed to the SRX itself. For more details, refer to Juniper Host Inbound Traffic Documentation.

When handling traffic that is destined for the SRX device itself (also known as host-bound traffic), the SRX follows a specific process to evaluate the traffic and apply the appropriate security policies. The junos-host zone is a special security zone used for managing traffic destined for the device itself, such as management traffic (SSH, SNMP, etc.).

Explanation of Answer B (Packet to a Different Interface):

If the packet is destined for an interface other than the ingress interface, the SRX performs a security policy evaluation specifically for the junos-host zone. This ensures that management or host-bound traffic is evaluated according to the security policies defined for that zone.

Explanation of Answer C (Packet to the Ingress Interface):

If the packet is addressed to the ingress interface, the device first checks the host-inbound-traffic configuration for the ingress interface and zone. This configuration determines whether certain types of traffic (such as SSH, HTTP, etc.) are allowed to reach the device on that specific interface.

Step-by-Step Handling of Host-Bound Traffic:

Host-Inbound Traffic: Define which services are allowed to the SRX device itself:

bash

set security zones security-zone host-inbound-traffic system-services ssh

Security Policy for junos-host: Ensure policies are defined for managing traffic destined for the SRX device:

bash

set security policies from-zone to-zone junos-host policy allow-ssh match source-address any

set security policies from-zone to-zone junos-host policy allow-ssh match destination-address any

Juniper Security Reference:

Junos-Host Zone: This special zone handles traffic destined for the SRX device, including management traffic. Security policies must be configured to allow this traffic. Reference: Juniper Networks Host-Inbound Traffic Documentation.

==========

For threat remediation in a third-party network, the RADIUS protocol is necessary to communicate with the RADIUS server for details about infected hosts. CoA enables security measures to be enforced based on endpoint information provided by the RADIUS server. Details on this setup can be found in Juniper RADIUS and AAA Documentation.

When deploying threat remediation to endpoints connected through third-party devices, such as switches, the following conditions must be met for proper integration and functioning:

Explanation of Answer A (Support for AAA/RADIUS and Dynamic Authorization Extensions):

Third-party switches must support AAA (Authentication, Authorization, and Accounting) and RADIUS with Dynamic Authorization Extensions. These extensions allow dynamic updates to be made to a session's authorization parameters, which are essential for enforcing access control based on threat detection.

Explanation of Answer B (Connector Gathers MAC Information via API):

The connector uses an API to gather MAC address information from the RADIUS server. This MAC address data is necessary to identify and take action on infected hosts or endpoints.

Explanation of Answer D (Connector Initiates CoA):

The connector queries the RADIUS server for infected host details and triggers a Change of Authorization (CoA) for the infected host. The CoA allows the connector to dynamically alter the host's access permissions or isolate the infected host based on its threat status.

Juniper Security Reference:

Threat Remediation via RADIUS: Dynamic remediation actions, such as CoA, can be taken based on information received from the RADIUS server regarding infected hosts. Reference: Juniper RADIUS and CoA Documentation.

==========

Security tags facilitate dynamic traffic management between cloud environments like Azure and AWS. Tags allow flexible policies that respond to cloud-native events or resource changes, ensuring secure inter-cloud communication. For more information, see Juniper Cloud Security Tags.

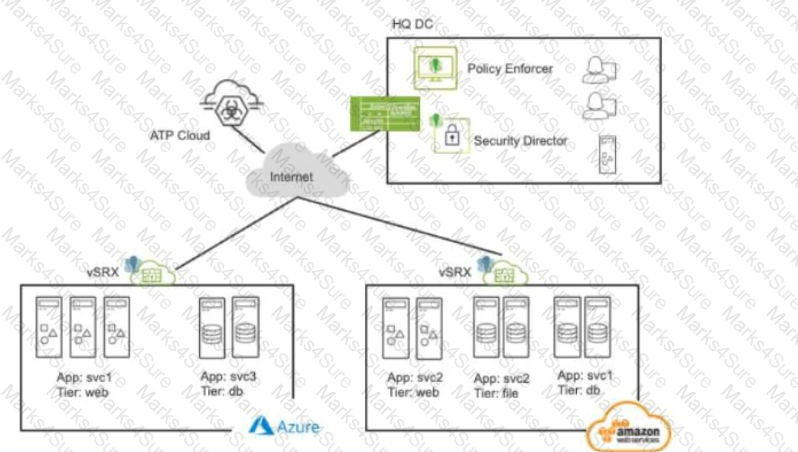

In the scenario depicted in the exhibit, where traffic needs to be dynamically secured between Azure and AWS clouds, the best method to achieve dynamic security is by using security tags in the security policies.

Explanation of Answer C (Security Tags in Security Policies):

Security tags allow dynamic enforcement of security policies based on metadata rather than static IP addresses or zones. This is crucial in cloud environments, where resources and IP addresses can change dynamically.

Using security tags in the security policies, you can associate traffic flows with specific applications, services, or virtual machines, regardless of their underlying IP addresses or network locations. This ensures that security policies are automatically updated as cloud resources change.

Juniper Security Reference:

Dynamic Security with Security Tags: This feature allows you to dynamically secure cloud-based traffic using metadata and tags, ensuring that security policies remain effective even in dynamic environments. Reference: Juniper Security Tags Documentation.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

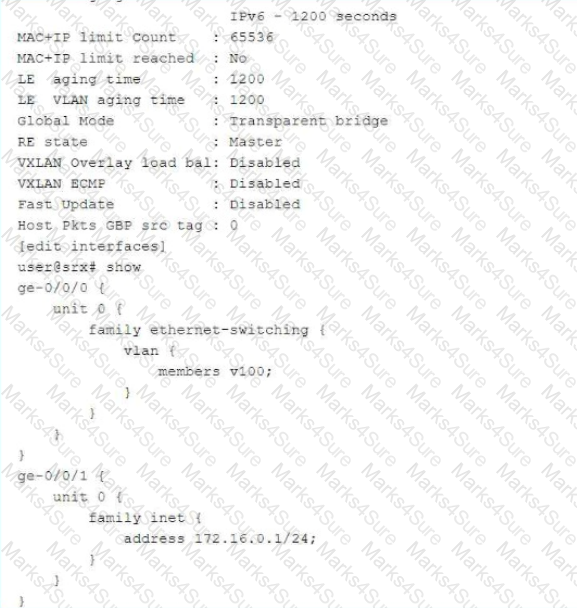

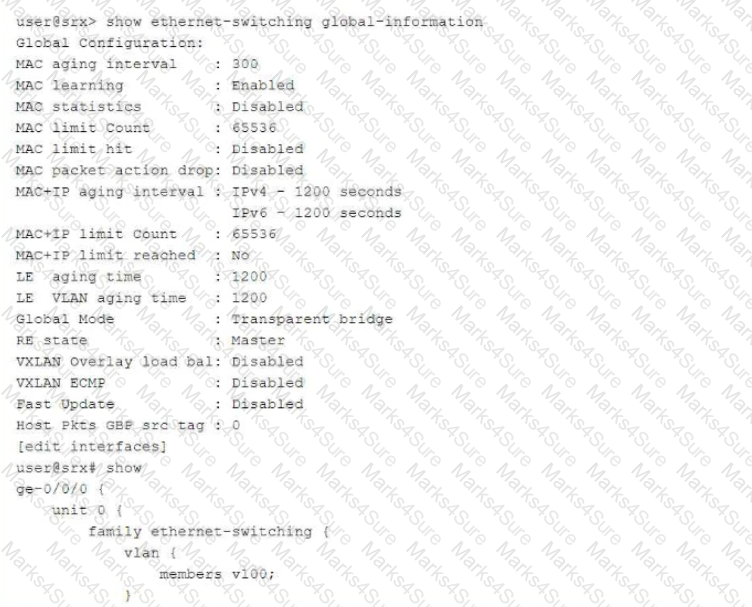

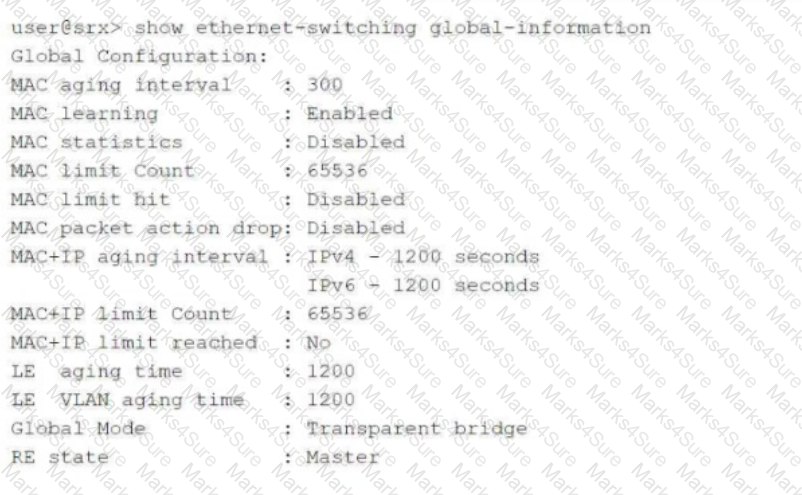

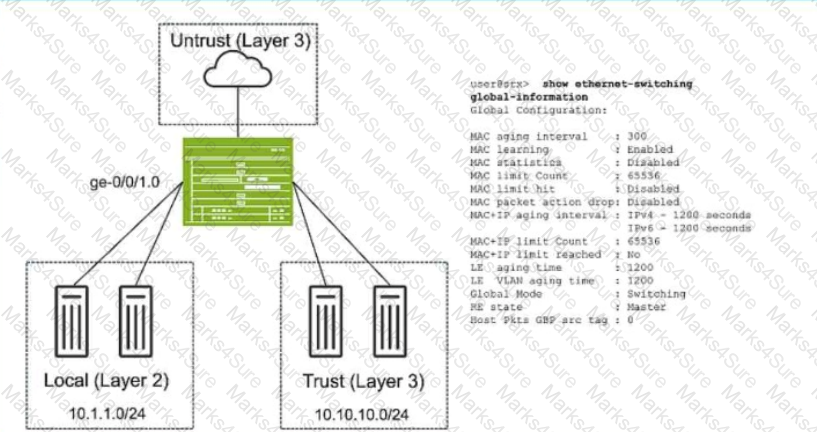

Understanding the Exhibit:

The SRX device is operating in Transparent Mode, as indicated by:

Global Mode : Transparent bridge

Transparent Mode on SRX Devices:

Transparent Mode (Layer 2 Mode):

The SRX device acts as a Layer 2 switch.

Does not perform routing functions.

Security policies can be applied to inter-VLAN (Layer 2) traffic but not intra-VLAN traffic.

Cannot handle Layer 3 traffic simultaneously.

Option A: You cannot secure intra-VLAN traffic with a security policy on this device.

True.

In Transparent Mode, intra-VLAN traffic is switched within the VLAN and does not pass through the SRX firewall processing engine.

Therefore, security policies cannot be applied to intra-VLAN traffic.

Option B: You can secure inter-VLAN traffic with a security policy on this device.

False.

In Transparent Mode, all interfaces are in the same VLAN (unless VLAN tagging is configured).

Inter-VLAN routing is not possible as the device does not perform Layer 3 functions.

Option C: The device can pass Layer 2 and Layer 3 traffic at the same time.

False.

In Transparent Mode, the SRX device operates exclusively at Layer 2.

It cannot process Layer 3 traffic simultaneously.

Option D: The device cannot pass Layer 2 and Layer 3 traffic at the same time.

True.

The SRX device in Transparent Mode cannot handle both Layer 2 and Layer 3 traffic concurrently.

Key Points:

Intra-VLAN Traffic:

Traffic within the same VLAN.

In Transparent Mode, this traffic is switched and does not go through the firewall's security policies.

Inter-VLAN Traffic:

Traffic between different VLANs.

Requires routing capabilities (Layer 3).

In Transparent Mode, the SRX cannot perform routing functions.

Juniper Security References:

Juniper Networks Documentation:

"In transparent mode, the SRX Series device acts like a Layer 2 switch or bridge. Security policies cannot control intra-VLAN traffic because such traffic does not pass through the firewall."

Source: Understanding Transparent Mode

"The device cannot perform both Layer 2 switching and Layer 3 routing simultaneously in transparent mode."

Source: Transparent Mode Limitations

Conclusion:

Option A is correct because intra-VLAN traffic cannot be secured with security policies in Transparent Mode.

Option D is correct because the device cannot pass both Layer 2 and Layer 3 traffic at the same time when operating in Transparent Mode.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding Multinode HA:

Chassis Cluster in Active/Passive Mode:

One node is active, and the other is standby.

Dynamic Routing Protocols:

Run on the active node only.

Option A: Dynamic routing is active on one device at a time.

Explanation:

In active/passive HA, dynamic routing protocols run only on the primary (active) node.

Policy Enforcer receives these policies and translates them into device-specific commands. It then communicates with the third-party switches (using protocols like SNMP, RADIUS, or vendor-specific APIs) to enforce those commands, such as blocking the infected hosts' MAC addresses or port access.

Why Policy Enforcer is the Right Choice:

Centralized Enforcement: Policy Enforcer acts as the central point of enforcement for Security Director policies, ensuring consistent security across the network.

Multi-Vendor Support: It can interact with a wide range of network devices, including switches from different vendors.

Automation: Policy Enforcer automates the policy enforcement process, enabling rapid response to threats.
