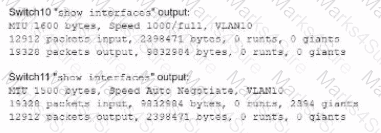

Definition of Jumbo Frames:

Jumbo frames are Ethernet frames with more than 1500 bytes of payload, typically up to 9000 bytes. They are used to improve network performance by reducing the overhead caused by smaller frames.

Why Switches Support Jumbo Frames:

Switches are network devices designed to manage data packets and can be configured to support jumbo frames. This capability enhances throughput and efficiency, particularly in high-performance networks and data centers.

Incompatibility of Other Devices:

Access Point: Primarily handles wireless communications and does not typically support jumbo frames.

Bridge: Connects different network segments but usually operates at standard Ethernet frame sizes.

Hub: A simple network device that transmits packets to all ports without distinguishing between devices, incapable of handling jumbo frames.

Practical Application:

Enabling jumbo frames on switches helps in environments where large data transfers are common, such as in storage area networks (SANs) or large-scale virtualized environments.

References:

CompTIA Network+ course materials and networking hardware documentation.

Understanding the Vulnerability:

Vulnerabilities in the router CPU can be exploited to cause performance degradation, unauthorized access, or other security issues.

Firmware Update:

Firmware Role: The firmware is low-level software that controls the hardware of a device. Updating the firmware can address vulnerabilities by providing patches and enhancements from the manufacturer.

Procedure: Download the latest firmware from the vendor’s website, follow the manufacturer's instructions to apply the update, and verify that the update resolves the vulnerability.

Comparison with Other Options:

Replace the System Board: This is a costly and often unnecessary step if the issue can be resolved with a firmware update.

Patch the OS: Patching the OS is relevant for devices with a full operating system but not directly applicable to addressing a CPU vulnerability on a router.

Isolate the System: Temporarily isolating the system can mitigate immediate risk but does not resolve the underlying vulnerability.

Best Practice:

Regularly check for and apply firmware updates to ensure that network devices are protected against known vulnerabilities.

References:

CompTIA Network+ study materials on network security and device management.

Understanding Multicast:

Multicast IP Address Range: The multicast address range is from 224.0.0.0 to 239.255.255.255, designated for multicast traffic.

Multicast Applications:

Use Case: Multicast is used for one-to-many or many-to-many communication, suitable for applications like audio and video broadcasting where the same data is sent to multiple recipients simultaneously.

Appropriate Network Selection:

224.0.0.0/24 Network: This range is reserved for multicast addresses, making it the appropriate choice for setting up a multicast network.

Comparison with Other Options:

172.16.0.0/24: Part of the private IP address space, used for private networks, not designated for multicast.

192.168.0.0/24: Another private IP address range, also not for multicast.

240.0.0.0/24: Reserved for future use, not suitable for multicast.

References:

CompTIA Network+ study materials on IP address ranges and multicast.

Definition of MAC Flooding:

MAC flooding is an attack where a malicious actor sends numerous fake MAC addresses to a switch, overwhelming its CAM table. The CAM table stores MAC addresses and their associated ports for efficient traffic forwarding.

Impact of MAC Flooding:

CAM Table Overflow: When the CAM table is full, the switch cannot learn new MAC addresses and is forced to broadcast traffic to all ports, leading to a degraded network performance and potential data interception.

Switch Behavior: The switch operates in a fail-open mode, treating the network as a hub, which can be exploited for eavesdropping on traffic.

Comparison with Other Attacks:

ARP Spoofing: Involves sending false ARP (Address Resolution Protocol) messages to associate the attacker's MAC address with the IP address of another device.

Evil Twin: Involves creating a rogue wireless access point that mimics a legitimate one to intercept data.

DNS Poisoning: Involves corrupting the DNS cache with false information to redirect traffic to malicious sites.

Preventive Measures:

Port Security: Configure port security on switches to limit the number of MAC addresses per port, preventing CAM table overflow.

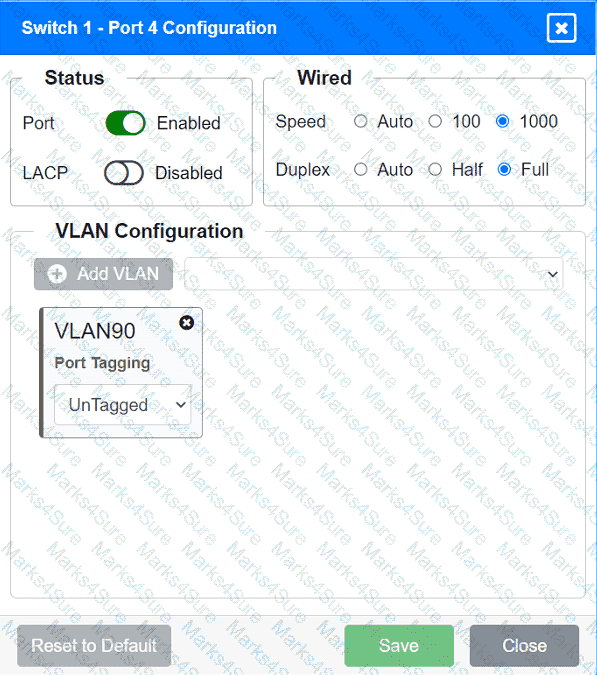

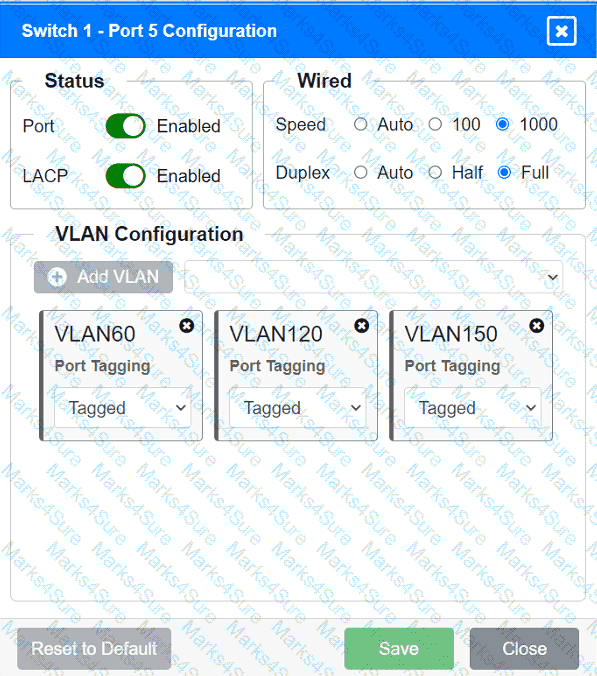

Network Segmentation: Use VLANs to segment network traffic and limit the impact of such attacks.

References:

CompTIA Network+ study materials on network security threats and mitigation techniques.

Understanding Rack Size Determination:

The size of a rack for installation is determined by the dimensions of the equipment to be housed in it, primarily focusing on the depth and height of the devices.

Switch Depth:

Depth of Equipment: The depth of network switches and other rack-mounted devices directly influences the depth of the rack. If the equipment is deeper, a deeper rack is required to accommodate it.

Industry Standards: Most racks come in standard depths, but it is essential to match the depth of the rack to the deepest piece of equipment to ensure proper fit and airflow.

Server Height:

Height of Equipment: The height of servers and other devices is measured in rack units (U), where 1U equals 1.75 inches. The total height of all equipment determines the overall height requirement of the rack.

Rack Units: A rack's height is typically described in terms of the number of rack units it can accommodate, such as 42U, 48U, etc.

Why Other Options are Less Relevant:

KVM Size: While important for management, KVM (Keyboard, Video, Mouse) switches do not typically determine rack size.

Hard Drive Size: Individual hard drives are installed within servers or storage devices, not directly influencing rack dimensions.

Cooling Fan Speed: Fan speed affects cooling but not the physical size of the rack.

Outlet Amperage: Power requirements do not determine rack dimensions but rather the electrical infrastructure supporting the rack.

References:

CompTIA Network+ study materials on rack installation and equipment sizing.

Link Layer Discovery Protocol (LLDP) is a network protocol used for discovering devices and their capabilities on a local area network, primarily at the data link layer (Layer 2). It helps in identifying the connected switch and the specific port to which a device is connected. When troubleshooting a VoIP handset connection, the technician can use LLDP to determine the exact switch and port where the handset is connected. This protocol is widely used in network management to facilitate the discovery of network topology and simplify troubleshooting.

Other options such as IKE (Internet Key Exchange), VLAN (Virtual LAN), and netstat (network statistics) are not suitable for identifying the switch and port information. IKE is used in setting up secure IPsec connections, VLAN is used for segmenting networks, and netstat provides information about active connections and listening ports on a host but not for discovering switch port details.

Introduction to Disaster Recovery Concepts:

Disaster recovery involves strategies and measures to ensure business continuity and data recovery in the event of a disaster.

Mean Time Between Failures (MTBF):

MTBF is a reliability metric used to predict the time between failures of a system during operation. It is calculated by dividing the total operational time by the number of failures.

Formula: MTBF=Total Operational TimeNumber of Failures\text{MTBF} = \frac{\text{Total Operational Time}}{\text{Number of Failures}}MTBF=Number of FailuresTotal Operational Time​

This metric helps in understanding the reliability and expected lifespan of systems and components.

Example Calculation:

If a server operates for 1000 hours and experiences 2 failures, the MTBF is: MTBF=1000 hours2=500 hours\text{MTBF} = \frac{1000 \text{ hours}}{2} = 500 \text{ hours}MTBF=21000 hours​=500 hours

Explanation of the Options:

A. MTTR (Mean Time to Repair): The average time required to repair a system after a failure.

B. MTBF (Mean Time Between Failures): The correct answer, representing the average time between failures.

C. RPO (Recovery Point Objective): The maximum acceptable amount of data loss measured in time.

D. RTO (Recovery Time Objective): The target time set for the recovery of IT and business activities after a disaster.

Conclusion:

MTBF is a crucial metric in disaster recovery and system reliability, helping organizations plan maintenance and predict system performance.

References:

CompTIA Network+ guide explaining MTBF, MTTR, RPO, and RTO concepts and their calculations (see page Ref 10†How to Use Cisco Packet Tracer).

EIGRP (Enhanced Interior Gateway Routing Protocol) has a default administrative distance (AD) value of 90 for internal routes. The administrative distance is used to rate the trustworthiness of routing information received from different routing protocols. EIGRP, developed by Cisco, has an AD of 90, which is lower than that of RIP (120) and OSPF (110), making it more preferred if multiple protocols provide a route to the same destination.References: CompTIA Network+ study materials.

The maximum recommended length for Ethernet cable runs is 100 meters (328 feet). At 150 meters, the Cat 6 cable is too long, causing signal degradation and connectivity issues. Running fiber from the distribution switch to an access switch in the annex will allow for reliable connectivity over longer distances, as fiber can cover greater distances without signal loss. (Reference: CompTIA Network+ Study Guide, Chapter on Network Cable Standards)

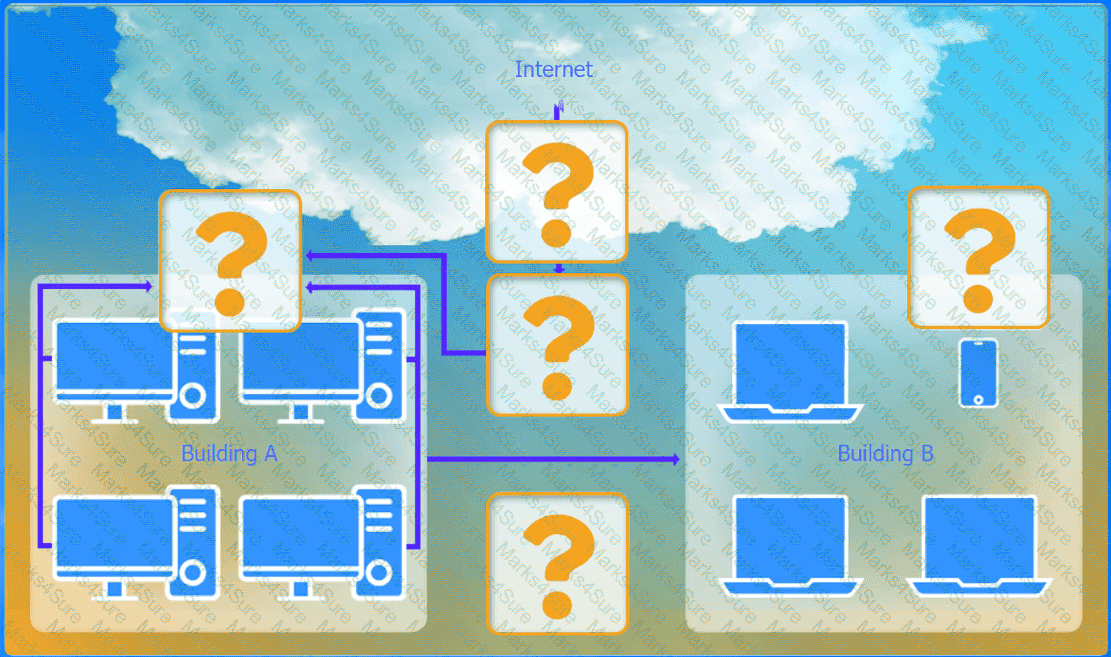

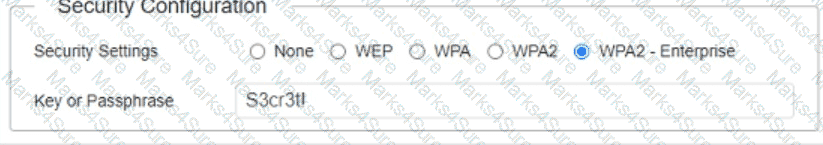

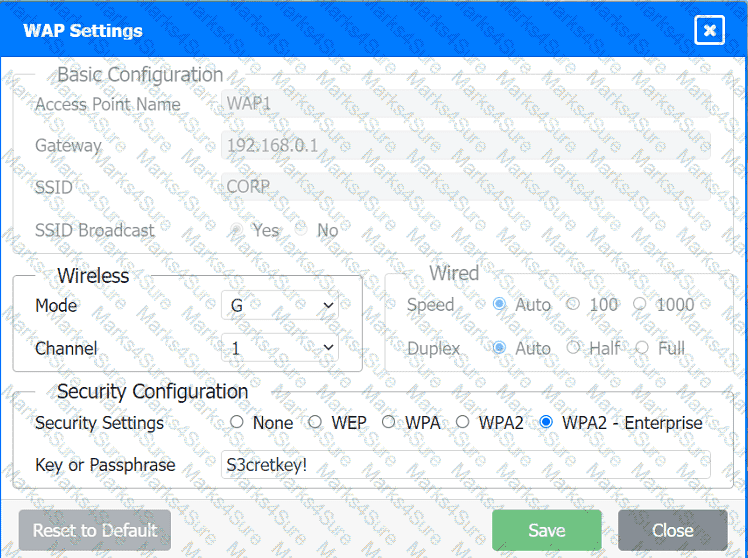

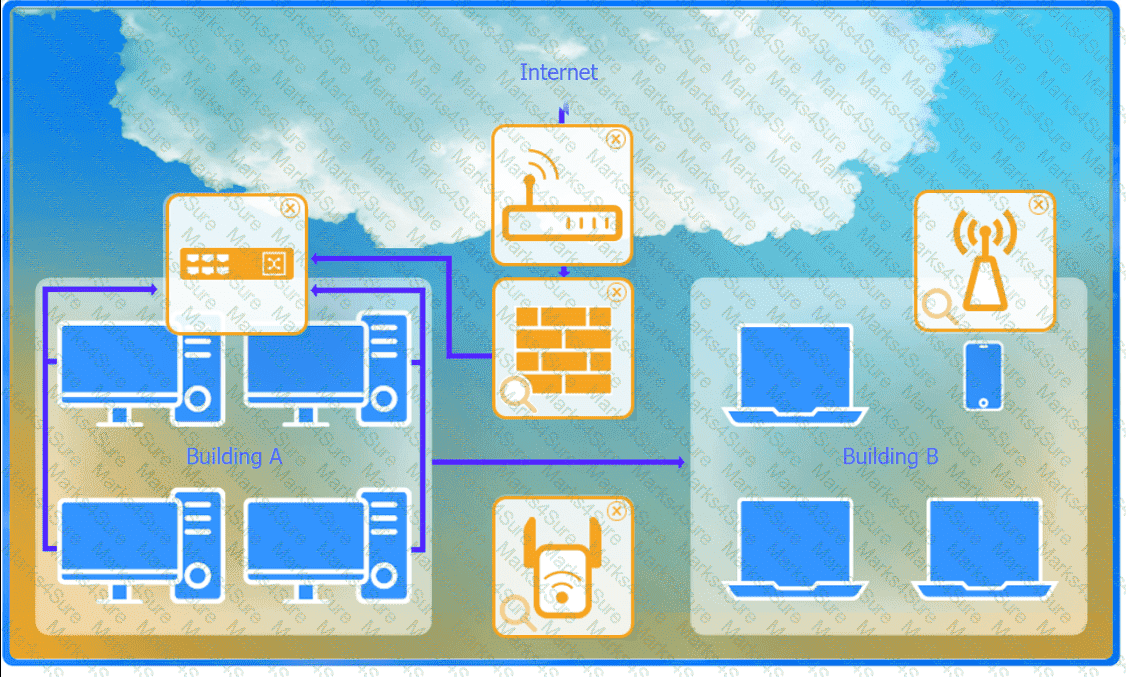

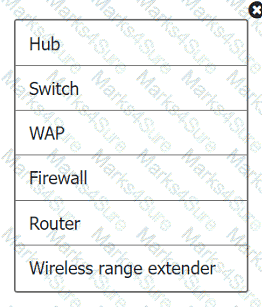

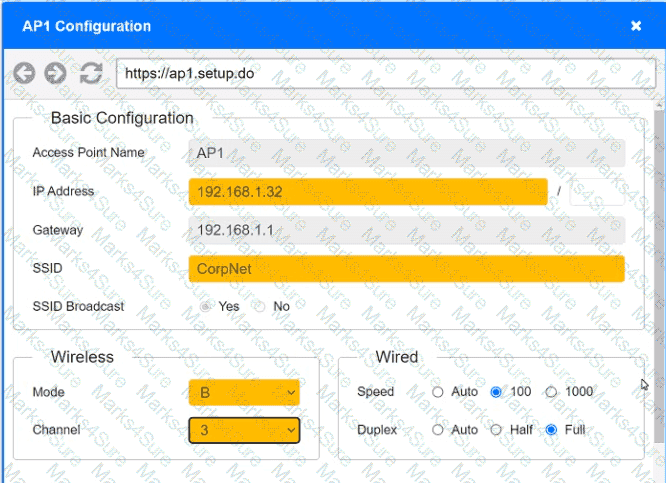

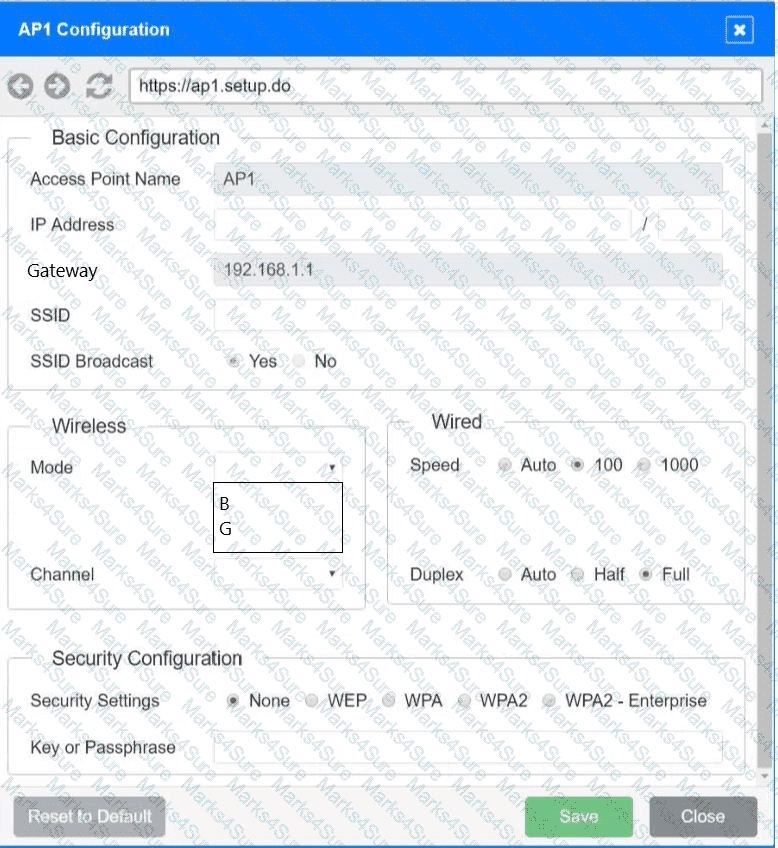

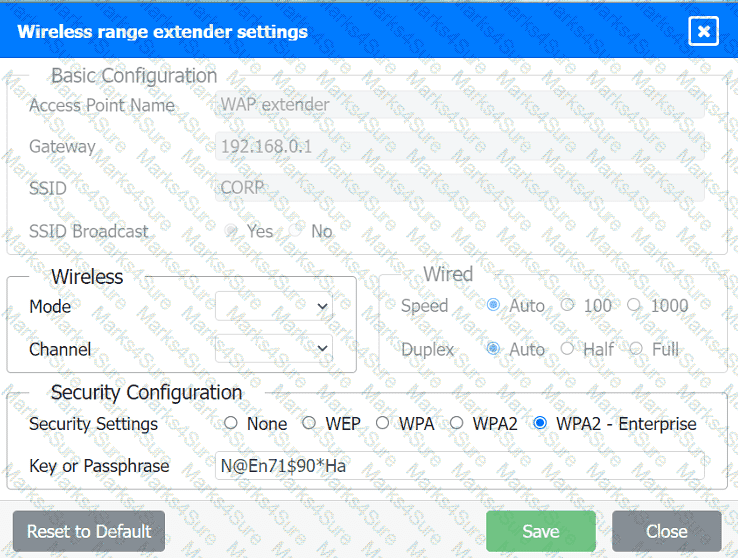

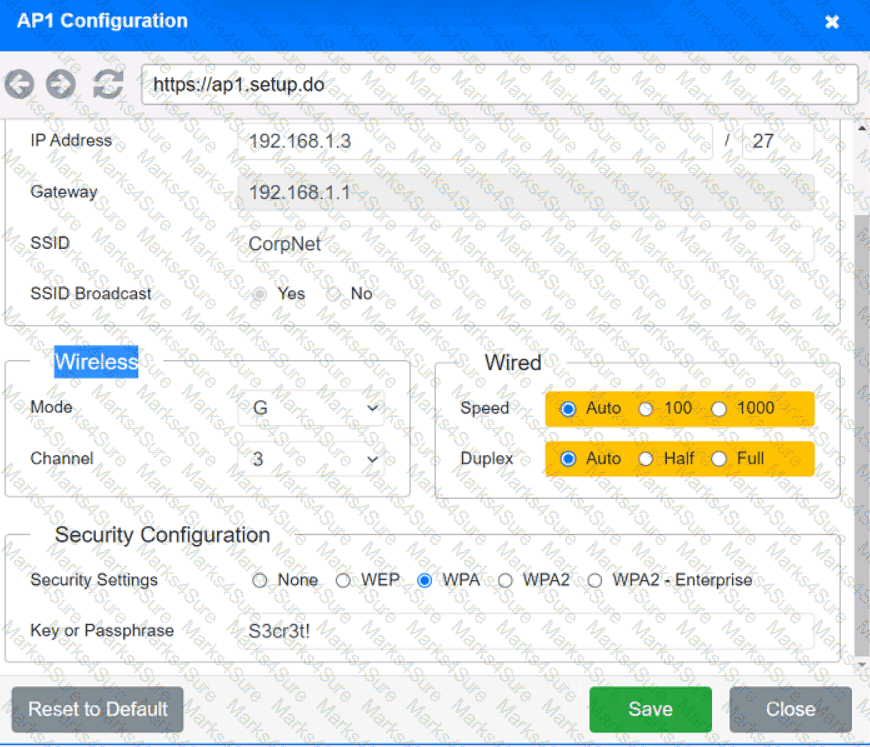

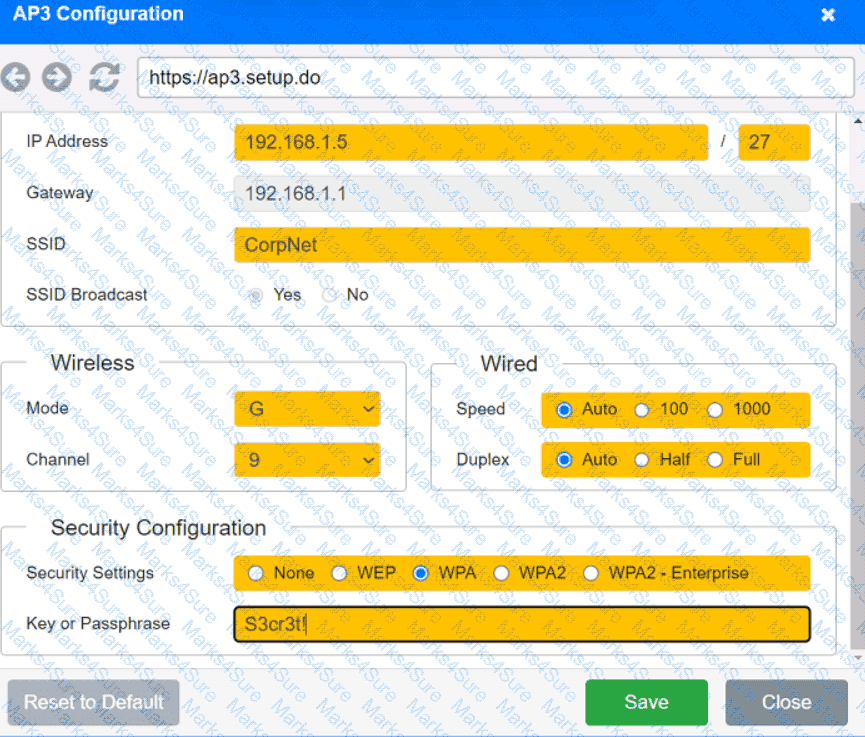

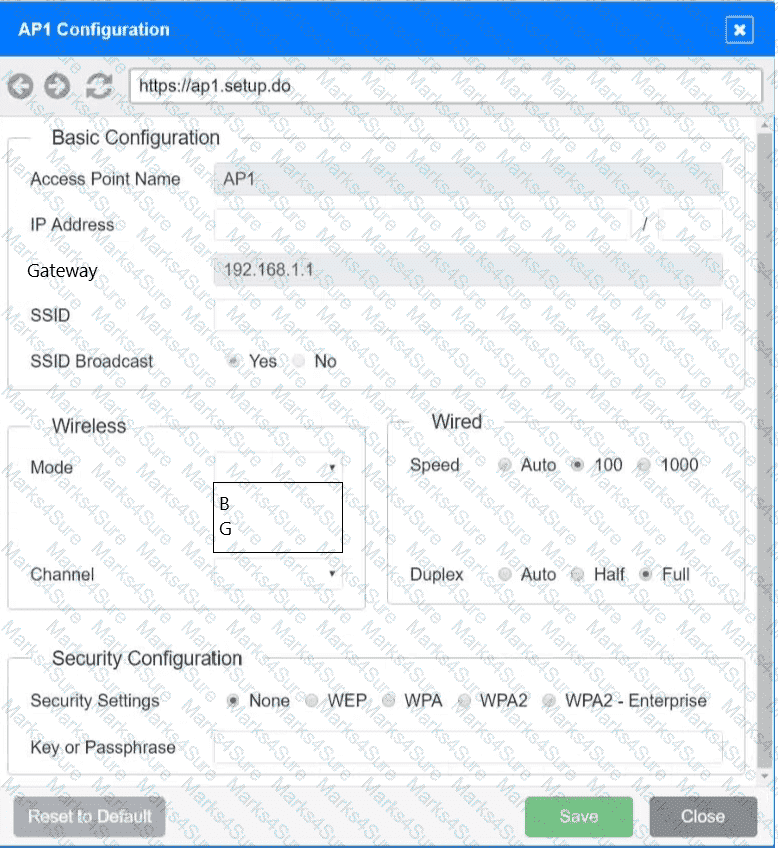

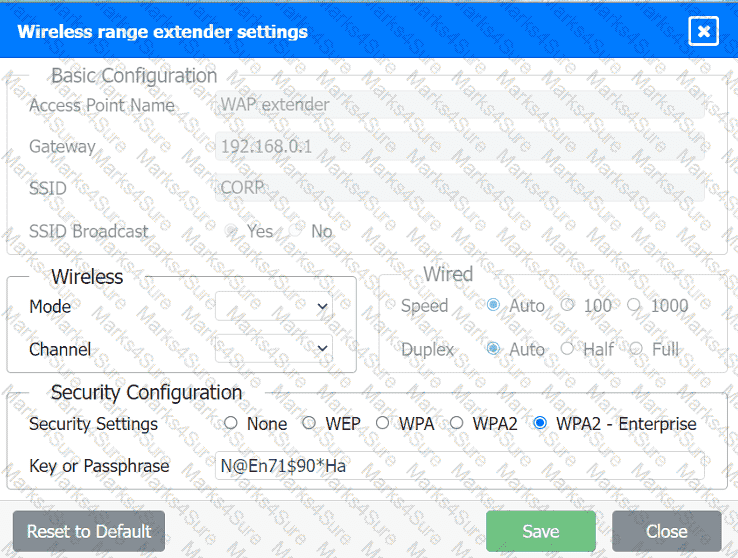

An access point (AP) provides users with an extended footprint that allows connections from multiple devices within a designated Wireless Local Area Network (WLAN).

Router: Typically used to connect different networks, not specifically for extending wireless coverage.

Switch: Used to connect devices within a wired network, not for providing wireless access.

Access Point (AP): Extends wireless network coverage, allowing multiple wireless devices to connect to the network.

Firewall: Primarily used for network security, controlling incoming and outgoing traffic based on security rules, not for providing wireless connectivity.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Explains the roles and functions of network appliances, including access points.

Cisco Networking Academy: Provides training on deploying and managing wireless networks with access points.

Network+ Certification All-in-One Exam Guide: Covers network devices and their roles in creating and managing networks.

The tracert (Traceroute) command is used to determine the path packets take from the source to the destination. It helps in identifying routing issues by showing each hop the packets pass through, along with the time taken for each hop. This command can pinpoint where the connection is failing or experiencing delays, making it an essential tool for troubleshooting routing issues.References: CompTIA Network+ study materials and common network troubleshooting commands. ​

Explanation: A Client-to-Site VPN allows a remote user to securely connect to a company's internal network, providing access as if they were physically on-site.

Port mirroring, also known as SPAN (Switched Port Analyzer), is used to send a copy of network packets seen on one switch port (or an entire VLAN) to another port where the IDS is connected. This allows the IDS to passively inspect network traffic without interfering with the actual traffic flow. Port mirroring is an essential feature for implementing IDS in a network for traffic analysis and security monitoring.References: CompTIA Network+ study materials.

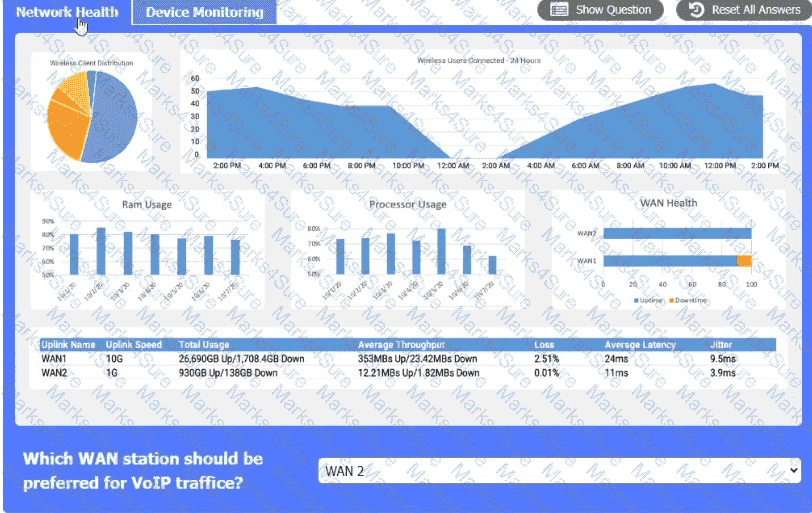

Power over Ethernet (PoE) delivers power to devices such as VoIP phones over the same cables used for data. If the total power requirement of connected devices exceeds the PoE power budget of the switch or injector, some devices may not receive adequate power and could intermittently reboot. This issue would not affect the workstation, which is likely receiving power separately. References: CompTIA Network+ Exam Objectives and official study guides.

When installing equipment in a building, environmental factors are critical to ensure the safety and longevity of the equipment. A fire suppression system is essential to protect the equipment from fire hazards. Humidity control is crucial to prevent moisture-related damage, such as corrosion and short circuits, which can adversely affect electronic components. Both factors are vital for maintaining an optimal environment for networking equipment.References: CompTIA Network+ study materials.

Introduction to Administrative Distance

Administrative distance (AD) is a value used by routers to rank routes from different routing protocols. AD represents the trustworthiness of the source of the route. Lower AD values are more preferred. If a router has multiple routes to a destination from different sources, it will choose the route with the lowest AD.

Static Routes and Backup Routes

When a dynamic routing protocol is not used, static routes can be employed. Static routes are manually configured routes. To ensure a backup route, multiple static routes to the same destination can be configured with different AD values.

Configuring Static Routes with Administrative Distance

The primary route is configured with a lower AD value, making it the preferred route. The backup route is configured with a higher AD value. In the event of the primary route failure, the router will then use the backup route.

Example Configuration:

plaintext

Copy code

ip route 192.168.1.0 255.255.255.0 10.0.0.1 1

ip route 192.168.1.0 255.255.255.0 10.0.0.2 10

In the above example, 192.168.1.0/24 is the destination network.

10.0.0.1 is the next-hop IP address for the primary route with an AD of 1.

10.0.0.2 is the next-hop IP address for the backup route with an AD of 10.

Verification:

After configuration, use the show ip route command to verify that the primary route is in use and the backup route is listed as a candidate for use if the primary route fails.

References:

CompTIA Network+ guide explains the concept of administrative distance and its use in static routing configuration (see page Ref 9†Basic Configuration Commands).

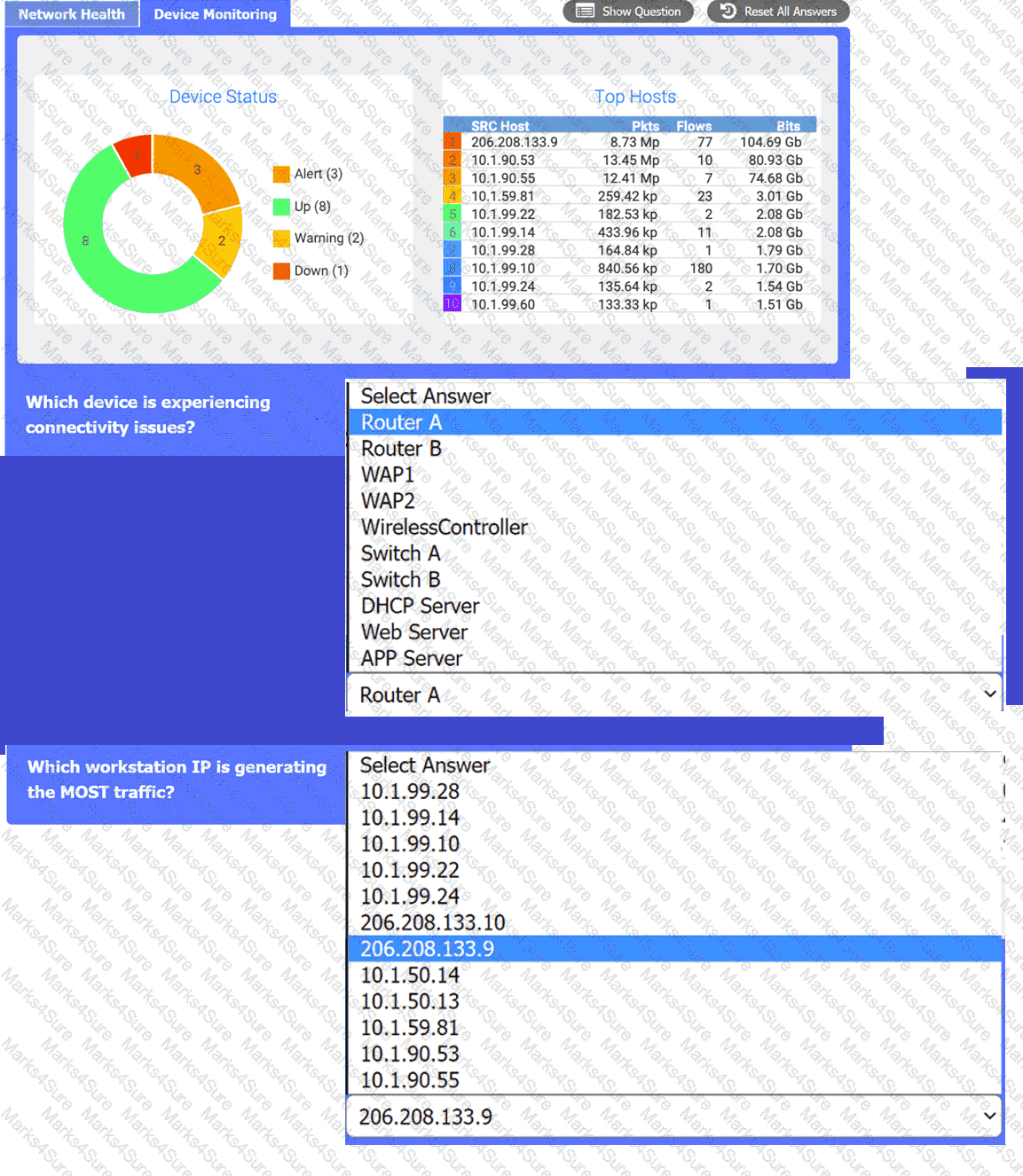

The netstat command provides information about network connections, routing tables, interface statistics, masquerade connections, and multicast memberships. Running netstat on the server can help the administrator verify that the web server process is listening on the expected port (e.g., port 80 for HTTP or port 443 for HTTPS) and that there are no issues with network connections. This is a crucial first step in diagnosing why the web server is not accessible via a browser.References: CompTIA Network+ study materials. ​

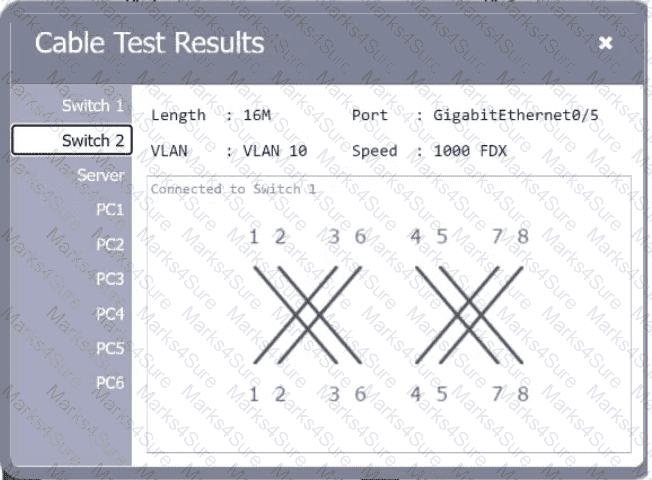

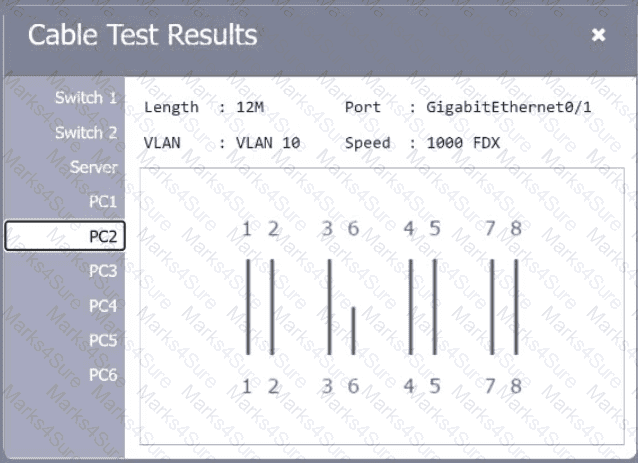

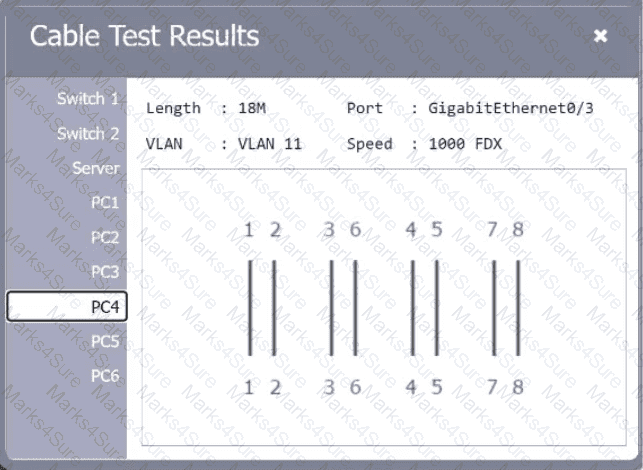

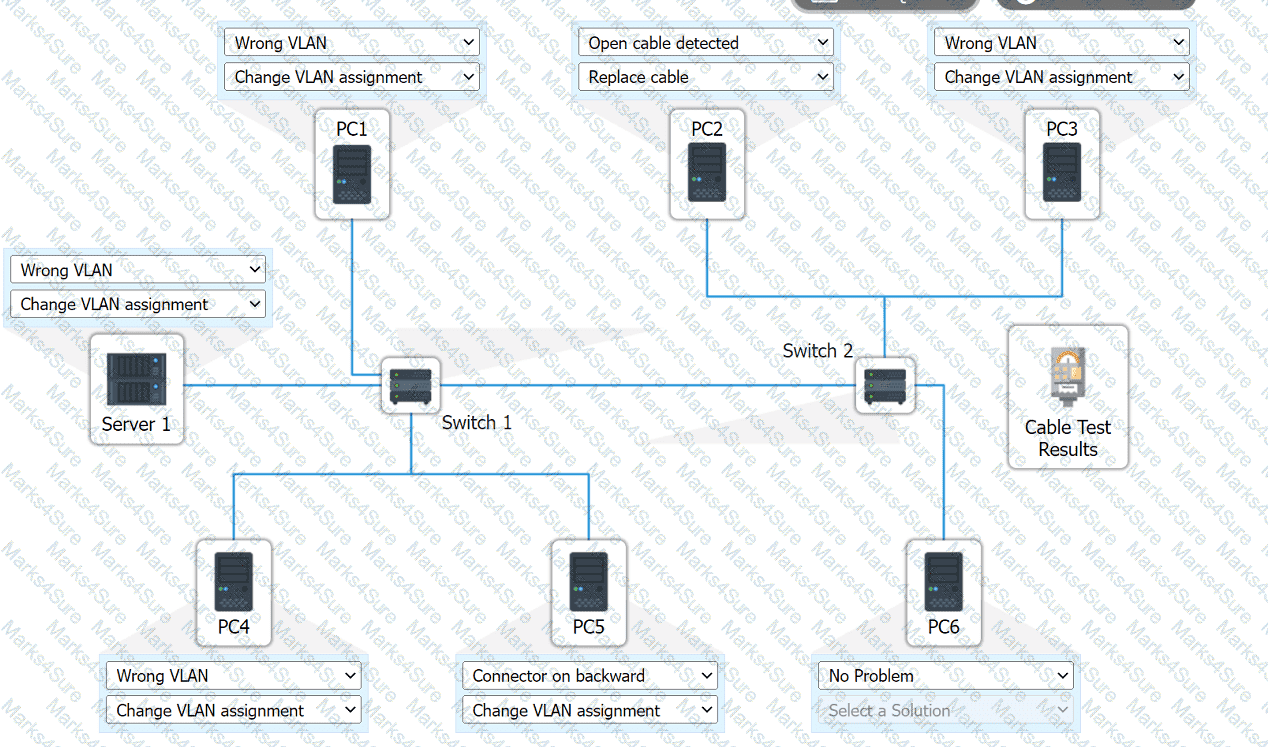

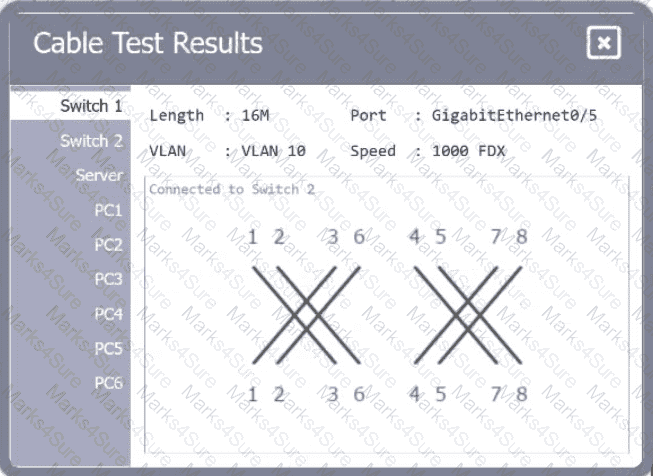

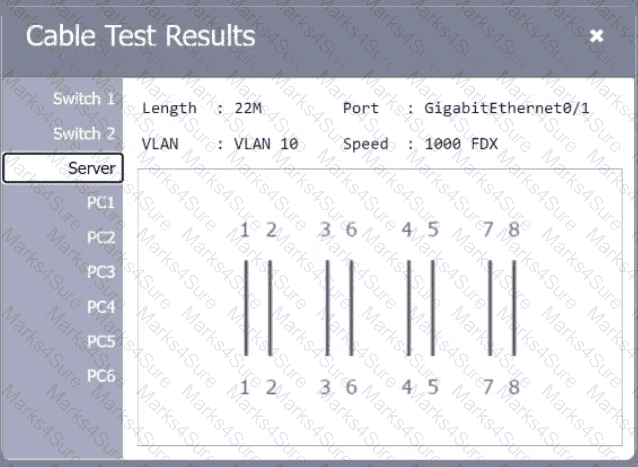

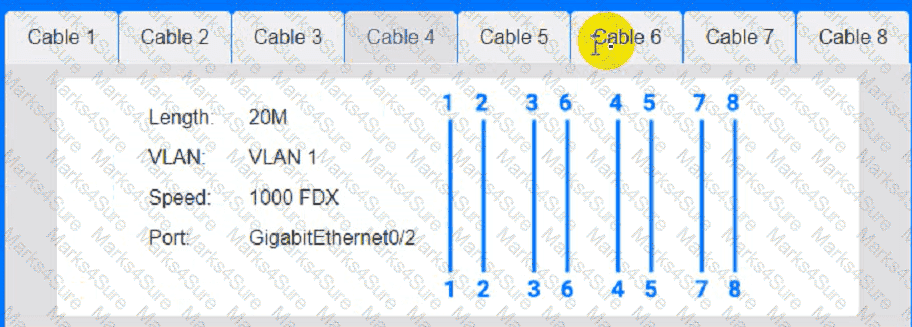

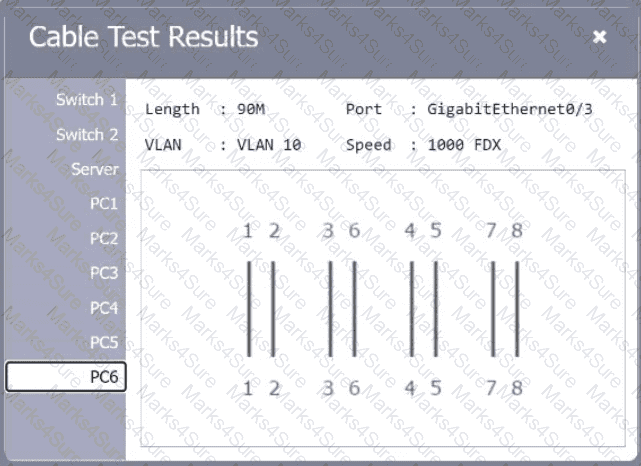

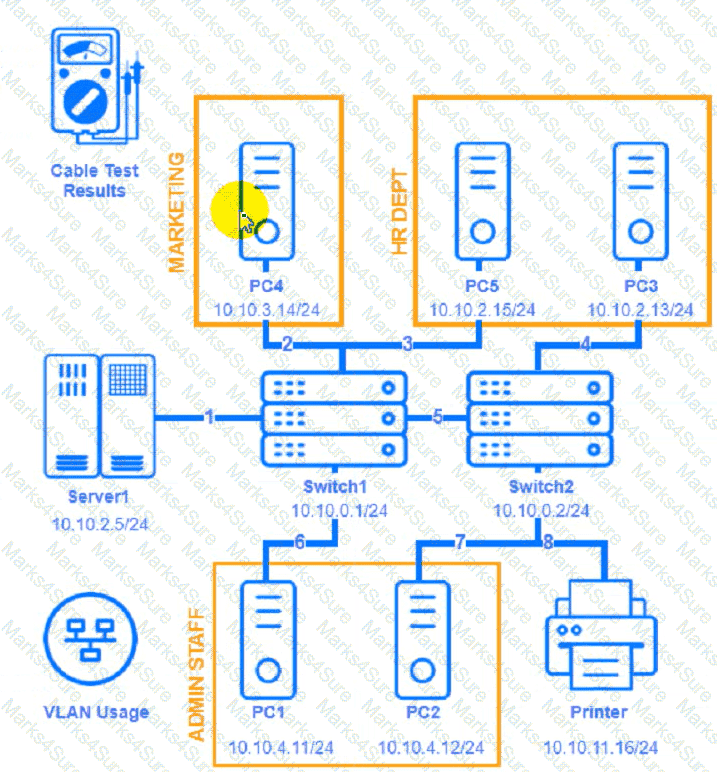

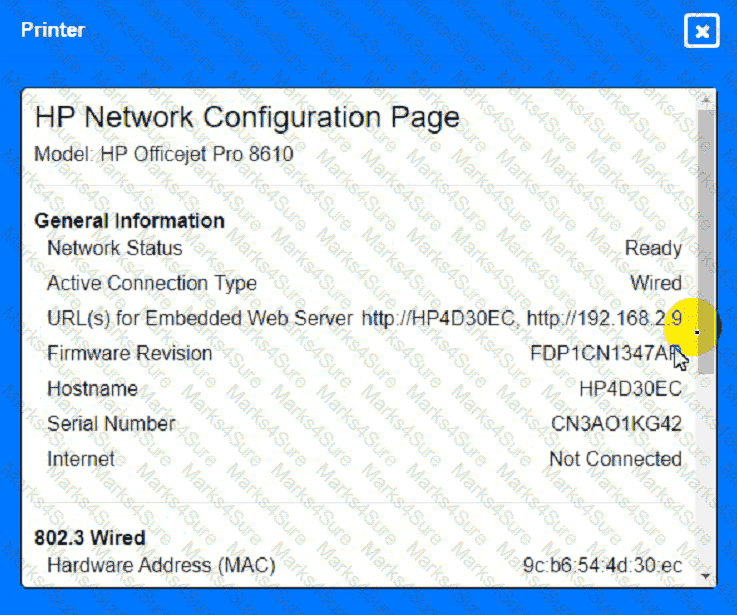

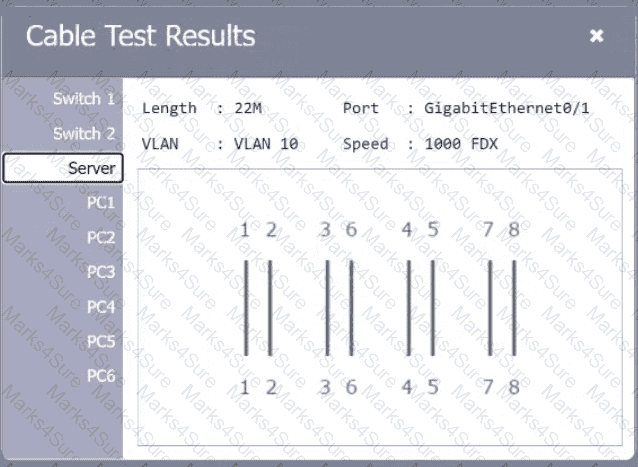

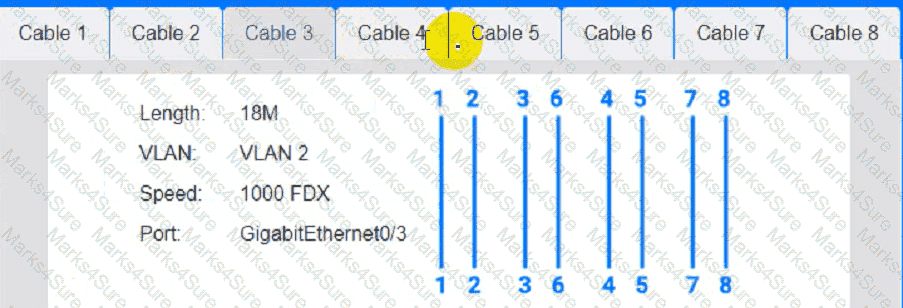

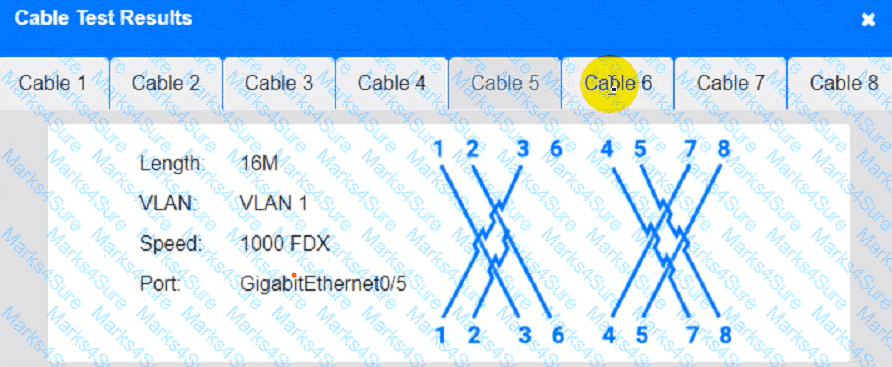

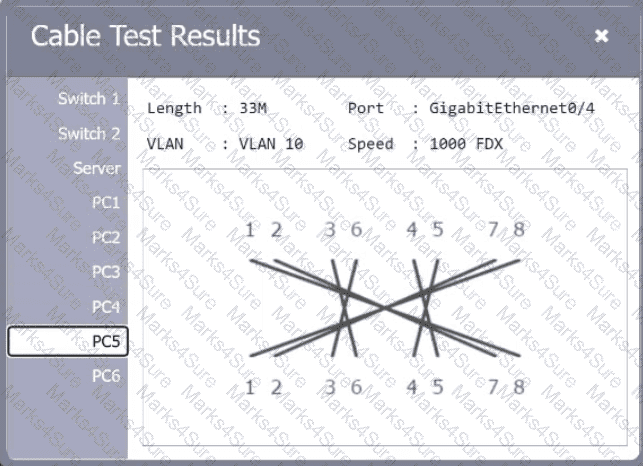

Explanation: A cable tester is a tool that can help identify issues with the physical cabling, such as breaks or improper terminations, which may prevent the access point from reaching the internet.

=================

Explanation: After implementing a solution and putting preventive measures in place, the next step is to verify that the system is functioning correctly. This ensures that the issue has been fully resolved.

=================

Disabling unused ports prevents unauthorized access and reduces the attack surface by ensuring that no inactive or unmonitored entry points are available for exploitation. Changing default passwords is critical for security because default credentials are widely known and can easily be exploited by attackers. These techniques are fundamental steps in hardening devices against unauthorized access and ensuring network security. References: CompTIA Network+ Exam Objectives and official study guides.

Port 587 is the standard default port for sending email (SMTP) with TLS encryption, which is used to secure email transmissions between mail servers or between clients and mail servers. Allowing traffic over port 587 enables secure email sending while maintaining standard protocol usage. (Reference: CompTIA Network+ Study Guide, Chapter on Ports and Protocols)

X.509 certificates are most commonly associated with Public Key Infrastructure (PKI). These certificates are used for a variety of security functions, including digital signatures, encryption, and authentication.

PKI: X.509 certificates are a fundamental component of PKI, used to manage encryption keys and authenticate users and devices.

Digital Certificates: They are used to establish secure communications over networks, such as SSL/TLS for websites and secure email communication.

Authentication and Encryption: X.509 certificates provide the means to securely exchange keys and verify identities in various applications, ensuring data integrity and confidentiality.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers PKI and the role of X.509 certificates in network security.

Cisco Networking Academy: Provides training on PKI, certificates, and secure communications.

Network+ Certification All-in-One Exam Guide: Explains PKI, X.509 certificates, and their applications in securing network communications.

Understanding End-of-Support:

End-of-Support Status: When a vendor declares a device as end-of-support, it means the device will no longer receive updates, patches, or technical support. This poses a security risk as new vulnerabilities will not be addressed.

Risks of Keeping an End-of-Support Device:

Security Vulnerabilities: Without updates, the switch becomes susceptible to new security threats.

Compliance Issues: Many regulatory frameworks require that critical infrastructure be maintained with supported and secure hardware.

Best Next Step - Replacement:

Decommission and Replace: The most secure approach is to replace the end-of-support switch with a new, supported model. This ensures the infrastructure remains secure and compliant with current standards.

Planning and Execution: Plan for the replacement by evaluating the network's needs, selecting a suitable replacement switch, and scheduling downtime for the hardware swap.

Comparison with Other Options:

Apply the Latest Patches: While helpful, this does not address future vulnerabilities since no further patches will be provided.

Ensure the Current Firmware Has No Issues: This is only a temporary measure and does not mitigate future risks.

Isolate the Switch from the Network: Isolating the switch may disrupt network operations and is not a viable long-term solution.

References:

CompTIA Network+ study materials on network maintenance and security best practices.

Network segmentation involves dividing a network into smaller segments or subnets. This is particularly important when integrating OT (Operational Technology) devices to ensure that these devices are isolated from other parts of the network. Segmentation helps protect the OT devices from potential threats and minimizes the impact of any security incidents. It also helps manage traffic and improves overall network performance.References: CompTIA Network+ study materials.

To increase overall security after a recent breach, implementing least privilege network access and central policy management are effective strategies.

Least Privilege Network Access: This principle ensures that users and devices are granted only the access necessary to perform their functions, minimizing the potential for unauthorized access or breaches. By limiting permissions, the risk of an attacker gaining access to critical parts of the network is reduced.

Central Policy Management: Centralized management of security policies allows for consistent and streamlined implementation of security measures across the entire network. This helps in quickly responding to security incidents, ensuring compliance with security protocols, and reducing the chances of misconfigurations.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses network security principles, including least privilege and policy management.

Cisco Networking Academy: Provides training on implementing security policies and access controls.

Network+ Certification All-in-One Exam Guide: Covers strategies for enhancing network security and managing policies effectively.

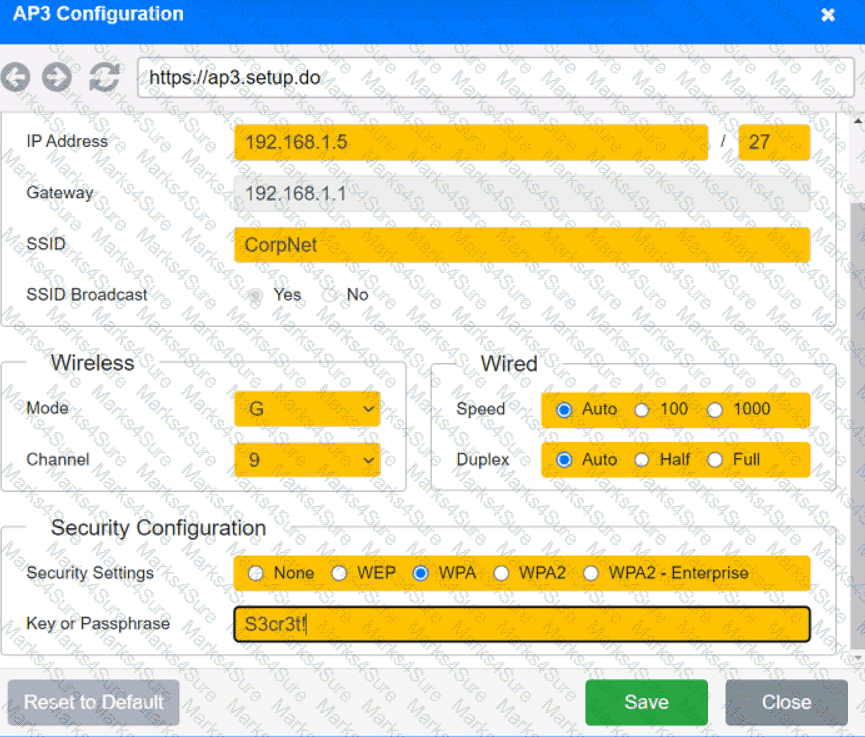

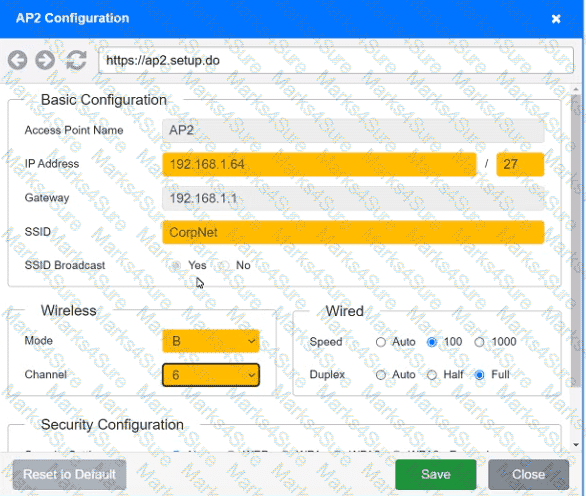

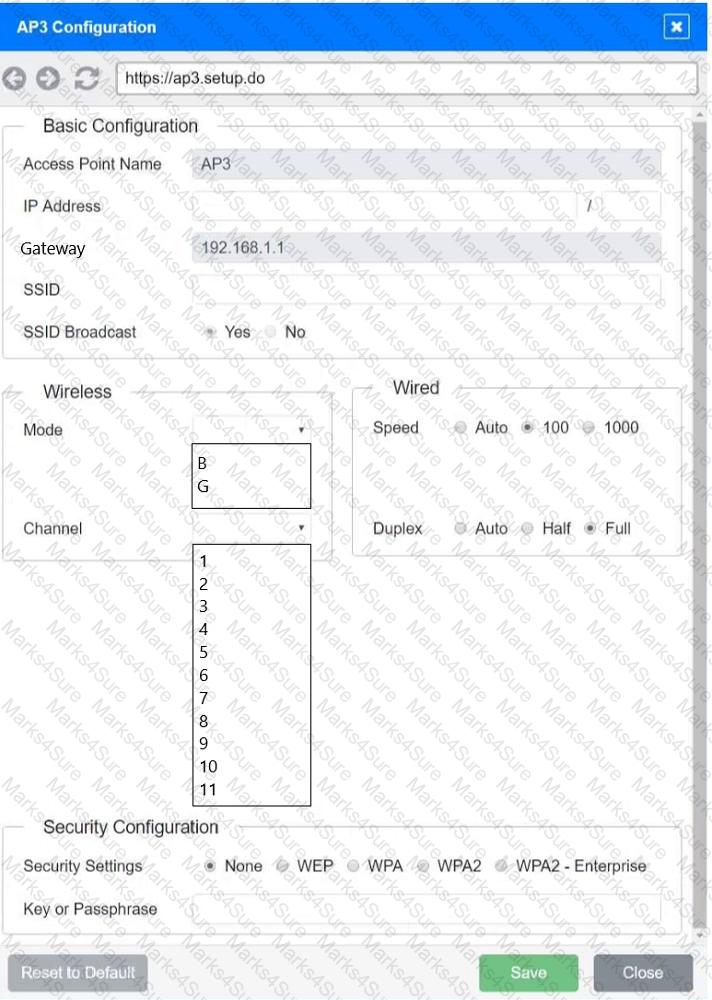

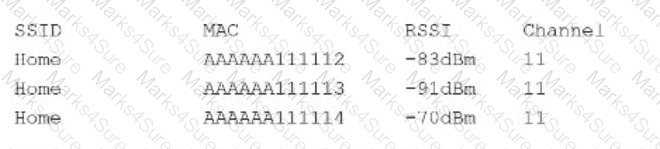

Microwaves are known to interfere with the 2.4GHz frequency, which is the same frequency used by many wireless networks. This can cause signal degradation and intermittent connectivity issues, especially if the WAP is placed near such devices.

=================

In a data center that practices hot aisle/cold aisle ventilation, equipment should be installed so that the exhaust faces the rear of the rack. This setup ensures that hot air is expelled into the hot aisle, maintaining proper airflow and cooling efficiency.

Hot Aisle/Cold Aisle Configuration: Equipment intake should face the cold aisle where cool air is supplied, and exhaust should face the hot aisle where hot air is expelled.

Cooling Efficiency: Proper orientation of equipment helps maintain an efficient cooling environment by segregating hot and cold air, preventing overheating and improving energy efficiency.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses data center design principles, including hot aisle/cold aisle configurations.

Cisco Data Center Design Guide: Provides best practices for data center layout and equipment installation.

Network+ Certification All-in-One Exam Guide: Covers data center environmental controls and ventilation strategies.

Explanation: NAT (Network Address Translation) helps hide internal IP addresses from external networks, adding a layer of security by preventing direct access to internal systems from the outside.

Explanation: MTTR (Mean Time to Repair) is the average time it takes to repair a system or service after a failure. It helps in measuring the downtime and planning recovery processes.

=================

When a network administrator installs a new Network Interface Card (NIC) and users are unable to reach the server, one of the common issues is the use of an incorrect cable type. Network cables must match the specifications required by the NIC and the network infrastructure (e.g., Cat5e, Cat6 for Ethernet).

NIC Compatibility: The new NIC might require a specific type of cable to function properly. Using a cable not rated for the NIC's required speeds or capabilities can result in connectivity issues.

Cable Standards: Different NICs and network devices might need different cabling standards (straight-through vs. crossover cables, or specific fiber optic types).

Connection Types: Ensuring that the cable connectors are appropriate for the NIC ports (e.g., RJ45 for Ethernet, LC connectors for fiber optics).

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses network cabling standards and NIC specifications.

Cisco Networking Academy: Provides insights into cabling and NIC configurations for optimal network performance.

Network+ Certification All-in-One Exam Guide: Offers comprehensive details on troubleshooting network connectivity issues, including cabling problems.

In a mesh topology, every node is directly connected to every other node. This provides high redundancy and reliability, as there are multiple paths for data to travel between nodes. This topology is often used in networks where high availability is crucial.References: CompTIA Network+ study materials.

A split-tunnel VPN allows some traffic to be routed through the VPN while other traffic goes directly to the internet. This setup offers several advantages, with a primary one being cost-effectiveness due to cloud-based traffic not consuming company bandwidth.

Bandwidth Utilization: Split-tunnel VPNs reduce the amount of traffic passing through the company's network, freeing up bandwidth for other uses.

Performance: By allowing internet-bound traffic to bypass the VPN, it can reduce latency and improve the performance for users accessing cloud services directly.

Cost Savings: Reduced load on the company's VPN infrastructure can lead to lower costs in terms of both hardware and bandwidth.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers VPN types, including split-tunnel configurations and their advantages.

Cisco Networking Academy: Discusses VPN technologies and the benefits of split-tunneling.

Network+ Certification All-in-One Exam Guide: Provides detailed information on VPN setups, including the cost-effectiveness of split-tunnel VPNs.

By allowing cloud-based traffic to flow outside the company’s network, a split-tunnel VPN optimizes resource usage and enhances the overall network performance without incurring extra costs for bandwidth.

Security Assertion Markup Language (SAML) is an XML-based standard used for exchanging authentication and authorization data between parties, particularly between an identity provider (IdP) and a service provider (SP). SAML is commonly used in Single Sign-On (SSO) solutions to pass sensitive user information, such as login credentials and attributes, securely between the identity provider and the service provider.

SAML (Security Assertion Markup Language): Facilitates web-based authentication and authorization, allowing users to access multiple services with a single set of credentials.

XML-based: Uses XML to encode the authentication and authorization data, ensuring secure transmission of user information.

Identity Federation: Enables secure sharing of identity information across different security domains, making it ideal for enterprise SSO solutions.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers authentication protocols, including SAML.

Cisco Networking Academy: Provides training on identity management and federation technologies.

Network+ Certification All-in-One Exam Guide: Explains SAML and its role in secure identity management and SSO.

A warm site is a compromise between a hot site and a cold site, providing a balance between cost and recovery time. It is partially equipped with the necessary hardware, software, and infrastructure, allowing for a quicker recovery compared to a cold site but at a lower cost than a hot site.

Recovery Time: Warm sites can be operational within hours to a day, making them suitable for non-critical applications that can tolerate short downtimes.

Cost-Effectiveness: Warm sites are more economical than hot sites as they do not require all systems to be fully operational at all times.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses disaster recovery strategies and the different types of recovery sites.

Cisco Networking Academy: Provides training on disaster recovery planning and site selection.

Network+ Certification All-in-One Exam Guide: Explains the characteristics of hot, warm, and cold sites and their use cases in disaster recovery planning.

Warm sites offer a practical solution for maintaining business continuity for non-critical applications, balancing the need for availability with cost considerations.

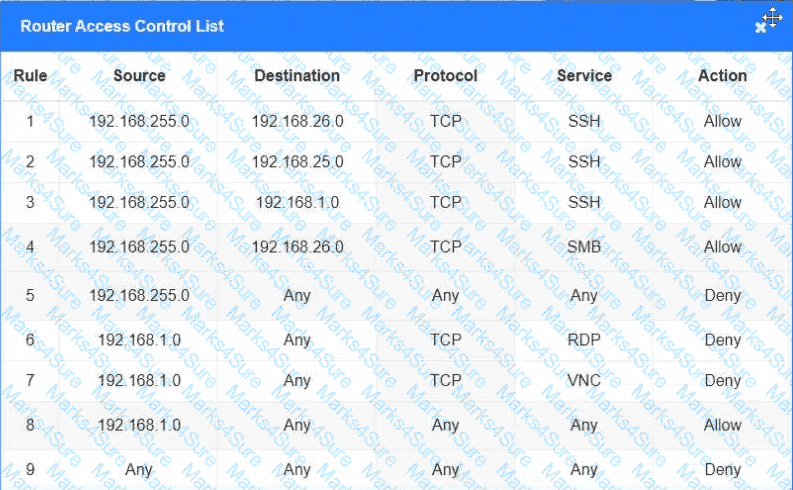

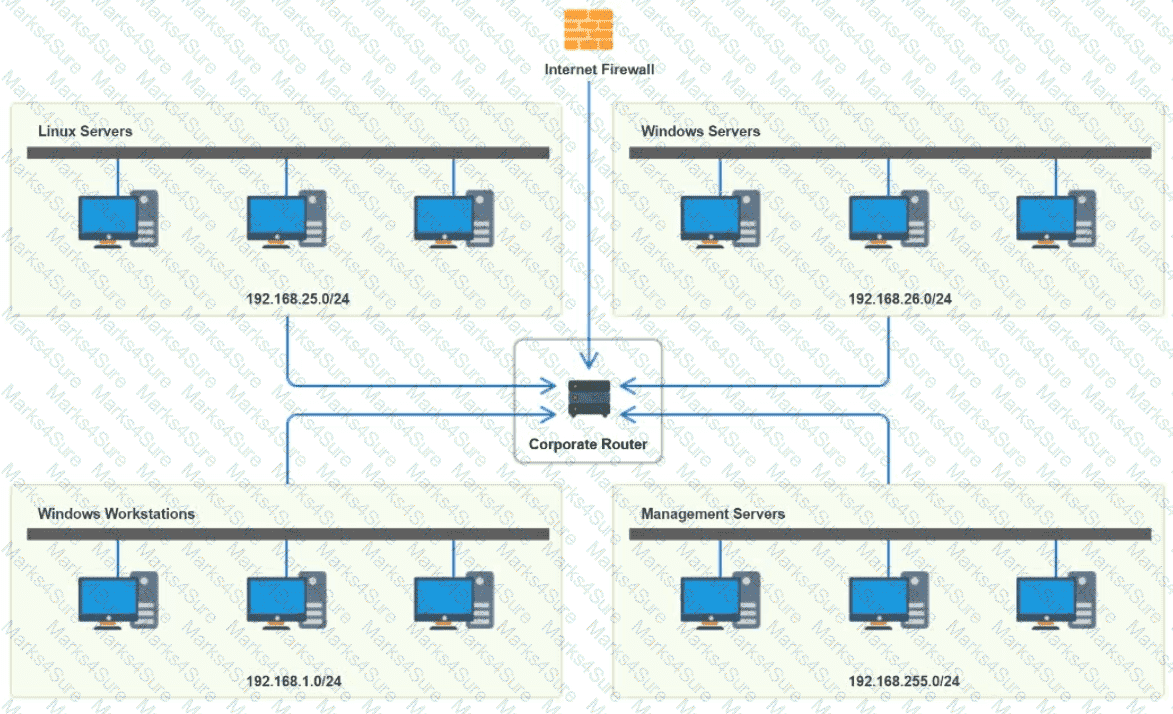

Understanding ACLs:

Access Control Lists (ACLs): A set of rules used to control network traffic and restrict access to network resources by filtering packets based on IP addresses, protocols, or ports.

Implementing Security Zones:

Defining Zones: ACLs can be used to create security zones by applying specific rules to different departments, ensuring that only authorized traffic is allowed between these zones.

Control Traffic: ACLs control inbound and outbound traffic at network boundaries, enforcing security policies and preventing unauthorized access.

Comparison with Other Options:

Port Security: Limits the number of devices that can connect to a switch port, preventing MAC address flooding attacks, but not used for defining security zones.

Content Filtering: Blocks or allows access to specific content based on predefined policies, typically used for web filtering rather than network segmentation.

NAC (Network Access Control): Controls access to the network based on the security posture of devices but does not define security zones.

Implementation Steps:

Define ACL rules based on the requirements of each department.

Apply these rules to the appropriate network interfaces or firewall policies to segment the network into security zones.

References:

CompTIA Network+ study materials on network security and access control methods.

A signal power of -97dB indicates a very weak signal, which can cause connectivity issues and slow speeds. Splitters on a coaxial line can degrade the signal quality further, so removing them can help improve the signal strength and overall connection quality.

Signal Quality: Splitters can reduce the signal strength by dividing the signal among multiple lines, which can be detrimental when the signal is already weak.

Direct Connection: Ensuring a direct connection from the modem to the incoming line can maximize signal quality and reduce potential points of failure.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses troubleshooting connectivity issues and the impact of signal strength on network performance.

Cisco Networking Academy: Provides insights on maintaining optimal signal quality in network setups.

Network+ Certification All-in-One Exam Guide: Covers common network issues, including those related to signal degradation and ways to mitigate them.

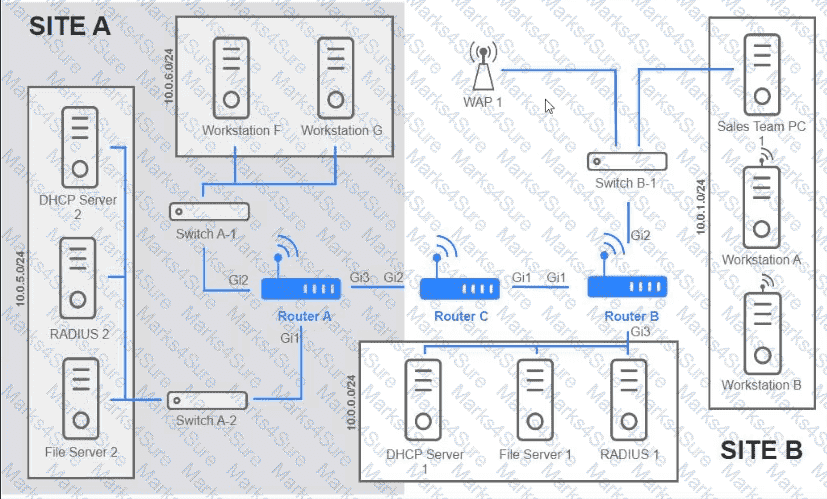

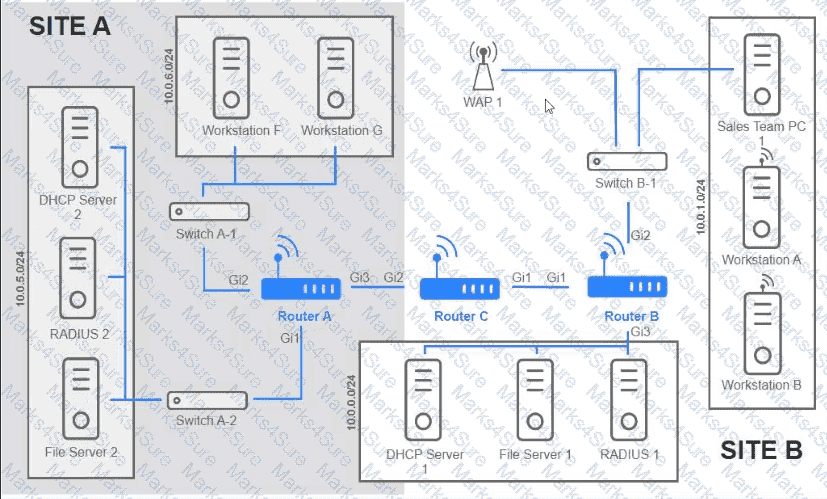

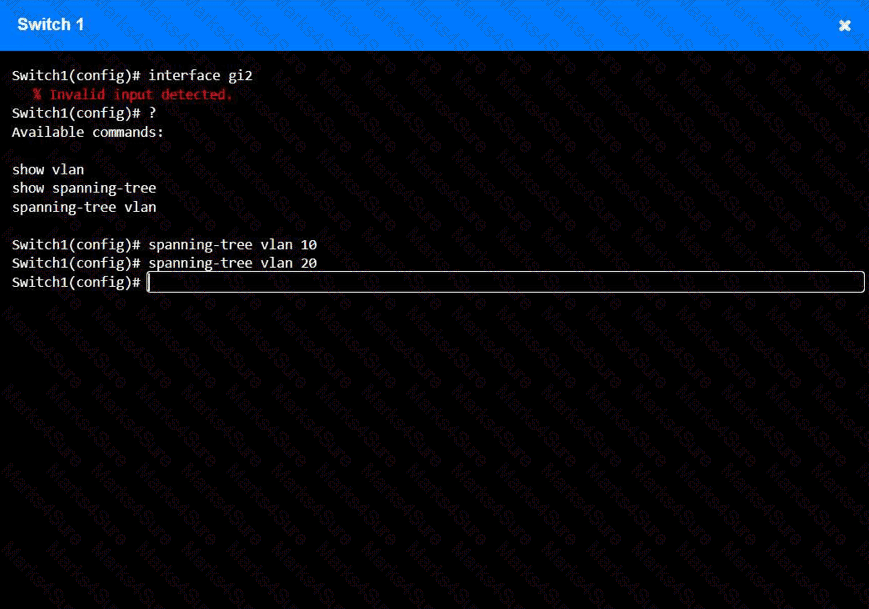

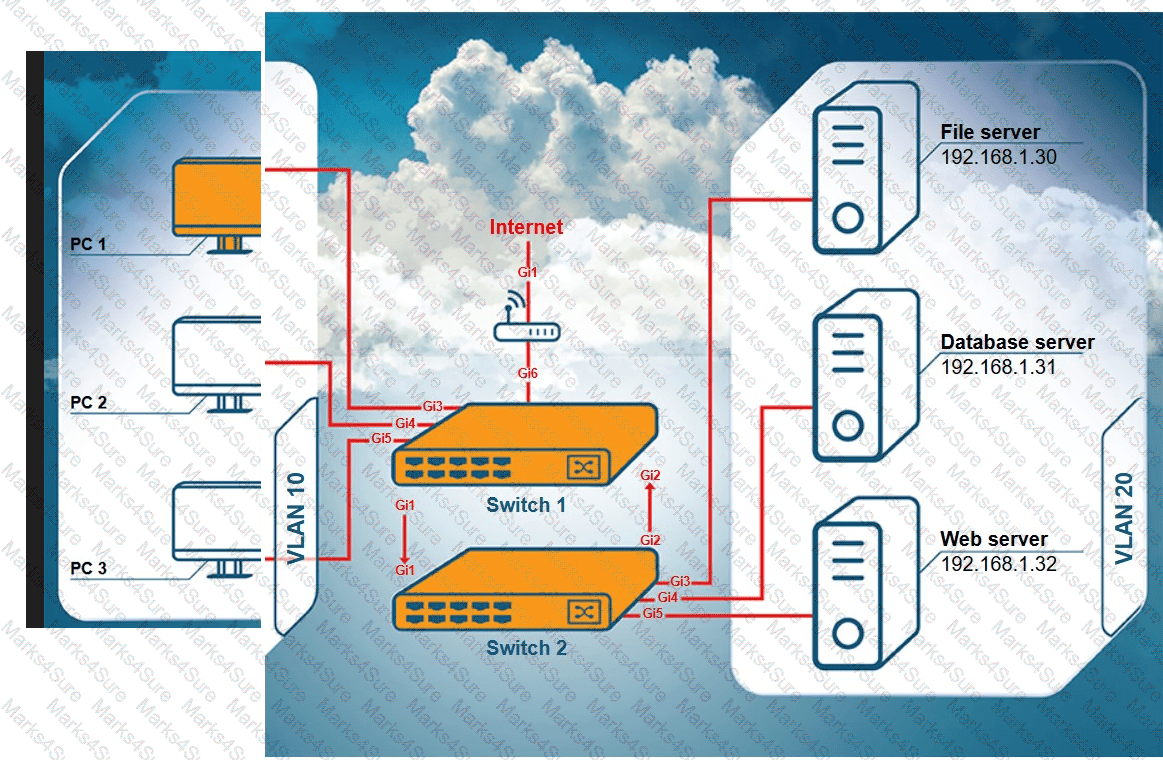

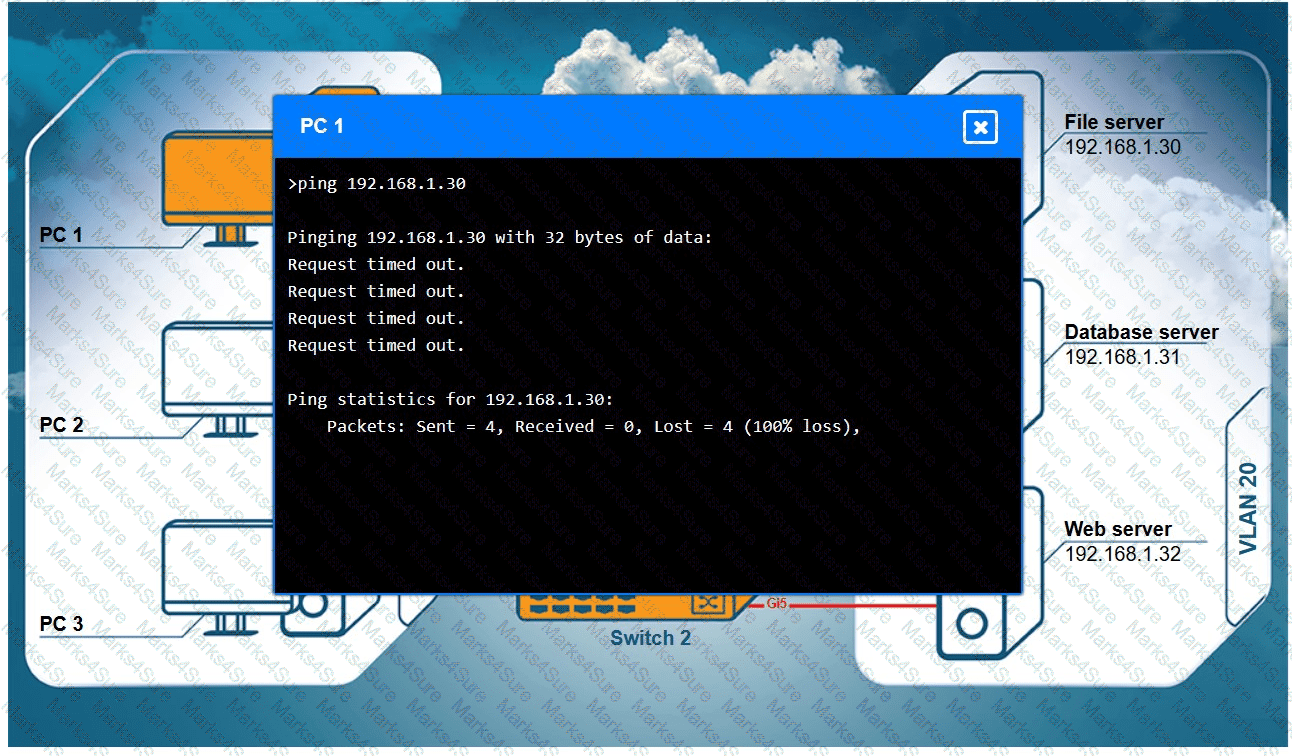

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:

Review Routing Tables:

Check the routing tables of Router A, Router B, and Router C to identify any missing routes.

Identify Missing Routes:

Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.

Add Static Routes:

If a route is missing, add a static route to the relevant destination network via the correct interface.

Routing Table:

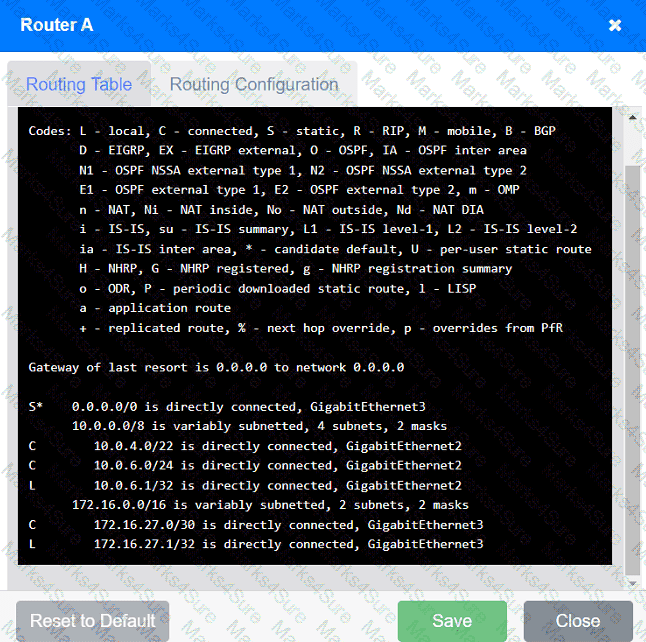

Step-by-Step SolutionDetailed Analysis and ConfigurationRouter A:Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet3

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.4.0/22 is directly connected, GigabitEthernet2

C 10.0.6.0/24 is directly connected, GigabitEthernet2

L 10.0.6.1/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet3

L 172.16.27.1/32 is directly connected, GigabitEthernet3

Routing Table:

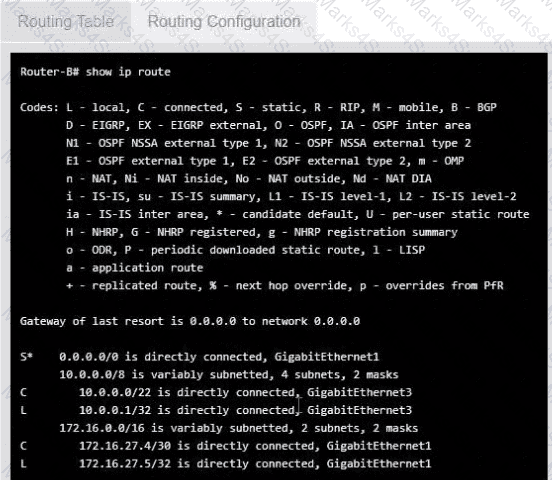

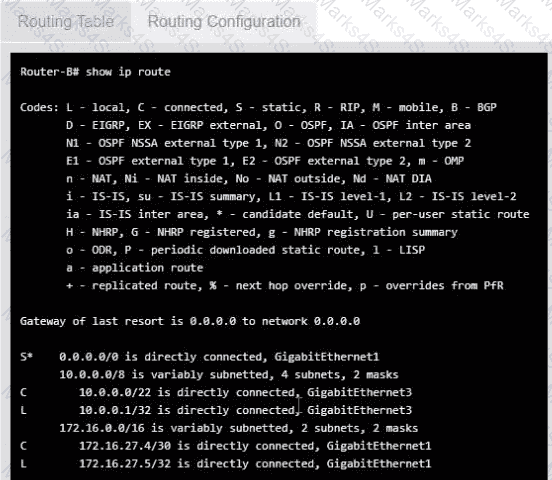

Router B:Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet1

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.0.0/22 is directly connected, GigabitEthernet1

L 10.0.0.1/32 is directly connected, GigabitEthernet1

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.5/32 is directly connected, GigabitEthernet1

Routing Table:

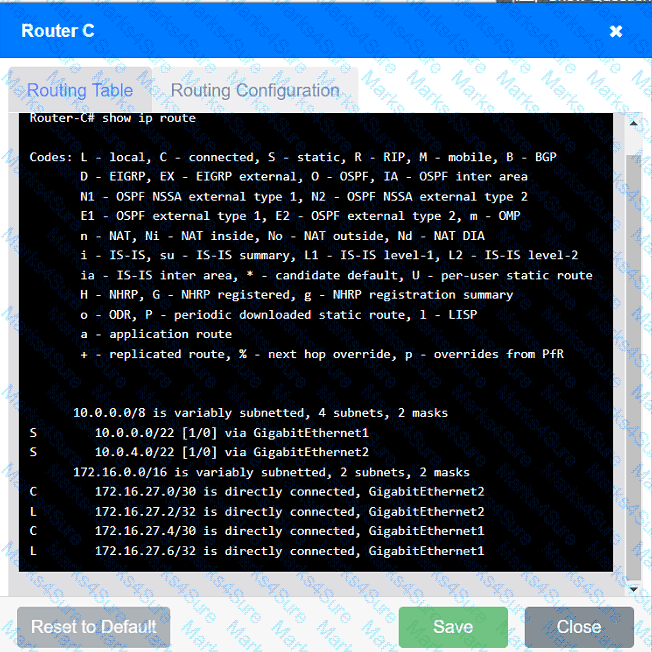

Router C:10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

S 10.0.0.0/22 [1/0] via GigabitEthernet1

S 10.0.4.0/22 [1/0] via GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet2

L 172.16.27.2/32 is directly connected, GigabitEthernet2

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.6/32 is directly connected, GigabitEthernet1

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):

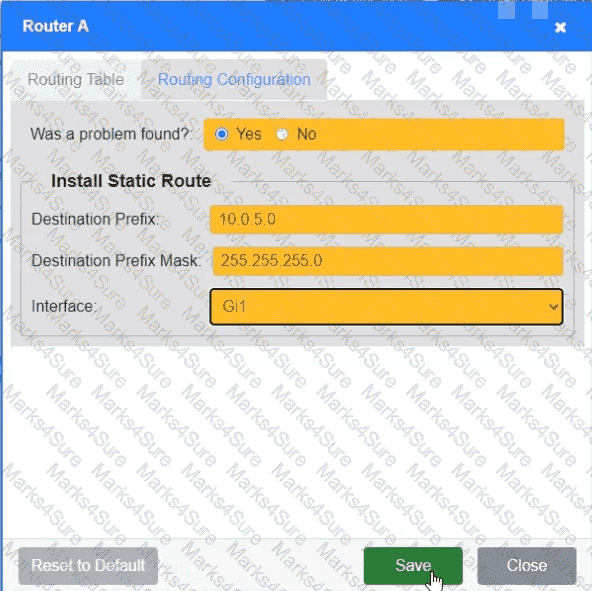

Configuration Steps:Router A:

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet3

Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):

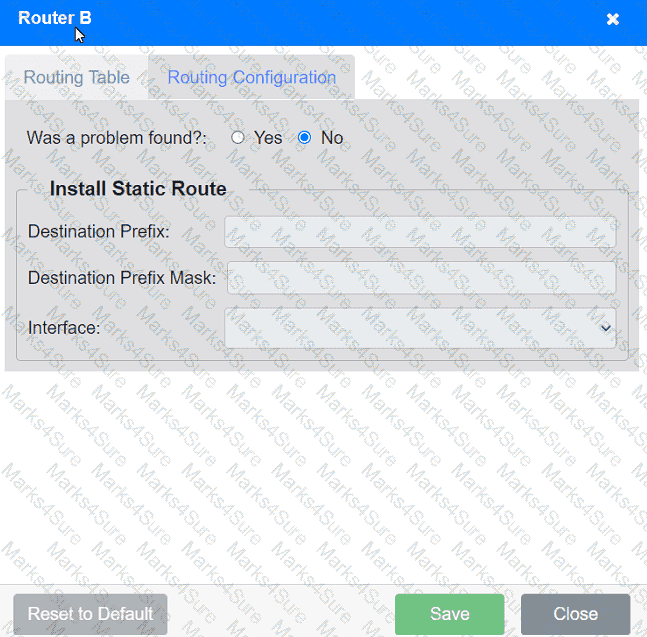

Router B:

Destination Prefix: 10.0.4.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):

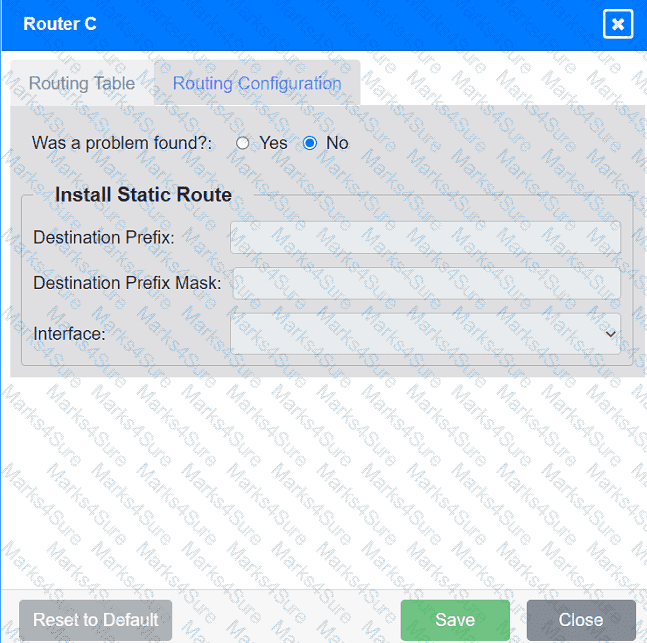

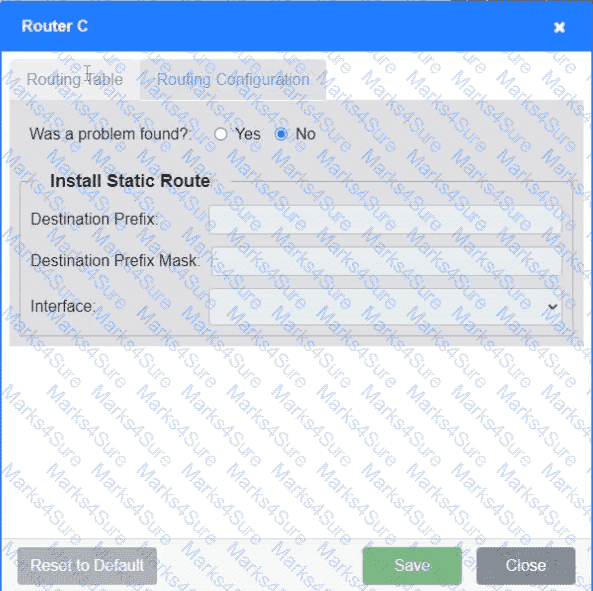

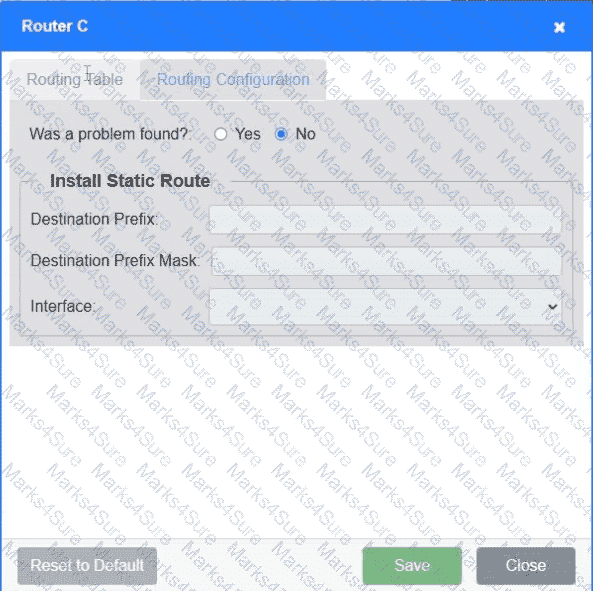

Router C:Destination Prefix: 10.0.6.0

Destination Prefix Mask: 255.255.255.0

Interface: GigabitEthernet2

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Summary of Static Routes:

Router A:

ip route 10.0.0.0 255.255.252.0 GigabitEthernet3

Router B:

ip route 10.0.4.0 255.255.252.0 GigabitEthernet1

Router C:

ip route 10.0.6.0 255.255.255.0 GigabitEthernet2

ip route 10.0.0.0 255.255.252.0 GigabitEthernet1

These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

Network segmentation involves dividing a network into smaller segments or subnets. This is particularly important when integrating OT (Operational Technology) devices to ensure that these devices are isolated from other parts of the network. Segmentation helps protect the OT devices from potential threats and minimizes the impact of any security incidents. It also helps manage traffic and improves overall network performance.References: CompTIA Network+ study materials.

Using a /30 subnet mask is the most efficient way to conserve IP space for a point-to-point connection between two routers. A /30 subnet provides four IP addresses, two of which can be assigned to the router interfaces, one for the network address, and one for the broadcast address. This makes it ideal for point-to-point links where only two usable IP addresses are needed.References: CompTIA Network+ study materials and subnetting principles.

Changing default admin passwords is a fundamental first step in device hardening to prevent unauthorized access.
