NCP-CI-Azure Nutanix Certified Professional - Cloud Integration - Azure (NCP-CI-Azure v6.7) Questions and Answers

Microsoft Azure Consumption Commitment (MACC):To ensure that the Nutanix licensing costs apply to the MACC, the company needs to make purchases that are recognized by Azure's billing system.

Azure Marketplace Purchases:By purchasing Nutanix licenses through the Azure Marketplace, the costs will be included in the Azure billing and count towards the MACC, thereby leveraging the committed spend.

References:

Azure Marketplace Documentation

Nutanix Licensing Guide

Error Message Analysis:The error message indicates that the node cannot boot successfully and will be replaced with a new node. This points towards an issue related to the specific node type or configuration.

Bare Metal Node Support:One common cause for such deployment failures is selecting a bare metal node type that is not supported in the chosen deployment region. Azure has specific regions where certain node types are available, and attempting to use an unsupported node type in a region can result in provisioning failures.

References:

Nutanix KB 9768 for troubleshooting deployment issues: KB 9768

Azure Region Availability Documentation

Nutanix NC2 on Azure Deployment Guide

Storage Capacity Requirement: The requirement specifies that the bare metal instance must support up to 20 TB of storage capacity.

Instance Selection: Among the provided options, the AN36P instance is designed to support higher storage capacities and performance needs.

AN36P Capabilities: The AN36P instance is optimized for storage-intensive applications and provides the necessary hardware specifications to handle up to 20 TB of storage.

Comparison with Other Instances:

ND96asr: Typically optimized for GPU workloads rather than storage.

AN36: May not meet the 20 TB storage requirement.

HB176rs: Geared towards high-performance computing rather than large storage capacities.

Conclusion: Based on the requirements and instance specifications, AN36P is the most suitable choice for supporting up to 20 TB of storage.

References:

Nutanix NC2 Instance Types

Azure Virtual Machine Sizes

Requirement Analysis: The NC2 VMs need to access Azure and on-premises resources without traversing the internet, ensuring secure and direct connectivity.

Solution Options:

SSH Connection: Suitable for individual remote access, not for full VM connectivity to Azure and on-premises resources.

Interface Endpoint: Facilitates private connectivity to specific Azure services, but not comprehensive for all resources.

ExpressRoute: Provides private, dedicated connectivity between Azure and on-premises environments. This ensures that traffic does not traverse the public internet, meeting the security and performance requirements.

Site-to-Site VPN: Provides secure connectivity but can involve traversing the internet, which is against the requirements.

Conclusion: ExpressRoute is the optimal solution as it offers a private connection that does not involve internet traversal, ensuring secure and efficient access to both Azure and on-premises resources.

References:

Azure ExpressRoute Documentation

Nutanix Clusters on Azure Networking Guide

Private Endpoint:Private Endpoints allow secure access to Azure services over a private network connection. They do not typically appear on delegated subnets, which are used for specific Azure services.

Prism Central Connectivity:Prism Central can be connected to a private endpoint to ensure secure communication without exposing it to the public internet. This setup ensures secure and private management of the Nutanix environment.

References:

Azure Private Endpoint Documentation

Nutanix NC2 Deployment and Security Guide

To extend an on-premises subnet to an NC2 cluster on Azure, the administrator should configure:

Subnet Type:Both on-premises VLAN subnets and VPC subnets. This ensures that the subnet can span both the on-premises environment and the Azure environment.

Traffic Type:Support for IPv4 unicast traffic, IPv6 unicast traffic, and ARP is necessary to ensure proper communication and address resolution across the extended subnet.

On-premises Hypervisor:ESXi and AHV are supported hypervisors for this type of configuration, allowing for a seamless extension of the subnet between these environments.

References

Nutanix Hybrid Cloud Networking

Azure Private Endpoint:A Private Endpoint provides secure connectivity to Azure resources by enabling private access through the Azure backbone network. This ensures that the traffic does not traverse the internet, providing enhanced security and performance.

Delegated Subnet:By creating an Azure Private Endpoint for VMs in a delegated subnet, the administrator ensures that the VMs can access Azure resources directly and securely without using the public internet.

References:

Azure Private Endpoint Documentation

Nutanix NC2 Networking Configuration Guide

Role Requirements: The task involves creating and managing multiple organizations and clusters, along with managing user access across the company.

Role Capabilities: The "Customer Administrator" role is designed to provide extensive administrative capabilities, including:

Creating and managing organizations.

Managing clusters.

Handling user access and permissions.

Comparison of Roles:

Cluster Administrator: Primarily focuses on managing individual clusters but does not encompass organization-wide administrative tasks.

Customer Security Administrator: Focuses on security-related tasks and does not have broad administrative capabilities across organizations and clusters.

Organization Administrator: Manages organizational settings but might not cover all aspects needed for multiple clusters and user access management.

Conclusion: The "Customer Administrator" role meets all the requirements for managing organizations, clusters, and user access comprehensively.

References:

Nutanix Role-Based Access Control Documentation

NC2 on Azure User Roles Guide

Network Configuration: Using a specific IP range for a VNet can cause conflicts if that range is reserved or already in use by the cluster’s internal operations.

Internal Usage: In NC2, certain IP ranges are reserved for internal cluster functions and should not be used for VNets to avoid IP conflicts and connectivity issues.

Impact: If the 10.100.0.0/16 range is reserved for internal usage, using it for a VNet would lead to IP conflicts, causing network connectivity issues.

Verification: It’s important to verify the reserved IP ranges in the NC2 documentation before assigning them to VNets.

Conclusion: The connectivity issues are likely due to using the 10.100.0.0/16 range, which is reserved for internal cluster usage.

References:

Nutanix Networking Guidelines

Azure Virtual Network Documentation

Cloud Hardware Support: For issues related to cloud hardware, such as EC2 instances or VPC configurations, the responsible entity is typically the public cloud vendor.

Nutanix Responsibility: Nutanix manages the software layer and integration aspects of the NC2 service, but the underlying hardware support is managed by the cloud provider (e.g., AWS, Azure).

Support Process:

Public Cloud Vendor: Contact the public cloud vendor for issues directly related to the hardware, as they own and manage the physical infrastructure.

Nutanix: For software and configuration issues specific to the NC2 service, contact Nutanix support.

Conclusion: For cloud hardware-related support, the appropriate contact is the public cloud vendor.

References:

Nutanix Support Guide

Azure Support Documentation

Azure Monitor Overview: Azure Monitor is a comprehensive monitoring service that collects, analyzes, and acts on telemetry data from Azure resources.

Key Metrics Monitoring: Azure Monitor enables the monitoring of various Azure services such as virtual networks, virtual machines, and bare metal hosts, providing insights and visibility into their performance and health.

Comparison of Services:

Resource Manager: Manages Azure resources but does not provide detailed monitoring capabilities.

Azure Service Health: Provides personalized alerts and guidance when Azure service issues affect you but is not a comprehensive monitoring solution.

Azure Network Watcher: Focuses on network performance monitoring and diagnostics but does not cover all resource types.

Conclusion: Azure Monitor is the most suitable service for monitoring key metrics across a wide range of Azure services.

References:

Azure Monitor Documentation

Nutanix NC2 on Azure Monitoring Guide

To efficiently terminate a Nutanix cloud cluster, the NC2 (Nutanix Cloud Clusters) Console should be used. The NC2 Console provides the necessary tools and interface specifically designed for managing and terminating Nutanix clusters within cloud environments, ensuring a seamless and efficient process.References

Nutanix Cloud Clusters Documentation

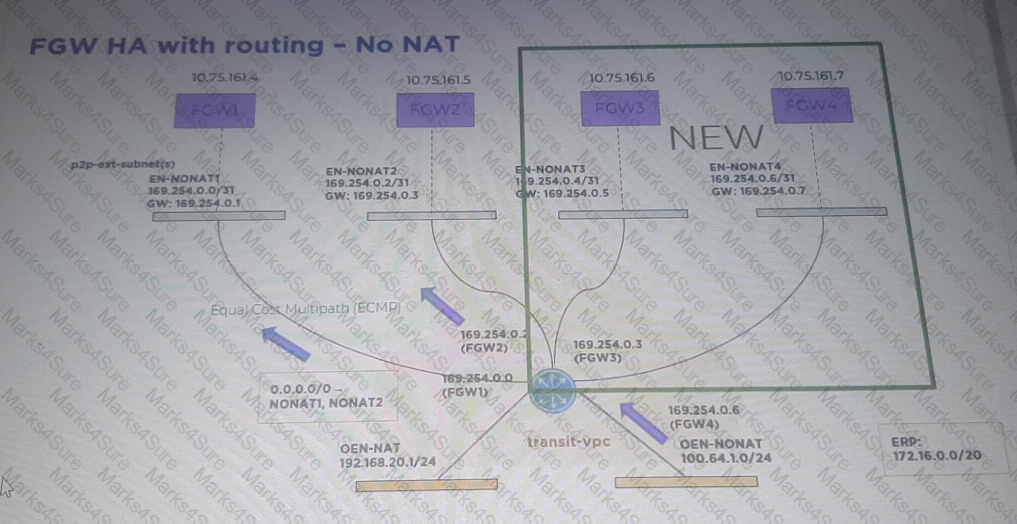

In the scenario presented, the NC2 cluster was initially deployed with two Flow Gateways (FGW1 and FGW2) in HA. After adding four bare-metal nodes and additional workloads, two more Flow Gateways (FGW3 and FGW4) were added to handle the increased bandwidth for north/south traffic. Given the configuration, the existing workloads can utilize all available Flow Gateways (FGW1, FGW2, FGW3, and FGW4) for No-NAT (routed) traffic paths. This setup allows for Equal Cost Multipath (ECMP) routing, distributing traffic load across all Flow Gateways.

References

Nutanix Flow Networking

Instance Termination Detection:When an instance in Azure is reported as being in a terminated state but NC2 expects it to be running, the system will automatically take corrective actions.

Host Condemnation and Replacement:NC2 will condemn the host, marking it as unusable, and will then trigger the replacement process to ensure that the cluster maintains its required capacity and performance levels. This automatic handling ensures minimal disruption to the workloads running on the cluster.

References:

Nutanix NC2 Automated Management Features

Azure Instance State Documentation

Payment Method Options:When using a Pay As You Go subscription plan and opting to pay directly to Nutanix, wire transfer is a valid and secure payment method.

Direct Payment:Wire transfers allow for the direct transfer of funds from the organization's bank account to Nutanix, ensuring a straightforward and efficient payment process.

References:

Nutanix Billing and Payment Documentation

Pay As You Go Subscription Payment Methods Guide

To verify that the NC2 specialist has access to the necessary organizations for troubleshooting the issue, the administrator should:

Confirm that theSupport Authorizationon the organization is set toFull Access. This ensures that the NC2 specialist has the required permissions to access the necessary resources and perform the necessary actions to resolve the issue.

Providing login credentials or adding the specialist as an admin user is not recommended due to security and privacy concerns. Ensuring the specialist is assigned the correct RBAC role is another valid approach but confirming the support authorization directly ensures they have the needed access.

References

Nutanix Support and Services

Log Modules in Prism Central:When configuring a syslog server, different log modules can be selected to send logs to an external syslog server for centralized logging and analysis.

Acropolis Logs:The Acropolis module captures logs related to the Acropolis Hypervisor (AHV), including virtual machine operations, storage operations, and other critical functions within the Nutanix environment.

References:

Nutanix Prism Central Administration Guide

Nutanix Acropolis Documentation

Azure Resource Providers: To prepare an Azure subscription for NC2, specific resource providers must be registered to enable necessary services and resources.

Required Providers:

Microsoft.Network: This provider is essential for networking functionalities, including virtual networks, subnets, and other network resources necessary for NC2 deployment.

Microsoft.Nutanix: This provider is specifically required for integrating and managing Nutanix resources within the Azure environment.

Other Providers:

Microsoft.HybridNetworkandMicrosoft.HybridCompute: These are not specifically required for NC2 but might be relevant for other hybrid or extended network configurations.

Conclusion: Registering both "Microsoft.Network" and "Microsoft.Nutanix" ensures that all necessary network and Nutanix-specific resources are available for NC2 deployment.

References:

Azure Resource Providers Documentation

Nutanix on Azure Setup Guide

Replication Factor (RF3):RF3 requires that data is replicated across three different nodes to ensure data durability and fault tolerance. This replication scheme allows the system to tolerate the failure of two nodes simultaneously.

Minimum Node Requirement for RF3:To meet the RF3 requirements while maintaining operational capability, a minimum of five nodes is necessary. This configuration ensures that there are enough nodes to distribute the data and provide the necessary redundancy.

References:

Nutanix Replication Factor Documentation

Nutanix NC2 on Azure Deployment Guide
