NS0-521 Implementation Engineer - SAN ONTAP Exam Questions and Answers

In a two-node NetApp AFF ASA cluster, the recommended minimum number of paths for a SAN environment from the client host perspective is 4. This configuration ensures high availability and load balancing, which are critical for maintaining performance and resilience in a SAN environment. Each host should have at least two paths to each controller to achieve this setup.

For more detailed information, you can refer to:

NetApp SAN Configuration

NetApp All-Flash SAN Array Documentation

The vserver fcp wwpn-alias set command is used to set or modify the World Wide Port Name (WWPN) aliases for Fibre Channel (FC) ports in a NetApp ONTAP environment. This command allows you to apply a company-wide naming policy to FC ports, ensuring consistent and easily identifiable naming conventions across your storage infrastructure.

For further details, you can refer to:

NetApp Documentation on FC Management

NetApp Community Discussion on WWPN Aliases

The vserver nvme namespace convert-from-lun command in a NetApp ASA cluster is used to convert a LUN to an NVMe namespace to increase host performance. This process involves modifying themetadataof the storage object to make it compatible with the NVMe protocol, allowing for faster access and reduced latency​

When planning to upgrade the UCS Server BIOS and Cisco NX-OS system running on the switches in a NetApp AFF ASA cluster environment, theInteroperability Matrix Tool (IMT)is the recommended resource to check compatibility with the new versions. The IMT provides detailed compatibility information for various hardware and software components, ensuring that the planned upgrades will not cause any interoperability issues.

For further details, refer to:

NetApp Interoperability Matrix Tool

To move a WWPN from node1 to node2 in a NetApp ONTAP SAN environment where ALUA is used, you must take the Logical Interface (LIF) offline. Modifying LIFs involves changing their assignment between nodes, which requires them to be temporarily offline. This ensures that the path states are correctly updated without causing disruption to the SAN hosts.

For more details, see:

NetApp Community on Moving LIFs

NetApp Documentation on SAN LIFs

To migrate data from a LUN on an existing third-party SAN storage system to a new NetApp AFF A400 all-flash MetroCluster system, the supported methods include:

Foreign LUN Import in online mode: This method allows for data migration without significant downtime, enabling the system to continue serving data while the migration process is ongoing.

Foreign LUN Import in offline mode: This method involves taking the LUN offline during the migration process, which may be necessary in certain scenarios to ensure data integrity.

For more details, refer to:

NetApp Documentation on Foreign LUN Import

NetApp Community on LUN Import Methods

In an NVMe environment, the storage construct that enables an NVMe client to store data in an SVM (Storage Virtual Machine) is aSubsystem. A subsystem is a collection of one or more namespaces, which are used to store data. This abstraction allows for efficient management and scaling of NVMe storage within the ONTAP environment.

For further information, refer to:

NetApp NVMe/FC Configuration​ (NetApp)​.

To validate that the entire network path supports jumbo frames after an iSCSI implementation, you should perform a ping test from the host with fragmentation. This involves using the ping command with specific options to test jumbo frame support:

ping -M do -s 8972

In this command:

-M do ensures the packets are not fragmented.

-s 8972 sets the packet size to 8972 bytes (9000 bytes MTU minus 28 bytes for the ICMP header).

By confirming that the large packets are successfully transmitted without fragmentation, you can validate that the network path, including switches and adapters, supports jumbo frames.

For more details, you can check:

NetApp Documentation - iSCSI Configuration and Best Practices​ (NetApp)​​ (NetApp)​.

To restrict access to a newly created LUN to specific hosts, the administrator should configure theigroup(initiator group). An igroup is used to control which initiators (hosts) are allowed to access specific LUNs. This ensures that only authorized hosts can access the storage, enhancing security and access control.

For more details, refer to:

NetApp Documentation on iGroups​ (NetApp)​.

In NetApp ONTAP 9.13.1, one of the automatic features that can be used with iSCSI isLIF failover. This feature ensures that in the event of a network failure or a node issue, the Logical Interface (LIF) will automatically fail over to another available port, maintaining connectivity and minimizing disruption to iSCSI traffic.

For more information, refer to:

NetApp ONTAP 9.13.1 Features

When the number of paths exceeds the recommended configuration for SAN deployment, it can cause performance issues. To address this problem, you can:

Use Selective LUN Mapping (SLM): SLM allows you to control which LIFs (Logical Interfaces) are used to access specific LUNs, thus reducing the number of paths and potentially improving performance by aligning with best practice configurations.

Reconfigure the fabric switch zoning: Adjusting the zoning on the fabric switches can help manage and optimize the number of paths, ensuring that there are not too many paths that could lead to inefficient I/O operations and performance degradation.

For more details, refer to:

NetApp SAN Host Configuration

NetApp Best Practices for SAN

When using Foreign LUN Import (FLI) for migrating LUNs from third-party SAN arrays to a NetApp ONTAP system, one of the requirements is to have at least one Fibre Channel (FC) port configured in target mode on the destination NetApp ONTAP cluster. This configuration is necessary to facilitate the migration process as the target mode port will accept and manage incoming data from the source SAN arrays.

For additional details, refer to:

NetApp Documentation on FLI

To ensure the best performance in an iSCSI SAN implementation:

Connect host and storage ports to the same switches: This minimizes latency and maximizes the efficiency of data paths by ensuring direct connections within the same network segment.

Configure Jumbo frames in the entire data path: Setting a larger Maximum Transmission Unit (MTU) size reduces the overhead for processing each packet, thus improving overall network performance. Ensuring Jumbo frames are configured end-to-end in the data path is crucial for optimal performance.

For further details, check:

NetApp Best Practices for iSCSI

NetApp Community Discussion on iSCSI Performance

To validate that the ESXi host and NetApp ONTAP software releases are supported, theNetApp Interoperability Matrix Tool (IMT)should be used. The IMT provides comprehensive compatibility information, ensuring that all components of the SAN environment will work together seamlessly.

For further details, refer to:

NetApp Interoperability Matrix Tool

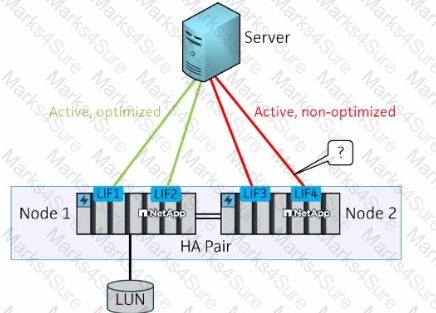

ALUA (Asymmetric Logical Unit Access) is a protocol used in SAN environments to manage paths between a host and its storage. It enables the host to recognize and manage paths to the LUNs more efficiently by designating paths as either "Active/Optimized" or "Active/Nonoptimized". A significant event, such as shutting down all FC LIFs on the HA partner node, will trigger ALUA to change the pathstates. This action effectively causes the storage paths to transition from the HA partner node to the local node, switching the path states from Active/Nonoptimized to Active/Optimized on the paths that remain active.

For more information, you can refer to:

NetApp Community Discussion on ALUA

NetApp Documentation on ALUA

To configure Foreign LUN Import (FLI) on a NetApp HA pair to migrate over FCP LUNs from a third-party array while serving other LUNs, the following actions are required:

Create zoning from the third-party array to the cluster: Proper zoning ensures that the NetApp cluster can communicate with the third-party storage array.

Convert a single FC port on each controller to an FC initiator port: This is necessary for the NetApp system to initiate the connection and access the LUNs on the third-party array.

For more information, refer to:

NetApp Documentation on Foreign LUN Import
