VLAN assignments on FortiSwitch ports must follow certain rules and guidelines to ensure network integrity and proper traffic segregation:

Only Assign One Native VLAN on a Port (C):

Native VLAN Configuration:Each switch port can have only one native VLAN. The native VLAN carries untagged traffic for that port. If the port receives untagged frames, they are assumed to belong to the native VLAN.

Importance of Singular Native VLAN:This is crucial for preventing VLAN hopping attacks and ensures clear and secure VLAN demarcation on each port.

Assign Untagged VLANs Using FortiGate CLI (D):

CLI Configuration:Untagged VLANs, often equivalent to the native VLAN, can be assigned through the FortiGate CLI when managing a FortiSwitch via FortiLink. This allows for central management and configuration of VLANs across connected switches.

Operational Efficiency:Using the CLI ensures that VLAN settings are applied uniformly, reducing the likelihood of misconfigurations that might occur when managing VLANs individually on each switch.

References:For detailed instructions and best practices on VLAN configuration on FortiSwitch, refer to the FortiSwitch administration guide available on:Fortinet Product Documentation

The correct statement about using the Switch Port Analyzer (SPAN) packet capture method on FortiSwitch is that "Mirrored traffic can be sent across multiple switches (A)." This feature allows for extensive traffic analysis as it enables network administrators to configure SPAN sessions that span across different switches, thereby providing the capability to monitor traffic across a broad segment of the network infrastructure.

FortiSwitch supports packet capture through various methods, but the Sniffer profile is specifically capable of capturing traffic on both trunks and management interfaces. Here's why:

Sniffer Profile (B):

Versatile Capture:The sniffer profile in FortiSwitch is designed to capture traffic across different types of interfaces, including trunks (where multiple VLANs are present) and management interfaces (used for controlling and monitoring the switch).

Configuration Flexibility:You can configure sniffer profiles to target specific traffic, offering flexibility in monitoring and troubleshooting network issues on both data and management planes.

Other Options:

SPAN (A)is used mainly for mirroring traffic to another port for analysis but is typically limited in its ability to capture management interface traffic.

sFlow (C)andTCP dump (D)are useful tools but do not specifically align with the capability to universally capture traffic across trunks and management interfaces in the context described.

References:For further details on configuring and utilizing sniffer profiles on FortiSwitch, refer to the FortiSwitch management documentation:Fortinet Product Documentation

FortiGate's multi-tenancy feature, specifically Virtual Domains (VDOMs), is the most appropriate tool for segmenting network operations and the administration of managed FortiSwitch devices on FortiGate. Here's why:

VDOMs as Virtual Firewalls:VDOMs function as independent virtual firewalls within a single FortiGate device. Each VDOM can have its own:

Security policies

Interfaces (Including FortiLink interfaces for FortiSwitch management)

Routing table

Administrative access

Segmenting Network Operations:By assigning different FortiSwitch devices (or groups of ports) to separate VDOMs, you effectively partition your network. Network administrators can manage specific FortiSwitches through their assigned VDOMs, maintaining operational isolation.

Enhanced Administration:VDOMs offer granular administrative control. Different administrators can be assigned to specific VDOMs, limiting their management scope and reducing the risk of accidental configuration changes.

Why Other Options Are Less Suitable:

B. Multi-chassis link aggregation trunk:This focuses on link redundancy and bandwidth aggregation, not network segmentation.

C. FortiGate clustering protocol:This is aimed at high availability and scalability of the firewall functions themselves, not the management of switches.

D. FortiLink split interface:This allows dividing a FortiLink interface on the FortiGate for managing multiple FortiSwitches, but it doesn't provide the true segmentation and administrative isolation that VDOMs offer.

References:

Fortinet Document Library - VDOMs:[invalid URL removed]

Fortinet Document Library - FortiSwitch Multi-tenancy (using VDOMS):https://docs.fortinet.com/document/fortiswitch/7.4.2/fortilink-guide/801172/multitenancy-and-vdoms

Pag 232, FortiSwitch_7.2_Study_Guide-Online "However, if you want to authenticate each device behind a port, and optionally, grant each device a different access level based on the credentials provided, then MAC-based is required."

To deploy FortiSwitch in a remote location with multiple VLANs and no Layer 3 switch or router, you would need specific configurations:

VXLAN Interfaces (B):

Purpose:VXLAN (Virtual Extensible LAN) allows network segmentation without a Layer 3 device, extending VLAN capabilities across dispersed geographical locations over the WAN.

Implementation:Configuring VXLAN on both FortiSwitch and FortiGate can encapsulate Layer 2 traffic over a Layer 3 network, making it ideal for scenarios lacking dedicated routing hardware.

Appropriate Hardware (D):

Requirement:Not all FortiSwitch models might support advanced features like VXLAN; hence, ensuring that the hardware can support such configurations is crucial.

References:For specific information on VXLAN configuration and hardware requirements, refer to the technical documentation provided by Fortinet:Fortinet Product Documentation

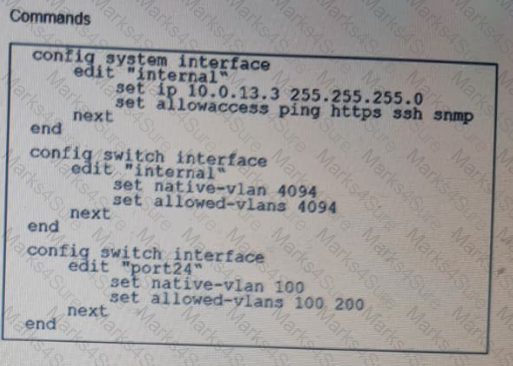

To enable access to the FortiSwitch management interface from the network, certain configuration adjustments need to be made, particularly considering the VLAN settings displayed in the exhibit:

Adding port24 native VLAN to the allowed VLANs on internal (Option A): The management VLAN (VLAN 4094 in this case, as it is set as the native VLAN onthe 'internal' interface of the FortiSwitch) must be included in the allowed VLANs on the interface that provides management connectivity. Since port24 is set with a different native VLAN (VLAN 100), VLAN 4094 (the management VLAN) should be allowed through to ensure connectivity.

Allow VLAN ID 4094 on port24 if management traffic is tagged (Option C): Management traffic is tagged on VLAN 4094. Since port24 is connected to the network and serves as an uplink, allowing VLAN 4094 ensures that management traffic can reach the management interface of the FortiSwitch through this port.

The changes align with Fortinet’s best practices for setting up management VLANs and ensuring they are permitted on the relevant switch ports for proper management traffic flow.

References:

FortiGate Infrastructure and Security 7.2 Study Guides

Best practices for VLAN configurations in Fortinet’s technical documentation

The issue described pertains to the establishment of a tunnel (likely a CAPWAP tunnel for management purposes between FortiGate and FortiSwitch). Based on typical error analysis in tunnel setup scenarios:

The CAPWAP tunnel failed to come up due to a mismatch in time (Option C): This answer is plausible because time synchronization is crucial for security protocols that underpin tunnel establishments, such as DTLS (Datagram Transport Layer Security) used within CAPWAP tunnels. If the clocks on FortiGate and FortiSwitch are significantly out of sync, the security handshake (which can include timestamp validation) could fail, preventing the tunnel from coming up.

References:

Fortinet's technical documentation typically outlines the importance of time synchronization for secure communications. In CAPWAP/DLTS scenarios, precise time matching is crucial to ensure that the cryptographic parameters align correctly during the handshake process.

A FortiLink interface must be enabled on FortiGate (A): To manage a FortiSwitch stack, a dedicated FortiLink interface on the FortiGate is required. This interface is used to manage the communication between FortiGate and the FortiSwitch stack, enabling centralized control and configuration of the switches directly from the FortiGate.

The switch controller feature must be enabled on FortiGate (B): Enabling the switch controller feature on FortiGate allows it to manage connected FortiSwitch units. This feature provides tools and interfaces on the FortiGate for overseeing FortiSwitch configurations, monitoring switch status, and managing network policies across the stack.

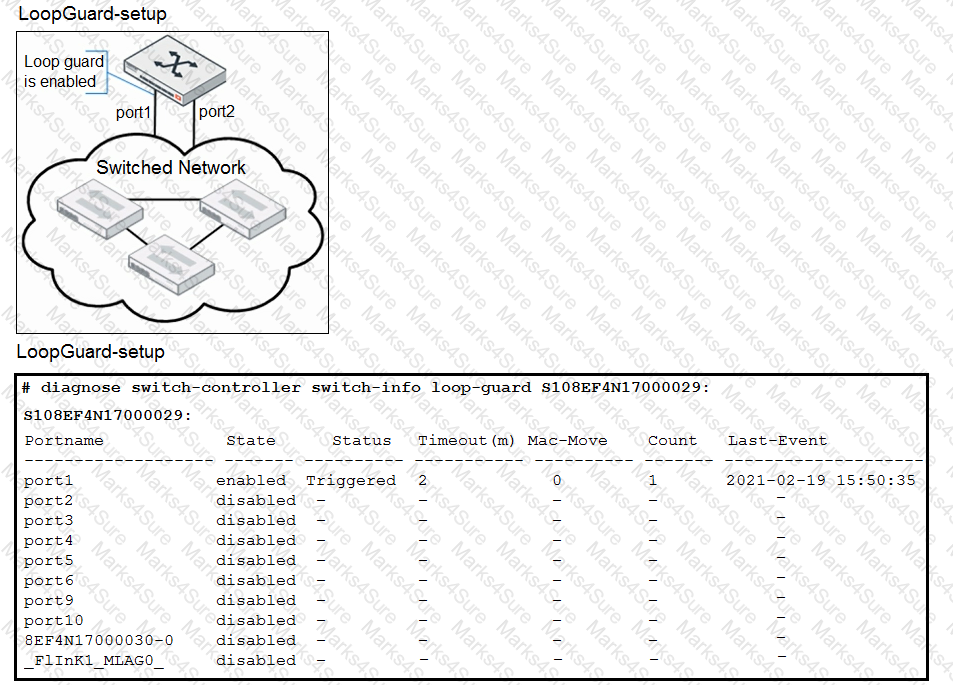

Layer 2 flooding caused by Ethernet frames with all bytes in the destination MAC address set to FF refers to broadcast frames. Here’s why:

Broadcast Ethernet Frame (A):

Address Specification:In Ethernet networking, a broadcast frame has a destination MAC address ofFF:FF:FF:FF:FF:FF, which instructs network devices to forward the frame to all devices within the broadcast domain.

Network Behavior:This causes Layer 2 flooding as the frame is sent to all ports in the VLAN, except the originating port, ensuring that the broadcast reaches all network segments.

Other Frame Types:

Unicast (B)targets a single device.

Multicast (C)targets a group of devices.

Anycast (D)is not used in Ethernet but rather in IP-based routing to route to the nearest of multiple destinations, typically in internet addressing.

References:You can find more information about Ethernet frame types in networking textbooks or documentation that discusses network layer interaction:Network Theory Books

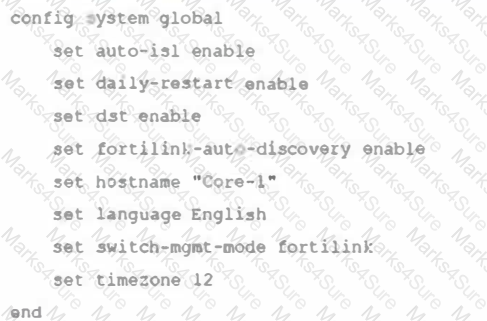

Regarding the scenario where a FortiSwitch did not reboot after the authorization process while the other devices did, the most likely cause, given the configuration settings in the exhibit, is:

The management mode was set to use FortiLink mode (Option B): If the FortiSwitch was already configured to use FortiLink for its management mode, it may not require a reboot to complete the authorization process as its management interface settings are already aligned with FortiLink requirements. This is unlike switches that might be transitioning from a standalone or another management mode, which would typically require a reboot to apply new management settings fully.

References:

FortiLink mode specifically tailors FortiSwitch to be managed via a FortiGate device, integrating its operation into the wider security fabric without needing a reboot if it is already set to this mode before authorization. This contrasts with other management modes where transitioning to FortiLink could necessitate a system restart to initialize the new configuration.

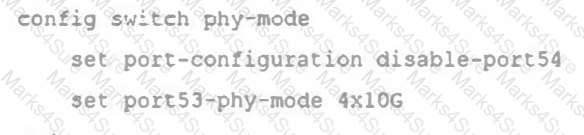

Regarding the configuration of a FortiSwitch to split a port into multiple smaller interfaces:

The CLI commands are enabling a split port into four 10Gbps interfaces (Option B): The command shown in the exhibit is typically used to configure a high-speed port (like a 40Gbps or 100Gbps interface) to be divided into smaller, independent 10Gbps interfaces. This feature allows more flexible use of the switch's physical resources.

The port full speed prior to the split was 100G SFP+ (Option C): Given the context of splitting the port into multiple 10Gbps interfaces, the original port configuration likely supported a high-speed transceiver such as 100G SFP+. This would make it technically feasible to divide the interface into multiple 10Gbps channels, enhancing connectivity options without requiring additional physical interfaces.

These configurations and capabilities are typical in modern network setups, especially in environments requiring high density and flexibility in connectivity, allowing network administrators to optimize physical infrastructure efficiently.

When FortiGate exports configuration settings to a managed FortiSwitch stack with sampling mode set to "perimeter is true," the behavior is:

B. FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces, except ICL and ISL interfaces.This setting ensures that all incoming traffic on normal operational ports is sampled for monitoring and analysis purposes, but it excludes the inter-chassis link (ICL) and inter-switch link (ISL) interfaces from sampling. These exclusions are typically made to prevent the duplication of sampled data and to reduce unnecessary load on the monitoring system, as these links often carry traffic already monitored at other points.

Options A and D are incorrect because they either generalize the sampling across all interfaces without exceptions or incorrectly specify egress sampling on management interfaces. Option C is also incorrect as FortiGate can modify existing sampling settings to fit the perimeter-based configuration requirement.
