Salesforce-MuleSoft-Developer-I Salesforce Certified MuleSoft Developer 1 Exam (SU24) Questions and Answers

Correct answer is A global element

Global error handlers are to be created in global element .

Quick note to remember here is Global error handlers come in to pictureonly when there are no error handlers specified as flow level.

Steps to create Global error handler

1) Click Global Elements to open Global Configuration Elements. Global Elements is located below the Studio canvas

2) In Global Configuration Elements,click Create to open the Choose Global Type dialog

Graphical user interface, text, application, chat or text message Description automatically generated

3) From the dialog, select Global Configuration -→ Configuration, and then click OK to open the Configuration dialog.

Graphical user interface, text, application, email Description automatically generated

4) From the select Configuration dialog, select allErrorHandler for the Default Error Handler field, and click OK.

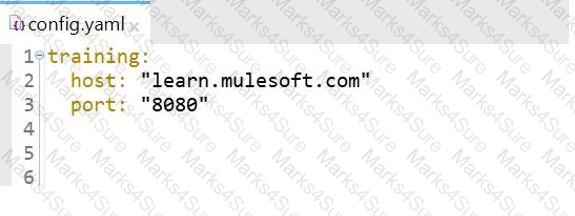

Correct answer is ${training.host}

Correct answer is /accounts?account_type=retail&industry=finance

Query parameters are a defined set of parameters attached to the end of a url. They are extensions of the URL that are used to helpdefine specific content or actions based on the data being passed. To append query params to the end of a URL, a ‘?’ Is added followed immediately by a query parameter.

To add multiple parameters, an ‘&’ is added in between each.

Correct answer is as below as concatenation operation worksonly with string and not with the objects. In this case payload is object.

"You called the function '++' with these arguments:

1: String ("INFO")

2: Object ({student: {name: "Anay" as String {class: "java.lang.String"},age

Correct answer is as below. In this case address will be stored in a variable. Hence payload will not be overwritten and will contain order details

{

orderkey: "payload.order",

addresskey: "vars.address"

}

Allowed methods is an optional configuration. If nothing is specified then all HTTP methods are supported.

Rest all are mandatory.

PUT replaces the original version of the resource, whereas the PATCH method supplies a set of instructions to modify theresource

option 3 is the correct syntz to access application properties

Transform Message Add write_date is coverting payload in JSON format and same JSON payload is avaialble to file write processor. However, if the payload is a different format (for example, not CSV) , you can place the transformation inside the Write operation to generate content that will be written without producing a side effect on the message in transit. This is not done in this case. By default, the connector writes whatever is in the message payload. Hence JSON payload will be written to file.

The correct answer is To avoid duplicate processing of records in a database.

If a watermark column is provided, the values taken from that column are used to filter the contents of the next poll, so that only rows with a greater watermark value are returned. If an ID column is provided, this component automatically verifies that the same row is not picked twice by concurrent polls.

Mule doc reference : https://docs.mulesoft.com/db-connector/1.8/database-documentation#listener

API Exchange creates REST conenctor automtaically once API is published. Hence correct answer is Publish the API specification to Any point Exchange

Lets revise few concepts RAML which can help us to find the answer of this question.

URI Parameters

Lets have a look at below example.

/foos:

/{id}:

/name/{name}:

Here, the braces { } around property names define URI parameters. They represent placeholders in each URI anddo not reference root-level RAML file properties as we saw above in the baseUri declaration. The added lines represent the resources /foos/{id} and /foos/name/{name}.

Query Parameters

Now we'll define a way to query the foos collection using query parameters. Note that query parameters are defined using the same syntax that we used above for data types:

/foos:

get:

description:ListallFoosmatching query criteria,ifprovided;

otherwise list allFoos

queryParameters:

name?:string

ownerName?:string

Based on the above information , below is the only option which defines storeid as uri parameter and department as query parameter.

/{storeId}:

get:

queryParameter:

department:

For Each Scope

The For Each scope splits a payload into elements and processes them one by one through the components that you place in the scope. It is similar to a for-each/for loop code block in most programminglanguages and can process any collection, including lists and arrays. The collection can be any supported content type, such as application/json, application/java, or application/xml.

General considerations about the For Each scope:

By default, For Each tries to split the payload. If the payload is a simple Java collection, the For Each scope can split it without any configuration. The payload inside the For Each scope is each of the split elements. Attributes within the original message are ignored becausethey are related to the entire message.

For Each does not modify the current payload. The output payload is the same as the input.

Mule Doc Reference : https://docs.muleso ft.com/mule-runtime/4.3/for-each-scope-concept

For such questions always look for Syntax:

I call it "Wrap the Map"

trains:

{(

When mapping array elements (JSON or JAVA) to XML, wrap the map operations in {(..)}

-{ } are defining the object

-( ) are transforming eachelement in the array as a key/value pair

The HTTP 415 Unsupported Media Type client error response codeindicates that the server refuses to accept the request because the payload format is in an unsupported format. The format problem might be due to the request's indicated Content-Type or Content-Encoding , or as a result of inspecting the data directly. Asper RAML input is expected in application/xml.

Hence correct answer is Set a request header with the name Content-Type to a

Logs would look like:

INFO 2021-06-09 19:14:56,039[[MuleRuntime].uber.06: [validationtest].batch-job-validationtestBatch_Job-work-manager @6de10f3e] [processor:validationtestFlow/processors/1/route/0/route/0/aggregator/processors/0; event: bfb751e1-9939-11eb-9f69-02053763653a] org.mule.runtime.core.internal.processor.LoggerMessageProcessor:

[

“\”A\””,

“\”C\””,

“\”D\””

]

—-

INFO 2021-06-09 19:15:02,486 [[MuleRuntime].uber.06: [validationtest].batch-job-validationtestBatch_Job-work-manager @6de10f3e] [processor: validationtestFlow/processors/1/route/0/route/0/aggregator/processors/0; event: bfb751e1-9939-11eb-9f69-02053763653a] org.mule.runtime.core.internal.processor.LoggerMessageProcessor: [

“\”E\””

]

Batch aggregator value is 3. Hence in first time it will print [“A”, “C”, “D”] and in next iteration it will print [ “E” ]

--------------------------------------------------------------------------------------------------------------------------------------------------

Correct answer is [ “E” ]

Correct answer is Attributes.

Query parameters , URI parameters and headers are some of examples which are part of attributes.

Diagram Description automatically generated

Bottom of Form

Top of Form

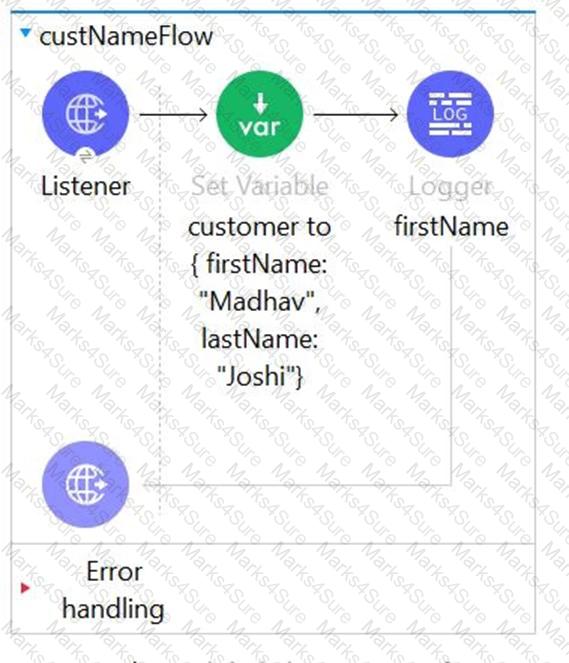

Correct answer is vars."customer"."firstName"

Please note that you can also access firstName using this syntax vars.customer.firstName.

Mule Ref Doc : Variables in Mule Apps | MuleSoft Documentation

Correct answer is Mule runtime

DataWeave is the MuleSoft expression language for accessing and transforming data that travels through a Mule app. DataWeave is tightly integrated with the Mule runtime engine, which runs the scripts and expressions in your Mule app.

Mule Doc Reference : https://docs.mulesoft.com/mule-runtime/4.3/dataweave

Correct answer is Specify throttling , security and other policies

MuleSoft Doc Ref : https://docs.mulesoft.com/api-manager/2.x/api-gateway-capabilities-mule4

API Gateway isresponsible for below functions.

1) Determine which traffic is authorized

2) Meter the traffic

3) Logs transaction

4) Apply throttling and other policies (Not specifying. These are specified in API Manager)

Graphical user interface, text, application Description automatically generated

Scatter-Gather Router

The Scatter-Gather component is arouting event processor that processes a Mule event through different parallel processing routes that contain different event processors. Each route receives a reference to the Mule event and executes a sequence of one or more event processors. Each of these routes uses a separate thread to execute the event processors, and the resulting Mule event can be either the same Mule event without modifications or a new Mule event with its own payload, attributes, and variables. The Scatter-Gather component then combines the Mule events returned by each processing route into a new Mule event that is passed to the next event processor only after every route completes successfully.

The Scatter-Gather component executes each route in parallel, not sequentially. Parallel execution of routes can greatly increase the efficiency of your Mule application and may provide more information than sequential processing.

Mule Ref Doc : https://docs.m ulesoft.com/mule-runtime/4.3/scatter-gather-concept

In this case as outbound call is made using HTTP: POST /child , all attributes will be replacedby this invocation. Hence query parameter will not be accessible at logger.

First step in creating Modern API is to create an API specification and get feedback from stakeholders so that any future issues can be identified at early stage thereby reducing overall delivery time

Correct answer is

%dw 2.0

output application/json

import modules::Utility

---

Utility::encryptString( "John Smith" )

DataWeave 2.0 functions are packaged in modules. Before you begin, note that DataWeave 2.0 is for Mule 4apps. For Mule 3 apps, refer to DataWeave Operators in the Mule 3.9 documentation. For other Mule versions, you can use the version selector for the Mule Runtime table of contents.

Functions in the Core (dw::Core) module are imported automatically into your DataWeave scripts. To use other modules, you need to import the module or functions you want to use by adding the import directive to the head of your DataWeave script, for example:

import dw::core::Strings

import camelize, capitalize from dw::core::Strings

import * from dw::core::Strings

The way you import a module impacts the way you need to call its functions from a DataWeave script. If the directive does not list specific functions to import or use * from to import all functions from a function module, you need to specify the module when you call the function from your script. For example, this import directive does not identify any functions to import from the String module, so it calls the pluralize function like this: Strings::pluralize("box").

Transform

%dw 2.0

import dw::core::Strings

output application/json

---

{ 'plural': Strings::pluralize("box") }

* Watermark allows the poll scope to poll for new resources instead of getting the same resource over and over again.

* The database table must be ordered so that the“watermark functionality” can move effectively in the ordered list. Watermark stores the current/last picked up “record id.”

* If the Mule application is shut down, it will store the last picked up “record id” in the Java Object Store and the data will continue to exist in the file. This watermark functionality is valuable and enables developers to have increased transparency.

* Developers do not need to create code to handle caching; it is all configurable!

* There are two columns and both are unique butuser_id can't guaranty sequence whereas date_time will always be in increasing order and table content can easily be ordered on the basis of last processed date_time.

So correct answer is: Set the watermark column to the date_time column

* When a client application is registered in Anypoint Platform, a pair of credentials consisting of a client ID and clientsecret is generated.

* When the client application requests access to an API, a contract is created between the application and that API.

* An API that is protected with a Client ID Enforcement policy is accessible only to applications that have an approved contract.

---------------------------------------------------------------------------------------------------------------------------------------------

Correct Answer: In the organization's public API portal in Anypoint Exchange, from an approved clientapplication for the API proxy

Pick First is not valid type. Rest all are valid type of event processor.

Choice : https://docs.mulesoft.com/mule-runtime/4.3/choice-router-concept

Round Robin : https://docs.mulesoft.com/mule-runtime/4.3/round-robin

First Successful : https://docs.mulesoft.com/mule-runtime/4.3/first-successful

Publish consume: Synchronous. Publish: Asynchronous.

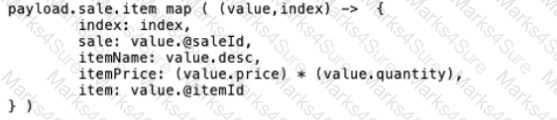

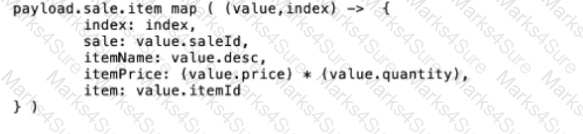

Correct answer is as below. Attributes in the incoming xml payload are always accessed using @.Similarly *item is requiredas we have multiple items in the request

%dw 2.0

output application/csv

---

payload.sale.*item map ((value, index) -> {

index: index,

sale: value.@saleId,

itemName: value.desc,

itemPrice: (value.quantity) * (value.price),

item: value.@itemId

} )

QUESTIONNO: 96

Refer to the exhibits.

The main flow contains a Flow Reference to the child flow.

A web client sends a GET request to the main flow's HTTP Listener that includes a make query parameter.

What values are accessible in the child flow?

A. payload

B.payload

make query param

C. payload

model var

D. payload

make query param model var

Answer: D

Correct answer is as below as it follows the correct syntax.

http:

basepath:"api"

host:"localhost"

port:"8081"

Mule Doc Reference : https://docs.mulesoft.com/mule-runtime/4.3/mule-app-properties-to-configure

Correct answer is async sub flow. Rest are valid flows in Mule.

Sub flow is always synchronous.

Mule applications can be scaled vertically by changing worker size. Mule applications can be scaled horizontally by adding more workers.

Lets revise few concepts RAML which can help us to find the answer of this question.

URI Parameters

Lets have a look at below example.

/foos:

/{id}:

/name/{name}:

Here, the braces { } around property names define URI parameters. They represent placeholders in each URI and donot reference root-level RAML file properties as we saw above in the baseUri declaration. The added lines represent the resources /foos/{id} and /foos/name/{name}.

Query Parameters

Now we'll define a way to query the foos collection using query parameters.Note that query parameters are defined using the same syntax that we used above for data types:

/foos:

get:

description:ListallFoosmatching query criteria,ifprovided;

otherwise list allFoos

queryParameters:

name?:string

ownerName?:string

Based on the above information , below is the only option which defines storeid as uri parameter and department as query parameter.

/{storeId}:

get:

queryParameter:

department:

Core (dw::Core) This module contains core DataWeave functions for data transformations. It is automatically imported into any DataWeave script.

Cloudhub exposeservices on port 8081 and override value in http.port with this one .

Sample log in Runtime Manager is below

21:15:53.148 08/08/2021 Worker-0 ArtifactDeployer.start.01 INFO

Listening for connections on 'http://0.0.0.0:8081'

Correct answer is 0.1 vCores

MuleSoft Doc Ref :https://docs.mulesoft.com/runtime-manager/cloudhub-architecture#cloudhub-workers

CloudHub Workers

Workers are dedicated instances of Mule runtime engine that run your integration applications on CloudHub. The memory capacity and processing power of a worker depends on how you configure it at the application level.

Worker sizes have different compute, memory, and storage capacities. You can scale workers vertically by selecting one of the available worker sizes:

Table Description automatically generated

WSDL is used to define the contract in case of SOAP . RAML/OAS is used to REST services

Returns an array that is the result of applying a transformation function (lambda) to each of the elements.

MuleSoft Doc Ref : https://docs.mulesoft.com/mule-runtime/4.3/dataweave-cookbook-map

Themap operator is a function in Dataweave which iterates over the items in an array and outputs them into a new array. It basically accepts input as a list of items in an array and manipulates the items in the array in order to form a new array as an output.

I have created below chart for your easier understanding:

Table Description automatically generated

-----------------------------------------------------------------------------------------------------------------------------------

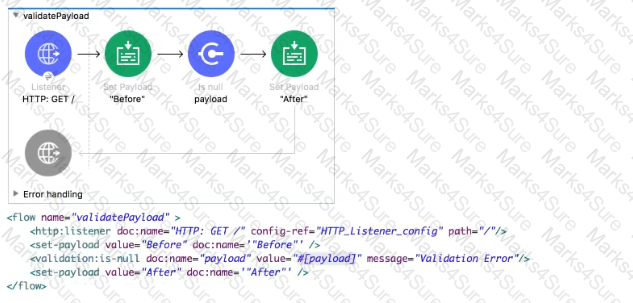

Here’s specifically what is happening here:

1) Payload is successfully set to “Before”

2) Is null validation is used which will pass the message only if payload is null. In this case as payload is not null, it creates an Error Object. Flow execution stops

#[error.description] = “Validation error”

3)Because no error handler is defined, the Mule default error handler handles the error

4) “Validation error” is the error message returned to the requestor in the body of the HTTP request with HTTP Status Code: 500

Reference diagram:

A picture containing timeline Description automatically generated

Correct answer is Change the method attributes value to "POST".

It can be fixed in either of the two ways as below.

1) Changing method attribute to POST in ClientRequestFlow

2) Setting allowedMethods as PUT in ShippingFlow (but doesn't fit as question mentions about changing ClientRequestFlow)

The APIkit Router is a key message processor that validates requests against the provided definition, enriches messages (for example by adding default values to the messages) and routes requests to a particular flow. Also, the Router raises errors messages if errors occurs while routing, validating or processing the user request.

Correct answer is as below. On complete phase only has access to batch job result statistics and payload is not available.

TotalRecordsProcessed:3

SuccessfulRecords:3

FailedRecords:0

On Complete

During this phase, you can optionally configure the runtime to create a report or summary of the records it processed for the particular batch job instance. This phase exists to give systemadministrators and developers some insight into which records failed to address any issues that might exist with the input data.

Sample output is as below

Mule Ref Doc : https://docs.mulesoft.com/mule-runtime/4.3/batch-processing-concept#on-complete
