Salesforce-MuleSoft-Developer-II Salesforce Certified MuleSoft Developer 2 (SU24) Questions and Answers

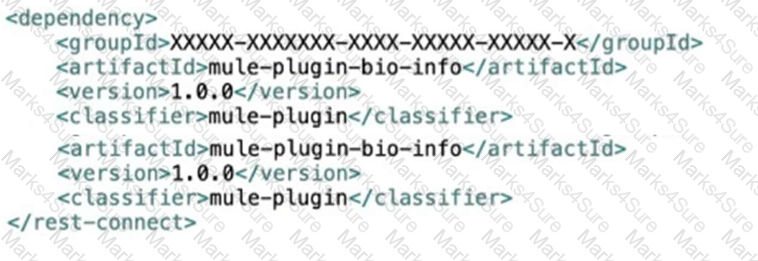

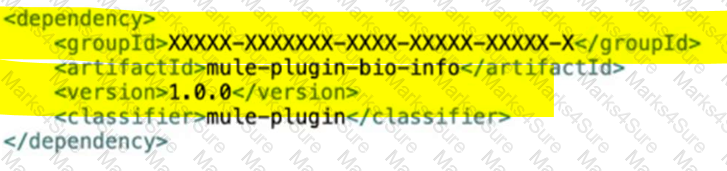

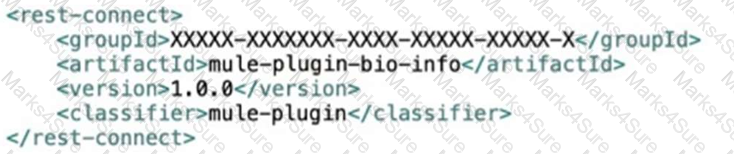

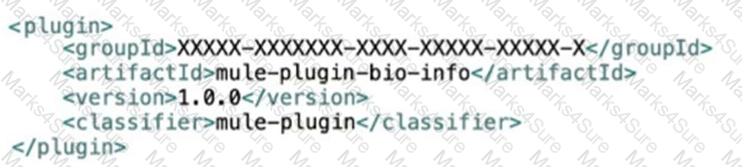

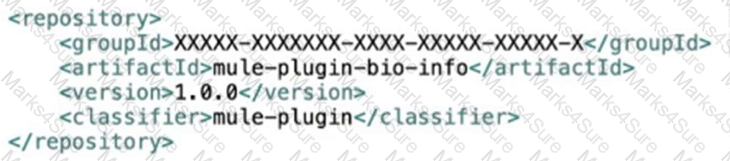

To invoke Bioinfo System API using its REST Connector, option E should be added to the pom.xml file. This option adds a dependency for Bioinfo System API REST Connector with its group ID, artifact ID, version, classifier, and type. The classifier specifies that it is a REST Connector (raml-client), and the type specifies that it is a Mule plugin (mule-plugin). References: https://docs.mulesoft.com/apikit/4.x/apikit-4-generate-from-rest-api-task#add-the-api-dependency-to-the-pom-file

To convert a JKS keystore to PKCS12, the developer needs to use the keytool-importkeystore command with the following options: -srckeystore keystore.jks -srcstoretype JKS -destkeystore keystore.p12 -deststoretype PKCS12. This command imports all entries from a source JKS keystore (keystore.jks) into a destination PKCS12 keystore (keystore.p12). References: https://docs.oracle.com/en/java/javase/11/tools/keytool.html#GUID-5990A2E4-78E3-47B7-AE75-6D1826259549

To test that the payment API is working in production, the developer should create a health check endpoint that listens on a separate port and uses a separate HTTP Listener configuration from the API. This way, the developer can isolate the health check endpoint from the API traffic and avoid affecting the performance or availability of the API. The health check endpoint should return a simple response that indicates the status of the API, such as OK or ERROR. References: https://docs.mulesoft.com/api-functional-monitoring/afm-create-monitor#create-a-monitor

The MuleSoft recommended method to encrypt sensitive property data is to use the Secure Properties Tool that comes with Anypoint Studio. This tool allows encrypting properties files with a secret key and then decrypting them at runtime using the same key. The encryption key and sensitive data should be different for each environment to ensure security and avoid accidental exposure of sensitive data. References: https://docs.mulesoft.com/mule-runtime/4.3/secure-configuration-properties

The http-policy:processor element is used to intercept outbound HTTP requests made by Mule applications. It allows customizing the request before it is sent to the target API and modifying the response after it is received from the target API. References: https://docs.mulesoft.com/api-manager/2.x/policy-mule4-custom-policy#policy-xml-file

To log all the errors raised by the VM Connector, the developer needs to add an async logger with the name ‘org.mule.extension.vm’ and the level ‘ERROR’ inside the appenders tag of the log4j2.xml file. This will enable logging all error-level events generated by the VM Connector to the console appender. References: https://docs.mulesoft.com/mule-runtime/4.3/logging-in-mule#configuring-custom-logging-settings

To use API autodiscovery to access and enforce policies for a RESTful implementation, flowRef must be set to the name of the flow that has HTTP listener to receive all incoming RESTful operation requests. This way, API autodiscovery can identify the API implementation and associate it with the corresponding API specification and policies in API Manager. The flow that has HTTP listener is usually the main flow that contains the APIKit Router. References: https://docs.mulesoft.com/api-manager/2.x/api-auto-discovery-new-concept#flowref

To enable mTLS authentication for HTTP Listener, the developer needs to set an appropriate keystore and truststore configuration for the listener. The keystore contains the certificate and private key of the Mule application that are used to prove its identity to clients. The truststore contains the certificates of trusted clients that are allowed to access the Mule application. References: https://docs.mulesoft.com/mule-runtime/4.3/tls-configuration#mutual-authentication

To get the average number of requests and average response time of the Salesforce Connector, the developer should access Anypoint Monitoring’s built-in dashboard, select a resource (such as an application or an API), and locate the information under the Connectors tab. The Connectors tab shows metrics for each connector used by the resource, such as average requests per minute, average response time, and failures. References: https://docs.mulesoft.com/monitoring/built-in-dashboard-reference

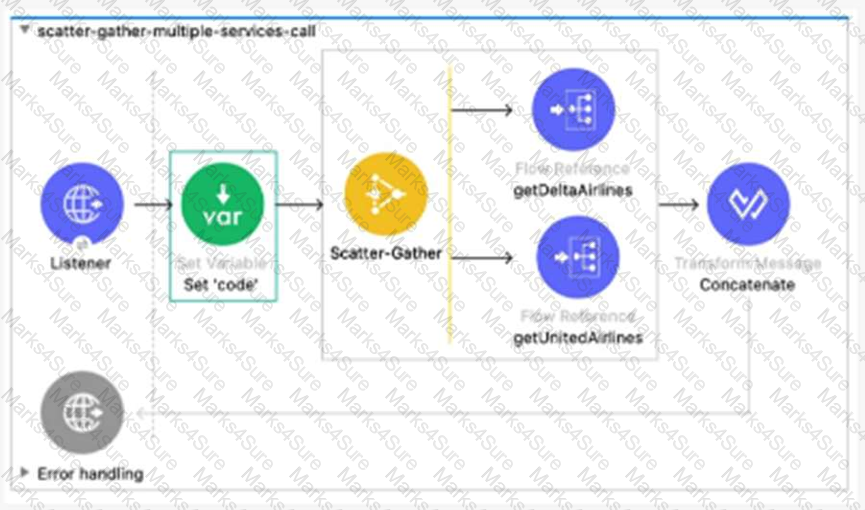

To give a partial successful response in case the United Airlines API returns with a timeout, the developer should add a Scatter-Gather component inside a Try scope, and set the payload to a default value ‘Error’ inside the error handler using the On Error Continue scope. A Scatter-Gather component allows sending multiple requests concurrently and aggregating the responses into an array. A Try scope allows handling errors that occur within it using an error handler. An On Error Continue scope allows continuing the flow execution after handling an error. Therefore, by using these components, the developer can send requests to both APIs in parallel, handle any timeout errors from United Airlines API, and return a partial response with a default value for that API. References: https://docs.mulesoft.com/mule-runtime/4.3/scatter-gather-concept https://docs.mulesoft.com/mule-runtime/4.3/try-scope-concept https://docs.mulesoft.com/mule-runtime/4.3/on-error-continue-concept

To unit test modules created with XML SDK, the developer needs to use the MUnit Extensions Maven plugin. This plugin allows testing XML SDK modules using MUnit by adding a dependency to the module under test and using a custom processor tag to invoke it. References: https://docs.mulesoft.com/mule-sdk/1.1/xml-sdk#testing

To develop an API that retrieves data from a hospital system using reusable Java libraries, the developer should install libraries in a local repository and refer to it in the pom.xml file. This way, the developer can use Maven to manage dependencies and invoke Java code from Mule applications using Java Module operations. References: https://docs.mulesoft.com/mule- runtime/4.3/java-module-reference#add-the-java-module-to-your-project https://docs.mulesoft.com/mule-runtime/4.3/java-module-reference#invoke-java-code

To implement a readiness endpoint to monitor all system APIs, the developer should create a dedicated endpoint that responds with the API status and reachability of the underlying systems. This way, the DevOps team can check if the system API is ready to receive requests and if it can communicate with its backend systems without errors. References: https://docs.mulesoft.com/mule-runtime/4.3/deployment-strategies#readiness-probes

A web API can use HTTP Webhook to notify its client of state changes as soon as they occur. A webhook is an HTTP callback that allows an API to send real-time notifications to another system or application when an event happens. The client registers a URL with the API where it wants to receive notifications, and then the API sends an HTTP request to that URL with information about the event. References: https://docs.mulesoft.com/connectors/webhook/webhook-connector

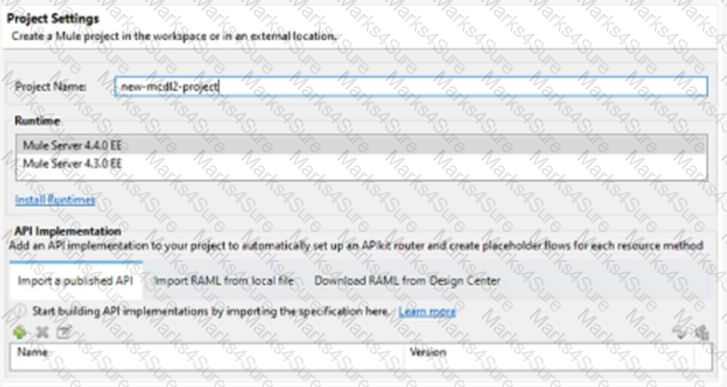

To create a new project that selects the correct API version and scaffolds the flows from the API specification, the developer should import a published API. This option allows importing an API specification that has been published to Anypoint Exchange or Design Center, and selecting a specific version of that API specification. The developer can also choose to scaffold flows based on that API specification. References: https://docs.mulesoft.com/apikit/4.x/apikit-4-new-project-task
