SK0-005 CompTIA Server+ Certification Exam Questions and Answers

Blanking panels are metal or plastic plates that are installed in the empty spaces of a rack to prevent hot air from recirculating back to the front of the rack. This can improve the airflow and cooling efficiency of the rack and reduce the heat generated by the servers. Verified References: [Blanking panel], [Rack cooling]

Cloud IaaS (Infrastructure as a Service) is a service model that allows users to rent virtualized computing resources over the internet, such as servers, storage, network, and software. Cloud IaaS can provide several benefits for disaster recovery and failover scenarios, such as:

Lower cost: Cloud IaaS can reduce the capital and operational expenses of building and maintaining a physical disaster recovery site, as users only pay for the resources they use on demand12.

Scalability: Cloud IaaS can offer flexible and elastic scalability of resources, as users can easily provision or deprovision resources according to their needs and workload12.

Availability: Cloud IaaS can ensure high availability and reliability of the application, as users can leverage the cloud provider’s redundant and geographically distributed infrastructure12.

Simplicity: Cloud IaaS can simplify the failover process, as users can use the cloud provider’s tools and services to automate and orchestrate the failover operations12.

Therefore, building a cloud IaaS and performing a failover of the application would be the most cost-effective solution for the company, as it would allow them to simulate a failover of a critical application on production configurations and IP address schemes without investing in a physical disaster recovery site.

A per core licensing model is based on the number of processor cores in a server. This model is suitable for a data center that has a variable daily equipment count, as it allows for scaling up or down the number of cores as needed. A per core licensing model also provides better performance and efficiency than other models. Verified References: [Per Core Licensing and Basic Definitions]

This is the most likely licensing type that will be used because volume licensing allows a single license key to be used for multiple installations of a software product. Volume licensing is typically used by organizations that need to deploy software to a large number of devices or users. References: https://www.microsoft.com/en-us/licensing/licensing-programs/volume-licensing-programs

Something you have is one of the types of authentication methods that relies on a physical object or device that the user possesses to verify their identity. A token is an example of something you have, as it is a small device that generates a one-time password or code that the user enters during login. A token can be a hardware device, such as a key fob or a smart card, or a software application, such as an app on a smartphone or a browser extension. A token provides an additional layer of security to the authentication process, as it prevents unauthorized access even if the user’s username and password are compromised1.

DHCP stands for Dynamic Host Configuration Protocol and it is a network protocol that automatically assigns IP addresses and other network configuration parameters to devices on a network. DHCP can help simplify IP configuration without manually adding any IP addresses. DHCP works by using a DHCP server that maintains a pool of available IP addresses and leases them to devices that request them. The devices can renew or release their IP addresses as needed. References: https://www.comptia.org/training/resources/exam-objectives/comptia-server-sk0-005-exam-objectives (Objective 2.1)

The correct answer is D. per-core.

The per-core licensing model was created by software companies in response to the increasing density of processors. This model is used for software that runs on servers with multi-core processors, and the licensing fee is based on the number of cores. This way, the software vendors can charge more for software that runs on servers with more processing power1

Fibre Channel is a connectivity option that can transmit at 16Gb over an optical connection for SAN-based shared storage. Fibre Channel is a high-speed network technology that provides reliable and secure data transfer between servers and storage devices. Fibre Channel uses optical fiber cables to connect devices and supports various topologies and protocols. FCoE is another connectivity option that uses Fibre Channel over Ethernet, which encapsulates Fibre Channel frames into Ethernet packets. FCoE can also transmit at 16Gb over an optical connection, but it requires a converged network adapter (CNA) and a lossless Ethernet network. iSCSI is another connectivity option that uses SCSI commands over IP networks, which can use either copper or optical cables. iSCSI can transmit at 10Gb or 40Gb over an optical connection, but it has higher latency and lower performance than Fibre Channel. eSATA is another connectivity option that uses SATA commands over external cables, which are usually copper. eSATA can transmit at 6Gb over a copper connection, but it has limited cable length and device support compared to Fibre Channel. References:

https://www.ibm.com/topics/storage-area-network

https://www.techopedia.com/definition/1369/fibre-channel-fc

https://www.techopedia.com/definition/1368/fibre-channel-over-ethernet-fcoe

https://www.techopedia.com/definition/1367/internet-small-computer-system-interface-iscsi

https://www.techopedia.com/definition/1366/external-serial-advanced-technology-attachment-esata

Shipping is a process of sending logs from one system to another system for centralized storage and analysis. Shipping can help ensure compliance with regulations that require financial systems logs to be stored in a central location. Shipping can also help improve security, performance, and scalability of log management. References: https://www.comptia.org/training/resources/exam-objectives/comptia-server-sk0-005-exam-objectives (Objective 3.4)

The RAID level that should be implemented to maximize usable capacity without requiring redundancy is RAID 0. RAID (Redundant Array of Independent Disks) is a technology that combines multiple physical disks into a logical unit that provides improved performance, reliability, or both. RAID 0 is a RAID level that splits data evenly across two or more disks without parity or mirroring. RAID 0 does not provide any redundancy or fault tolerance, but it increases usable capacity and performance by allowing parallel read and write operations.

References: CompTIA Server+ SK0-005 Certification Study Guide, Chapter 1, Lesson 1.2, Objective 1.2

Round robin is a load balancing technique that distributes requests among multiple web nodes in a circular order. It ensures that each web node receives an equal amount of requests and improves the availability and performance of the web application. Verified References: [Round robin], [Load balancing]

RAID 5 is a RAID level that provides striping with parity, which means that data is distributed across all disks with one disk storing parity information for error correction. RAID 5 can tolerate one disk failure without losing data. RAID 5 provides the most storage as well as disk redundancy out of the four RAID levels given, since it only uses one disk for parity and the rest for data. For example, if four 200GB drives are used in a RAID 5 array, the total storage capacity would be 600GB (200GB x 3), while in RAID 0 it would be 800GB (200GB x 4), in RAID 1 it would be 200GB (200GB x 1), and in RAID 10 it would be 400GB (200GB x 2). References: https://en.wikipedia.org/wiki/Standard_RAID_levels#RAID_5

Separate circuits and multiple UPSs can provide fail-safe power redundancy for a server rack. Separate circuits mean that the server rack is connected to two or more independent power sources, such as different utility lines or generators. This can prevent a single point of failure in the power supply, as if one circuit goes down, the other circuit can still provide power to the server rack1. Multiple UPSs mean that the server rack has two or more uninterruptible power supplies, which are devices that provide backup power and surge protection in case of a power outage or fluctuation. Multiple UPSs can be connected to separate circuits, or to different outlets on the same circuit, to increase the reliability and availability of power for the server rack23.

The sc command is used to create, delete, start, stop, pause, or query services on a Windows OS. It can also be used to register a new service by using the create option. References: https://docs.microsoft.com/en-us/windows-server/administration/windows-commands/sc-create

Disposal is the part of the asset life cycle that can cause the greatest number of issues in relation to PII exposure. PII stands for personally identifiable information, which is any data that can be used to identify a specific individual, such as name, address, phone number, email, social security number, etc. PII exposure is the unauthorized access or disclosure of PII, which can result in identity theft, fraud, or other harms to the individuals whose data is compromised. Disposal is the process of getting rid of an asset that is no longer needed or useful, such as a server, a hard drive, or a mobile device. If the disposal is not done properly, the PII stored on the asset may still be accessible or recoverable by unauthorized parties, such as hackers, thieves, or competitors. Therefore, it is important to follow best practices for secure disposal of assets that contain PII, such as wiping, encrypting, shredding, or physically destroying the data storage media

NIC stands for network interface card, which is a hardware component that allows a server to connect to a network. Configuring NICs in pairs on a server would provide network redundancy, meaning that if one NIC fails, the other one can take over and maintain network connectivity. The other options are not related to network redundancy.

Kerberos is a network authentication protocol that uses tickets to allow clients and servers to prove their identity to each other. Kerberos relies on accurate time synchronization between the parties involved, as the tickets have expiration dates and timestamps. If the system clock of a Linux server is off by more than five minutes from the LDAP server or the domain controller, the Kerberos authentication will fail and generate errors. A local firewall is unlikely to block authentication requests if the server can communicate over the network and is configured correctly. The users’ passwords are not relevant if they are known-working LDAP credentials. The server has access to the LDAP host if it can communicate over the network and is configured correctly. References:

https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/6/html/identity_management_guide/kerberos_errors

https://www.ibm.com/docs/en/aix/7.2?topic=authentication-kerberos-time-synchronization

The port that must remain open for a secure website is port 443. Port 443 is used by Hypertext Transfer Protocol Secure (HTTPS), which is an extension of HTTP that encrypts and authenticates the communication between a web server and a web browser. HTTPS ensures that the data transmitted over the web is protected from eavesdropping, tampering, or spoofing. Therefore, port 443 must remain open for a secure website to function properly.

References: CompTIA Server+ SK0-005 Certification Study Guide, Chapter 2, Lesson 2.2, Objective 2.2

A public cloud is a cloud model that provides shared resources and services over the internet to multiple users or organizations. The cloud provider owns and manages the infrastructure and charges users based on their usage or subscription. A public cloud can offer scalability, flexibility, and cost-efficiency for users who need access to various applications and data without investing in their own hardware or software. Verified References: [Public cloud], [Cloud model]

A RAID controller battery is used to protect the data in the cache memory of the controller in case of a power failure. The cache memory allows the controller to improve the write performance by buffering the data and writing it to the disk in an optimized way. However, if the battery fails, the controller will switch to write-through mode, which means it will write the data directly to the disk without caching. This will reduce the write performance and increase the latency of the system

A method of application hardening is installing the latest patches. Application hardening is a process of reducing the attack surface and vulnerabilities of an application by applying security measures and best practices. Installing the latest patches is one way to harden an application, as patches are updates that fix bugs, errors, or security issues in an application. By installing the latest patches, an application can be protected from known exploits or threats.

References: CompTIA Server+ SK0-005 Certification Study Guide, Chapter 3, Lesson 3.5, Objective 3.5

This is the best description of a hybrid cloud model because it combines both private and public cloud resources. A private cloud is a cloud environment that is owned and operated by a single organization and hosted in its own data center. A public cloud is a cloud environment that is owned and operated by a third-party provider and hosted in its data center. A hybrid cloud allows an organization to leverage both types of cloud resources depending on its needs and preferences. References: https://azure.microsoft.com/en-us/overview/what-is-hybrid-cloud-computing/

RAID 6 is a type of RAID level that uses two parity blocks to provide fault tolerance and redundancy for data storage. RAID 6 can withstand the failure of up to two disks in the array without losing any data. RAID 6 requires a minimum of four disks to operate, and it distributes the data and parity blocks across all the disks in the array. RAID 6 has a high write penalty, which means that it takes more time and resources to write data to the disks than to read data from them. However, RAID 6 offers a high level of data protection and reliability, which makes it suitable for applications that require high availability and durability1.

RAID 1 provides redundancy and fault tolerance by mirroring the data from one disk to another disk. RAID 1 offers high read performance and data security, but it has low capacity and write performance. RAID 1 requires a minimum of two disks to operate, and it can only tolerate the failure of one disk in the array. If more than one disk fails, all the data in the array is lost2.

RAID 5 provides redundancy and fault tolerance by using one parity block to store information that can be used to reconstruct the data in case of a disk failure. RAID 5 requires a minimum of three disks to operate, and it distributes the data and parity blocks across all the disks in the array. RAID 5 offers a balance between performance, capacity, and data protection, but it can only tolerate the failure of one disk in the array. If more than one disk fails, all the data in the array is lost2.

Therefore, among these options, RAID 6 is the best solution for creating a data volume out of four disks with the most redundancy.

Retention policies are the guidelines that dictate when to delete data backups based on operational or compliance needs. They specify how long, how, where, and in what format the data backups are stored, and who has authority over them. The other options are not directly related to the deletion of data backups.

https://bac kup.ninja/news/Database-Backups-101-Backup-Retention-Policy-Considerations

The most likely cause of the issue is that the disk uses GPT. GPT stands for GUID Partition Table, which is a newer standard for disk partitioning that supports larger disks and more partitions than the older MBR (Master Boot Record) standard1. However, GPT is not compatible with some older operating systems, such as Windows XP or Windows Server 20032. Therefore, if the data drive was formatted with GPT on a new Windows server and then moved to an older Windows server, the older server may not be able to recognize the GPT partitions and access the data on the drive.

The partition being formatted with ext4, FAT32, or MBR are not likely causes of the issue. Ext4 is a file system that is commonly used on Linux-based systems, but it can also be read by Windows with some third-party software3. FAT32 is a file system that is widely compatible with most operating systems and devices, but it has some limitations such as a maximum file size of 4 GB and a maximum partition size of 8 TB4. MBR is not a file system, but a partitioning scheme that can support various file systems such as NTFS, FAT32, or exFAT5. However, MBR has some disadvantages compared to GPT, such as a maximum disk size of 2 TB and a maximum number of primary partitions of four1.

To calculate the minimum number of disks needed for this application, we need to consider the RAID levels and their disk requirements. RAID 1 requires a minimum of two disks and provides mirroring, which means that data is duplicated on both disks. RAID 5 requires a minimum of three disks and provides striping with parity, which means that data is distributed across all disks with one disk storing parity information for error correction. RAID 5 can tolerate one disk failure without losing data. To create a 10GB RAID 1 array for log files, we need two 10GB disks. To create a 20GB RAID 5 array for data files, we need four 10GB disks (three for data and one for parity). To create a 20GB RAID 5 array for the operating system, we need another four 10GB disks (three for data and one for parity). Therefore, the total number of disks needed is 2 + 4 + 4 = 10. However, since we can use different RAID levels for different partitions on the same disk, we can optimize the disk usage by using only eight disks as follows: Disk 1: 10GB RAID 1 (log files) + 10GB RAID 5 (data files) Disk 2: 10GB RAID 1 (log files) + 10GB RAID 5 (data files) Disk 3: 10GB RAID 5 (data files) + 10GB RAID 5 (OS) Disk 4: 10GB RAID 5 (data files) + 10GB RAID 5 (OS) Disk 5: 10GB RAID 5 (parity for data files) + 10GB RAID 5 (OS) Disk 6: 10GB RAID 5 (OS) + unused space Disk 7: 10GB RAID 5 (parity for OS) + unused space Disk 8: unused space References: https://en.w ikipedia.org/wiki/Standard_RAID_levels

PowerShell is a scripting language and a command-line shell that uses commands that start with sec- to perform security-related tasks. For example, sec-edit is a command that edits security policies, sec-logon is a command that manages logon sessions, and sec-policy is a command that applies security templates. Verified References: [PowerShell security commands], [Security policy]

A DHCP reservation is a way to assign a specific IP address to a device based on its MAC address, which is a unique identifier for each network interface card (NIC). When the administrator replaced the NIC, the MAC address of the server changed, and the DHCP server no longer recognized it as the same device. Therefore, the DHCP server assigned a different IP address to the server, which was incorrect for the application. To fix this problem, the administrator needs to modify the DHCP reservation to use the new MAC address of the NIC, so that the server can get the proper IP address.

A WWNN (World Wide Node Name) is a unique identifier for a Fibre Channel node, which is a device that can communicate over a Fibre Channel network. A WWNN is not related to DHCP or IP addresses, and it is not used for DHCP reservations. Therefore, options B and D are incorrect.

Updating the local hosts file with the correct IP address (option C) is also incorrect, because it does not solve the problem of getting the correct IP address from the DHCP server. The hosts file is a local file that maps hostnames to IP addresses, and it is used to override DNS queries. However, it does not affect how the DHCP server assigns IP addresses to devices. Moreover, updating the hosts file manually on every device that needs to communicate with the server is not a scalable or efficient solution.

References:

How to reserve IP Address in DHCP Server - Ask Ubuntu

Static IP vs DHCP Reservation - The Tech Journal

How to Configure DHCP Server Reservation in Windows … - ITIngredients

The best practice for troubleshooting is to follow a logical and systematic process that involves identifying the problem, establishing a theory of probable cause, testing the theory, establishing a plan of action, implementing the solution, verifying functionality, and documenting findings. Since the problem occurred after a change in the server’s BIOS, the most likely cause is that the change was incompatible or incorrect for the OS. Therefore, the next step should be to reverse the latest change made to the server and reboot to see if that fixes the issue. References: https://www.comptia.org/training/resources/exam-objectives/comptia-server-sk0-005-exam-objectives (Objective 4.3)

The user has likely fallen victim to a phishing scam, which is a fraudulent attempt to obtain sensitive information, such as passwords, by disguising as a legitimate entity. The link in the email that required the user to change the account password was probably a fake website that mimicked the company’s external database, and captured the user’s credentials when they entered them. This could compromise the security and integrity of the company’s data, as well as the user’s identity and privacy12.

The company should take immediate action to prevent further damage and investigate the incident. The first step is to disable the user’s account and inform the security team. Disabling the user’s account can prevent unauthorized access to the external database by the attackers, who may use the stolen credentials to log in and manipulate or steal data. Informing the security team can alert them of the breach and allow them to take appropriate measures, such as scanning for malware, changing passwords, notifying other users, and reporting the incident34.

JBOD (Just a Bunch Of Disks) is a storage configuration that combines different types and sizes of hard drives into one logical unit without any RAID level or redundancy. It allows users to see all the drives within the unit as one large storage space. JBOD can utilize all the available capacity of the drives but does not provide any performance or fault tolerance benefits. Verified References: [JBOD], [RAID]

A checksum is a value that is calculated from a data set to verify its integrity and authenticity. A checksum can be used to compare a downloaded installation package with the original source to ensure that the package has not been corrupted or tampered with during the download or transmission process. If the checksums match, then the package is safe to install. If the checksums do not match, then the package may be infected with malware or contain errors that could cause installation problems. Therefore, validating the checksum for the downloaded installation package is a necessary step before launching the installation again12

1: CompTIA Server+ Certification Exam Objectives 2: How to Verify File Integrity Using Checksums on Linux

The script that the technician is running is trying to connect to every port on the localhost (the same machine) using telnet, a network protocol that allows remote access to a command-line interface. The script mostly fails because most ports are closed or not listening for connections. However, the script succeeds on ports 80 and 443, which are the default ports for HTTP and HTTPS protocols, respectively. These protocols are used for web services and web browsers. Therefore, the technician should look for an unauthorized HTTP service on this server, as it may indicate a security breach or a misconfiguration. Looking for a virus infection on this server is also possible, but not the most likely source of the issue. Looking for an unauthorized Telnet service on this server is not relevant, as the script is using telnet as a client, not a server. Looking for an unauthorized port scanning service on this server is not relevant, as the script is scanning ports on the localhost, not on other machines. References:

https://phoenixnap.com/kb/telnet-windows

https://www.techopedia.com/definition/23337/http-port-80

https://www.techopedia.com/definition/23336/https-port-443

Since both drives are in different RAID 1 arrays and both are hot-swappable, the most efficient step is to replace both failed drives at the same time. This can minimize the downtime and avoid unnecessary reboots. RAID 1 provides mirroring, which means that data is duplicated on both drives in the array. Therefore, replacing one drive will not affect the data on the other drive or the functionality of the array. References: https://en.wikipedia.org/wiki/Standard_RAID_levels#RAID_1

A warm site is a type of disaster recovery site that has some pre-installed hardware, software, and network connections, but not as much as a hot site. A warm site also has some backup data, but not as current as a hot site. A warm site requires some time and effort to become fully operational in the event of a disaster. A hot site is a disaster recovery site that has all infrastructure and live data, and can take over the primary site’s operations immediately. A cold site is a disaster recovery site that has no infrastructure or data, and requires significant time and resources to set up. References:

https://www.enterprisestorageforum.com/management/disaster-recovery-site/

https://www.techopedia.com/definition/3780/warm-site

Fault tolerance is the ability of a system to continue functioning in the event of a failure of one or more of its components. Fault tolerance can ensure a secondary network path is available if the primary connection fails. Fault tolerance can be achieved by using redundant components, such as network cards, cables, switches, routers, etc., that can take over the function of the failed component without interrupting the service. References: https://www.comptia.org/training/resources/exam-objectives/comptia-server-sk0-005-exam-objectives (Objective 2.2)

A port scanner is the tool that would most likely help the analyst determine if the applications are running on a remote server. A port scanner is a software tool that scans a network device for open ports. Ports are logical endpoints for network communication that are associated with specific applications or services. By scanning the ports on a remote server, the analyst can identify what applications or services are running on that server and what protocols they are using. A port scanner can also help detect potential vulnerabilities or misconfigurations on a server.

The solution the administrator implemented extended runtime. Runtime is the amount of time that a UPS can provide backup power to a server in case of a power outage. By installing additional batteries in the UPS, the administrator increased the capacity and duration of the backup power, allowing the server more time to shut down properly.

References: CompTIA Server+ SK0-005 Certification Study Guide, Chapter 1, Lesson 1.4, Objective 1.4

To ensure the partition is available to the OS, the technician must verify that the volume is formatted as GPT. GPT (GUID Partition Table) is a partitioning scheme that defines how data is organized on a hard disk drive (HDD) or a solid state drive (SSD). GPT uses globally unique identifiers (GUIDs) to identify partitions and supports up to 128 primary partitions per disk. GPT also supports disks larger than 2 TB and has a backup copy of the partition table at the end of the disk for data recovery. GPT is required for installing Windows on UEFI-based PCs, which offer faster boot time and better security than legacy BIOS-based PCs.

The administrator should only allow secure traffic and DNS inquiries on the server, which means that only ports 22, 53, and 443 should be open. Port 22 is used for SSH (Secure Shell), which is a protocol that allows secure remote login and command execution over a network connection using a command-line interface (CLI). Port 53 is used for DNS (Domain Name System), which is a service that translates domain names into IP addresses and vice versa. Port 443 is used for HTTPS (Hypertext Transfer Protocol Secure), which is a secure version of HTTP that encrypts the data exchanged between a web browser and a web server.

The server administrator should use cable management to prevent network connectivity loss when pulling a server from the rack during maintenance. Cable management is a practice of organizing and securing the cables that connect various devices and components in a system. Cable management can help improve airflow, reduce clutter, prevent tangling, and avoid accidental disconnection or damage of cables. Cable management can be done using various tools and techniques, such as cable ties, cable trays, cable labels, cable organizers, or cable ducts.

This is the most appropriate way to complete the task because it follows the best practices of cable management. Cable management is a process of organizing and securing cables in a rack or a server room to improve airflow, accessibility, safety, and aesthetics. Running the network cables up the left side and the power cables down the right side of the rack helps to avoid cable clutter, interference, and confusion. It also makes it easier to trace and troubleshoot cables if needed. Using appropriate-length cables also helps to reduce cable slack and excess. Wiring the cables through the cable management arm may cause stress and damage to the cables when moving the server in or out of the rack. Using the longest cables possible may create cable loops and tangles that can block airflow and increase fire hazards. Installing an Ethernet patch panel and a PDU (Power Distribution Unit) may be useful for accommodating more network and power cables, but not necessary for a single server. References: https://www.howto geek.com/303282/how-to-manage-your-pcs-fans-for-optimal-airflow-and-cooling/ https://www.howtogeek.com/303290/how-to-properly-manage-your-cables/

Encryption at rest is a type of encryption methodology that would most likely be used to ensure encrypted data cannot be retrieved if a device is stolen. Encryption at rest is a process of encrypting stored data on a device such as a hard drive, SSD, USB flash drive, or mobile device. This way, if the device is lost or stolen, the data cannot be accessed without the encryption key or password. Encryption at rest can be implemented using software tools such as BitLocker on Windows or FileVault on Mac OS, or hardware features such as self-encrypting drives or Trusted Platform Module chips. End-to-end encryption is a type of encryption methodology that ensures encrypted data cannot be intercepted or modified by third parties during transmission over a network. Encryption in transit is a type of encryption methodology that protects encrypted data while it is moving from one location to another over a network. Public key encryption is a type of encryption algorithm that uses a pair of keys: a public key that can be shared with anyone and a private key that is kept secret by the owner. References: https://www.howtogeek.com/196541/bitlocker-101-what-it-is-how-it-works-and-how-to-use-it/ https://www.howtogeek.com/443611/how-to-encrypt-your-macs-system-drive-removable-devices-and-individual-files/ https://www.howtogeek.com/428483/what-is-end-to-end-encryption-and-why-does-it-matter/ https://www.howtogeek.com/195877/what-is-encryption-and-how-does-it-work/

If the server administrator patches the server with the latest vendor-suggested software, configures DHCP, and verifies all network cables are properly connected in the IDF, but there is no network connectivity, then the most likely reason for the lack of connectivity is that the VLAN is improperly configured. A VLAN (Virtual Local Area Network) is a logical grouping of network devices that share the same broadcast domain and can communicate with each other without routing. If the server is assigned to a different VLAN than the DHCP server or the default gateway, it will not be able to obtain an IP address or reach other network devices. The DNS configuration is not relevant for network connectivity, as DNS only resolves names to IP addresses. The OS version is not likely to be incompatible with the network switch vendor, as most network switches use standard protocols and interfaces. The HIDS (Host-based Intrusion Detection System) is not likely to prevent the connection, as HIDS only monitors and alerts on suspicious activities on the host. References: https://www.howtogeek.com/190014/virtualization-basics-understanding-techniques-and-fundamentals/ https://www.howtogeek.com/164981/how-to-use-nslookup-to-check-domain-name-information-in-microsoft-windows/ https://www.howtogeek.com/202794/what-is-an-intrusi on-detection-system-ids-and-how-does-it-work/

To comply with the user requirements, the best options are to install the OS on a RAID 1 array, configure RAID 5 for the application data, and use SSD hard drives for the data application array. Here is why:

RAID 1 is a mirroring technique that creates an exact copy of data on two disks. This provides redundancy and fault tolerance in case of hard drive failure. RAID 1 also improves read performance since either disk can be read at the same time. Therefore, installing the OS on a RAID 1 array meets the first requirement of separating the OS from the application data and protecting it from hard drive failure.

RAID 5 is a striping technique with parity that distributes data and parity blocks across three or more disks. This provides improved performance and storage efficiency compared to RAID 1, as well as fault tolerance in case of a single disk failure. Therefore, configuring RAID 5 for the application data meets the second and third requirements of providing high IOPS performance and data availability.

SSD hard drives are solid-state drives that use flash memory to store data. They have no moving parts and offer faster read and write speeds, lower latency, and lower power consumption than traditional HDDs. Therefore, using SSD hard drives for the data application array meets the second requirement of providing high IOPS performance.

References:

https://phoenixnap.com/kb/raid-levels-and-types

https://en.wikipedia.org/wiki/Standard_RAID_levels

If the server is not reachable by name but can be accessed by IP address, it means that there is a problem with name resolution. The hosts file and the DNS server are both responsible for mapping hostnames to IP addresses. Therefore, the server administrator should check these two files for any errors or inconsistencies that might prevent the server from being resolved by name. References: https://www.howtogeek.com/662249/how-to-edit-the-hosts-file-on-linux/ https://www.howtogeek.com/164981/how-to-use-nslookup-to-check-domain-name-information-in-microsoft-windows/

LVM (Logical Volume Manager) is a tool that allows the technician to increase a partition’s size in the future without reformatting it on a Linux server. LVM creates logical volumes that can span across multiple physical disks or partitions and can be resized dynamically without losing data. LVM also provides other features such as snapshots, encryption, and RAID. DiskPart, fdisk, and Format are tools that can be used to partition and format disks, but they do not allow increasing a partition’s size without reformatting it. References: https://www.howtogeek.com /howto/40702/how-to-manage-and-use-lvm-logical-volume-management-in-ubuntu/ https://www.howtogeek.com/school/using-windows-admin-tools-like-a-pro/lesson2/ https://www.howtogeek.com/howto/17001/how-to-format-a-usb-drive-in-ubuntu-using-gparted/

If a server has three hard drives configured in a RAID 5 array, it means that the data is striped across all three drives with parity information. RAID 5 can tolerate one drive failure without losing data, but not two or more. If there are multiple failed hard drives, the RAID 5 array will become corrupted and the OS will not load. The other options are not likely to cause the issue, as the server passes POST, the CPU and RAM are seated correctly, the BIOS settings are correct, and the OS loads from a bootable USB drive. RAID 5 does not require four drives, it can work with three or more. References: https://www.technewstoday.com/what-is-a-raid-5/

Two-person integrity is a security measure that can be implemented to increase security against a potential insider threat on an air-gapped system. An air-gapped system is a system that is isolated from any network connection and can only be accessed physically. An insider threat is a malicious actor who has authorized access to an organization’s system or data and uses it for unauthorized or harmful purposes. Two-person integrity is a system of storage and handling that requires the presence of at least two authorized persons, each capable of detecting incorrect or unauthorized security procedures, for accessing certain sensitive data or material. This way, no single person can compromise the security or integrity of the data or material without being noticed by another person. SSO (Single Sign-On) is a feature that allows users to access multiple applications or systems with one set of credentials, but it does not prevent insider threats. SIEM (Security Information and Event Management) is a tool that collects and analyzes log data from various sources to detect and respond to security incidents, but it does not work on air-gapped systems. A Faraday cage is a structure that blocks electromagnetic signals from entering or leaving, but it does not prevent physical access or insider threats. MFA (Multi-Factor Authentication) is a method that requires users to provide two or more pieces of evidence to verify their identity, such as something they know, something they have, or something they are, but it does not prevent insider threats. References: https://www.howtogeek.com/169080/air-gap-how-to-isolate-a-computer-to-protect-it-from-hackers / https://www.howtogeek.com/428483/what-is-end-to-end-encryption-and-why-does-it-matter/ https://www.howtogeek.com/202794/what-is-the-difference-between-127.0.0.1-and-0.0.0.0/ https://www.howtogeek.com/443611/how-to-encrypt-your-macs-system-drive-removable-devices-and-individual-files/

The technician should use port 22 to configure a server that requires secure remote access. Port 22 is the default port for Secure Shell (SSH), which is a protocol that allows secure remote login and command execution over a network connection using a command-line interface (CLI). SSH encrypts both the authentication and data transmission between the client and the server, preventing eavesdropping, tampering, or spoofing. SSH can be used to perform various tasks on a server remotely, such as configuration, administration, maintenance, troubleshooting, etc.

The best immediate actions to prevent unauthorized server access are to stop all unneeded services and block the ports on the firewall. Stopping unneeded services reduces the attack surface of the server by eliminating potential entry points for attackers. For example, if the server is not functioning as a web server, there is no need to run a web service on port 80. Blocking ports on the firewall prevents unauthorized network traffic from reaching the server. For example, if port 80 is not needed for any legitimate purpose, it can be blocked on the firewall to deny any connection attempts on that port.

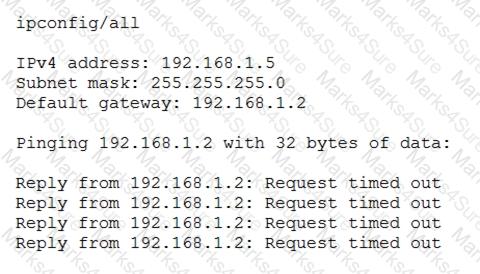

The reason why the Linux server is not communicating on a network is that it is configured to use DHCP on a network that does not have a DHCP server. DHCP (Dynamic Host Configuration Protocol) is a protocol that allows a client device to obtain an IP address and other network configuration parameters from a DHCP server automatically. However, if there is no DHCP server on the network, the client device will not be able to obtain a valid IP address and will assign itself a link-local address instead. A link-local address is an IP address that is only valid within a local network segment and cannot be used for communication outside of it. A link-local address has a prefix of 169.254/16 in IPv4 or fe80::/10 in IPv6. In this case, the Linux server has assigned itself a link-local address of 127.0.0.1, which is also known as the loopback address. The loopback address is used for testing and troubleshooting purposes and refers to the device itself. It cannot be used for communication with other devices on the network.

A misconfigured NIC on the server is the most likely reason for the lack of network connectivity. The output of the ping command shows that the server is unable to reach its default gateway (10.0.0.1) or any other IP address on the network. The output of the ipconfig command shows that the server has a valid IP address (10.0.0.10) and subnet mask (255.255.255.0) but no default gateway configured. This indicates that there is a problem with the NIC settings on the server, such as an incorrect IP address, subnet mask, default gateway, DNS server, etc. A misconfigured NIC can also cause an amber link light on the switch port, which indicates a speed or duplex mismatch between the NIC and the switch.

An IDRAC (Integrated Dell Remote Access Controller) is a tool that can be used to command a remote shutdown of a physical Linux server. An IDRAC is a hardware device that provides out-of-band management for Dell servers. It allows the technician to access the server’s console, power cycle, reboot, or shut down the server remotely using a web interface or a command-line interface. An IDRAC does not depend on the operating system or network connectivity of the server. A virtual serial console is a tool that can be used to access a remote virtual machine’s console using a serial port connection. A KVM (Keyboard, Video, Mouse) switch is a device that allows the technician to switch between different computer sources using the same keyboard, monitor, and mouse. A crash cart is a mobile unit that contains a keyboard, monitor, mouse, and other tools that can be connected to a physical server for troubleshooting purposes. References: https://www.dell.com/support/kbdoc/en-us/000131486/understanding-the-idrac https://w ww.howtogeek.com/799968/what-is-a-kvm-switch/ https://www.techopedia.com/definition/1032/business-impact-analysis-bia

The best course of action for the company is to upgrade the application package to fix the known vulnerability. A vulnerability is a weakness or flaw in an application that can be exploited by an attacker to compromise the security or functionality of the system. Upgrading the application package means installing a newer version of the application that has patched or resolved the vulnerability. This way, the company can prevent potential attacks that may exploit the vulnerability and cause damage or loss.

The server administrator needs to adhere to the Service Level Agreement (SLA) when responding to tickets within a certain amount of time. An SLA is a contract between a service provider and a customer that defines the quality, availability, and responsibilities of the service. An SLA may specify the response time for tickets, as well as other metrics such as uptime, performance, security, and backup frequency. Reference: https://www.ibm.com/cloud/learn/service-level-agreements

The administrator should use an IP KVM to access the server’s console remotely for bare-metal maintenance. An IP KVM stands for Internet Protocol Keyboard Video Mouse, which is a device that allows remote control of a server’s keyboard, video, and mouse over a network connection, such as LAN or Internet. An IP KVM enables an administrator to perform tasks such as BIOS configuration, boot sequence selection, operating system installation, etc., without being physically present at the server location.

The other options are not suitable for bare-metal maintenance because they require either physical access to the server (a crash cart) or an operating system running on the server (VNC, RDP, SSH). A crash cart is a mobile unit that contains a monitor, keyboard, mouse, and cables that can be plugged into a server for direct access to its console. VNC stands for Virtual Network Computing, which is a software that allows remote desktop sharing and control over a network connection using a graphical user interface (GUI). RDP stands for Remote Desktop Protocol, which is a protocol that allows remote desktop access and control over a network connection using a GUI or command-line interface (CLI). SSH stands for Secure Shell, which is a protocol that allows secure remote login and command execution over a network connection using a CLI.

The concept of right to downgrade allows a previous version of an OS to be installed and covered by the same license as the newer version. For example, if a customer has a license for Windows 10 Pro, they can choose to install Windows 8.1 Pro or Windows 7 Professional instead and still be compliant with the license terms. Downgrade rights are granted by Microsoft for certain products and programs, such as Windows and Windows Server software acquired through Commercial Licensing, OEM, or retail channels. Downgrade rights are intended to provide customers with flexibility and compatibility when using Microsoft software.

The write cache is a feature of some RAID controllers that allows them to temporarily store data in a fast memory buffer before writing it to the disk drives. This improves the performance and efficiency of write operations, especially for random and small writes. However, if the battery on the controller goes bad, the controller may disable the write cache to prevent data loss in case of a power failure. This can degrade the disk drive performance significantly, as every write operation will have to wait for the disk drives to complete. References: https://www.dell.com/support/kbdoc/en-us/000131486/understanding-raid-controller-battery-learn-cycle https://www.techrepublic.com/article/understanding-raid-controller-write-cache/

This is the best action to perform before applying patches to one of the hosts in a high availability cluster. A high availability cluster is a group of hosts that act like a single system and provide continuous uptime. A high availability cluster is often used for load balancing, backup, and failover purposes. Failover is a process of transferring workloads from one host to another in case of a failure or maintenance. By failing over all VMs (Virtual Machines) from the host that needs to be patched to another host in the cluster, the technician can ensure that there is no downtime or data loss during the patching process. Disabling the heartbeat network is not a good action to perform, as this would disrupt the communication and synchronization between the hosts in the cluster. Fallback cluster services is not a valid term, but it may refer to restoring cluster services after a failover, which is not relevant before applying patches. Setting the cluster to active-active is not a good action to perform, as this would increase the load on both hosts and reduce redundancy. References: https://www.howtogeek.com/190014/virtualization-basics-understanding-techniques-and-fundamentals/ https://www.howtogeek.com/428483/what-is-end-to-end-encryption -and-why-does-it-matter/

The next action that the administrator should take once the rebuild is finished is to swap the drive and initialize the disk. This is to replace the faulty disk that has a solid amber light, which indicates a predictive failure or a SMART error. Initializing the disk will prepare it for use by the RAID controller and add it to the array. The administrator should also monitor the array status and performance after swapping the drive. Reference: https://www.salvagedata.com/how-to-rebuild-a-failed-raid/

Cloning the original VM is the most efficient way to provide a VM with high availability. Cloning is the process of creating an exact copy of a VM, including its configuration, operating system, applications, and data. A cloned VM can be used as a backup or a replica of the original VM, and can be powered on and run independently. Cloning can be done quickly and easily using vSphere tools or other third-party software. By cloning the original VM and placing it on a different host server or availability zone, the technician can ensure that if the original VM fails, the cloned VM can take over its role and provide uninterrupted service to the users and applications.

Data at rest refers to data that is stored in a persistent state on any device or media, such as hard drives, tapes, or cloud storage. Data at rest does not move for long periods of time unless it is accessed or modified by authorized users or applications. A cold site (A) is a backup location that has minimal or no equipment and resources to resume business operations in case of a disaster. On-site retention © is a policy of keeping backup data on premises for a certain period of time before transferring it to an off-site location. Off-site storage (D) is a method of storing backup data in a remote location that is physically or logically separated from the primary site. References: https://docs.microsoft.com/en-us/azure/security/fundamentals/encryption-atrest https://www.techopedia.com/definition/144/cold-site https://www.enterprisestorageforum.com/backup/onsite-offsite-backup.html https://www.techopedia.com/definition/24195/offsite-storage

The most appropriate native protocol to use for connecting a Linux server to a share on a NAS is NFS. NFS (Network File System) is a protocol that allows file sharing and remote access over a network. NFS is designed for Unix-like operating systems, such as Linux, and supports features such as symbolic links, hard links, file locking, and file permissions. NFS uses mount points to attach remote file systems to local file systems, making them appear as if they are part of the local file system. NFS can provide fast and reliable access to files stored on a NAS (Network Attached Storage), which is a device that provides centralized storage for network devices.

Constant replication is a type of replication in which all files are replicated, all the time. Replication is a process of copying data from one location to another for backup, recovery, or distribution purposes. Constant replication is also known as real-time replication or synchronous replication. It ensures that any changes made to the source data are immediately reflected on the target data without any delay or lag. Constant replication provides high availability and consistency, but it requires high bandwidth and low latency. Application consistent replication is a type of replication that ensures that the replicated data is consistent with the state of the application that uses it. It involves quiescing or pausing the application before taking a snapshot of the data and resuming the application after the snapshot is taken. Application consistent replication provides better recovery point objectives than crash consistent replication, which does not quiesce the application before taking a snapshot. Synthetic full replication is a type of replication that involves creating a new full backup by using the previous full backup and related incremental backups. It reduces the backup window and network bandwidth consumption by transferring only changed data from the source to the target. Full replication is a type of replication that involves copying all data from the source to the target regardless of whether it has changed or not. It provides a complete backup of the data, but it requires more storage space and network bandwidth than incremental or differential replication. References: https://www.howtogeek.com/199068/how-to-upgrade-your-existing-hard-drive-in-under-an-hour/ https://www.howtogeek.com/202794/what-is-the-difference-between-127.0.0.1-and-0.0.0.0/ https://www.howtogeek.com/443611/how-to-encrypt-your-macs-system-drive-removable-devices-and-individual-files/

The DR testing scenario that is described as verbally walking through each step of the DR plan in the context of a meeting is tabletop. A tabletop test is a type of disaster recovery (DR) test that involves discussing and reviewing the DR plan with key stakeholders and participants in a simulated scenario. A tabletop test does not involve any actual execution of the DR plan or any disruption of the normal operations. A tabletop test can help identify gaps, issues, or inconsistencies in the DR plan and improve communication and coordination among the DR team members.

The methods that would allow the administrator to perform maintenance on all 12 servers without having to physically be at each server are remote desktop and IP KVM. Remote desktop is a feature that allows a user to access and control another computer over a network using a graphical user interface (GUI). Remote desktop can enable remote administration, troubleshooting, and maintenance of servers without requiring physical presence at the server location. IP KVM (Internet Protocol Keyboard Video Mouse) is a device that allows a user to access and control multiple servers over a network using a single keyboard, monitor, and mouse. IP KVM can provide remote access to servers regardless of their operating system or power state, and can also support virtual media and serial console functions.

A synthetic full backup is a backup method that describes copying only changed files each time it runs and using only a single file during a restore. A synthetic full backup is a backup approach that involves creating a new full backup by using the previous full backup and related incremental backups. This means that a backup solution does not have to transfer the full amount of data from the source machine and can synthetize the latest incremental backups with the last full backup to create a new full backup. This reduces the backup window and network bandwidth consumption. During a restore, only the latest synthetic full backup file is needed to recover the data. Open file backup is a backup method that allows backing up files that are in use or locked by applications. Full incremental backup is a backup method that involves performing a full backup first and then backing up only the changed files since the last backup. Full differential backup is a backup method that involves performing a full backup first and then backing up only the changed files since the last full backup. References: https://www.nakivo.com/blog/what-is-synthetic- backup/ https://www.howtogeek.com/192115/what-you-need-to-know -about-creating-system-image-backups/

#! is the symbol that should be placed at the top of a Bash script to ensure it can be executed. #! is also known as shebang or hashbang. It is a special notation that tells the operating system which interpreter to use to run the script. The shebang is followed by the path to the interpreter, such as /bin/bash for Bash, /bin/python for Python, or /bin/perl for Perl. For example, a Bash script that prints “Hello World” would start with:

#!/bin/bash echo “Hello World”

The shebang must be the first line of the script and must not have any spaces between the # and ! symbols. bash is not a valid shebang by itself, as it does not specify the path to the interpreter. !execute is not a valid shebang at all, as it does not start with #. @echo off is a command that disables the echoing of commands in a batch file on Windows, but it has nothing to do with Bash scripts on Linux. References: https://www.howtogeek.com/67469/the-beginners-guide-to-shell-scripting-the-basics/ https:// www.howtogeek.com/435903/what-is-a-shebang-line/

The connection type that the server administrator is using to access the server remotely is out-of-band management. Out-of-band management is a method of accessing and controlling a server through a dedicated network interface or port that is separate from the regular data network. Out-of-band management allows administrators to perform tasks such as rebooting, configuring, troubleshooting, or updating a server even if the server is offline or unresponsive through the regular network. Out-of-band management can use protocols such as IPMI, iLO, DRAC, or BMC. Reference: https://www.ibm.com/cloud/learn/out-of-band-management

The server type that would benefit most from the use of a load balancer is web server. A web server is a server that hosts web applications or websites and responds to requests from web browsers or clients. A load balancer is a device or software that distributes network traffic across multiple servers based on various criteria, such as availability, capacity, or performance. A load balancer can improve the scalability, reliability, and performance of web servers by balancing the workload and preventing any single server from being overloaded or unavailable.

These are two measures that should be taken when a data breach occurs. A data breach is an unauthorized or illegal access to confidential or sensitive data by an internal or external actor. A data breach can result in financial losses, reputational damage, legal liabilities, and regulatory penalties for the affected organization. Disclosing the incident is a measure that involves informing the relevant stakeholders, such as customers, employees, partners, regulators, and law enforcement, about the nature, scope, and impact of the data breach. Disclosing the incident can help to mitigate the negative consequences of the data breach, comply with legal obligations, and restore trust and confidence. Identifying the exploited vulnerability is a measure that involves investigating and analyzing the root cause and source of the data breach. Identifying the exploited vulnerability can help to prevent further data loss, remediate the security gaps, and improve the security posture of the organization. Restoring the data from backup is a measure that involves recovering the lost or corrupted data from a secondary storage device or location. However, this does not address the underlying issue of how the data breach occurred or prevent future breaches. Disabling unnecessary ports is a measure that involves closing or blocking network communication endpoints that are not required for legitimate purposes. However, this does not address how the data breach occurred or what vulnerability was exploited. Running an antivirus scan is a measure that involves detecting and removing malicious software from a system or network. However, this does not address how the data breach occurred or what vulnerability was exploited. Moving the data to a different location is a measure that involves transferring the data to another storage device or location that may be more secure or less accessible. However, this does not address how the data breach occurred or what vulnerability was exploited. References: https://www.howtogeek.com /428483/what-is-end-to-end-encryption-and-why-does-it-matter/ https://www.howtogeek.com/202794/what-is-the-difference-between-127.0.0.1-and-0.0.0.0/ https://www.howtogeek.com/443611/how-to-encrypt-your-macs-system-drive-removable-devices-and-individual-files/

 A snapshot is a feature that can be used in hypervisors to restore to a previous version. A snapshot is a point-in-time copy of a virtual machine (VM) that captures the state and data of the VM at a specific moment. A snapshot can be created instantly and with minimal overhead, as it only stores the changes made to the VM after the snapshot was taken. A snapshot can be used to restore the VM to its previous state in case of data loss or corruption.

A core installation is a type of installation method that is best suited to meet the company policy that states no one is to log in directly to the server. A core installation is a minimal installation option that is available when deploying some editions of Windows Server. A core installation includes most but not all server roles and features, but does not include a graphical user interface (GUI). A core installation can only be managed remotely using command-line tools such as PowerShell or Windows Admin Center, or using graphical tools such as Server Manager or Remote Desktop from another computer. This reduces the attack surface, resource consumption, and maintenance requirements of the server. A GUI installation is a type of installation method that includes a graphical user interface (GUI) and allows local or remote management using graphical tools or command-line tools. A virtualized installation is a type of installation method that involves creating and running one or more virtual machines on a physical host using a hypervisor such as Hyper-V or VMware. A clone installation is a type of installation method that involves creating an exact copy of an existing server’s configuration and data on another server using tools such as Sysprep or Clonezilla. References: https://www.howtogeek.com/67469/the-beginners-guide-to-shell-scripting-the-basics/ https://www.howtogeek.com/443611/how-to-encrypt-your-macs-system-drive-removable-devices-and-individual-files/ https://www.howtogeek.com/199068/how-t o-upgrade-your-existing-hard-drive-in-under-an-hour/

The next thing that the technician should do, given the disk is hot swappable, is to replace the disk. A hot swappable disk is a disk that can be removed and replaced without shutting down the system or affecting its operation. A hot swappable disk is typically used in a storage array that has RAID (Redundant Array of Independent Disks) configuration that provides fault tolerance and redundancy. If a disk fails in a RAID array, it can be replaced by a new disk without interrupting the service or losing any data. The new disk will automatically rebuild itself using the data from the other disks in the array.

The best way to ensure that there is a more direct relationship between the number of users using the server and the amount of space that might be used is to implement disk quotas. Disk quotas are a feature that allows a server administrator to limit the amount of disk space that each user or group can use on a file server. Disk quotas can help manage storage utilization, prevent disk space exhaustion, and enforce fair usage policies. Disk quotas can also provide reports and alerts on disk space usage and quota status.

Out-of-band console is a tool that can be used to command a remote shutdown of a physical Linux server. Out-of-band console is a method of accessing a server’s console through a dedicated management port or device that does not rely on the server’s operating system or network connection. Out-of-band console can be used to power cycle, reboot, update firmware, monitor performance, and perform other tasks remotely even if the server is unresponsive or offline. Crash cart is a mobile unit that contains a keyboard, monitor, mouse, and other tools that can be used to troubleshoot a server on-site, but it requires physical access to the server. IP KVM (Internet Protocol Keyboard Video Mouse) switch is a hardware device that allows remote access to multiple servers using a web browser or a client software, but it requires network connectivity and may not work if the SSH connection is lost. RDP (Remote Desktop Protocol) is a protocol that allows remote access to a Windows server’s graphical user interface, but it does not work on Linux servers and requires network connectivity. References: https://www.techopedia.com/definition/13623/crash-cart https://www.techopedia.com/definition/13624/kvm-switch https://www.techopedia.com/defini tion/3422/remote-desktop-protocol-rdp

The most likely solution to resolve the issue of the server crashing after running normally for approximately five minutes is to reinstall the heat sink with new thermal paste. A heat sink is a device that dissipates heat from a component, such as a processor or a graphics card, by transferring it to a cooling medium, such as air or liquid. A heat sink is usually attached to the component using thermal paste, which is a substance that fills the gaps between the heat sink and the component and improves thermal conductivity. Thermal paste can degrade over time and lose its effectiveness, resulting in overheating and performance issues. If a server crashes after running for a short period of time, it may indicate that the processor is overheating due to insufficient cooling. To resolve this issue, the technician should remove the heat sink, clean the old thermal paste, apply new thermal paste, and reinstall the heat sink.

The most efficient subnet address for a network that will have no more than 30 available IP addresses is 255.255.255.224. This subnet mask corresponds to a /27 prefix length, which means that 27 bits are used for the network portion and 5 bits are used for the host portion of an IP address. With 5 bits for hosts, there are 2^5 - 2 = 30 possible host addresses per subnet, which meets the requirement. The other options are either too large or too small for the network size. Reference: https://www.ibm.com/c loud/learn/subnet-mask

The next thing that the technician should perform is to enable the port on the server. A port is a logical endpoint that identifies a specific service or application on a network device. A port can be enabled or disabled depending on whether the service or application is running or not. If a port is disabled on a server, it means that the server cannot send or receive any network traffic on that port, which can prevent communication with other devices or services that use that port. In this case, if port 389 is disabled on the server, it means that the server cannot use LDAP to access or modify directory services over a network. To resolve this issue, the technician should enable port 389 on the server using commands such as netsh or iptables.

The Recovery Point Objective (RPO) refers to the maximum tolerable period in which data might be lost from an IT service due to a major incident. The policy mentioned in the question highlights that data loss exceeding one hour is unacceptable, directly relating to the RPO concept. RPO is critical in disaster recovery and business continuity planning, indicating the age of the files that must be recovered from backup storage for normal operations to resume without significant losses. MTTR (Mean Time To Repair), RTO (Recovery Time Objective), and MTBF (Mean Time Between Failures) are related concepts but do not specifically address the amount of data loss that can be tolerated.

Comprehensive Detailed Explanation with all CompTIA Server+ SK0-005 Study Guide References:If the fans are running at full speed, it may indicate that the CPU or system temperature is too high. This is often caused by a poorly attached or improperly seated heat sink, which prevents efficient heat dissipation. Reattaching the heat sink with proper thermal paste resolves the issue.

A. Replace the PSU: Not relevant to temperature control.

B. Reseat the video card: Would not affect fan speed unless a GPU temperature issue exists, which is not stated here.

C. Reseat the RAM: Unrelated to fan operation.

The most likely reasons why the technician is unable to access a server’s package repository internally or externally are that the external firewall is blocking access and that the default gateway is incorrect. A package repository is a source of software packages that can be installed or updated on a server using a package manager tool. A package repository can be accessed over a network using a URL or an IP address. However, if there are any network issues or misconfigurations, the access to the package repository can be blocked or failed. An external firewall is a device or software that controls the incoming and outgoing network traffic based on predefined rules or policies. An external firewall can block access to a package repository if it does not allow traffic on certain ports or protocols that are used by the package manager tool. A default gateway is a device or address that routes network traffic from one network to another network. A default gateway can be incorrect if it does not match the actual device or address that connects the server’s network to other networks, such as the internet. An incorrect default gateway can prevent the server from reaching the package repository over other networks. QUESTION NO: 63 Correct Answer: A Explanation: The RAID level that provides the highest possible capacity for a storage array is RAID 0. RAID 0 is a type of RAID level that provides performance enhancement by using striping. Striping means dividing data into blocks and distributing them across multiple disks to increase speed and capacity. RAID 0 does not provide any fault tolerance or redundancy, as it does not use any parity or mirroring techniques. RAID 0 uses all of the available disk space for data storage, without losing any space for overhead. Therefore, RAID 0 provides the highest possible capacity for a storage array, but also has the highest risk of data loss.

RAID 10 is the best option to deploy a database server that provides the highest performance with fault tolerance. RAID 10 is a type of RAID level that combines RAID 1 (mirroring) and RAID 0 (striping) to create an array of mirrored stripes. RAID 10 offers high performance by distributing data across multiple disks in parallel (striping), which improves read/write speed and I/O operations. RAID 10 also offers fault tolerance by duplicating data across two or more disks in each stripe (mirroring), which provides redundancy and data protection in case of disk failure. RAID 10 requires at least four disks to implement and has a high storage overhead, as half of the disk space is used for mirroring. References: [CompTIA Server+ Certification Exam Objectives]

Driver updates should be applied to the new components that have been added to a mission-critical server, as part of the server hardening requirements. Drivers are software programs that enable the communication and functionality of hardware devices, such as network cards, storage controllers, or graphics cards. Updating drivers can improve the performance, compatibility, and stability of the new components with the server operating system and applications. References: CompTIA Server+ Certification Exam Objectives, Domain 2.0: Hardware, Objective 2.2: Given a scenario, install, configure and maintain server components.

A subscription license is a type of license that grants the user the right to use a product or service for a fixed period of time, usually a year. The user pays a recurring fee, regardless of how much they use the product or service. Subscription licenses are common for cloud-based software and services, such as Microsoft 3651 or DocuSign2.

References = 1: Compare All Microsoft 365 Plans (Formerly Office 365) - Microsoft Store(https://www.microsoft.com/en-us/microsoft-365/buy/compare-all-microsoft-365-products) 2: DocuSign Pricing | eSignature Plans for Personal & Business(https://ecom.docusign.com/plans-and-pricing/esignature)

Comprehensive Detailed Explanation with all CompTIA Server+ SK0-005 Study Guide References:Event logs are the primary source for tracking server reboots and other system events. Logs such as the system log in Linux (/var/log/syslog or /var/log/messages) or the Event Viewer in Windows provide timestamps and details about shutdowns, restarts, and boot processes. Regular monitoring ensures that unplanned reboots or system errors are identified and addressed.

Uptime: Indicates how long the server has been running since the last reboot but does not provide detailed reboot evidence.

IOPS: Refers to input/output operations per second, unrelated to reboots.

CPU utilization: Reflects processor activity but offers no reboot evidence.

The next step to troubleshoot the issue after developing and testing a theory is to establish an action plan. This involves identifying the steps needed to implement the solution, estimating the time and resources required, and evaluating the potential risks and impacts of the solution. Documenting the findings and actions, escalating the issue to the management team, or implementing the solution are steps that should be done after establishing an action plan. References: [CompTIA Server+ Certification Exam Objectives], Domain 6.0: Disaster Recovery, Objective 6.2: Explain troubleshooting theory and methodologies.

Before decommissioning and wiping a file server, it's crucial to verify the asset management documentation. This documentation provides detailed records of the server's lifecycle, including procurement, usage, maintenance, and decommissioning information. Ensuring that asset management documentation is up-to-date and accurate is essential before proceeding with the server's decommissioning to maintain proper inventory control, comply with regulatory and organizational policies, and facilitate any potential audits. While the media destruction method, recycling policy, and document retention policy are important considerations in the decommissioning process, verifying asset management documentation is the first step to ensure the server is correctly identified and accounted for in the organization's asset registry.

HIDS (Host Intrusion Detection System): Continuously monitors a system for suspicious activity and logs or raises alerts when potential threats are identified. This proactive approach is crucial for identifying and mitigating threats on a web server exposed to the external network.

Applying OS updates: While essential for maintaining system security, updates address vulnerabilities and may not necessarily identify ongoing threats.

Disabling unused services: Reduces the attack surface by minimizing potential entry points for malicious actors, but doesn't actively identify threats.

Installing anti-malware: Primarily designed to detect and remove malware after infection, not for ongoing threat identification.

References:

CompTIA Server+ Objectives (Exam codes SK0-004 or SK0-005): Search for sections on intrusion detection and prevention.

Comprehensive Detailed Explanation with all CompTIA Server+ SK0-005 Study Guide References:The fs> prompt typically indicates that the Unified Extensible Firmware Interface (UEFI) has entered the EFI shell due to a failure in locating the bootloader or a critical Linux boot file. This often occurs after an update where boot files are moved, renamed, or deleted. To resolve:

Verify the bootloader configuration (e.g., GRUB) and ensure the correct partition is set for booting.

Recreate or repair the bootloader files if necessary.

Ensure the boot sequence in UEFI settings points to the correct disk and partition.

Other options:

A. USB flash drive booting: Unlikely unless the boot order was unintentionally altered.

C. BIOS not finding a bootable hard disk: Would generally result in a different error message.

D. BIOS firmware upgrade: Not typically required for this specific issue.

The server’s local storage is experiencing problems. Only two out of four drives are found, and an additional hard drive connects and disconnects randomly.

Likely Cause: The most probable cause is a faulty power supply (Option B). Here’s why:

When a power supply is failing or not providing sufficient power, it can lead to intermittent connectivity issues with drives.

Drives may not be recognized during boot or may disconnect randomly due to power fluctuations.

RAM, CPU, and cooling failures typically result in different symptoms (e.g., blue screens, system instability, or overheating), which do not match the described issue.

TFTP (Trivial File Transfer Protocol) is a simple and lightweight protocol that can be used to transfer files over a network. TFTP is often used to upgrade firmware or software on network devices, such as routers, switches, or servers. TFTP can also be used to install a Type 1 hypervisor, such as VMware ESXi, on multiple hosts simultaneously12.

References = 1: How to Install VMware ESXi Type 1 Hypervisor - MatthewEaton.net(https://mattheweaton.net/posts/how-to-install-vmware-esxi-type-1-hypervisor/) 2: Explore Type 1 Hypervisors - Set Up Virtual Machines Using VirtualBox and vSphere - OpenClassrooms(https://openclassrooms.com/en/courses/7163136-set-up-virtual-machines-using-virtualbox-and-vsphere/7358546-explore-type-1-hypervisors)

A sniffer (also known as a packet analyzer) is a tool that captures and inspects data packets traveling across the network. In this case, using a sniffer would help identify suspicious or malicious redirection of traffic, possibly caused by a man-in-the-middle attack, DNS hijacking, or malware.

Sniffer (Answer D): This tool will allow the senior administrator to inspect the network traffic and identify if and how requests to the anti-malware website are being intercepted or redirected.

Data loss prevention (Option A): DLP tools focus on preventing data leakage rather than analyzing traffic redirection.

File integrity monitor (Option B): This checks for unauthorized changes to files, which may not directly address network traffic redirection.

Port scanner (Option C): A port scanner would only identify open ports on devices, which is unrelated to the redirection issue.

CompTIA Server+ Reference:This topic is addressed under SK0-005 Objective 4.2: Explain server roles and their purposes.

The goal is to achieve 2TB total storage, high performance, and support for one drive failure. Using RAID 5 or RAID 10 can provide redundancy while maximizing performance.

1, 2, 4, 5, and 6 (Answer C): This selection includes the highest-capacity and highest-performance drives (600GB and 500GB at high RPM speeds). Using these drives will provide the necessary capacity (500GB + 600GB + 500GB + 600GB + 600GB = 2.8TB) and performance with one drive redundancy (RAID 5 or 10).

Other options (A, B, D): These combinations either lack the necessary capacity or mix slower drives (7,200rpm), reducing overall performance.

CompTIA Server+ Reference:This topic is covered under SK0-005 Objective 1.5: Explain storage technologies and RAID configurations.

Tabletop testing is a method of reviewing a DR plan without endangering company data and with a minimal time commitment. Tabletop testing involves a simulated scenario where the participants discuss their roles and responsibilities, identify potential issues, and evaluate the effectiveness of the plan. Simulated, live, and non-production testing are methods that involve more time and resources, and may pose some risks to company data. References: [CompTIA Server+ Certification Exam Objectives], Domain 6.0: Disaster Recovery, Objective 6.3: Compare and contrast various backup techniques.

When configuring a server rack, it's important to consider:

A. Floor load limitations: Server racks can be extremely heavy, especially when filled with equipment like blade servers. It is crucial to ensure that the floor can handle the load to avoid structural damage or failure.

B. Rack balancing: Properly distributing the weight in a server rack is important for stability. Heavier equipment should generally be placed at the bottom to prevent the rack from becoming top-heavy and risking a tip-over.

C. Proper lifting techniques: Using correct lifting techniques when placing servers into a rack is vital to prevent personal injury.

Scenario: Migrating a stand-alone application storing PII to the cloud.

Data to Encrypt: Data at rest (Option B) should be encrypted:

Data in transit (Option A) and backups (Option C) are also important but not the primary concern here.

Data archives (Option D) may or may not contain sensitive data.

Uplink redundancy is a method used to ensure that if one physical network interface card (NIC) fails, the network connectivity for the virtual machines (VMs) does not go down. This is typically achieved by configuring multiple NICs to connect to a single virtual switch (vSwitch) and setting up NIC teaming or bonding. The vSwitch manages the internal network traffic between the VMs and the outside network by using the physical NICs assigned to it. By configuring the vSwitch with multiple NICs, you can create redundancy, so if one NIC fails, the other NICs can take over the traffic, ensuring continuous network connectivity.

Comprehensive Detailed Explanation with all CompTIA Server+ SK0-005 Study Guide References:Scripting is commonly used to automate repetitive step-by-step tasks in server management, such as:

Automating system configurations.

Running maintenance jobs like backups or log file cleanup.

Performing administrative tasks like provisioning new users or setting permissions.

This automation improves efficiency and reduces the likelihood of human error. Referencing the SK0-005 guide, scripting is a best practice for simplifying tasks that involve consistent, repeatable processes.

An emergency change request is a type of change management activity that is used to address urgent issues that pose a significant risk to the organization, such as a system breach. An emergency change request requires immediate action and approval, and it may bypass some of the normal change management procedures, such as testing, documentation, or stakeholder communication12.

References = 1: Change Management Plans: A Definitive Guide - Indeed(https://www.indeed.com/career-advice/career-development/change-management-activities) 2: The 10 Best Change Management Activities - Connecteam(https://connecteam.com/top-10-change-management-activities/)

QSFP+ (Quad Small Form-Factor Pluggable Plus): This transceiver type is designed specifically to handle 40Gbps network speeds. QSFP+ connectors are hot-swappable and support various cable types, including fiber optic and copper (DAC).

10GigE: While a valid network technology, 10GigE only supports up to 10Gbps, not the required 40Gbps.

SFP (Small Form-factor Pluggable): A common transceiver type, but the standard SFP only supports a maximum of 1Gbps.

SFP+ (Enhanced Small Form-factor Pluggable): Supports up to 10Gbps, not sufficient for 40Gbps in this scenario.

References:

CompTIA Server+ Objectives (Exam codes SK0-004 or SK0-005): Search for sections on networking standards and transceiver types.

In a situation where a server reboots randomly, the first step should be to check for any issues with the power supply. Random reboots can often be caused by intermittent power supply issues, which can be due to faulty power cables, loose connections, or problems with the power source itself. This is especially pertinent in environments like a paper mill where dust and debris might affect cable integrity. Since the issue occurs every other day and at random times, it's less likely to be caused by components that would typically fail due to overheating or other gradual issues (like RAM or CPU heat sink problems). Therefore, checking the power cables is the simplest and most direct first step to troubleshoot the issue.

When a virtual server crashes and presents a Purple Screen of Death (PSOD), the immediate response should be to document the incident. Collecting a screenshot of the PSOD is crucial as it contains error codes and state information that can be used for diagnosing the root cause of the crash. Noting the details, especially those that come after the line detailing the OS version, can provide specific clues to what might have caused the server to crash. This is a standard best practice before rebooting the server, as it ensures that there is a record of the event to investigate and potentially prevent future occurrences. A hard reboot should only be done after this critical information has been recorded.

Drives, fans, and power supplies are server components that can most commonly be replaced without downtime if they are hot-swappable. Hot-swappable components can be removed and inserted while the server is running, without affecting its operation or performance. Drives store data and applications, fans cool down the server components, and power supplies provide electricity to the server. Replacing these components can prevent data loss, overheating, or power failure. References: CompTIA Server+ Certification Exam Objectives, Domain 2.0: Hardware, Objective 2.2: Given a scenario, install, configure and maintain server components.

Enabling a UEFI (Unified Extensible Firmware Interface) password prevents unauthorized users from making changes to the server's hardware configuration settings, such as boot order or device settings. This is crucial for protecting the integrity of the server at a remote location where physical security might be more difficult to enforce.

UEFI password (Answer B): It provides security at the firmware level, preventing changes to low-level configurations unless the correct password is provided.

Administrator account (Option A): While important for OS-level access, it doesn't prevent someone with physical access from altering hardware settings via UEFI/BIOS.

Disabling WOL (Option C): Wake-on-LAN (WOL) allows a device to be powered on remotely. Disabling it can help with security but does not prevent hardware configuration changes.

Encryption at rest (Option D): Encryption protects data on the server but does not prevent hardware configuration access.

CompTIA Server+ Reference:This topic is covered under SK0-005 Objective 2.1: Install and configure server operating systems.

A full backup captures all data, regardless of whether it has changed since the last backup. This ensures that a complete copy of the data is made every time.

Full (Answer E): A full backup includes every file in the system, regardless of changes.

Incremental (Option A): Backs up only files that have changed since the last backup (full or incremental).

Differential (Option B): Backs up all files changed since the last full backup.

Archive (Option C): Typically refers to long-term storage of data, not a type of backup process.

Snapshot (Option D): Captures the system's state at a given point in time, often used in virtual environments.

CompTIA Server+ Reference:This topic is related to SK0-005 Objective 4.1: Summarize backup methods.

A crash cart is the best low-cost option to connect to any server while on site in a data center with multiple server racks. A crash cart is a mobile unit that contains a monitor, a keyboard, a mouse, and cables that can be plugged into any server for direct access and control. A crash cart can be used for troubleshooting, maintenance, or configuration of servers without requiring remote access or network connectivity. A crash cart is also easy to move around and store in a data center. References: [CompTIA Server+ Certification Exam Objectives], Domain 2.0: Hardware, Objective 2.4: Given a scenario involving server management issues (e.g., remote access), troubleshoot using appropriate tools.

Resource Monitor is a tool that allows administrators to monitor the system's CPU, memory, disk, and network usage in real-time, ensuring that maximum resources are being efficiently utilized.

Resource Monitor (Answer D): This tool provides real-time insights into resource utilization and can help ensure resources are not under- or over-utilized.

Overprovisioning (Option A): Refers to allocating more resources than physically available but doesn't directly monitor resource usage.

Scalability (Option B): Refers to the ability to increase or decrease resources based on demand.

Thin clients (Option C): Refer to lightweight computers that depend on servers for processing power, unrelated to resource utilization monitoring.

CompTIA Server+ Reference:This topic is related to SK0-005 Objective 2.4: Monitor server performance.

Comprehensive Detailed Explanation with all CompTIA Server+ SK0-005 Study Guide References:A BIOS password restricts access to the motherboard's firmware settings and can prevent unauthorized users from altering critical system configurations, such as boot sequence or hardware settings.

Biometric lock is a physical security feature but does not restrict access to motherboard software directly.

Data-at-rest encryption protects data stored on the system's hard drives but does not secure the BIOS or firmware.

Bootloader authentication ensures that the operating system's boot process is secured, but it is not a method to restrict access to the motherboard's software.

The error message "Configuring Memory..." and the fact that the server is stuck at this point strongly suggest that a DIMM (memory module) has failed. Memory issues are commonly diagnosed when servers hang during the memory configuration phase of boot.

DIMM failure (Answer A): When a memory module fails, the server can get stuck at the memory initialization process during boot.

VRAM insufficiency (Option B): VRAM (video memory) issues would typically cause display-related errors, not memory configuration issues.

RAID cache failure (Option C): RAID cache issues would lead to storage errors but not prevent the system from configuring memory.

BIOS update (Option D): While BIOS issues can cause boot failures, the error message suggests a memory-specific issue.

CompTIA Server+ Reference:This topic relates to SK0-005 Objective 3.3: Diagnose hardware problems.

A business impact analysis (BIA) is a document that outlines the potential effects of downtime on business operations. It identifies critical business functions and estimates the impact of disruption on the organization's ability to function.

Business impact analysis (Answer D): This document is specifically designed to assess the consequences of downtime and other disruptions.

Service-level agreement (Option A): Defines the expected level of service between a provider and a client but doesn't directly explain downtime consequences.

Business continuity plan (Option B): Outlines how the business will continue operating during a disruption but doesn’t focus solely on the consequences of downtime.

Disaster recovery plan (Option C): Focuses on restoring systems after a disaster but doesn’t outline the specific impact of downtime.

CompTIA Server+ Reference:This topic relates to SK0-005 Objective 4.1: Explain disaster recovery concepts.

Overprovisioning refers to allocating more resources (e.g., CPU, memory) to virtual machines on a hypervisor than the physical host actually has available. This is done because not all virtual machines are likely to use their maximum resources simultaneously. Overprovisioning helps optimize resource utilization on a hypervisor but must be managed carefully to avoid performance degradation.

Overprovisioning (Answer B): It allows for more efficient use of resources, but overcommitting too much can lead to performance issues.

Direct access (Option A): Refers to direct hardware access, which is unrelated to resource allocation.

Link aggregation (Option C): Refers to combining multiple network connections, unrelated to hypervisor resources.

Component redundancy (Option D): Refers to using backup components for fault tolerance, not related to overprovisioning.

Scalability (Option E): Refers to the ability to increase or decrease resources as needed but doesn't describe overcommitting resources.

CompTIA Server+ Reference:This topic is covered under SK0-005 Objective 1.3: Explain virtualization concepts and benefits.

When new RAID controllers are installed and disks go missing, the first logical step is to reboot to the RAID controller BIOS and rescan for attached disks and arrays (Answer A). This will allow the RAID controller to detect the connected drives and rebuild the RAID configuration as expected.

Rebooting to RAID controller BIOS (Answer A): This step ensures that all the attached disks and arrays are properly detected and mapped to the RAID configuration.

Checking UEFI settings (Option B): This might be useful later, but initially, the RAID controller BIOS should be checked first to verify disk detection.

Turning off external arrays (Option C): While this could be helpful in some scenarios, it's not the most efficient first step.

Checking cables (Option D): This could be necessary, but since the controllers were just replaced, software/BIOS configurations should be checked first.

CompTIA Server+ Reference:This topic relates to SK0-005 Objective 3.1: Install and configure server components.

A backdoor is a security risk that provides unauthorized access to an application. A backdoor is a hidden or undocumented way of bypassing the normal authentication or encryption mechanisms of an application, allowing an attacker to gain remote access, execute commands, or steal data. A backdoor can be created intentionally by the developer, maliciously by an attacker, or unintentionally by a programming error. References: CompTIA Server+ Certification Exam Objectives, Domain 5.0: Security, Objective 5.2: Given a scenario, apply logical access control methods.

The given output in the image indicates that the file is present, but the permissions may not allow it to be read. The output indicates '-rw-------', which means that the file is set to be readable and writable by the owner only, with no permissions for group or others. To allow the file to be read by users other than the owner, the file's permissions will need to be changed. The chmod (change mode) command is used to change the file's permissions in Linux. For example, chmod 644 file would change the permissions of the file to be readable by everyone and writable by the owner, which is typically what's required for a file server. It is always recommended to apply the least permissive settings that still allow the required operation to maintain security.

The # symbol is used to write a text description per line within a PowerShell script. A text description is also known as a comment, which is a line of code that is ignored by the PowerShell interpreter and serves as documentation or explanation for human readers. The # symbol indicates that everything following it on the same line is a comment and not part of the script commands or expressions. For example:

This is a comment in PowerShell

Write-Host “Hello World” # This command prints Hello World to the console

References: CompTIA Server+ Certification Exam Objectives, Domain 6.0: Troubleshooting, Objective 6.3: Given a scenario, troubleshoot scripting errors using PowerShell commands.

A CMOS battery failure can cause the server to lose its BIOS settings, including the date and time, which can affect the server’s functionality and connectivity. The servers have NTP (Network Time Protocol) configured to synchronize their clocks with a reliable time source, which can prevent time drift and ensure consistent timestamps. If one server has a wrong date and time, it can cause conflicts and errors with the other servers that have NTP configured.

References:

CompTIA Server+ Certification Exam Objectives1, page 9

Signs or symptoms of a CMOS battery failure2

NTP: Network Time Protocol

Load balancing is a technique used to distribute workloads evenly across multiple servers, ensuring no single server is overwhelmed. This is especially important in environments where high availability and reliability are critical, such as when multiple servers are serving the same website. By doing so, load balancing improves the responsiveness and availability of applications or websites.

Load balancing refers to the process of distributing network or application traffic across multiple servers to ensure no single server becomes overwhelmed, thereby improving responsiveness and availability of applications or websites. In the scenario described, where four servers are set up to each serve the same website, the concept of load balancing is applied. This setup aims to distribute incoming requests evenly among the servers to maximize speed and capacity utilization while ensuring no one server is overburdened, which can lead to improved overall performance of the website. Options B, C, and D do not accurately describe the scenario of distributing traffic for the same website across multiple servers.

Port 22 is used for SSH (Secure Shell), which is a secure and encrypted protocol for remote access to a server. Port 23 is used for Telnet, which is an insecure and unencrypted protocol for remote access. Port 990 is used for FTPS (File Transfer Protocol Secure), which is a secure and encrypted protocol for file transfer. The administrator should open port 22 and close port 23 to enable SSH and disable Telnet, as SSH is more secure and reliable than Telnet. The administrator does not need to open port 990, as FTPS is not required for making configuration changes123.

References = 1: Remote Desktop - Allow access to your PC from outside your network(https://learn.microsoft.com/en-us/windows-server/remote/remote-desktop-services/clients/remote-desktop-allow-outside-access) 2: Test remote network port connection in Windows 10 - Winaero(https://winaero.com/test-remote-network-port-connection-in-windows-10/) 3: Windows Command to check if a remote server port is opened?(https://superuser.com/questions/1035018/windows-command-to-check-if-a-remote-server-port-is-opened)

To free up storage space on a SAN with minimal effort and no additional cost, the following methods can be used:

Configuring compression (Answer A): Compression reduces the size of files stored on the SAN, allowing more data to be stored in the same space.

Enabling deduplication (Answer E): Deduplication identifies and removes duplicate copies of data, reducing the amount of space required for storage.

Deleting old and unused files (Option B): While effective, this requires manual effort and may not be the best long-term solution.

Increasing the number of IOPS (Option C): This relates to improving performance, not reducing storage space.

Decreasing the RAID level (Option D): Lowering the RAID level could reduce redundancy, which may free up space but also decreases fault tolerance.

Upgrading the filesystem type (Option F): This is a complex process that doesn’t directly reduce storage usage.

CompTIA Server+ Reference:This topic is covered under SK0-005 Objective 3.2: Summarize storage technologies and solutions.

The step that the server administrator should perform before resolving the issue is to determine the probable causes. This step is part of the troubleshooting process that follows a logical and systematic approach to identify and solve problems with servers and applications. The troubleshooting process consists of several steps, such as:

Identify the problem: Gather information from various sources, such as users, logs, or alerts, to understand the symptoms and scope of the problem.

Establish a theory of probable cause: Analyze the information and formulate one or more possible causes of the problem based on evidence or experience.

Test the theory to determine cause: Perform tests or experiments to verify or eliminate each possible cause until the root cause is found.

Establish a plan of action to resolve the problem and implement the solution: Design and execute a plan to fix the problem using appropriate tools and techniques.

Verify full system functionality and implement preventive measures: Confirm that the problem is resolved and that no other issues arise as a result of the solution. Implement preventive measures to avoid recurrence of the problem or improve performance.

Document findings, actions, and outcomes: Record the details of the problem, its cause, its solution, and its outcome for future reference or knowledge sharing. References: [CompTIA Server+ Certification Exam Objectives], Domain 6.0: Troubleshooting, Objective 6.1: Given a scenario involving server hardware issues (e.g., power supply failure), troubleshoot using appropriate tools.

The storage type that will yield the fastest database read performance is SSD. SSD (Solid State Drive) is a type of storage device that uses flash memory to store data. SSDs have no moving parts and can access data faster than traditional hard disk drives (HDDs) that use spinning platters and magnetic heads. SSDs are especially suitable for databases that are mainly used for archival lookups, as they can provide faster response times and lower latency for read operations.

References: CompTIA Server+ SK0-005 Certification Study Guide, Chapter 1, Lesson 1.2, Objective 1.2

A microSD card is the best method to stage the new media for the default boot device of a remote embedded IoT server that is having a Linux OS upgrade installed. A microSD card is a small and portable storage device that can store large amounts of data. It can be easily inserted into the slot of an embedded IoT server, which is a small and low-power device that performs specific tasks and connects to other devices over a network. A microSD card can also be formatted with different file systems, such as FAT32 or ext4, which are compatible with Linux OS. References: CompTIA Server+ Certification Exam Objectives, Domain 4.0: Networking, Objective 4.3: Given a scenario, configure servers for IoT applications.

The administrator is attempting to establish the recovery point objective (RPO) by determining how frequently backups need to be performed on an application server. RPO is a metric that defines how much data can be lost or how far back in time a recovery can go in case of a disaster or disruption, based on the business requirements and impact analysis of an organization or system. RPO is measured by the time interval between backups or snapshots of data, such as hourly, daily, weekly, etc., depending on how critical or sensitive the data is and how often it changes or updates. References: [CompTIA Server+ Certification Exam Objectives], Domain 5.0: Security, Objective 5.3: Given a scenario, explain methods and techniques to secure data.

Leaving a USB drive in a company parking lot is a classic example of social engineering, where the bad actor relies on human curiosity to prompt someone to pick up the USB drive and insert it into their computer, potentially infecting the system with malicious code.

Social engineering (Answer D): The attacker manipulates human behavior (in this case, curiosity) to exploit security weaknesses.

Hacking (Option A): Hacking refers to directly breaching security systems or exploiting software vulnerabilities, not manipulating humans.

Insider threat (Option B): This involves a legitimate insider within the organization carrying out malicious activities, which isn’t the case here.

Phishing (Option C): Phishing typically involves emails or messages designed to deceive individuals into providing sensitive information.

CompTIA Server+ Reference:This topic is covered under SK0-005 Objective 4.2: Explain server security concepts and best practices.

Scenario: Installing Windows on an 8TB drive, aiming for a single 8TB partition.

Solution: Use the GPT (GUID Partition Table) option (Option C):

GPT supports larger partitions (up to 18.4 million TB) compared to MBR (limited to 2TB).

VMFS, ZFS, and LVM are unrelated to the partitioning scheme in Windows.

An access control vestibule is a physical security concept that limits personnel access to a restricted area within a data center. It is a small room or hallway that has two doors: one that leads to the outside and one that leads to the restricted area. The doors are controlled by an electronic lock that requires authentication, such as a card reader, biometric scanner, or keypad. Only authorized personnel can enter the vestibule and access the restricted area. References: CompTIA Server+ Certification Exam Objectives, Domain 5.0: Security, Objective 5.1: Given a scenario, apply physical security methods to a server.

Port 21 is used for FTP (File Transfer Protocol), which is a protocol that transfers files between servers and clients in cleartext, meaning that anyone can intercept and read the data. To stop this communication, port 21 should be closed on the web server and replaced with a secure protocol, such as SFTP (Secure File Transfer Protocol) or FTPS (File Transfer Protocol Secure), which use encryption to protect the data. Verified References: [FTP vs SFTP vs FTPS]

This is the most secure method to access servers located in remote branch offices because MFA stands for multi-factor authentication, which requires users to provide more than one piece of evidence to prove their identity. An out-of-band solution means that one of the factors is delivered through a separate channel, such as a phone call, a text message, or an email. This adds an extra layer of security and prevents unauthorized access even if a password is compromised. References: https://docs.microsoft.co m/en-us/azure/active-directory/authentication/concept-mfa-howitworks

Wiping the drives is the most appropriate step to recycle and reuse the system drives. Wiping the drives means erasing all the data on the drives and overwriting them with random or meaningless data. This can help prevent data leakage, comply with regulations, and prepare the drives for a new installation or configuration. Wiping the drives is different from deleting or formatting the drives, which only remove the references to the data but not the data itself. References: https://www.comptia.org/training/resources/exam-objectives/comptia-server-sk0-005-exam-objectives (Objective 1.3)

A rack layout is a document that shows the physical location and arrangement of servers and other devices within a rack. It can include information such as server names, IP addresses, power consumption, and cable connections. A rack layout can help identify and locate servers easily and efficiently in a data center. Verified References: [Rack layout], [Data center]

RTO (Recovery Time Objective) is a metric that measures how much downtime an organization can tolerate during an unplanned outage before it affects its business continuity and reputation. RTO is usually expressed in hours or minutes and is determined by the criticality of the business processes and the impact of the outage on the revenue, customers, and stakeholders. RTO helps to define the recovery strategy and the resources needed to restore the normal operations as quickly as possible. Verified References: [RTO vs RPO]

A SD card is a type of flash memory card that can be used to store data and run applications. A SD card can be used to install a Type 1 hypervisor on a server, as it provides fast boot time, low power consumption, and high reliability. A Type 1 hypervisor runs directly on the underlying computer’s physical hardware, interacting directly with its CPU, memory, and physical storage. For this reason, Type 1 hypervisors are also referred to as bare-metal hypervisors. A Type 1 hypervisor takes the place of a host operating system and VM resources are scheduled directly to the hardware by the hypervisor123. A NAS drive (B) is a type of network-attached storage (NAS) device that provides shared access to files and data over a network. A NAS drive cannot be used to install a Type 1 hypervisor on a server, as it requires a network connection and a host operating system to function. A SATA drive © is a type of hard disk drive (HDD) or solid state drive (SSD) that uses the Serial ATA (SATA) interface to connect to a computer. A SATA drive can be used to install a Type 1 hypervisor on a server, but it may have some disadvantages compared to a SD card, such as slower boot time, higher power consumption, and lower reliability. A SAS drive (D) is a type of hard disk drive (HDD) or solid state drive (SSD) that uses the Serial Attached SCSI (SAS) interface to connect to a computer. A SAS drive can also be used to install a Type 1 hypervisor on a server, but it may have similar disadvantages as a SATA drive, and it may also be more expensive and less compatible than a SD card. References: 1 https://phoenixnap.com/kb/what-is-hypervisor-type-1-2  2 https://www.ibm. com/topics/hypervisors 3 https://www.redhat.com/en/topics/virtualization/what-is-a-hypervisor

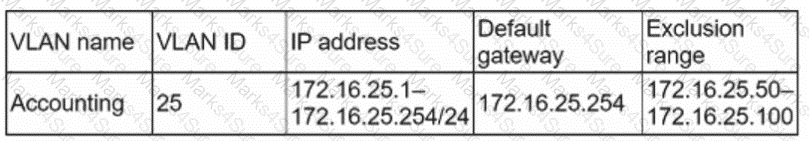

The most likely cause of the internet issue is B. The DHCP scope is full.

A DHCP scope is a range of IP addresses that a DHCP server can assign to DHCP clients on a network. A DHCP scope has a start address and an end address, and it can also have some excluded addresses that are not available for lease. A DHCP scope can have various options, such as subnet mask, default gateway, DNS server, etc., that are applied to the DHCP clients along with the IP address. A DHCP scope also has a lease time, which is the duration that a DHCP client can use an IP address before renewing it or releasing it. A DHCP scope can have reservations, which are fixed IP addresses that are assigned to specific DHCP clients based on their MAC addresses12

If a DHCP scope is full, it means that there are no more IP addresses available for lease in the scope. This can happen if the number of DHCP clients exceeds the number of IP addresses in the scope, or if the lease time is too long and the IP addresses are not released or reused frequently enough. If a DHCP scope is full, any new or existing DHCP clients that request an IP address from the DHCP server will not receive one, and they will not be able to access the network or the internet12

In this scenario, users are able to connect to the wireless network, but they are unable to access the internet. The network administrator verifies connectivity to all network devices, and there are no ISP outages. The server administrator removes the old address leases from the active leases pool, which allows users to access the internet. This indicates that the DHCP scope is full, and that removing the old leases frees up some IP addresses for lease in the scope. Therefore, option B is the most likely cause of the internet issue.
